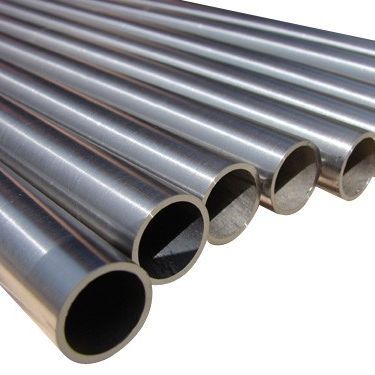

gr2 titanium welded pipe price
- $20.00 /kilogram
- 1 kilogram
- Xiamen Jinlaien Metal Technology Co., Ltd.
- Fujian, China
- Ms Evelyn Xu
| technology: | Welding | surface: | polishing |
| Minimum order quantity: | 1KG | Supply capacity: | 100000 kg per month |
| Delivery dates: | 3-7 days | brand: | JLE |
| the inside diameter of: | 2~500mm | Processing service: | Bending, cutting, punching |
| Packaging Preview: | Material: | Pure Titanium, Gr2 | |
| technology: | Cold Rolled/Hot Rolled | Outer diameter: | 3~508mm |
| standard: | ASTM B338, ASTM Standard B338 | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal |
| Chamber wall thickness: | 0.1~20mm | port: | Shanghai or Xiamen |
| model: | Gr2 | Pay: | T/TL/C PayPal Western Union, etc. |
| grade: | Gr2 | application: | industry |
| shape: | custom made | size: | Customization |
| Packaging Details: | Wooden case, normal packing or as customer's request | Package: | wooden box |
| place of origin; place of origin: | Fujian China | length: | 1-14000mm |
gr2 titanium welded pipe price
product name | Titanium Tube/Tube/Tube/Tube/Tube |
standard | ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862, AMS4911, AMS4928 |
Material | Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc. |
length | ≤14000mm |
Dimensions (mm) | Diameter 3-508 |
Section shape | round/square |
Certification | ISO9001 |
surface treatment | Pickling, polishing, brightening, etc. |
feature | 1. Low density and high strength 6. Good thermal performance 7. Low elastic modulus |
chemical composition
grade | n | C | H | iron | ○ | aluminum | five | Pa | Mo | you | titanium |
Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Barr |
Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Barr |
Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Barr |
Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / |
|
Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | Barr |
Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | Barr |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | Barr |
Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | Barr |
stretch requirement
grade | Tensile Strength(min) | Yield Strength(min) | elongation(%) | ||
Kersey | MPa | Kersey | MPa | ||
Gr1 | 35 | 240 | 20 | 138 | twenty four |
Gr2 | 50 | 345 | 40 | 275 | 20 |
Gr3 | 65 | 450 | 55 | 380 | 18 |
Gr4 | 80 | 550 | 70 | 483 | 15 |
Gr5 | 130 | 895 | 120 | 828 | 10 |
