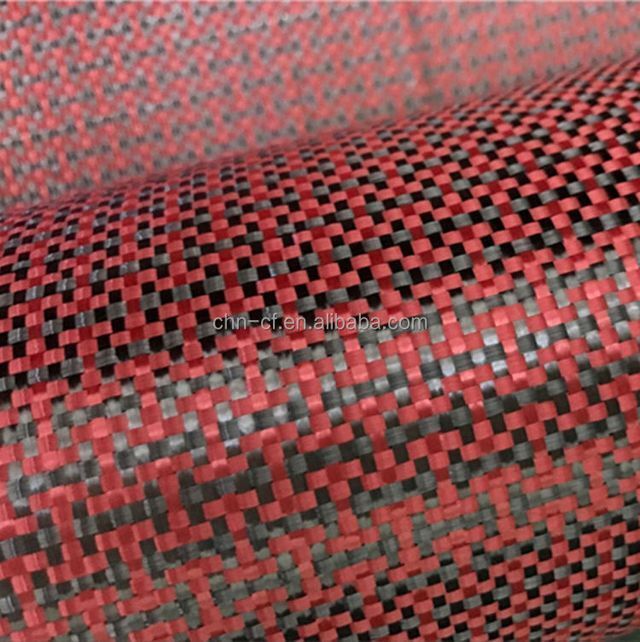

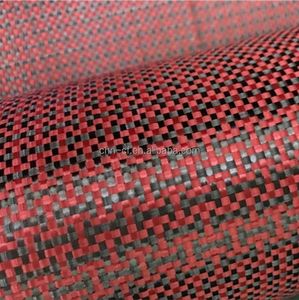

high quality carbon fiber cloth,190q/ sq.m Plain (both fibers in both directions) 3k carbon-kevlar hybrid fabric (Black_Red)
- $0.50 / >=50 square meters
- 50 square meters
- CHN Carbon Fiber Technology Co., Ltd.
- Guangdong, China
- Ms Lucy Li
| Place of Origin: | Jiangsu, China; | Product Type: | Carbon Fiber Fabric; |
| Width Range: | 100~1500mm; | Supply Type: | Make-to-Order; |
| Delivery Detail: | upon your order quantity; | Packaging Detail: | Inside by rolls, Outside Carton package,with sponge and Plastic Packing protection.; |
| Application: | Bag, Industry, helment,reinforcement,decoration; | Std. Width: | 1000mm; |
| Thickness: | 0.20mm; | Brand Name: | UNITE; |
| Tow Size: | 3k, Kevlar 1500D; | Supply Ability: | 150000 Square Meters per Year; |
| Model Number: | CKP031500190_R2, Lucy; | Use: | Bag,Industry,Aerospace, helment, reinforcement, decoration and so on; |
| Weight: | 190g,190g/sq.m, 5.6oz/sq.yd; | Material: | 100% Carbon Fiber; |
| Tow Count/CM: | 5*5; | Style: | Jacquard; |
| Port: | shanghai; | Payment Terms: | T/T,Western Union,Paypal; |
| Feature: | Abrasion-Resistant,Heat-Insulation,Waterproof,high strength,light weight; |

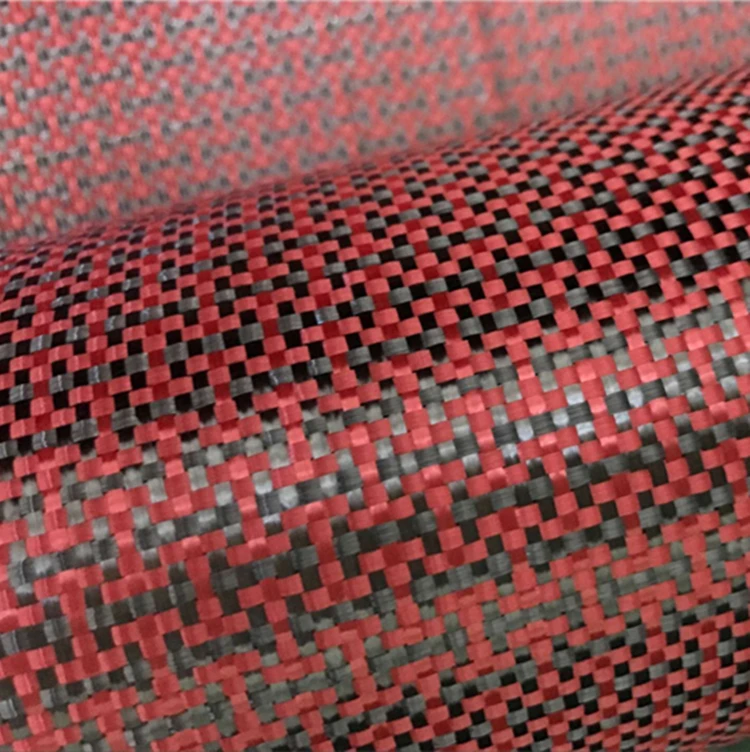

high quality carbon fiber cloth,190q/ sq.m Plain (both fibers in both directions) 3k carbon-kevlar hybrid fabric (Black_Red)
CCFT are More concentrate on the carbon fiber weaving and application
More even lines
Unique automatic let-off device developed by CCFT makes the carbon fiber cloth tension uniform and cloth texture even
Shaping technology
CCFT has carbon cloth shaping technology and the shaping carbon cloth can make sure that silk will not fall when being cut and distorted angles can avoid being out of shape as well.
Gloss and lint-free
CCFT carbon cloth selects raw materials with high quality carbon fiber, the cloth surface is black, gloss and lint-free.
Full range of series of cloth woven by carbon fiber
3K Kevlar 1500D Carbon_Kevlar Hybrid Fabric is made by top quality T300 carbon fibre and high quality Kevlar 1500d.
Hybrid Fabrics are woven by More than two kinds of different fibres materials (Carbon fiber, Aramid fiber, Fiberglass,Basalt fiber and other composite materials), which have the great performance of composite materials in impact strength, rigidity and tensile strength. Hybrid Fabircs have extensive applications, such as automotive engineering, motor sports, the fashionable decorations, aircraft construction, ship construction, sports equipments, electronic products and other applications.CCF can provide all kinds of colors and high performance Hybrid Fabrics with aesthetic design and woven technology.
And we can supply custom Width,weave,thickness,weight according to what customer want.
Please do not hesite to tell us what you want.
Here is the Spec. for your information.
| Part No. | Tow Size | Fiber Color | Tow Count/CM | Weave Style | Width Range (mm) | FAW (g/sq.m) | ||
| Warp | Weft | Warp | Weft | |||||
| CKP031500195_Y1 | 3K | Kevlar1500 | Black | Yellow | 5 x 5 | Plain | 100~1500 | 195 |
| CKP031500195_Y2 | 3K+Kevlar1500 | 3K+Kevlar1500 | Black+Yellow | Black+Yellow | 5 x 5 | Plain | 100~1500 | 195 |
| CKT031500195_Y | 3K | Kevlar1500 | Black | Yellow | 5 x 5 | Twill | 100~1500 | 195 |
| CKP031500195_R1 | 3K | Kevlar1500 | Black | Red | 5 x 5 | Plain | 100~1500 | 195 |
| CKP031500195_R2 | 3K+Kevlar1500 | 3K+Kevlar1500 | Black+Red | Black+Red | 5 x 5 | Plain | 100~1500 | 195 |
| CKT031500195_R | 3K | Kevlar1500 | Black | Red | 5 x 5 | Twill | 100~1500 | 195 |
| CKP031500195_O1 | 3K | Kevlar1500 | Black | Orange | 5 x 5 | Plain | 100~1500 | 195 |
| CKP031500195_O2 | 3K+Kevlar1500 | 3K+Kevlar1500 | Black+Orange | Black+Orange | 5 x 5 | Plain | 100~1500 | 195 |
| CKT031500195_O | 3K | Kevlar1500 | Black | Orange | 5 x 5 | Twill | 100~1500 | 195 |
| CKP031500195-B1 | 3K | Kevlar1500 | Black | Blue | 5 x 5 | Plain | 100~1500 | 195 |
| CKP031500195-B2 | 3K+Kevlar1500 | 3K+Kevlar1500 | Black_Blue | Black_Blue | 5 x 5 | Plain | 100~1500 | 195 |
| CKT031500195_B | 3K | Kevlar1500 | Black | Blue | 5 x 5 | Twill | 100~1500 | 195 |
| Item | Part No. | Desc. | Spec. |
| 1 | BGJ410_BW_A&B&C&D | 410g Jacquard Black Basalt_White glassfiber fabric (Black_White) | Density: 6.5*6.5/cm,410g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 2 | BJ430_BG_A&B&C&D | 430g Jacquard Black Basalt_Dark Green Basalt fabrics | Density: 6.5*6.5/cm,430g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 3 | BKJ325_BY_A&B&C&D | 325g Jacquard Black Basalt_Kevlar fabrics (Black_Yellow) | Density: 6.5*6.5/cm,325g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 4 | CGJ03325_BW_A&B&C&D | 325g Jacquard 3k Carbon fiber_ Fiberglass (Black_White) | Density: 6.5*6.5/cm,325g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 5 | CBJ03345_BB_A&B&C&D | 345g Jacquard 3k Carbon fiber_Black Basalt fabric | Density: 6.5*6.5/cm,345g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 6 | CBJ03345_BG_A&B&C&D | 345g Jacquard 3k Carbon fiber_ Basalt fabric (Black_Dark Green) | Density: 6.5*6.5/cm,345g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 7 | BKJ325_BR&BB&BO_A&B&C&D | 325g Jacquard Black Basalt_Colorize Kevlar fabrics (Black_Red & Black_Blue & Black_Orange) | Density: 6.5*6.5/cm,325g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 8 | CKJ03240_BY_A&B&C&D | 3K 240g Jacquard Carbon fiber_Kevlar fabrics (Black_Yellow) | Density: 6.5*6.5/cm, 240g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 9 | CKJ03240_BR&BB&BO_A&B&C&D | 3K 240g Jacquard Carbon fiber_Colorize Kevlar fabrics (Black_Red & Black_Blue & Black_Orange) | Density: 6.5*6.5/cm, 240g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 10 | CJ03260_A&B&C&D | 3K 260g Jacquard Carbon Fiber fabrics | Density: 6.5*6.5/cm, 260g/ Sq.m, Jacquard weave, A, B, C,D Weave patterns, Width: 1 meter |
| 11 | CJ03240_H | 3K 240g Jacquard Carbon Fiber fabrics | Density: 6*6/cm, 240g/ Sq.m, Jacquard weave, hexagon Weave pattern, Width: 1 meter |
| 12 | CJ03240_W | 3K 240g Jacquard Carbon Fiber fabrics | Density: 6*6/cm, 240g/ Sq.m, Jacquard weave, W Weave pattern, Width: 1 meter |
| Part No. | Tow Size | Tow Count/CM | Weave Style | Width Range (mm) | Std. Width (mm) | Thickness (mm) | FAW (g/sq.m) | FAW (oz/sq.yd) |
| CP03160 | 3K | 4 x 4 | Plain | 100~1500 | 1000 | 0.16 | 160 | 4.72 |
| CT03160 | 3K | 4 x 4 | 2x2 Twill | 100~1500 | 1000 | 0.16 | 160 | 4.72 |
| CP03180 | 3K | 4.5 x 4.5 | Plain | 100~1500 | 1000 | 0.18 | 180 | 5.31 |
| CT03180 | 3K | 4.5 x 4.5 | 2x2 Twill | 100~1500 | 1000 | 0.18 | 180 | 5.31 |
| CP03200 | 3K | 5 x 5 | Plain | 100~1500 | 1000 | 0.2 | 200 | 5.90 |
| CT03200 | 3K | 5 x 5 | 2x2 Twill | 100~1500 | 1000 | 0.2 | 200 | 5.90 |
| CP03220 | 3K | 5.5 x 5.5 | Plain | 100~1500 | 1000 | 0.22 | 220 | 6.49 |
| CT03220 | 3K | 5.5 x 5.5 | 2x2 Twill | 100~1500 | 1000 | 0.22 | 220 | 6.49 |
| CT03220 | 3K | 5.5 x 5.5 | 4x4 Twill | 100~1500 | 1000 | 0.22 | 220 | 6.49 |
| CP03240 | 3K | 6 x 6 | Plain | 100~1500 | 1000 | 0.24 | 240 | 7.08 |
| CT03240 | 3K | 6 x 6 | 2x2 Twill | 100~1500 | 1000 | 0.24 | 240 | 7.08 |
| CT03240 | 3K | 6 x 6 | 4x4 Twill | 100~1500 | 1000 | 0.24 | 240 | 7.08 |
| CP03280 | 3K | 7 x 7 | Plain | 100~1500 | 1000 | 0.28 | 280 | 8.26 |
| CT03280 | 3K | 7 x 7 | 2x2 Twill | 100~1500 | 1000 | 0.28 | 280 | 8.26 |
| CS03280 | 3K | 7 x 7 | 5H Satin | 100~1500 | 1000 | 0.28 | 280 | 8.26 |
| CS03380 | 3K | 9.5 x 9.5 | 8H Satin | 100~1500 | 1000 | 0.38 | 380 | 11.21 |
| CP06280 | 6K | 3.5 x 3.5 | Plain | 100~1500 | 1000 | 0.28 | 280 | 8.26 |
| CT06280 | 6K | 3.5 x 3.5 | 2x2 Twill | 100~1500 | 1000 | 0.28 | 280 | 8.26 |
| CP06320 | 6K | 4 x 4 | Plain | 100~1500 | 1000 | 0.32 | 320 | 9.44 |
| CT06320 | 6K | 4 x 4 | 2x2 Twill | 100~1500 | 1000 | 0.32 | 320 | 9.44 |
| CP06360 | 6K | 4.5 x 4.5 | Plain | 100~1500 | 1000 | 0.36 | 360 | 10.62 |
| CT06360 | 6K | 4.5 x 4.5 | 2x2 Twill | 100~1500 | 1000 | 0.36 | 360 | 10.62 |
| CP06400 | 6K | 5 x 5 | Plain | 100~1500 | 1000 | 0.4 | 400 | 11.80 |
| CT06400 | 6K | 5 x 5 | 2x2 Twill | 100~1500 | 1000 | 0.4 | 400 | 11.80 |
| CP06480 | 6K | 6 x 6 | Plain | 100~1500 | 1000 | 0.48 | 480 | 14.16 |
| CT06480 | 6K | 6 x 6 | 2x2 Twill | 100~1500 | 1000 | 0.48 | 480 | 14.16 |
| CP06520 | 6K | 6 x 7 | Plain | 100~1500 | 1000 | 0.52 | 520 | 15.34 |
| CT06520 | 6K | 6 x 7 | 2x2 Twill | 100~1500 | 1000 | 0.52 | 520 | 15.34 |
| CP12320 | 12K | 2 x 2 | Plain | 100~1500 | 1000 | 0.32 | 320 | 9.44 |
| CT12320 | 12K | 2 x 2 | 2x2 Twill | 100~1500 | 1000 | 0.32 | 320 | 9.44 |
| CP12400 | 12K | 2.5 x 2.5 | Plain | 100~1500 | 1000 | 0.4 | 400 | 11.80 |
| CT12400 | 12K | 2.5 x 2.5 | 2x2 Twill | 100~1500 | 1000 | 0.4 | 400 | 11.80 |
| CP12480 | 12K | 3 x 3 | Plain | 100~1500 | 1000 | 0.48 | 480 | 14.16 |
| CT12480 | 12K | 3 x 3 | 2x2 Twill | 100~1500 | 1000 | 0.48 | 480 | 14.16 |
| CP12640 | 12K | 4 x 4 | Plain | 100~1500 | 1000 | 0.64 | 640 | 18.88 |
| CT12640 | 12K | 4 x 4 | 2x2 Twill | 100~1500 | 1000 | 0.64 | 640 | 18.88 |
| CU12200 | 12K | N/A | unidirectional | 100~1500 | 500 | 0.11 | 200 | 5.90 |
| CU12300 | 12K | N/A | unidirectional | 100~500 | 500 | 0.18 | 300 | 8.85 |
Carbon Fiber is high strength and extremely light weight. It is the most commonly used composite fabric with applications in all areas of industry, such as household applications, machines ,aerospace,spaceflight and other high-tech applications. CCF has super knitting technology and exact molding technics and equipments, so we can produce full Carbon series products to meet all kinds of process requirement on composite materials.
CCFT are specialized in manufacturing carbon products and can produce and supply Carbon fiber fabric, Carbon fiber woven sleeve, Carbon fiber / Aramid / Basalt / Fiberglass hybrid fabrics, Aramid fiber cloth, basalt fiber cloth and Carbon fiber reinforcement products (CFRP), such as Carbon fiber veneers, sheets, panels, tubes and Custom-made carbon fiber products.
Different weave patterns are as the following.
1, Plain Carbon Fiber Fabric
2, 2x2 Twill Carbon Fiber Fabric
3, 4X4 Twill carbon fiber fabric
4, 5H Satin Weave Carbon fiber fabric

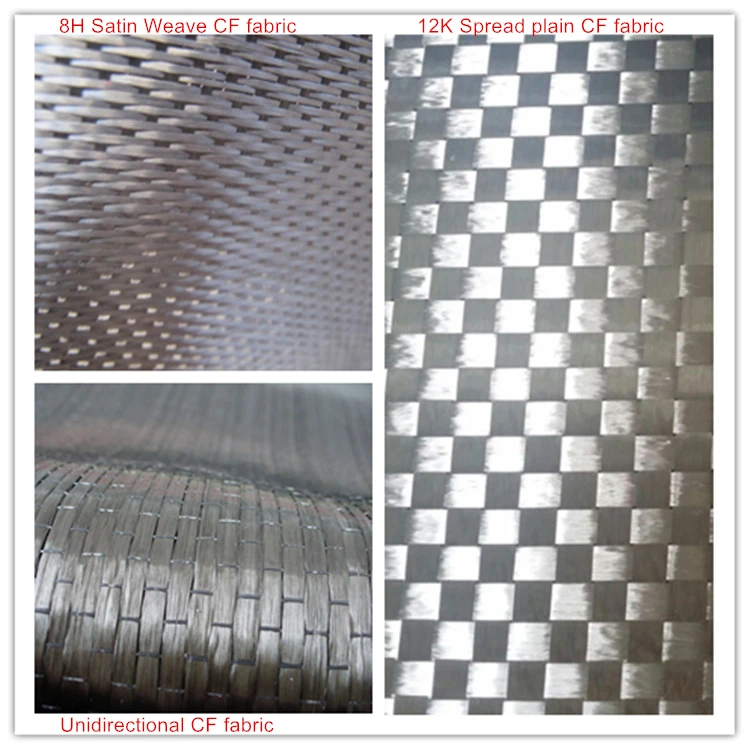

8H Satin Weave Carbon fiber fabric
Unidirectional Carbon Fiber fabric
Spread plain weave Carbon Fiber fabric

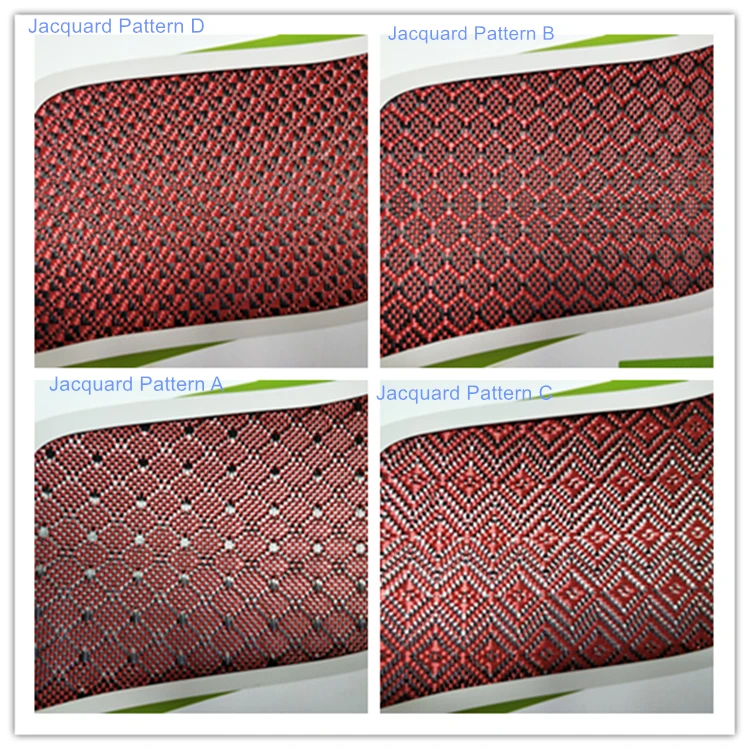

Pattern A Jacquard Weave Fabric
Pattern B Jacquard Weave Fabric
Pattern C Jacquard Weave Fabric
Pattern D Jacquard Weave Fabric

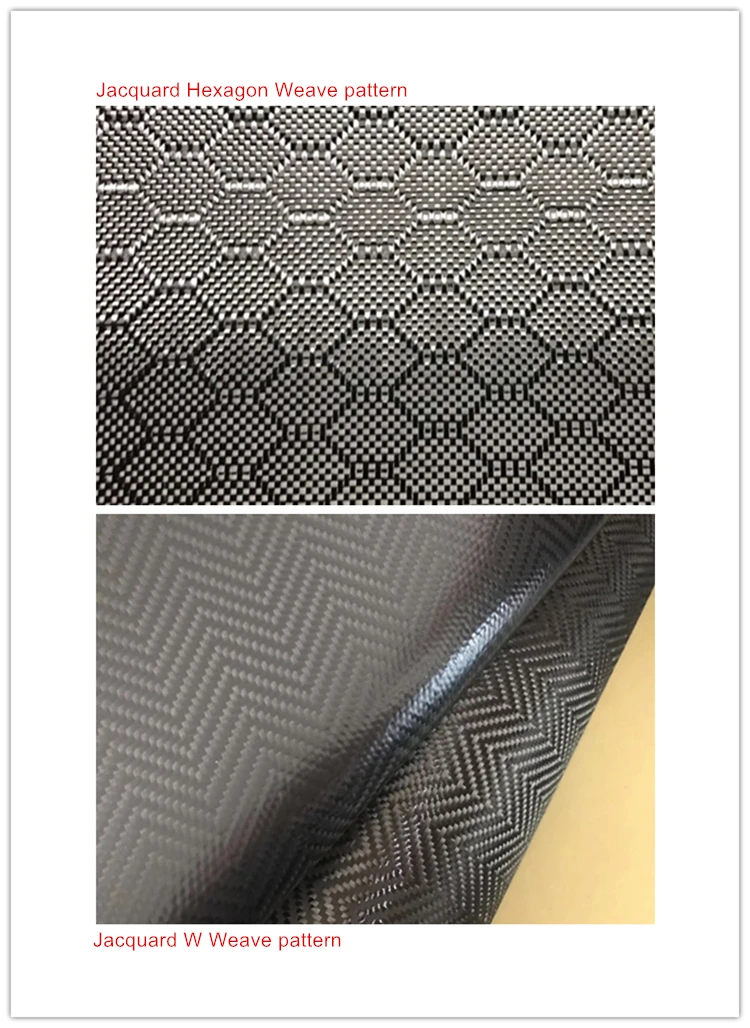

Hexagon Weave pattern Jacquard Carbon Fiber fabric
W Weave pattern Jacquard Carbon Fiber fabric

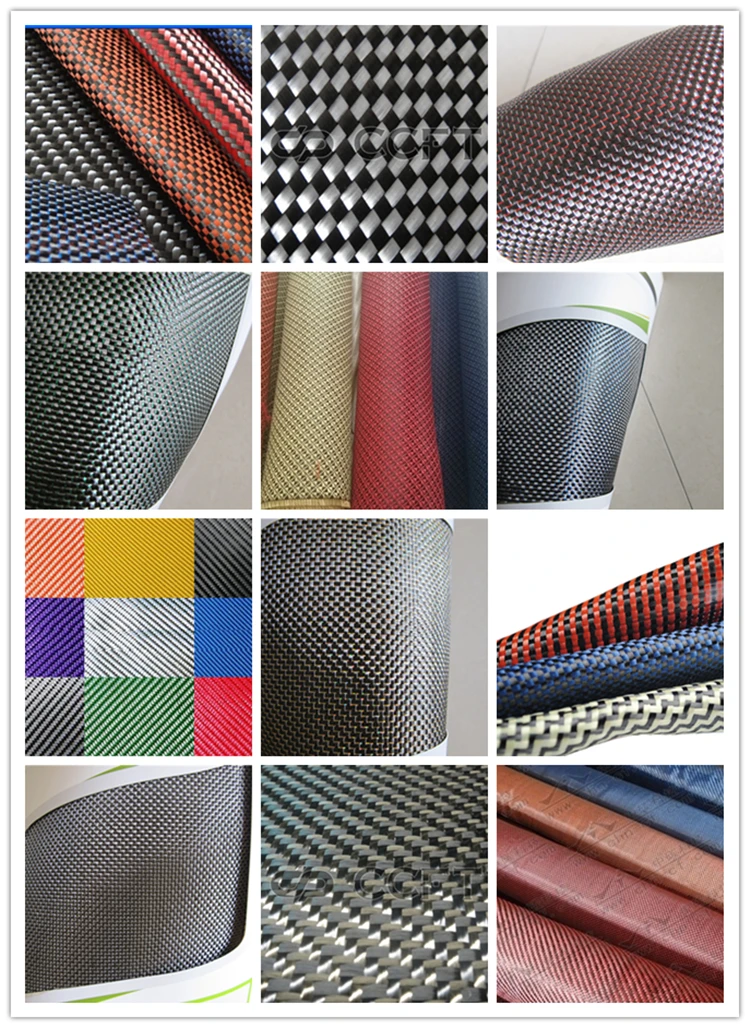

More fabrics
CCFT are specialized in manufacturing carbon products and can produce and supply Carbon fiber fabric, Carbon fiber woven sleeve, Carbon fiber / Aramid / Basalt / Fiberglass hybrid fabrics, Aramid fiber cloth, basalt fiber cloth and Carbon fiber reinforcement products (CFRP), such as Carbon fiber veneers, sheets, panels, tubes and Custom-made carbon fiber products.

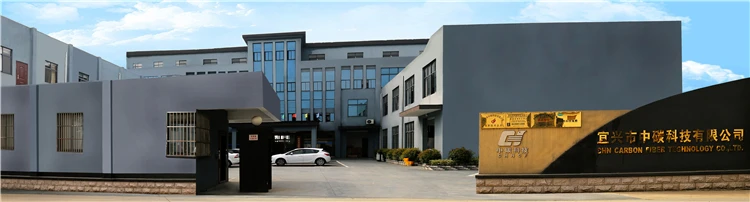

Welcome to visit our factory! :)

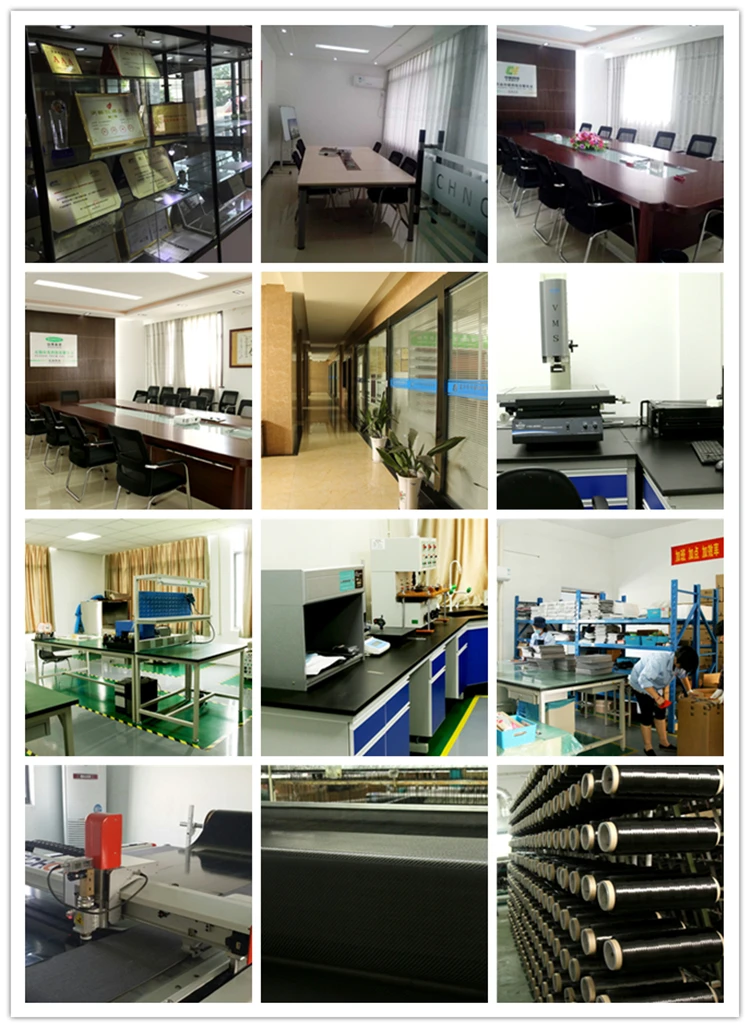

Our Certificate, invention Patents,new practical patents
Good Quality and Services, High Capacity, Timely delivery!
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1 ~ 2 weeks. For big qty, we will try our best to meet your schedule.
Q: Do you provide samples ?
A: Yes, we could offer the paid sample as your designed drawings.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% in advance ,balance before shipment.
