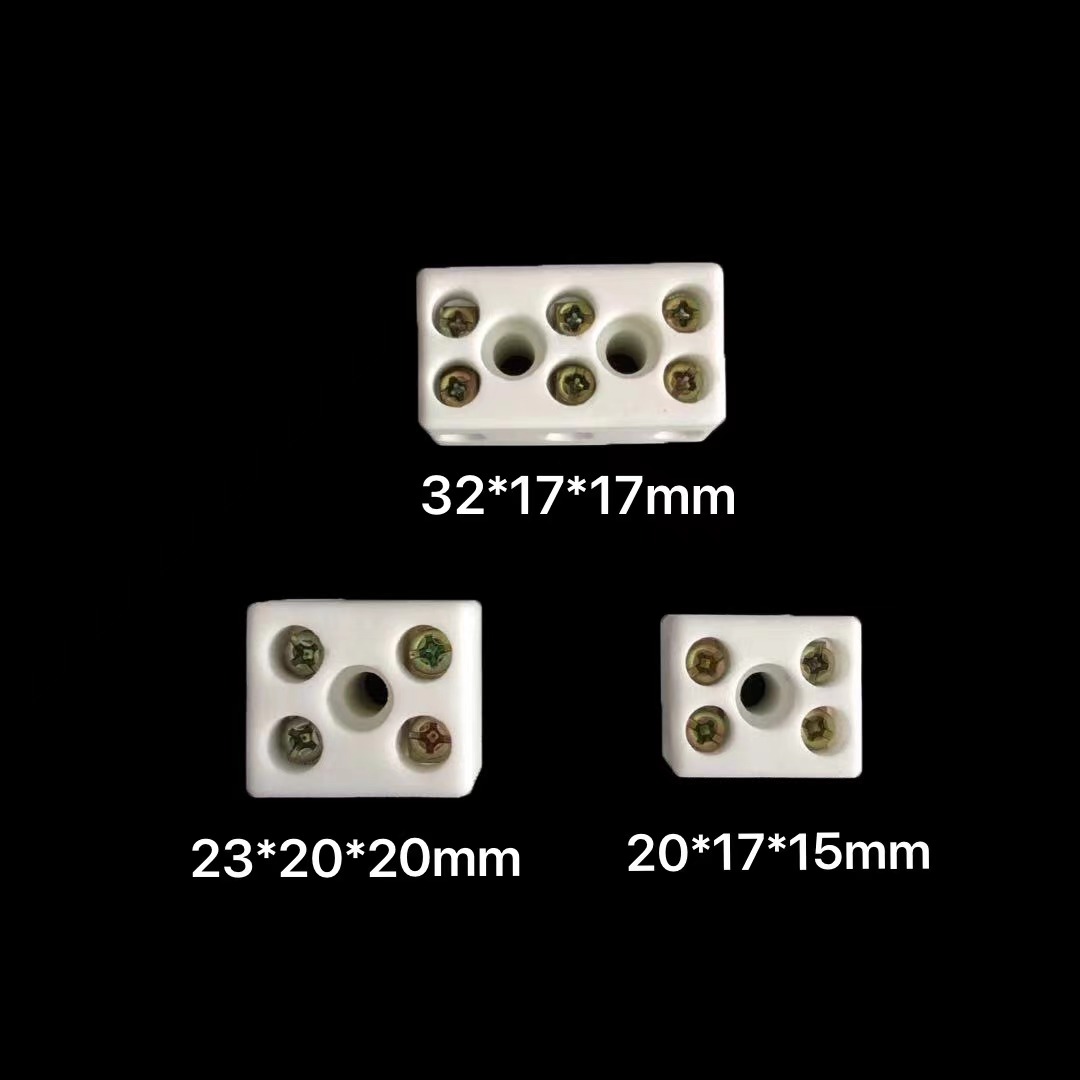

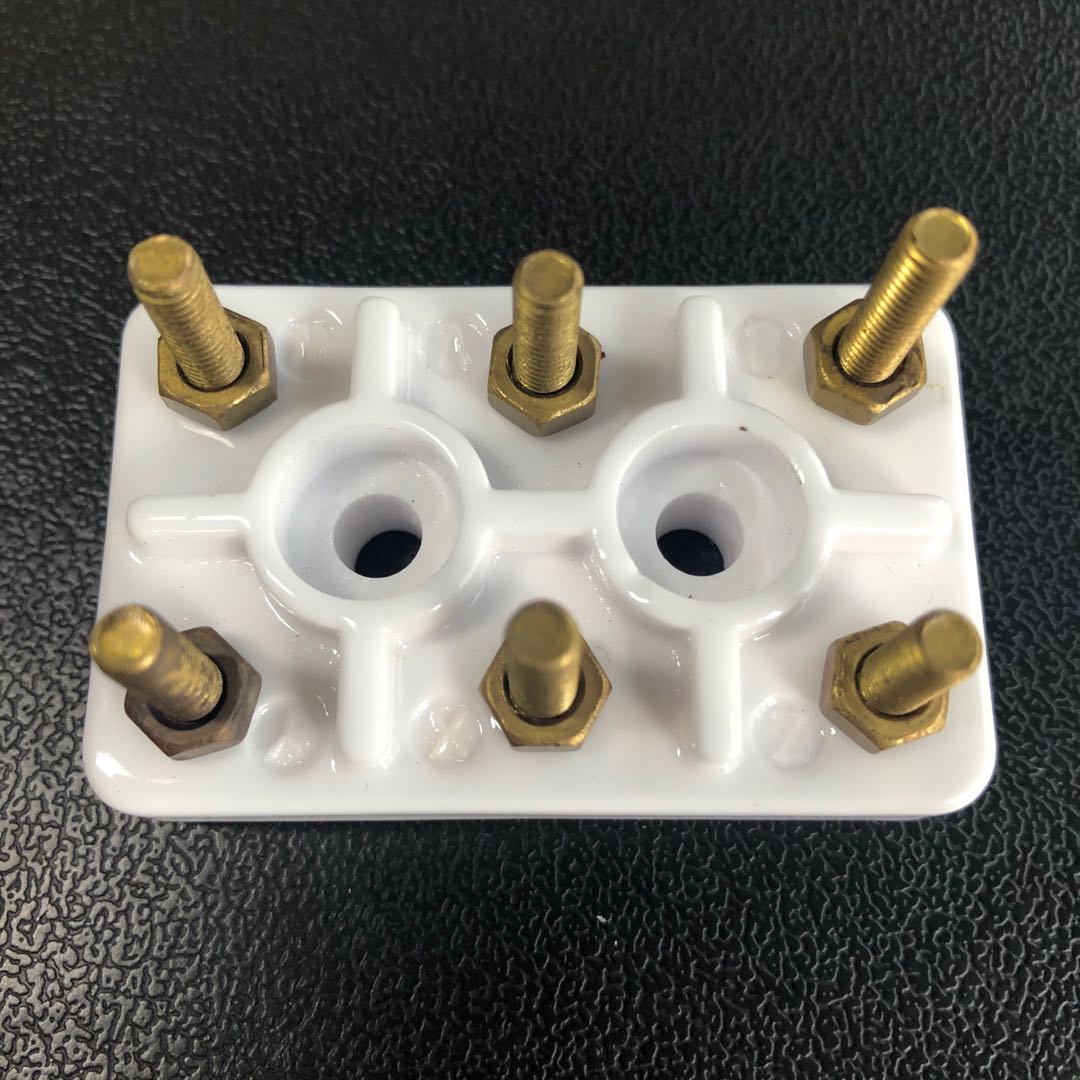

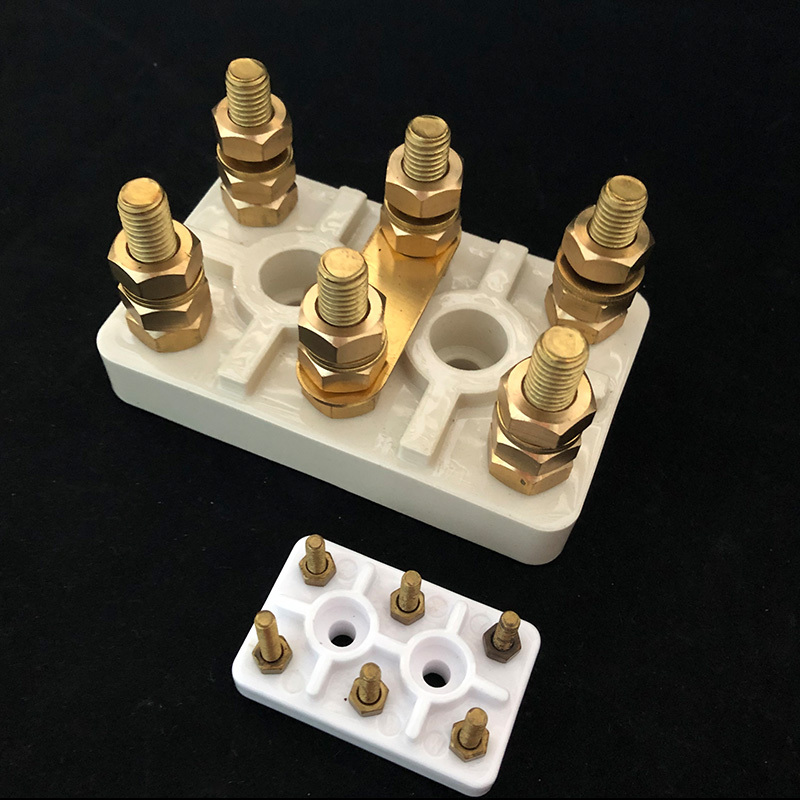

high temperature resistance Ceramic Wire Terminal Block Connector
- $0.10 / >=1000 pieces
- 1000 pieces
- Yixing Minghao Special Ceramic Technology Co., Ltd.
- Jiangsu, China
- Mr Yuqi Lu
PRODUCT DETAIL
| Number of Contacts: | 1 - 10; | Payment Terms: | L/C,Western Union,T/T,PayPal; |
| Temperatur: | 1100℃; | Application: | Connector; |
| Package Preview: | ; | Packaging Detail: | Use export carton which is secure against breakager on the pallet for high temperature resistance Ceramic Wire Terminal Block Connector; |
| OEM,ODM: | Accept; | Material: | steatite ceramic; |
| Certification: | ROHS; | Current: | 10A~30A; |
| Type: | plugin,Screw; | Color: | White; |
| Name: | Ceramic Wire Terminal Block Connector; | Supply Ability: | 100000 Pieces per Month; |
| Port: | Shanghai; | pole: | 3; |
| Brand Name: | MH; | Place of Origin: | Jiangsu, China; |
| Conductor Size: | 5 - 10 AWG; |
Specification
Name | Ceramic connector |
Material | Sreatite ceramic, alumina ceramic |
Size | Customized |
Color | White, Yellow |
Application | Electric heating, heat resistant |
Physical properties
ZTA | AI997 | AI950 | Steatite | Cordierite | Zirconia | |||
% Alumina | % | 70 | 99.7 | 95 | ||||
Density | g/cm3 | 4.3 | 3.9 | 3.6 | 2.8 | 2.5 | 6 | |
Porosity | % | 0 | 0 | 0 | 0 | 0 | 0 | |
Firing Temp | °C | 1600 | 1700 | 1680 | 1350 | 1350 | 1600 | |
Hardness | HV | 2000 | 1700 | 1500 | 800 | 800 | 1300 | |
Flexural Strength | Kgf/cm2 | 4500 | 3500 | 3000 | 900 | 900 | 11000 | |
Compressive Strength | Kgf/cm2 | 45000 | 30000 | 25000 | 4000 | 3500 | 25000 | |
Fracture Toughness | MPa/m | 5-6 | 4 | 3-4 | - | - | 6-8 | |
Max Operating Temp | °C | 1500 | 1500 | 1450 | 1100 | 1000 | 1500 | |
Coefficient Thermal Expansion | cm/cm/ °C (RT to 700°C) | 8 | 8 | 8 | 6 | 4 | 9.5 | |
Thermal Conductivity | 25°C- 300°C | W/m°K | 27 | 27 | 22 | 2.5 | 1.3 | 3 |
Volume Resistivity | 20°C | ohm ・ cm | 1012 | 1012 | 1012 | 1012 | 1012 | . |
100°C | 1012-1013 | 1012-1013 | 1012-1013 | 1010-1012 | 107-108 | 1012-1013 | ||
300°C | 1010 | 1012 | 1010 | 5*108 | 3*105 | 5*109 | ||
Dielectric Strength | Volts/mil | 210 | 220 | 210 | 230 | 180 | 230 |
Product Description
Packing & Delivery
Company Profile

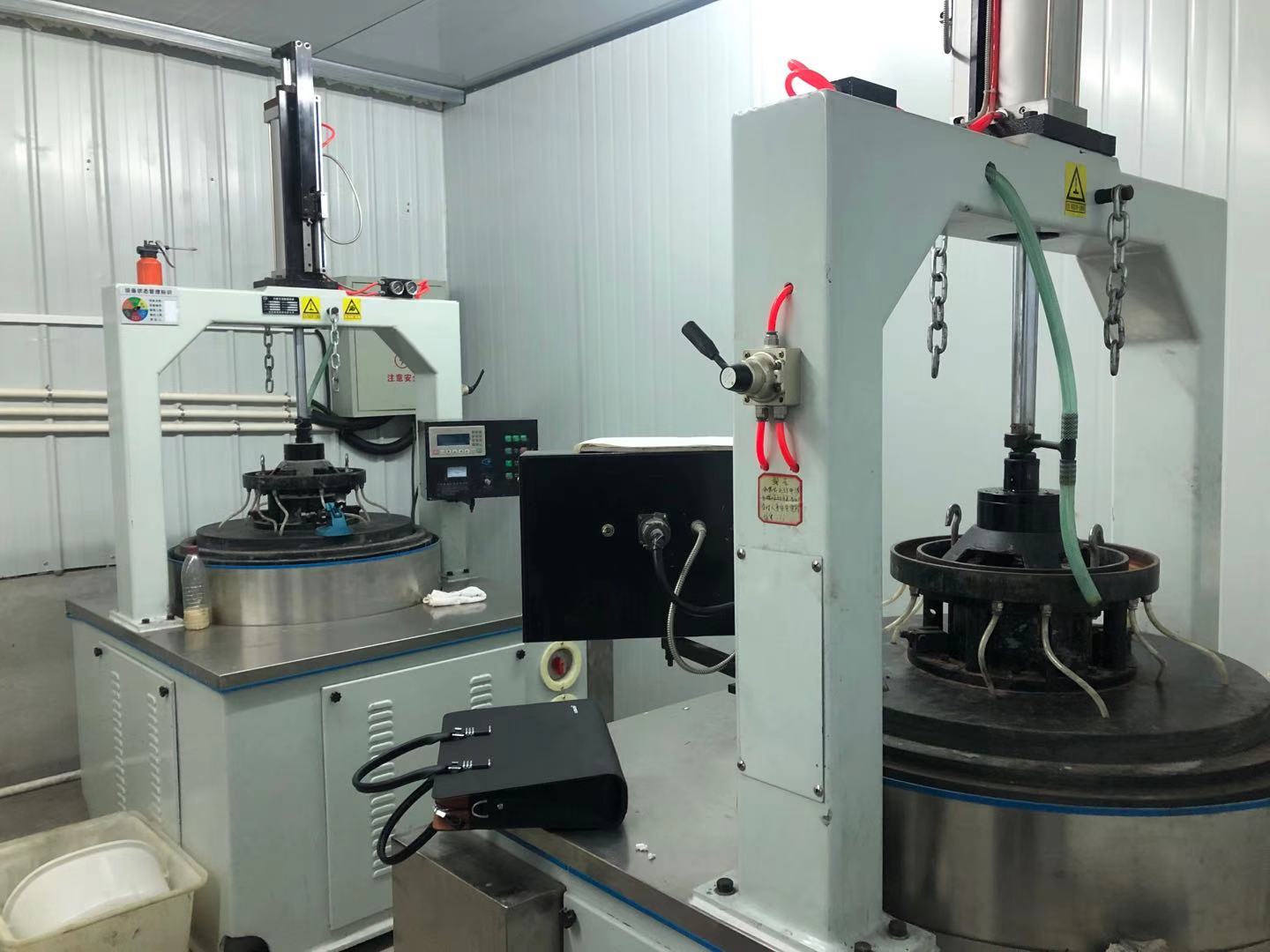

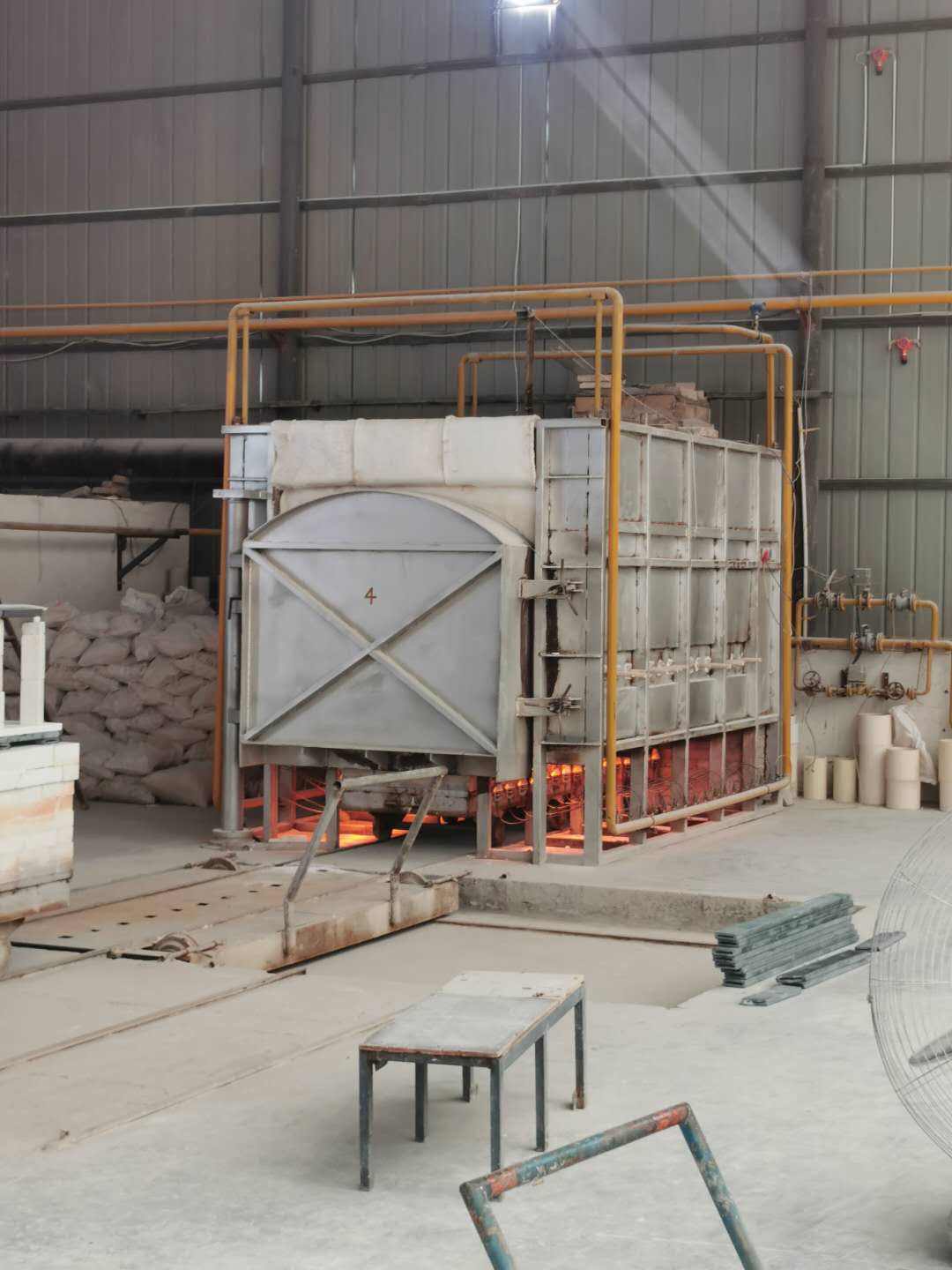

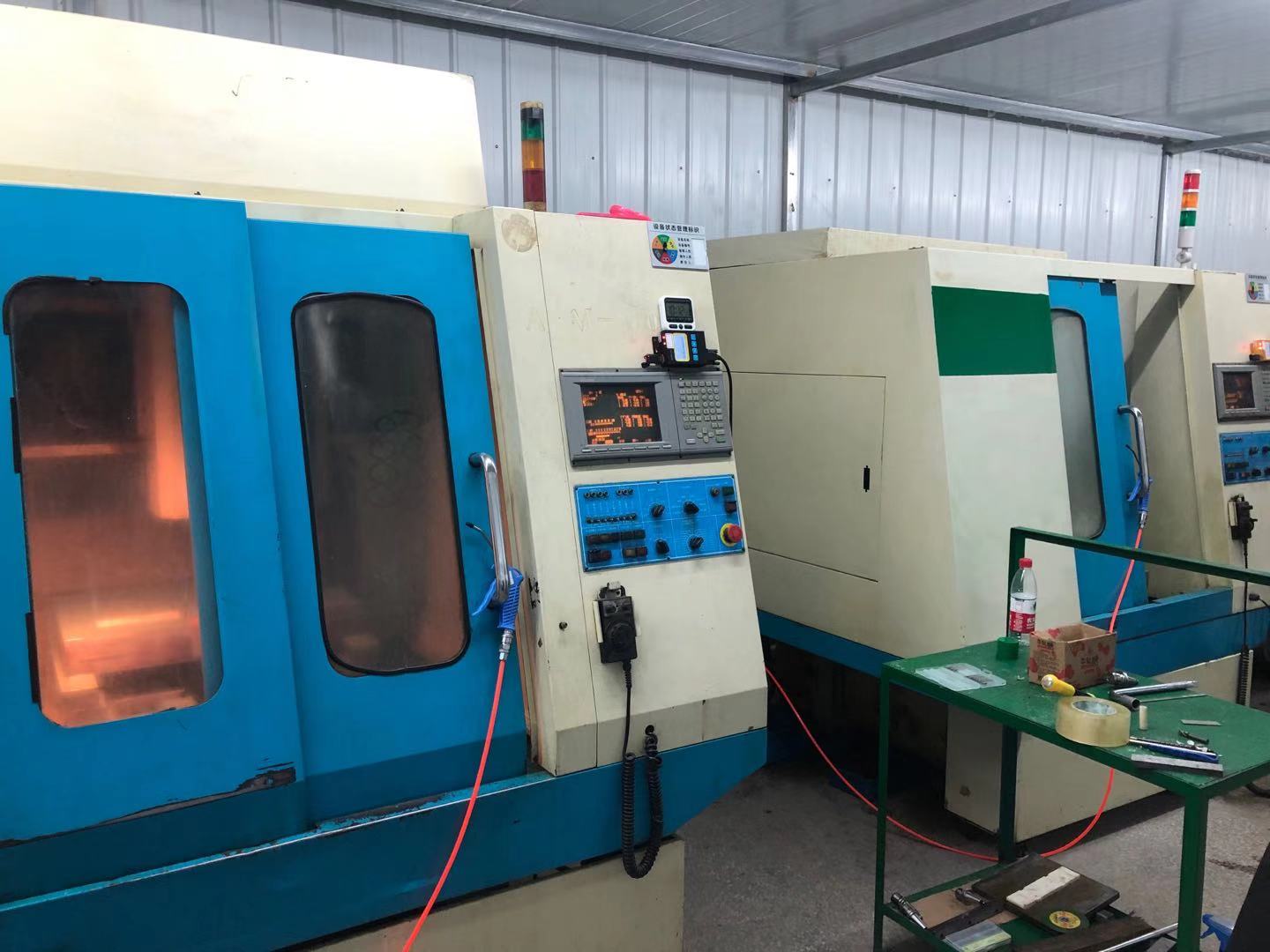

Yixing Minghao Special Ceramic Technology
We are a professional factory in manufacturing high quality and precision alumina, steatite, zirconia ceramics, refractory components for more than 20 years.We will try our best to provide our clients with high-quality products. We warmly welcome friends from all walks of life to cooperate with us.
