led waterproof triproof light fixture 4ft 40W 50W 60W for Parking Garage workshop use led linear triproof light
- $30.50 / 1 - 499 pieces
$29.50 / 500 - 9999 pieces
$19.00 / >=10000 pieces - 1 piece
- Shenzhen Abest Lighting Co., Ltd.
- Guangdong, China
- Ms Betty Qin
| Watt: | 60w; | Payment Terms: | L/C,Western Union,T/T,MoneyGram,paypal; |
| Packaging Detail: | 6pcs/Ctn, natural packing, comes with polybag, 1pc per inner box; | Package Preview: | ; |
| Dimming: | 0-10V; | Color Temperature(CCT): | 5000K (Daylight); |
| Warranty(Year): | 5-Year; | Luminous: | 140LM; |
| Material: | Aluminium Body+ PC Cover; | Length: | 2FT 3FT 4FT 5FT; |
| Model Number: | A2001-1200-40W; | IP Rate: | Ip65 Waterproof; |
| Usage: | Parking Lot; | Lifespan (hours): | 50000; |
| Lamp Luminous Efficiency(lm/w): | 160lm/w; | Power factor: | 0.95; |
| Product Weight（kg）: | 3.5; | CCT: | 3000/4000/5000/6000k; |
| Supply Ability: | 5000 Piece/Pieces per Week; | Color Rendering Index(Ra): | 80; |
| Working Time (hours): | 50000; | Port: | Shenzhen port; |
| Certification: | ENEC,TUV, SAA,CUL, DLC, CE; | Input Voltage(V): | AC 220V( ± 10%); |
| Support Dimmer: | Yes; | Application: | Warehouse; |
| LED source: | SMD2835; | Lighting solutions service: | Lighting and circuitry design,DIALux evo layout,auto CAD layout; |
| Type: | led tri-proof light; |

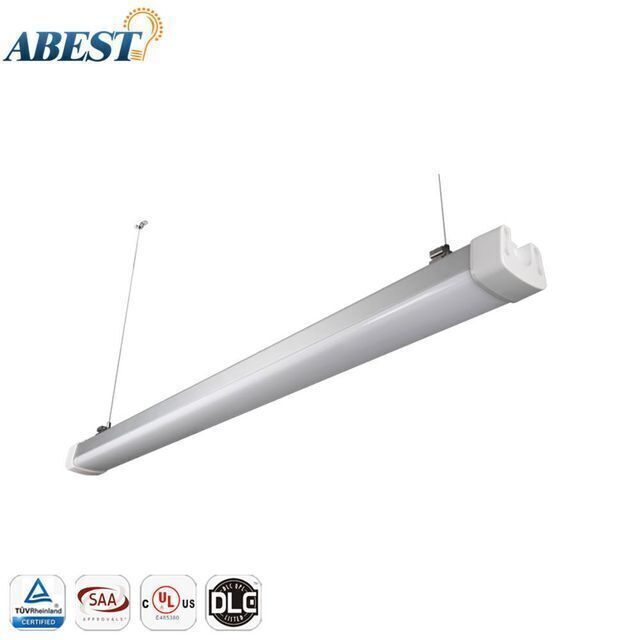

SMD Tri- proof Tube Light Linear Fixture 4ft IP66 40W 50W 60W Parking Garage LED Batten Vapor Tight Light
A2001 LED Tri-Proof Lights are simple structured and elegant designed, using aluminum profiles to reduce weight. Two sets of installation provide customer convenience, improve light utilization. Get all customers' recognition and acceptance with its functional features.
Setting Information | ||
Model | A2001-1200-40W | |
Voltage | AC200-240V, 100-277V | |
Power | 40W | |
light color | white, customized available | |
installation | suspension / Ceiling-mounted / Adjustable wall-mounted | |
temperature | 3000-6500K | |
Certification | TUV, SAA,UL, DLC, FCC, C-Tick, CE, RoHS | |
More power | 20~80w optional | |
Warranty | 5 years | |
Product Features
-- IP66, IK10
-- 6063 Aircraft aluminum & PC cover
-- LM80 SMD2835 LED Chips, High CRI of Ra>80,120lm/w at Milky Cover, Max. 160lm/w
--TUV,SAA,UL, DLC, CE driver,PF>0.95,THD<12,flicker-free
-- No mercury, No UV, No IR, No glare, No flick
-- 5 years warranty
-- Fast and easy installation to replace existing lights
-- Lower maintenance cost thanks to over 3 times longer lifetime
Product Advantages
>>Quick Start instant 100% luminous flux
>>Up to 50% energy saving compared to tradition lights
>>Suitable for 3~8 meters high
>>Free workshop ( freight house/warehouse)
>>Sports center ( gym / tennis court / dressing room)
>>Service area(supermarket / hospital/ subway / tunnel )
>>General illumination within temperatures from -20ºC~+45ºC
Data of Led Tri-proof Light - TUV/UL&cUL/CE
LED Tri-proof Light | 2ft/0.6m-20~30W | 3ft/0.9m-40W | 4ft/1.2m-40~60W | 5ft/1.5m-50~80W | |||
Dimension(mm) | 600*90*74 mm | 900*90*74 mm | 1200*90*74 mm | 1500*90*74 mm | |||
Efficiency(lm/W) | TUV: 120lm/W // UL: 130lm/w, Max.160lm/w | ||||||
Input voltage(AC/V) | TUV: AC 200-240V // UL: AC 100~277V | ||||||
Lumen(lm)-TUV/CE | 2400lm~3600lm | 4800lm~5200lm | 4800lm~7200lm | 6000lm~9600lm | |||
Lumen(lm)-UL | 30W: 3900lm | N/A | 40W: 5200lm | 60W: 7800lm | |||
LED chips | LM80 SMD2835 | ||||||
PF | >0.95 | ||||||
CRI(Ra) | >80 | ||||||
CCT | 3000-6500k | ||||||
Beam Angle | 120° | ||||||
Driver | flicker-free | ||||||
IP/IK rating | IP66 / IK10 | ||||||
Optional Function -TUV/CE | 1-10V Dimming | Dali Dimming | Emergency | Microwave Sensor & Photocell | 2.4G Dimmable and CCT Adjustable/tunable | ||||||
Optional Function -UL | 1-10V Dimming | Dali Dimming | ||||||
Certificates | ◆TUV(No:1419032865),SAA(AZ 69020861),C-Tick ◆UL & CUL (No.:E485380), DLC V4.2 ◆CE, RoHS | ||||||
Lead time | 7~15 working days for sample order, 15~20 working days for formal order. | ||||||
DLC V4.2 premium listed
A2001-2.4G CCT tunable tri-proof light
A2102 Linear Led high bay lights
A2802 CCT tunable led flat panel light
