pleat hepa h13/14 filter 0.12 micron hepa filter for laminar flow fume hood hepa air filter for laboratory
- $50.00 / 1 - 49 pieces
$35.50 / 50 - 99 pieces
$33.50 / 100 - 199 pieces
$16.00 / >=200 pieces - 1 piece
- Guangzhou KLC Cleantech Co., Ltd.
- Guangdong, China
- Ms Sinny Min
PRODUCT DETAIL
| After warranty service: | Video technical support | Material: | micro glass fiber |
| Packaging Details: | Inner packing: carton Outer packing: plywood standard export packing | Supply capacity: | 100 pieces per day |
| Mechanical test report: | if | port: | Guangzhou |
| brand: | KLC | weight: | 3 kg |
| Maximum temperature: | 70 degrees Celsius | Function: | air filter |
| Core components: | Filtration efficiency | Sealant: | PU Polyurethane |
| Frame material: | Aluminum/GI/SUS/MDF | efficiency: | H13 / H14 / U15 / U16 / U17,≥99.99% |
| separator: | hot melt beads | payment terms: | Western Union, L/C, D/P, D/A, T/T, MoneyGram |
| put up: | panel filter | structure: | panel filter |
| Package preview: | Dimensions (L*W*H): | custom size | |
| Video shipment inspection: | if | Health status: | new |
| Warranty: | unavailable | Core component warranty: | not available |
| Certification: | ROHS, ISO9001, ISO14001, CE | Porosity: | 0.3μm |
| Applicable industries: | Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies | Origin: | Guangdong, China |
24x24 Inch Supply AHU Aluminum Frame Air Filter HVAC Industrial HEPA Filter
Product Description
All sizes and styles can be customized | ||||||||||
model. | Actual size H x W x D (mm) | air flow (cubic meter/hour) | media area Flow (square meter) | speed (Multiple Sclerosis) | efficiency | |||||
K57-B-002 | 484*484*50 | 500 | 4.81 | 0.55 | H13-H14,U15 | |||||
K57-B-006 | 610*915*50 | 1100 | 11.29 | 0.55 | H13-H14,U15 | |||||
K57-B-028 | 305*610*69 | 500 | 4.92 | 0.75 | H13-H14,U15 | |||||
K57-B-031 | 610*610*69 | 1000 | 10.00 | 0.75 | H13-H14, U15 | |||||
K57-B-033 | 610*915*69 | 1500 | 14.84 | 0.75 | H13-H14, U15 | |||||
K57-B-035 | 610*1220*69 | 2000 | 19.68 | 0.75 | H13-H14, U15 | |||||
K57-B-041 | 610*915*96 | 2400 | 23.19 | 1.20 | H13-H14,U15 | |||||
K57-B-042 | 610*1220*96 | 3200 | 30.76 | 1.20 | H13-H14,U15 | |||||
K57-B-051 | 870*1170*69 | 2750 | 27.08 | 0.75 | H13-H14,U15 | |||||
K57-B-052 | 1170*1170*69 | 3700 | 36.52 | 0.75 | H13-H14,U15 | |||||

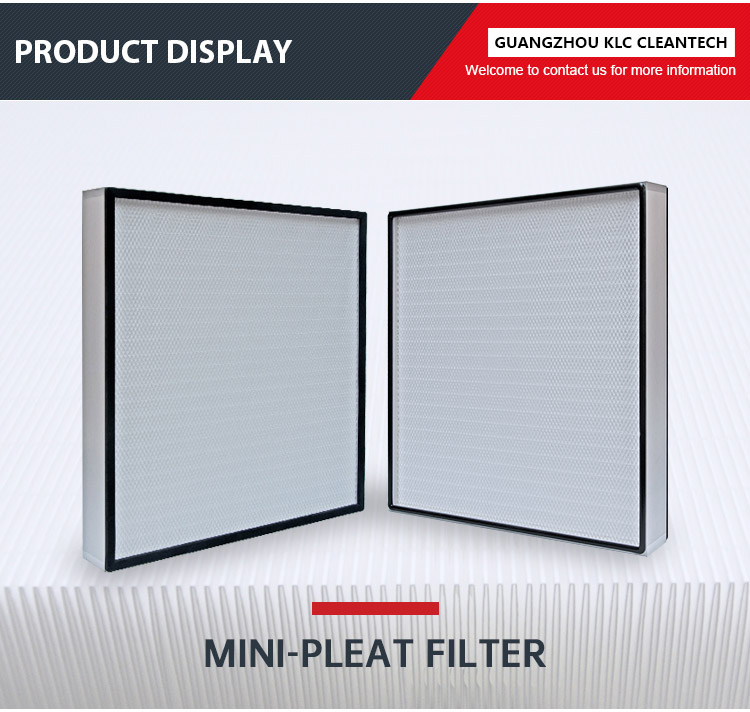

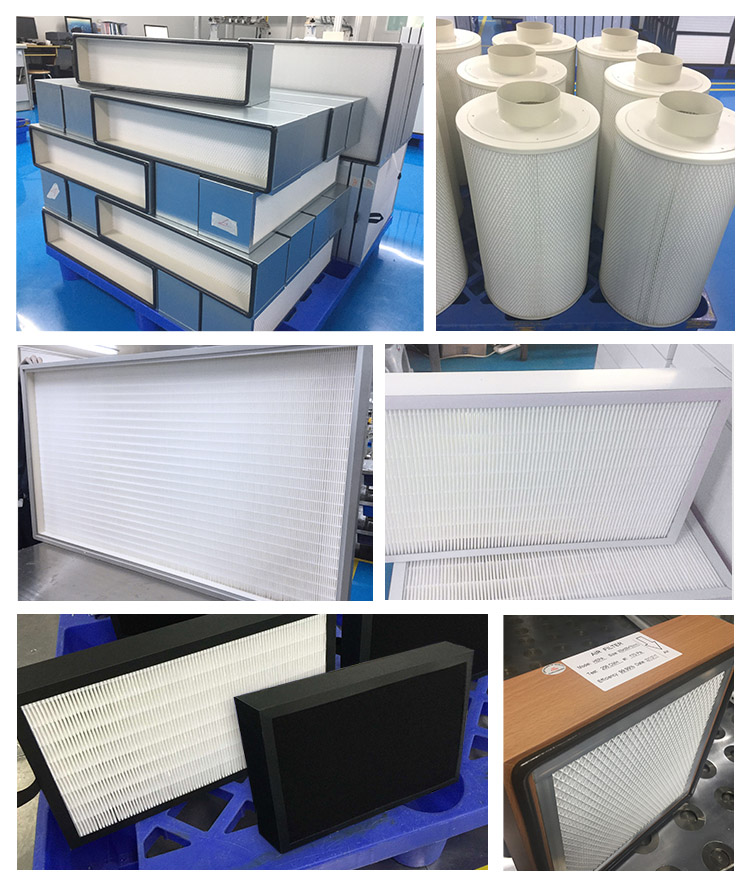

product display

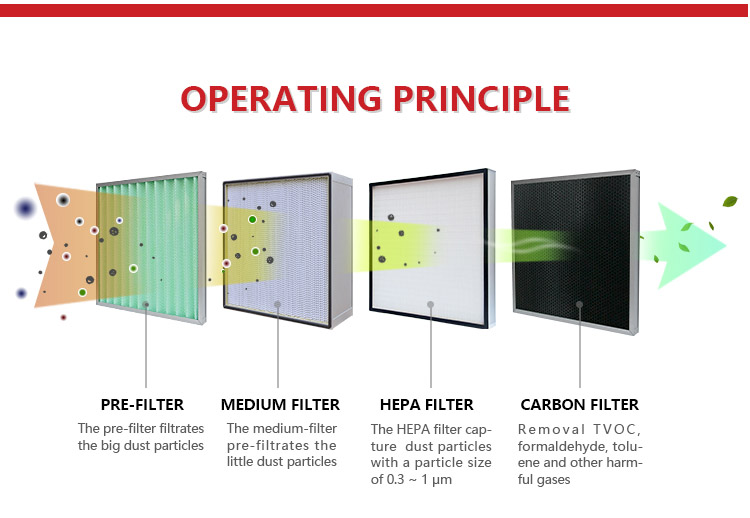

KLC HEPA air filter seriesKLC HEPA air filter series is divided into four types: Mini-pleat filter, Separator filter, V-bank filter, Hooded terminal filter.Introduction of HEPA filterHEPA filter is an air filter that can trap dust particles and various suspended solids with a particle size of 0.3-1um. The efficiency of 0.3um particles can reach 99.99%. It is widely used as the terminal filter of various air filtration systems. device. HEPA filter is a key component of air cleanliness control in clean rooms, operating rooms and other places with strict requirements.

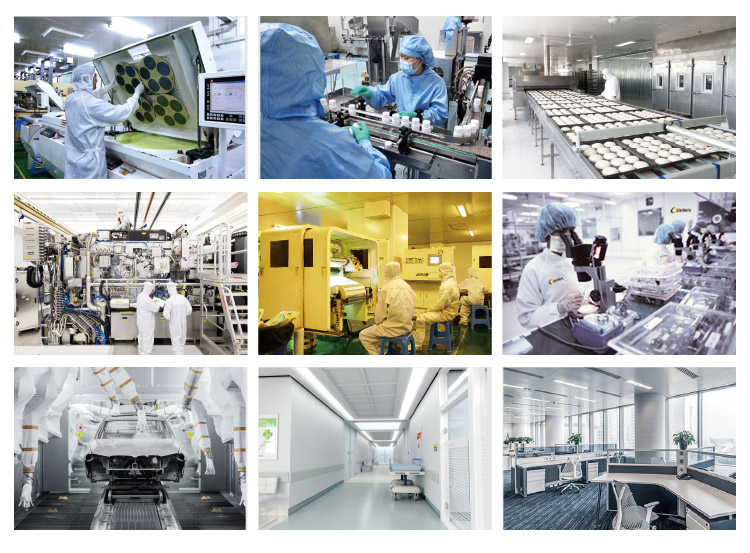

application
application
Fan filter units are widely used in clean workshops with different cleanliness in industries with strict air control requirements such as microelectronics/semiconductors, biopharmaceuticals, food processing, and microbial inspection.
