quick hitch coupler for 20ton excavator
- $300.00 /unit
- 1 unit
- Yantai Shijin Machinery Co., Ltd.
- Shandong, China
- Ms Caimei Wang
| Pin to Pin Center Distance: | 473-540mm; | Packaging Detail: | Export Wooden Cases or as customer's request quick coupler for excavator; |
| Overall Width: | 543-568; | Place of Origin: | Shandong, China; |
| Showroom Location: | None; | Video outgoing-inspection: | Provided; |
| Core Components: | electromagnetic valve; | Suitable Excavator(ton): | 23-35ton; |
| Condition: | New; | Payment Terms: | L/C,Western Union,T/T,MoneyGram; |
| Brand Name: | DEHN; | Top to Bottom pin Distance: | 300mm; |
| Overall Height: | 574mm; | Port: | Qingdao or Yantai port; |
| Pin Diameter: | 80-90mm; | Forearm Open Width: | 375-411; |
| Weight: | 450 kg; | Working pressure: | 40-380KG/CM; |
| Machinery Test Report: | Provided; | Warranty: | 1 Year; |
| Require Oil Flow: | 10-20L/min; | Package Preview: | ; |
| Applicable Industries: | Farms,Machinery Repair Shops,Energy & Mining,Building Material Shops,Construction works ; | Power Source: | Hydraulic / Manual; |
| Model Number: | DEHN 10; | Overall Length: | 983-1050mm; |
| Marketing Type: | Ordinary Product; | Supply Ability: | 800 Units per Month quick coupler for excavator; |

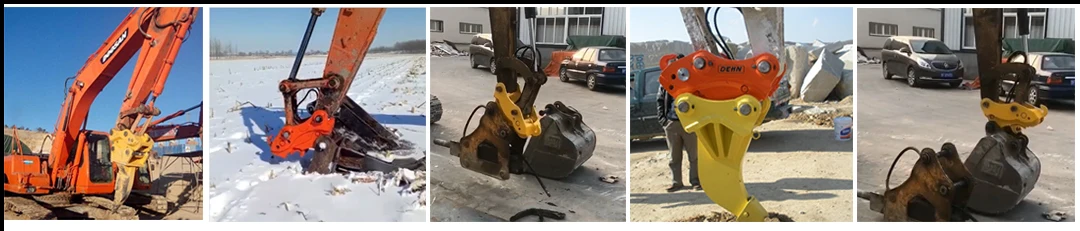

excavator,which can expand the scope of use of excavators, significantly save time and improve work efficiency.

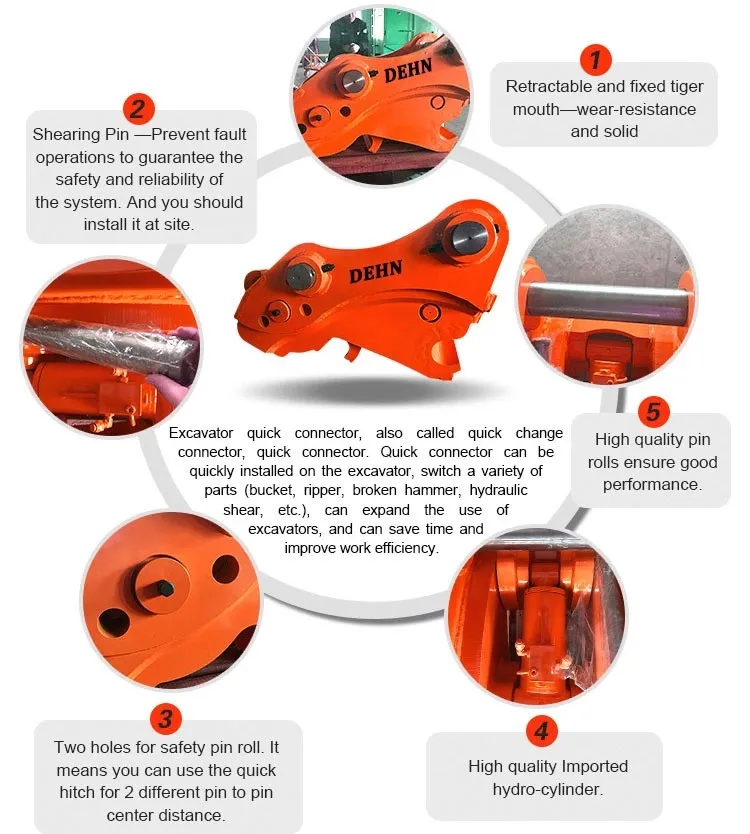

Quick coupler, also known as quick hitch, can be divided into mechanical quick coupler and hydraulic quick coupler.
1. Medium and high tensile steel is used throughout the body of the coupler making it very robust without adding unwanted weight.
2. With a tilt angle of ±45°
3. High quality material (Q345b) provide high steel toughness and good abrasive resistance.
4. Compact in design, virtually maintenance free,,Electric control system installed in cab , easy for operating.
5. Use security device of hydraulic control valve to ensure the safety.
6. Can change the accessories without disassembling the pin and axle
7.High Standard components and parts shows below:

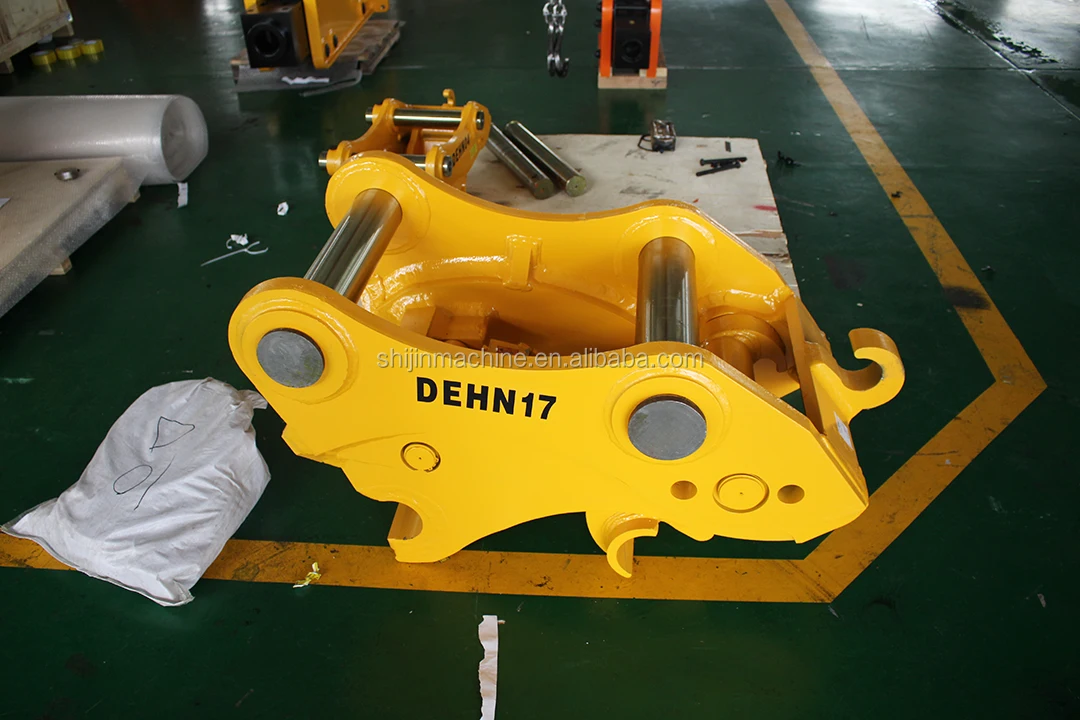

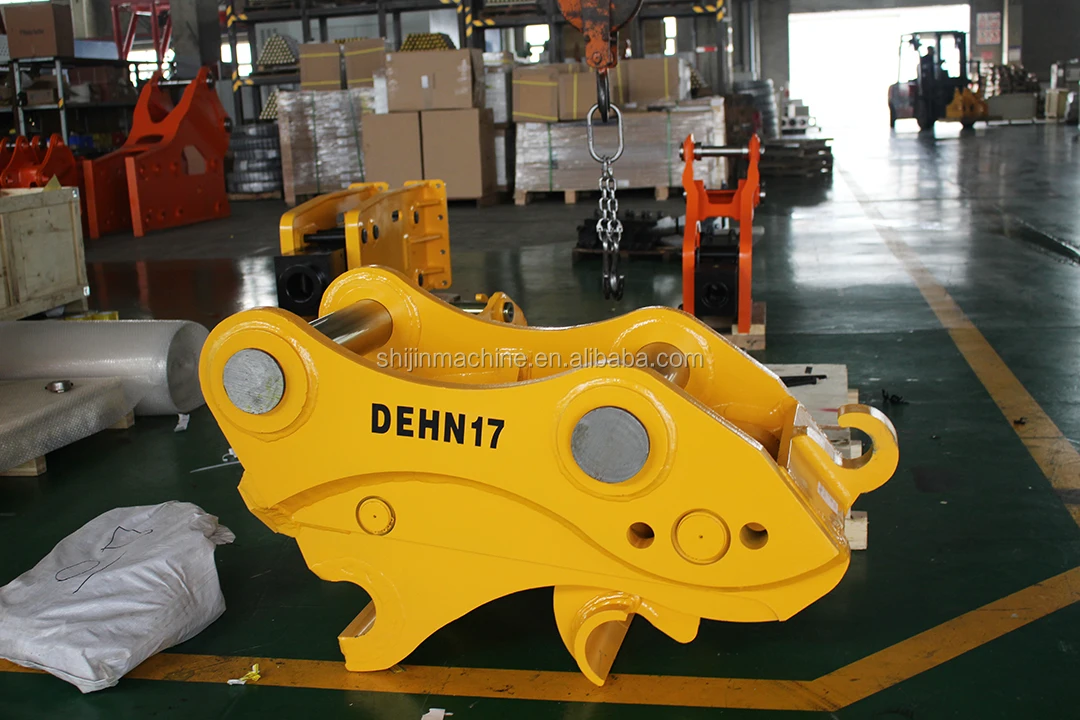

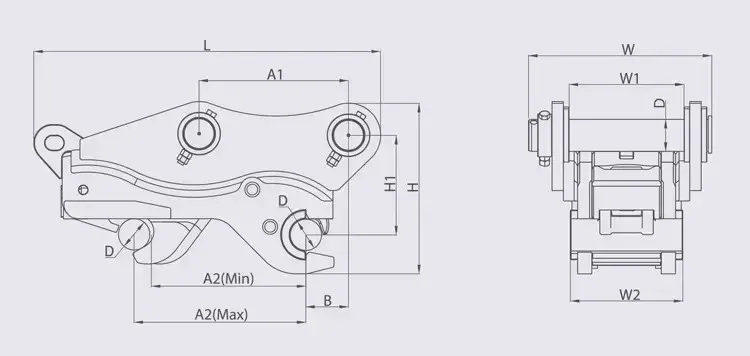

Model | DEHN02 | DEHN04 | DEHN06 | DEHN08 | DEHN10 | DEHN17 | DEHNmini | |
Carrier Weight | Ton | 4-6 | 5-9 | 9-19 | 17-23 | 23-35 | 33-45 | 1.5-4 |
Pin Diameter | mm | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 | 25-40 |
Arm Width | mm | 155-170 | 180-200 | 232-315 | 306-340 | 325-350 | 416-469 | 80-140 |
Pin Center Distance | mm | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 | 80-150 |
Cylinder Scalling Distance | mm | 205-270 | 340-450 | 340-486 | 256-590 | 413-590 | 520-590 | 170-206 |
Pressure | kg/cm2 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
Oil Flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Weight | kg | 50-60 | 80-90 | 120-130 | 280-290 | 450-530 | 450-580 | 25-30 |
2.Delivery Time: Shipping In 7 Days After Payment, big quantity will be confirmed.
Pre-Sales Service:
a: Design customised project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.
Services during the sale:
a: Help clients to find reasonable freight forwarders
ahead of delivery.
b: Help clients to draw solving plans.
After-Sales Service:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-lin operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.

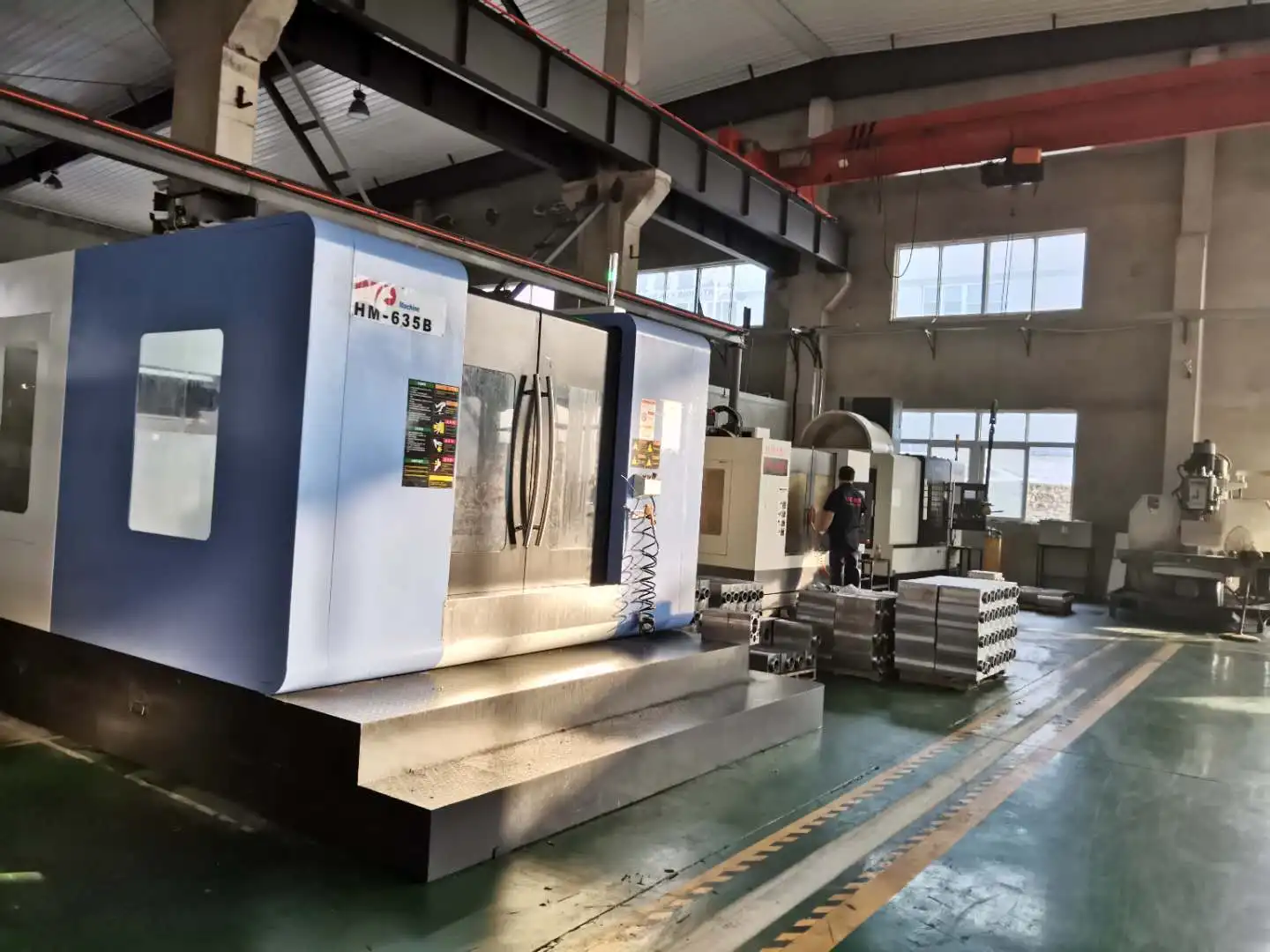

Yantai Shijin Machinery CO., Ltd was established in 2010.Our company is specialized in manufacturing Hydraulic Breaker, Quick Coupler, Hydraulic Chisel, Earth Anger, Excavator Ripper and Spare Parts.There are 2 kinds of brand DEHN products for you of Global per square kilometer.
We hope you can find the goods you need in our company.And we sincerely hope to cooperate with our partners for common development.
