radiant heat floor
- $10.00 /piece
- 1 piece
- Jiangyin Senphus Electrical Material Co., Ltd.
- Jiangsu, China
- Ms senphus jy
| Port: | Shanghai; | radiant heat floor cold cable length: | 2m, 3m ,4m, etc.; |
| radiant heat floor volt: | 110V,120V,220V,230V,240V; | Model Number: | SHHM-90w/m2; |
| radiant heat floor adhesive tape: | print the label you asked; | heating cable color: | blue, orange, red, purple, rose, etc; |
| radiant heat floor power: | 90w/m2, 100w/m2, 130w/m2, 150w/m2, 160w/m2, 170w/m2, 200w/m2; | radiant heat floor jacket: | PVC/FEP/LSOH/ETFE; |
| radiant heat floor color: | white, red, yellow, etc. If you need other color, you could tell us.; | Packaging Detail: | carton, pallet or wooden box; |
| radiant heat floor mesh: | adhesive fiber-reinforced mesh backing; | Type: | Floor Heating Systems; |
| Brand Name: | SENPHUS; | rradiant heat floor core: | single core or twin core; |
| Place of Origin: | Jiangsu, China; | Supply Ability: | 10000 Square Meters per Week radiant heat floor; |
| radiant heat floor models: | 0.5m2 1.0m2, 5m2, 6m2, 7m2, 8m2, 9m2, 10m2, 11m2, 12m2, 15m2.; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,paypal; |
| Delivery Detail: | within 7 days; |
SENPHUS radiant heat floor :
General Information

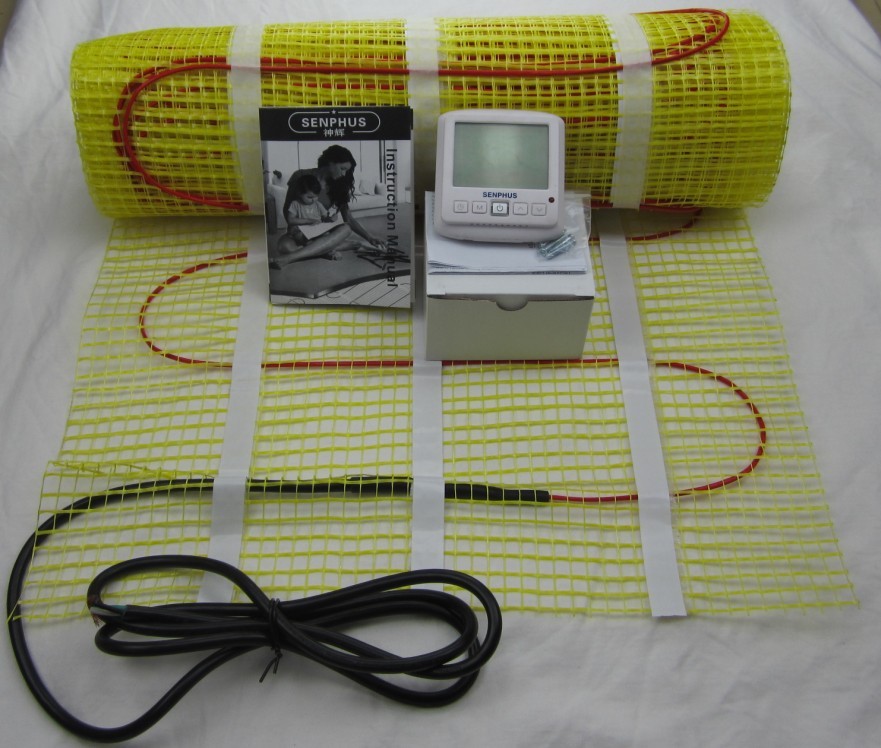

All Senphus radiant floor heating system features adhesive fiber-reinforced mesh backing which can be cut and manipulated, and which allows to lay the mat flat onto the subfloor surface and keep it flat throughout the installation process.
1.Single point connection |
2.Twin conductor cable or single core you choose |
3.Emits zero EMF (electromagnetic fields) |
4.Safety approved for wet locations |
5.Flexible installation |
6.Durable construction |
7.15-year limited warranty and 50 year service life |
8.0.5m width. If mats are 12sqm, it is 0.5m*24m. |

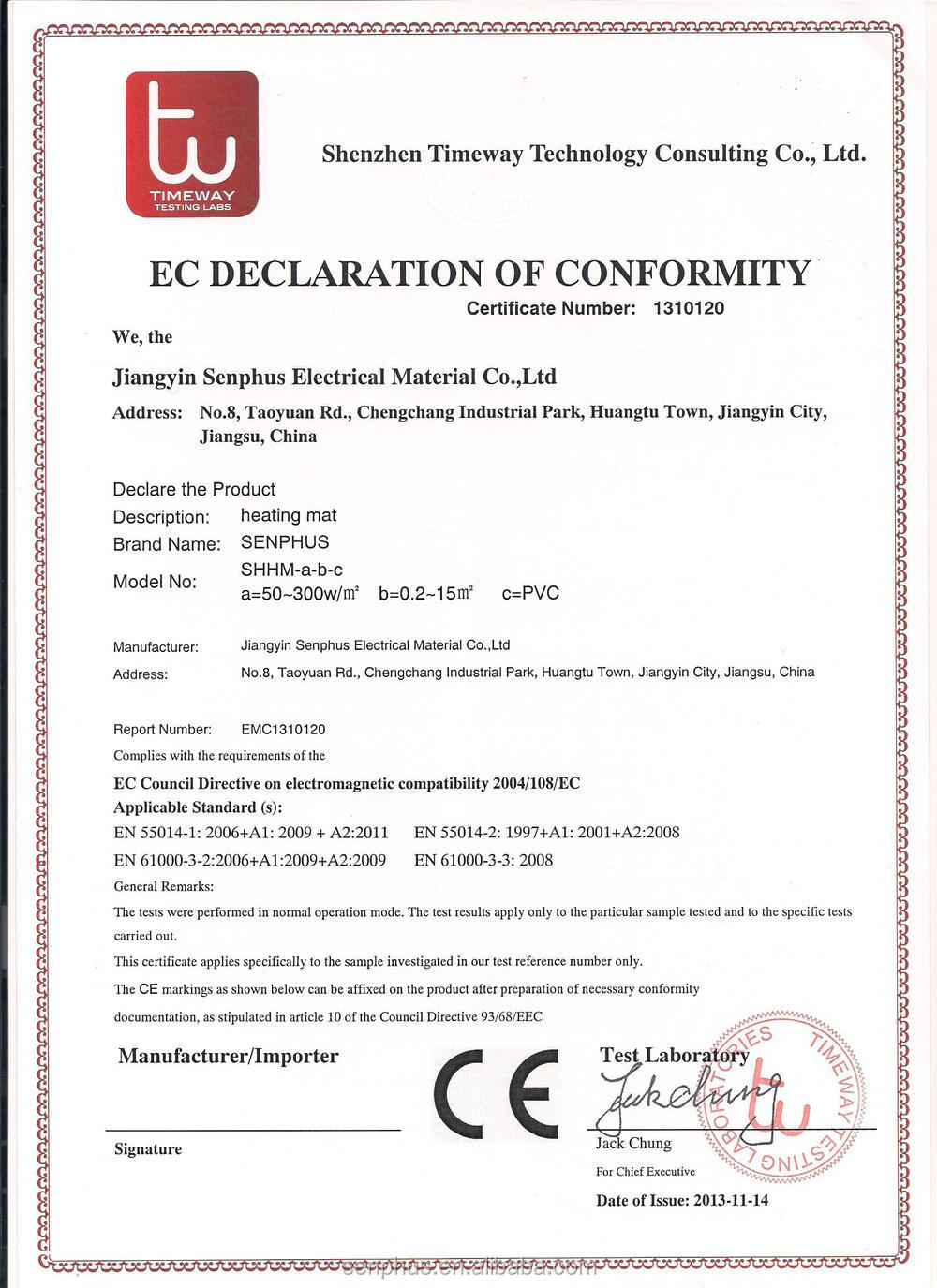

9.CE, SAA, UL approvals |
10.Cable spacing: 70mm or 90mm |

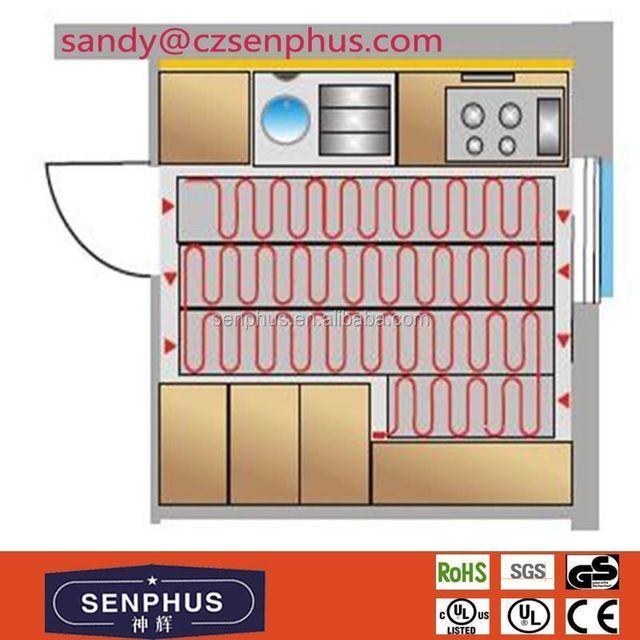

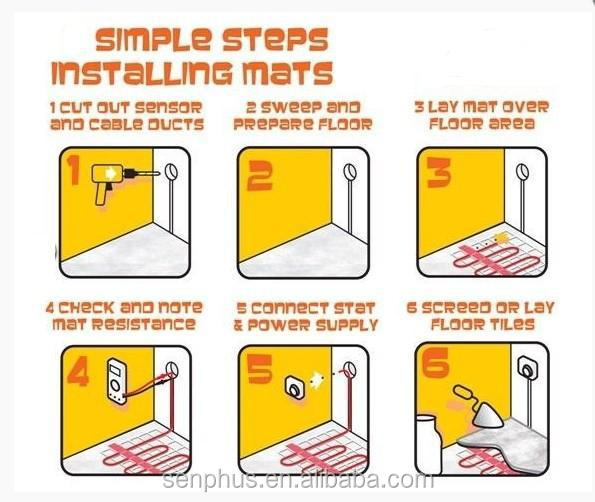

The floor warming system includes a heating cable woven into an adhesive-backed fiberglass mesh that allows for simple roll-out installation without worrying about heating cable spacing.
This specification is suit for FEP/ETFE insulation and outer FEP/ETFE/LSOH jacket, aluminum foil screen fixing installation heating cable.
Description and Structure

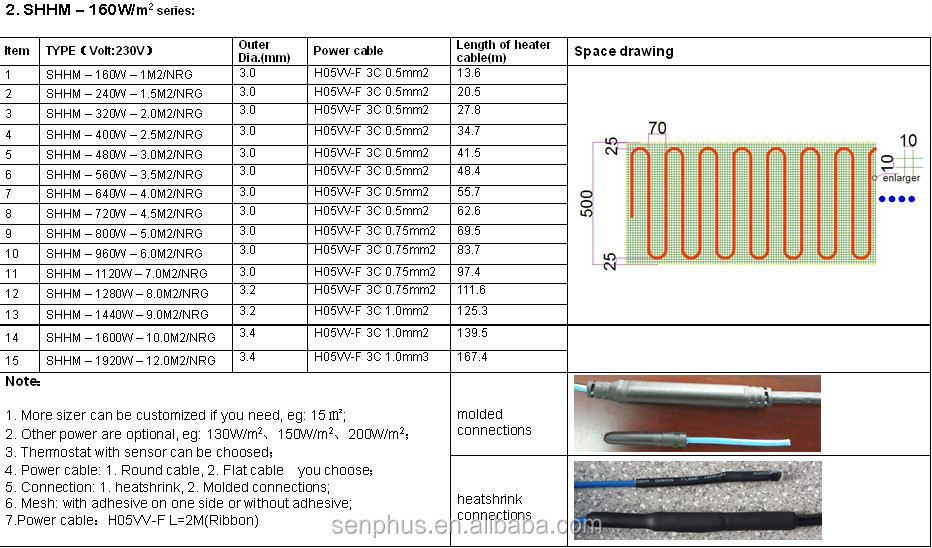

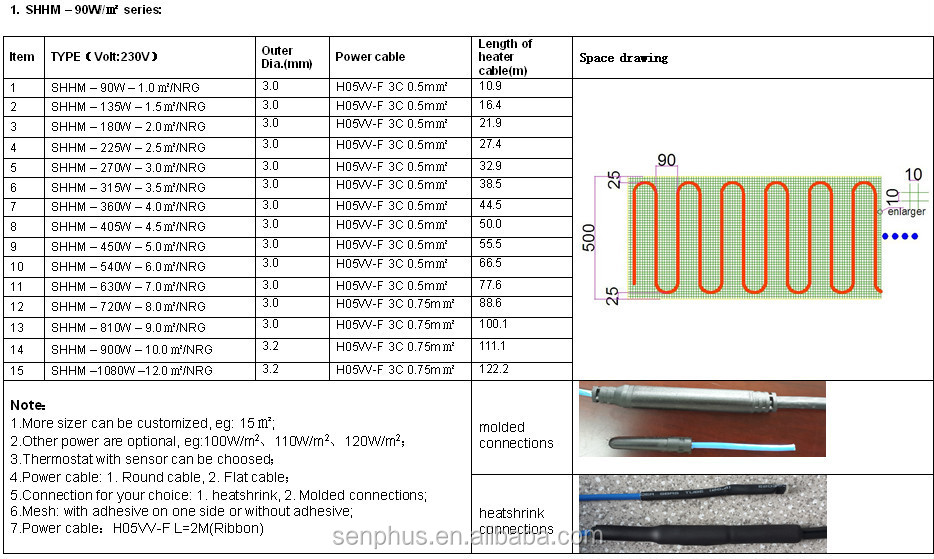

Products parameters
Cable Construction | Twin conductor |
Rated Voltage | 230V |
Output | 90W/m2 160W/m2 (-5% to +10%) |
Cable spacing | 90mm(90W/m2) 70mm(160W/m2) |
Cable Diameter | 3.0mm |
Conductor Insulation | Fluoropolymer FEP |
Outer Insulation | PVC/FEP/ETFE/LSOH resin |
Min bending radius: | 30mm |
Max. Ambient Temp. | 85°F(30°C) |
Min. Installation Temp. | 40°F(5°C) |
Cold lead | 2-wire plus ground braid; 2.0m length |
Thermostat Specifications for your choice:
R8600 | |
Functions | On/Off control, digital display, 7-day programmable |
Power source | 100-240VAC 50/60HZ |
Relay contact | 250VAC 16A |
Room temperature setting range | 5°C(41°F)~35°C(95°F) |
Floor temperature setting range | 5°C(41°F)~45°C(113°F) |
Accuracy | ±1°C or ±33.8°F |
Dimensions | 94mm X 87mm X44mm |
Color | White |
Floor temperature sensor | 2-wire, 3.0m lead wire |
R6900 | |
Functions | On/Off control, digital display, 7-day programmable |
Power source | 198-242VAC 50/60HZ |
Relay contact | 250VAC 25A |
Ambient temperature-operation | 0°C-50°C |
Ambient temperature-transport | -10°C-60°C |
Room temperature setting range | 5°C~35°C |
Floor temperature setting range | 5°C~60°C60°C(factory default 40°C) |
Accuracy | ±1°C |
Dimensions | 86mm X 86mm X13mm |
Color | White |
Floor temperature sensor | 2-wire, 3.0m lead wire |

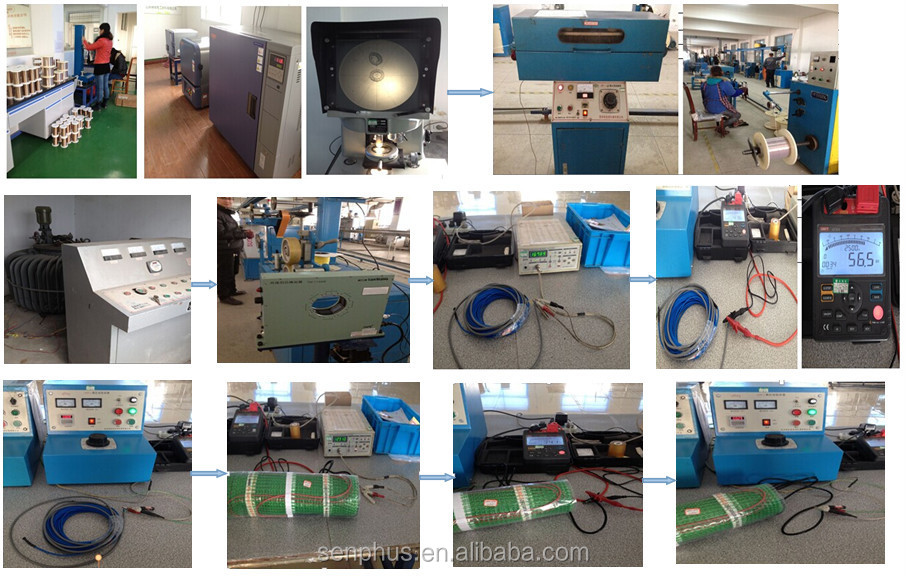

Inspectiong and QUALITY CONTROL:

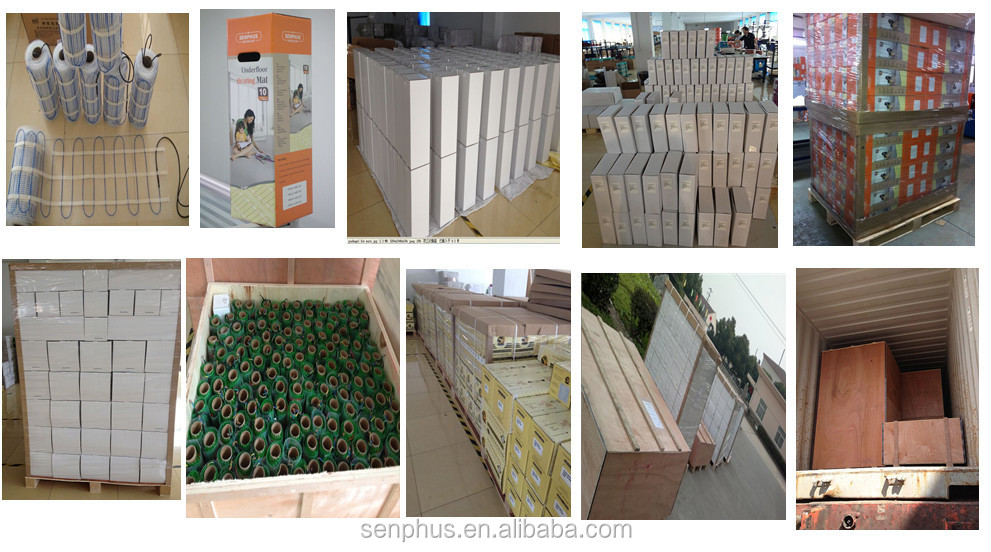

if you use white box or color box for each heating mats, the box size are as follows:
0.5 to 2 square meter, 9*9*52cm
2.5 to 5 square meter, 15*15*52cm
6 to 8 square meter, 18*18*52cm
9 to 12 square meter, 25*25*52cm
15 square meter, 32*32*52cm
1, market analysis supply
2, OEM, ODM confidentiality
3, 24 hours online service
4, product recommendation
5, Box desgin service as per your sample
6, edit and print instruction manual guide as per your sample
7, 15 Years limited warranty
Jiangyin Senphus is the only manufacturer in China integrating heating cable with electrical heating alloys smelting.The key heating conductor produced by our alloy factory and ensure the best quality and timely delivery.
Bosses are youthful and energetic with his team , we complete ensured the fast delivery as per your request .
Our professional and advanced engineers were invited from Raychem.
In order to develop our business in world market, we are serching for a reliable partner (distributor/ importer/ wholesaler) on the world market .
Our product include :
1)Heating wire Cable for car seat heating, underfloor , pipeline , snow-melting ,defrosting ,soil heating ;
2)Heating mat for washroom, steam room , leisure centre ect ;
3)Thermostat , temperature controller ;
4)PVC/SILICONE/TEFLON insulated heating wires for car seat heating, electric cushion, electric cloth, animal pet, jade mattress, electric shoes, electric massage armchair, car windows, electric towel rack, etc, and in air condition, refrigerator, cooler,etc.
5)Silicone Rubebr Heater for oil drum , security camera's lens, oil pressure cylinder in constructive machinery in cold areas, parabolic antennas, pumps, large silosDryer's heater, powerdehumldifying, ect ;
Also our alloy manufacturer can ensure the best quality of heating wire cable/mat and silicone rubber heater :
Electric Resistance Wire/Strip/Coil/Sheet/Foil/Plate/Ribbon :
1) Nichrome,NiCr 80 Also called: Chromel A, Nikrothal 80, N8, Nichrome V, Tophet A, Resistohm 80, Cronix 80, Alloy A, MWS-650, Stablohm 650
2) Nichrome,NiCr 60 Also called: Chromel C, Nikrothal 60, N6, Tophet C, Resistohm 60, Cronifer II, Nichrome Alloy C, MWS-675, Stablohm 675
3) Copper Nickel Alloys (Cu-Ni Alloys):CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40, CuNi44 (constantan)
4).Pure nickel wire: N6, N8
5).PTC thermistor alloy wire: P-4500, P-4000, P-3800, P-3500, P-3000, P-2500
6).Stranded wire: nichrome alloy, nickel strand wire and other alloy material.
7).Thermocouple wire: Type K, N, E, J, T, S, R, B. Thermocouple cables
8).Thermocouple compensation alloy : KP,KN,SPC ,RPC ,KPCB,RNC,SNC,KPX,EPX,KNX,ENX,TNX,NPX,NNX,KCA,NC ,JX.
