single arm 25t floating dock gantry crane price
- $50000.00 /set
- 1 set
- Henan Weihua Heavy Machinery Co., Ltd.
- Henan, China
- Mr Jack Zhou
PRODUCT DETAIL
| Brake Control: | electrical | port: | Any port in China, depends on customer inquiry |
| structure: | frame | Warranty: | 12 months |
| After-sales service provided: | Engineers can repair machinery overseas | Weight (kg): | 36000 kg |
| product name: | quay crane | Marketing Type: | New Products 2020 |
| span: | Boom length | payment terms: | L/C,Western Union,T/T |
| Video external inspection: | if | Energy source: | Three-phase 380V 50hz |
| Core Components Warranty: | 1 year | Rated load capacity: | R |
| surroundings: | outdoor | feature: | Gantry crane |
| type: | Base Ship Crane | Showroom location: | Egypt, Canada, Turkey, Italy, France, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka , Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia |
| Control Method: | remote control | Supply capacity: | 5000 sets per year |
| Main electrical components: | Schneider | Health status: | new |
| Packaging Details: | Wooden case or standard export packing or complete machine transportation | brand: | Wei Hua |
| place of origin; place of origin: | Henan, China | application: | 5-500 tons |
| Applicable industries: | Mechanical Repair Shops, Food and Beverage Plants, Construction Engineering, Energy and Mining, Offshore | Rated lifting moment: | 32 tons |
| color: | optional | maximum. Lifting height: | 18-35m |
| Core components: | motor | Mechanical test report: | if |
single arm 25t floating dock gantry crane price
MQ portal cranes are widely used in ports, stations and yards, which can efficiently carry out loading, unloading and transshipment operations and speed up the turnover of ships and vehicles.
Product Description
Luffing gantry craneIt is mainly used for loading and unloading of outdoor cargo yard, yard cargo and bulk cargo. The metal structure resembles a door-shaped frame. Two outriggers are installed under the load-bearing main beam, which can walk directly on the ground track, and there can be cantilever beams at both ends of the main beam. Weihua's new-type gantry luffing cranes are divided into two types: one is a single-link gantry crane, and the other is a four-link gantry crane.Single link gantry luffing craneIt is a small investment winch specially used in ports, ports, docks and shipyards for loading and unloading front skirt containers, sundries and bulk cargo. It mainly includes the following units: crane strong steel frame, hoisting mechanism, luffing mechanism, slewing mechanism, and traveling mechanism.

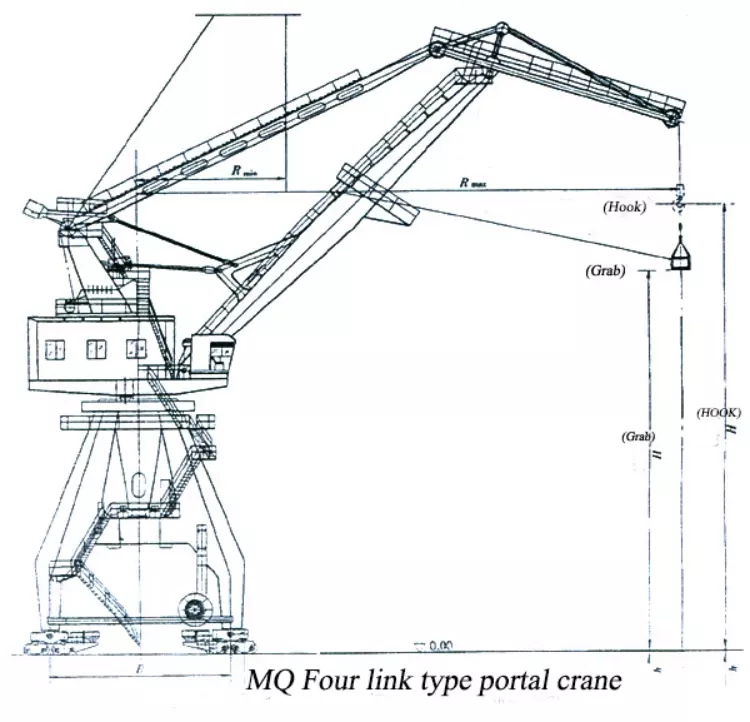

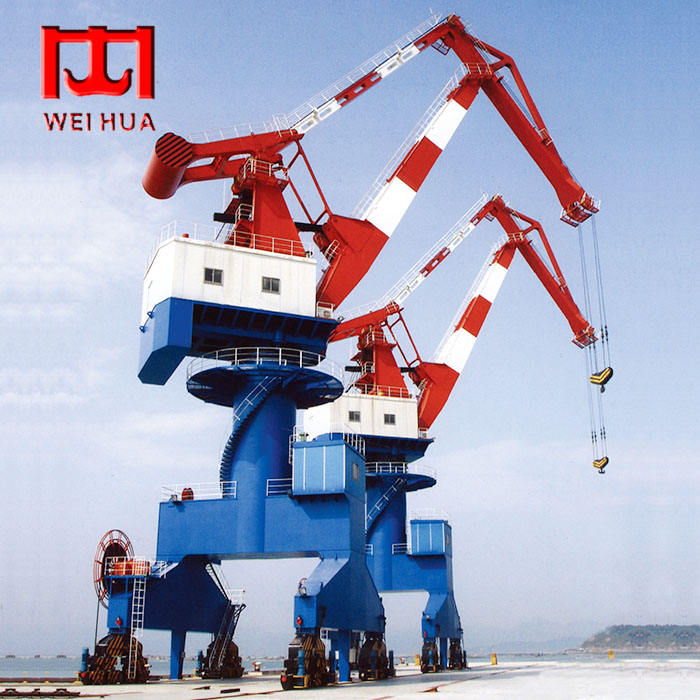

Four-link gantry luffing craneWidely used in port loading and unloading, dock and metallurgical industry material handling, the main structure is composed of steel frame, hoisting mechanism, luffing mechanism, slewing mechanism, walking mechanism, spreader (grab, container spreader, hook and electric) . dist), electrical equipment and other safety aids.
Contact us for more information!
Gantry luffing gantry crane features:
1. Overloading is efficient;
2. Suitable for any environment (high temperature, explosion-proof, etc.);
3. Long lifespan: 30-50 years;
4. Easy installation and maintenance;
5. Reasonable structure and strong rigidity;
6. Speed variable frequency speed regulation;
7. The control method is cabin control or remote control;
8. According to the lifting cargo, the crane can be equipped with beam magnet or magnet chuck or grab bucket or C hook;
9. The crane is equipped with all standard safety devices such as mobile limit switches and loading limits to ensure the safety of the crane.
2. Suitable for any environment (high temperature, explosion-proof, etc.);
3. Long lifespan: 30-50 years;
4. Easy installation and maintenance;
5. Reasonable structure and strong rigidity;
6. Speed variable frequency speed regulation;
7. The control method is cabin control or remote control;
8. According to the lifting cargo, the crane can be equipped with beam magnet or magnet chuck or grab bucket or C hook;
9. The crane is equipped with all standard safety devices such as mobile limit switches and loading limits to ensure the safety of the crane.
Contact me for more parameters and quotations!
Four-link | ||||||
R | 16 tons | 25 tons | 40 tons | |||
The scope of work | 30m, 33m, 35m, 37m | 28m, 30m, 35m, 36m | 30m, 35m, 39m, 40m, 43m | |||
Wheel distribution. | 10.5m, 12m, 16m | 10.5m, 12m, 16m | 10.5m, 12m, 16m | |||
Lifting speed | 60m/min | 55m/min | 50m/min | |||
Amplitude speed | 50m/min | 50m/min | 45m/min | |||
Rotating speed | 1.0~1.5r/min | 1.0~1.3r/min | 1.0~1.2r/min | |||
Driving speed | 26m/min | 26m/min | 26m/min | |||
single mast | ||||
R | 40 tons | 45 tons | ||
The scope of work | 11~30m, 12~35m | 12~35m, 13~28m | ||
Wheel distribution. | 10.5m, 16m | 10.5m, 16m | ||
Lifting speed | 25m/min | 25m/min | ||
Amplitude speed | 25m/min | 25m/min | ||
Rotating speed | 0.8~1.0r/min | 0.8~1.0r/min | ||
Driving speed | 26m/min | 26m/min | ||
What is your phone number and email address? We will give you the best price!
