slitting line for electrical silicon steel,steel coil slitting line machine,steel coil cutting line
- $30000.00 / 1 - 9 sets
$28000.00 / >=10 sets - 1 set
- Shanghai Orinno International Business Co., Ltd.
- Shanghai, China
- Mr Titan Ding
PRODUCT DETAIL
| Marketing Type: | Ordinary Product; | Certification: | ISO,CE,UL; |
| After Warranty Service: | Online support; | Key Selling Points: | Automatic; |
| Machine Type: | slitting line; | Place of Origin: | Shanghai, China; |
| Feature: | fully automatic process at high speed and cutting accuracy; | Warranty: | More than 5 years; |
| Brand Name: | ORINNO; | Supply Ability: | 50 Sets per Month; |
| Core Components: | Engine; | Material: | Mild steel; |
| Local Service Location: | None; | Applicable Industries: | Other; |
| Condition: | New; | Port: | Shanghai Port; |
| Video outgoing-inspection: | Provided; | Warranty of core components: | More than 5 years; |
| Application: | transformer core production; | Size: | 1000*220*150CM; |
| Showroom Location: | None; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Machinery Test Report: | Provided; | After-sales Service Provided: | Online support,Video technical support; |
Products Description
Items | Data |
Steel thickness | 0.18-0.5mm or customized |
Coil width | 40~1250mm |
Strip burr | ≦0.02mm |
Accuracy of strip width： | ≦±0.1mm |
Slitting speed | 0~100M/min |
Max. loading capacity of decoiler | ≦6T |
Max. loading capacity of rewinder | 1000KG |

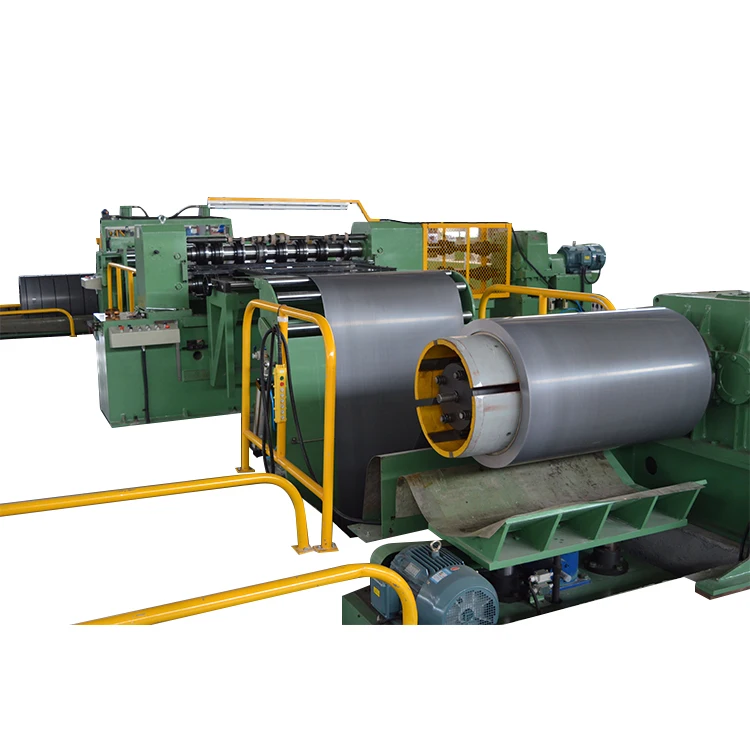

Machine Composition
1.Hydraulic expandable decoiler
2.Frequency- conversion rolling slitter
3.Pneumatic guiding pressing device
4.Hydraulic rewinder
5.Electrical Lifting trolley
6.Electrical control cabinet
8. Operation bench with touch screen
9.Alloy disc cutter
Main Feature
1.High level of cutting accuracy
2.Low burr and low camber slitting process
3.Touch screen operation for easy programming of slitting data and simple control
4.All machine units are driven by electrically, pneumatically and hydraulically, efficient and easy to operate.
5.Thickness ranges between 0.20 and 0.65 mm or up to 1.0 mm
Application

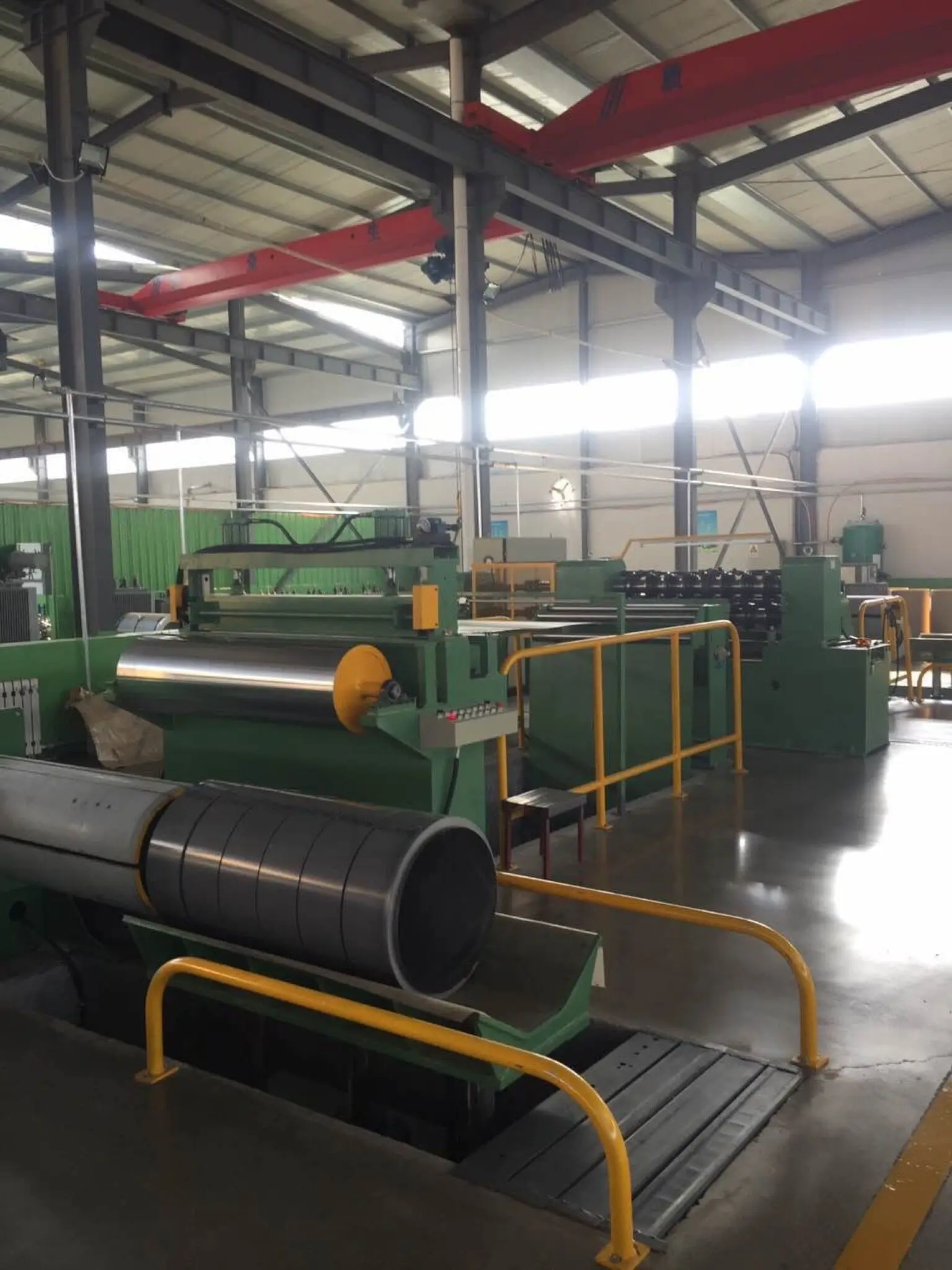

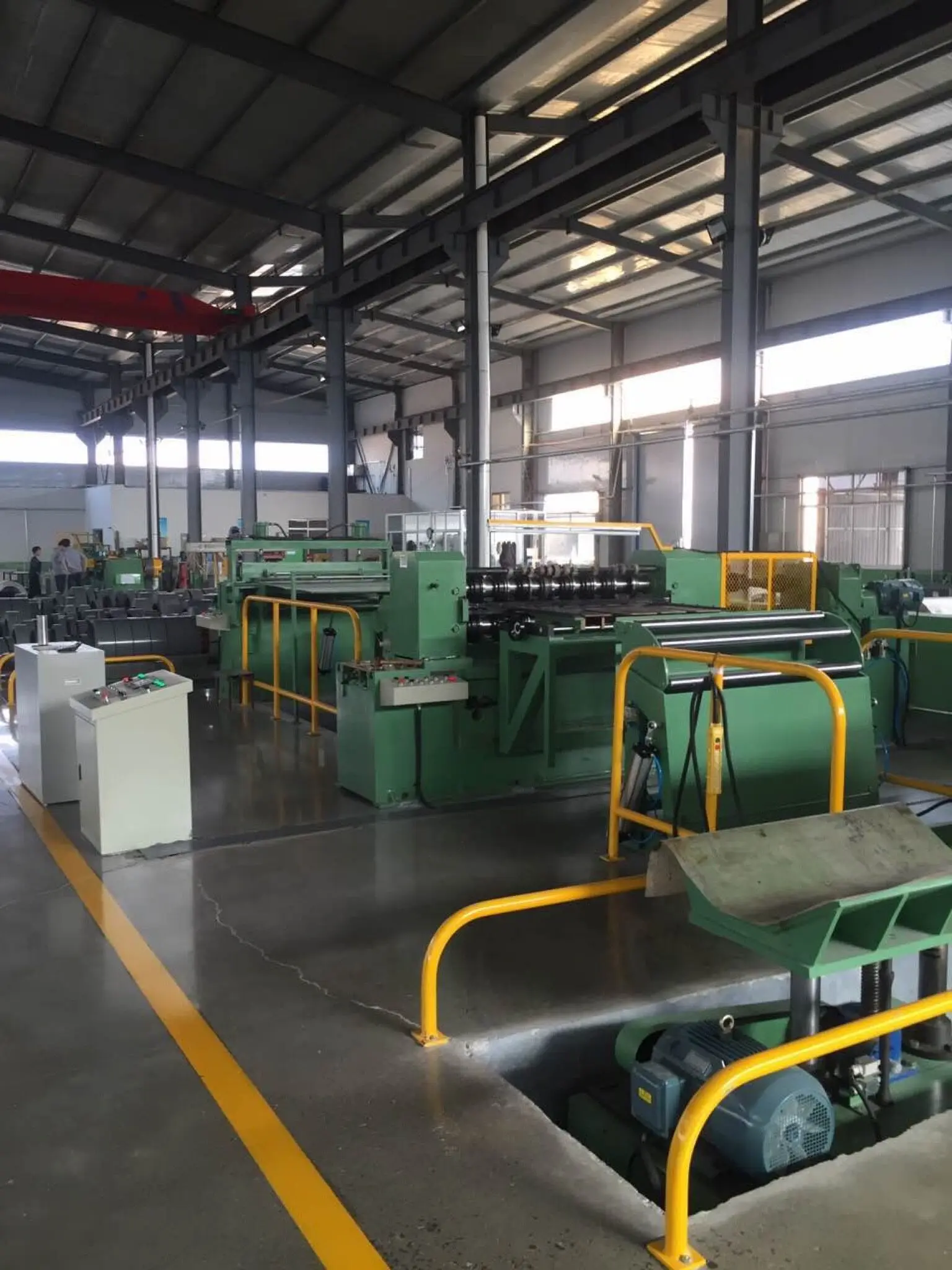

This slitting line is special for slitting silicon steel sheet coil into strips.
