ultra bright super flux red led 5mm 150mA 0.5Watt
- $0.01 / >=10000 pieces
- 10000 pieces
- Asia Incorporation Limited
- Jiangsu, China
- Mr
| strength: | 0.1W | Supply capacity: | 5,000,000 5mm white superflux LED lights 5mm Piranha LED per day |
| payment terms: | L/C, D/P, T/T, PayPal | color: | different colors available |
| port: | Shanghai or Shenzhen | Working temperature(℃): | -40 - 85 |
| Warranty: | 3 years | Storage temperature(℃): | -40 - 85 |
| light intensity: | 200-30000mcd | Color temperature: | 2700-12000K |
| type: | Ultra High Flux LED | Origin: | China Shanghai |
| Viewing Angle (°): | 10 25 40 60 90 180 | Chip material: | AlGaInP |
| Luminous flux (lm): | 3-20 | brightness: | According to customer requirements |
| Light attenuation (%): | 0.5 | Color rendering index (Ra): | 80 |
| Certification: | CE, RoHS, RoHS | Input Current: | 30mA |
| Luminous color: | Red, Green, Blue, Yellow, White, Amber | Packaging Details: | 50 tubes per tube, 20 tubes per box, 20 boxes per box. |
| Name: | 5mm White Super Flux LED Light 5mm Piranha LED | Power Consumption: | 0.1 |
| brand: | ATI, ATI | Package preview: |

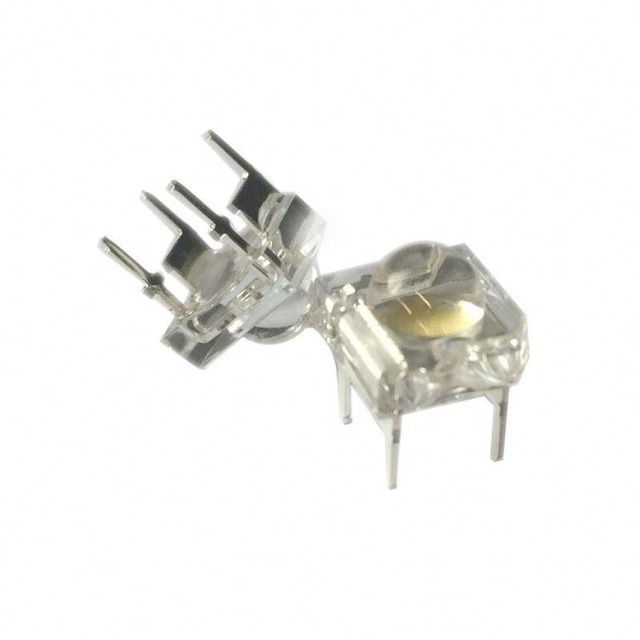

5mm 1 Chip Piranha LED
type | color | Correlated color temperature (k) | angle of view | Brightness (LM) | VF (typ.) | if |
5mm Piranha LED | Red | 620~630nm | 30 | 7-10 | 2.1 | 20mA |
5mm Piranha LED | pure green | 515~525nm | 30 | 10-20 days | 3.2 | 20mA |
5mm Piranha LED | blue | 460~465nm | 30 | 5-8 | 3.2 | 20mA |
5mm Piranha LED | yellow | 585~595nm | 30 | 7-10 | 2.2 | 20mA |
5mm Piranha LED | orange | 600~610nm | 30 | 7-10 | 2.1 | 20mA |
5mm Piranha LED | Warm White | 3000K | 30 | 10-15 days | 3.2 | 20mA |
5mm Piranha LED | Natural White | 4500K | 30 | 10-15 days | 3.2 | 20mA |
5mm Piranha LED | Cold white | 6000K | 30 | 10-15 days | 3.2 | 20mA |
5mm 2 Chip Piranha LED
type | color | Correlated color temperature (k) | angle of view | Brightness (LM) | VF (typ.) | if |
5mm Piranha LED | Red | 620~630nm | 90 | 10-20 days | 2.1 | 40mA |
5mm Piranha LED | pure green | 515~525nm | 90 | 20-30 days | 3.2 | 40mA |
5mm Piranha LED | blue | 460~465nm | 90 | 9-15 | 3.2 | 40mA |
5mm Piranha LED | yellow | 585~595nm | 90 | 10-20 days | 2.2 | 40mA |
5mm Piranha LED | orange | 600~610nm | 90 | 10-20 days | 2.1 | 40mA |
5mm Piranha LED | Warm White | 3000K | 90 | 20-30 days | 3.2 | 40mA |
5mm Piranha LED | Natural White | 4500K | 90 | 20-30 days | 3.2 | 40mA |
5mm Piranha LED | Cold white | 6000K | 90 | 20-30 days | 3.2 | 40mA |
5mm 4-chip Piranha LED
type | color | Correlated color temperature (k) | angle of view | Brightness (LM) | VF (typ.) | if |
5mm Piranha LED | Red | 620~630nm | 90 | 20-30 days | 2.1 | 80 mA |
5mm Piranha LED | pure green | 515~525nm | 90 | 30-40 | 3.2 | 80 mA |
5mm Piranha LED | blue | 460~465nm | 90 | 15-25 days | 3.2 | 80 mA |
5mm Piranha LED | yellow | 585~595nm | 90 | 20-30 days | 2.2 | 80 mA |
5mm Piranha LED | orange | 600~610nm | 90 | 20-30 days | 2.1 | 80 mA |
5mm Piranha LED | Warm White | 3000K | 90 | 30-40 | 3.2 | 80 mA |
5mm Piranha LED | Natural White | 4500K | 90 | 30-40 | 3.2 | 80 mA |
5mm Piranha LED | Cold white | 6000K | 90 | 30-40 | 3.2 | 80 mA |
Size: 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED.
Luminous colors: white, red, yellow, pure green, chartreuse, blue, amber, orange.
Lens color: water color transparent, color transparent, color diffuse, white diffuse
Angle: 20 degrees, 30 degrees, 40 degrees, 45 degrees, 70 degrees, 110 degrees
Applications: lighting, interior decoration, project architecture, displays, traffic lights.
5mm White Super Flux LED Light 5mm Piranha LED: 50pcs per tube, 20 tubes per small box, 20 boxes per carton.
ATI LEDs
Ultra-high-flux LED: 3mm ultra-high-flux LED, 5mm ultra-high-flux LED, 7mm ultra-high-flux LED, RGB ultra-high-flux LED, customized ultra-high-flux LED.
In-line LED: 3mm LED, 4mm LED, 5mm LED, 8mm LED, 10mm LED.
SMD LED: 0603 SMD LED, 1206 SMD LED, 0603 SMD LED, 3020 SMD LED, 3528 SMD LED, 2835 SMD LED, 5050 SMD, 4014 SMD LED, 5630 SMD LED, 5730 SMD Chip LED
7-segment LED display: one LED display, two-digit LED display, three-digit LED display, and four-digit LED display.
High power LED: 1W/3W/5W/10W-500W high power LED.
