wholesale skid steer tires, 10-16.5 10x16.5 bc 753 skid steer tires, wheel loader tire protection chains
- $20.00 / >=4 units
- 4 units
- Yantai Wonray Rubber Tire Co., Ltd.
- Shandong, China
- Ms Amy Xu
| ET: | 10mm,15mm,18mm,20mm,50mm,30mm,35mm,40mm,42mm,45mm,25mm,0mm; | Width: | 235-255mm; |
| Hole: | 4,6,5,8; | Port: | Qingdao; |
| Payment Terms: | L/C,T/T,Western Union; | Package Preview: | ; |
| Place of Origin: | Shandong, China; | Certification: | iso; |
| Advantage: | anti-puncture, cut resistant, longer wear, longer life; | Brand Name: | WonRay; |
| Diameter: | >28inch; | Material: | Natural Rubber,Steel; |
| Certificate: | REACH, ISO; | Packaging Detail: | plastic pallet or wood pallet; |
| color: | black; | Type: | SOLID TIRE; |
| Warranty: | 1 year; | PCD: | 130mm,120mm,108mm,115mm,112mm,127mm,100mm,139.7mm,98mm,165.1mm,114.3mm,120.65mm,143.1mm; |
| Supply Ability: | 3000 Units per Month; |

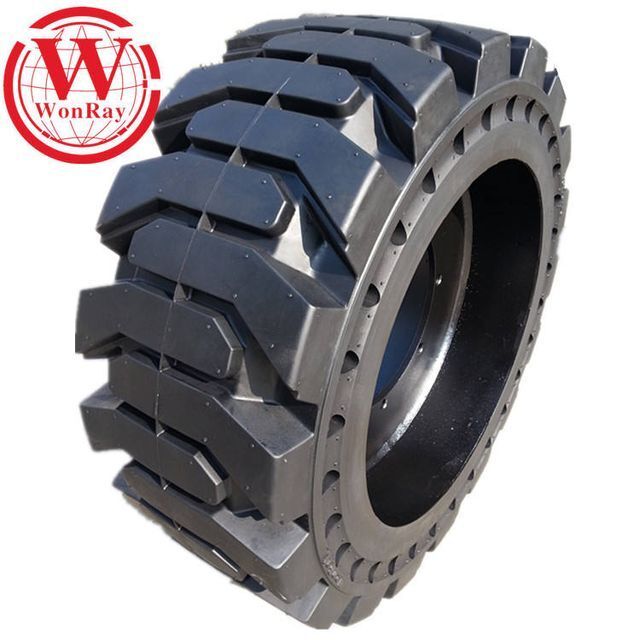

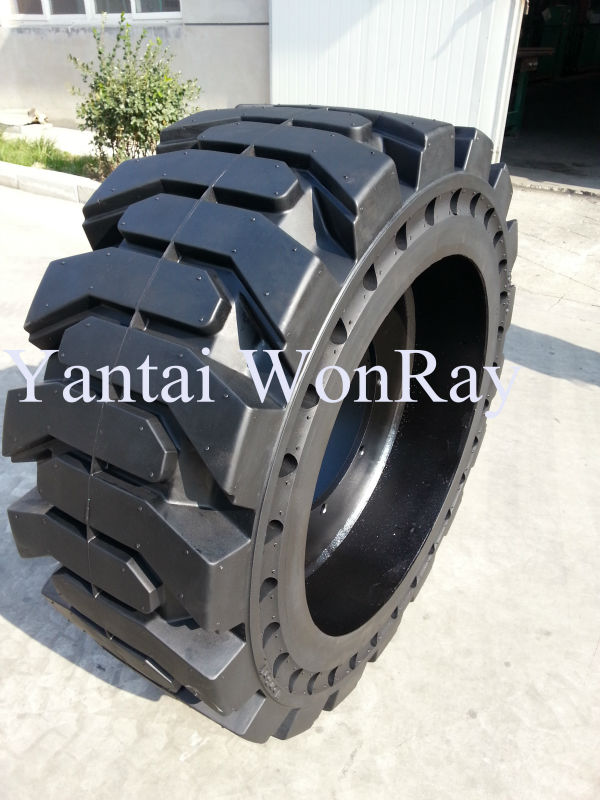

famous solid tires 10.16.5 12.16.5 for bc, backhoes, skid steers and front loaders
Note: Please advise us if you need mark on the tyre LEFT SIDE and RIGHT SIDE
Advantages:
1,factory, OEM service
2,standard rubber,better stability, no slipping ring and lamination
3,puncture free,long wear,no exploding, Long tire life adds up to major cost savings
4,low rolling resistance, save energy
5,high loading capacity,easy fix

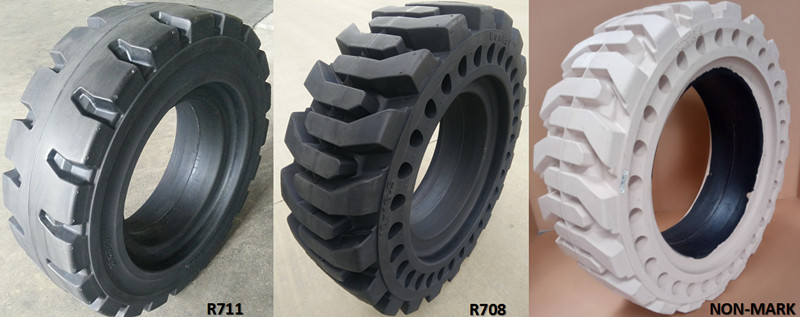

6,various size,non-marking available
7,Quality, Durability, and Deep Tread Design for Traction
8,we have advanced quality inspection equipment
9,Solid Rubber with Cushioning for a more comfortable ride
10,For the harsh, more abrasive environments where Solid Tires are a must
Sizes information:
| Size of Tire | Rim Size | Outside Diamete | Section Width | Net Weight(Kg) | Max Load (Kg) |
| Other Industrial Vehicles | |||||
| ±5mm | ±5mm | ±1.5%kg | 16Km/h | ||
| 10x16.5 (30x10-16) | FB/Hole | 788 | 250 | 116 | 3700 |
| 12x16.5 (33x12-20) | FB/Hole | 840 | 275 | 140 | 4500 |
| 16/70-20 | FB/Hole | 1060 | 400 | 329 | 8830 |
| 16/70-20 | FB/Hole | 940 | 330 | 216 | 6620 |
| 38.5x14-20(14*17.5,385/65D-19.5) | FB/Hole- | 966 | 350 | 246 | 7070 |
| 385/65-24(385/65-22.5) | FB/Hole- | 1062 | 356 | 290 | 7390 |
| 445/65-24(445/65-22.5) | FB/Hole | 1152 | 428 | 394 | 10040 |
| 14.00-24 | FB/- | 1340 | 328 | 461 | 10700 |
| 17.5-25 | FB/Hole - | 1368 | 458 | 650 | 13400 |
| 18.00-25 | FB/Hole - | 1620 | 500 | 960 | 15795 |
| 20.5-25 | FB/- | 1455 | 500 | 950 | 17470 |
| 23.5-25 | FB/Hole - | 1620 | 580 | 1040 | 23400 |
| 26.5-25 | FB/Hole - | 1736 | 650 | 1395 | 29260 |
| 29.5-25 | FB/Hole - | 1840 | 730 | 1780 | 34390 |
| 1098*500 | FB/Hole - | 1098 | 500 | 500 | 14235 |
| 1510*470 | FB/Hole - | 1510 | 470 | 1045 | 16125 |
Company introduction:
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
All our products meet the standards TRA in the USA, ETRTO in Europe and JATMA in Japan.

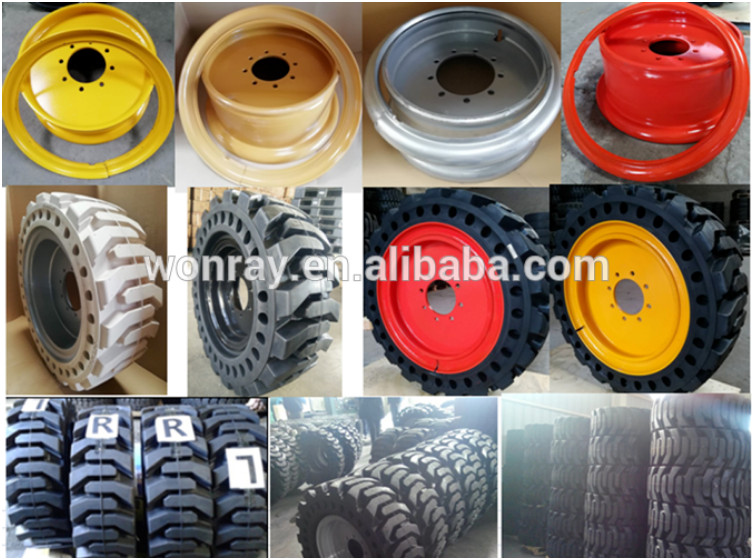

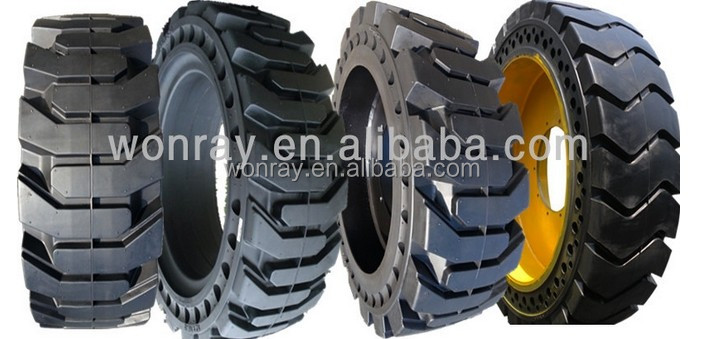

Products and factory photo show:
After Sales:
1, All our solid tires are in line with GB/T10824-2008

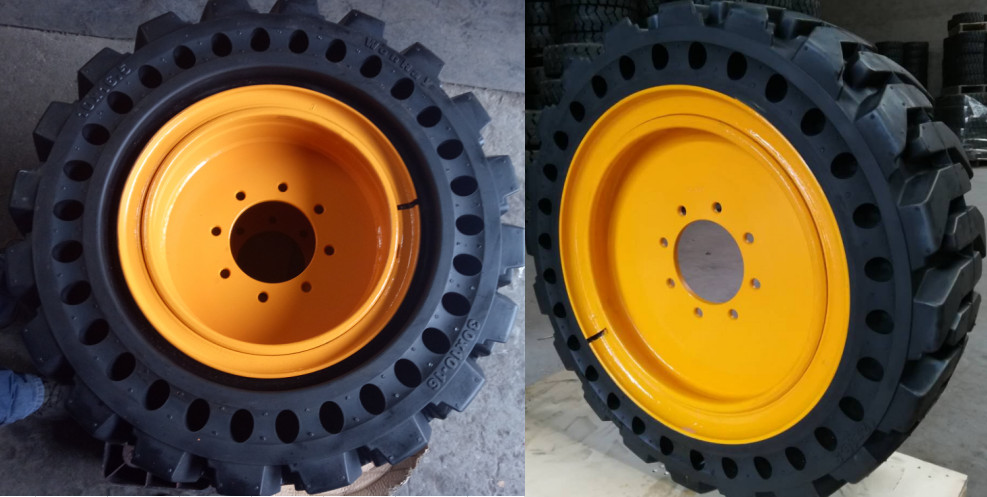

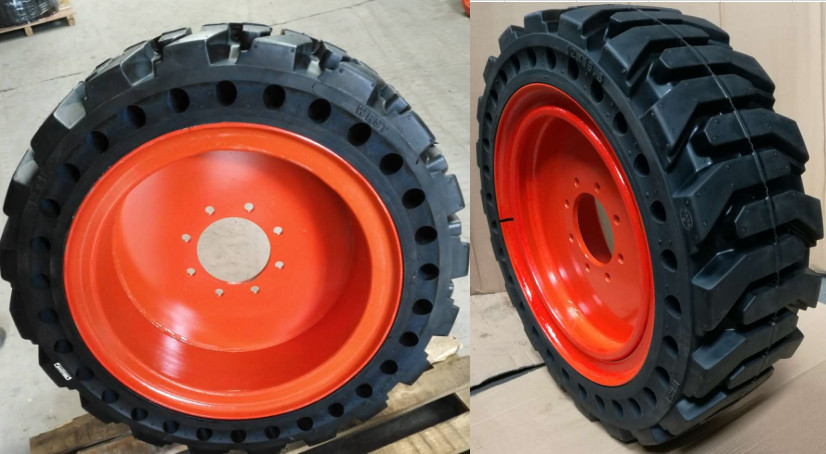

2, If needed, we can supply the correct rims and press the rims into the tires
3, We will advise the speed limit and load capacity after sales
4, If any problem, please contact with us, we will reply in short time.
5, If quality problem, please take photos, we will be responsible for this.
6, For the need of developing new product, please offer us detailed technical requirement or mould drawing. Attention:
We have rims with different installing bolt holes. When ordering these tires with rims, please let us know how many bolt holes your current rims have!
