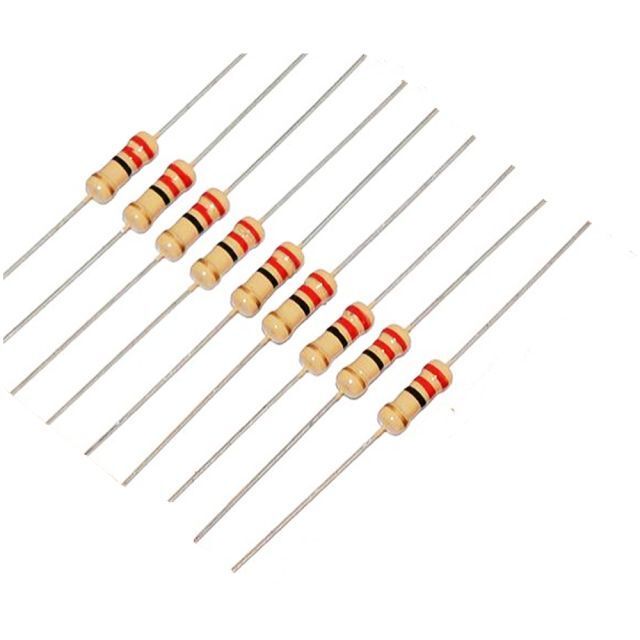

1/4W 1/2W 1W 2W 5W 5% carbonl film resistors

Price:$0.001 / >=5000 pieces
Min. Order:5000 pieces
Supplier:Shenzhen Huayao Precision Components Co., Ltd.
Region:Guangdong, China
Contact:Ms Belle Wang

PRODUCT DETAIL

Number of Resistors:	1;	Express:	FedEx TNT.DHL.EMS.UPS.etc;
Number of Terminations:	2;	Product Name:	carbon film resistors;
Place of Origin:	Guangdong, China;	Operating Temperature:	-55-125 ℃;
Brand Name:	HY;	Application:	LED Lamp PCB;
Certificates:	Rohs CE;	Supply Ability:	10000000 Pieces per Month;
Resistance Tolerance:	2% 5% 10%;	Number of Pins:	2;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;	Supplier Type:	Original manufacturer;
Rated Power:	0.25 W or above;	Technology:	Carbon Film;
Package:	T52 T63 taped;	Applications:	LED Lamp Electronics;
Power (Watts):	0.25W-5W;	Lead Style:	Dip or Shaped;
Key word:	Fixed film resistors;	Packaging Detail:	1: 5000 PCS ( for 1/4W ) per inner box 2: Several inner boxes packed in outside cartons;
Model Number:	CFR;	Features:	Taped packing;
Size / Dimension:	6.02.3 mm ( LD);	Port:	Shekou Shenzhen or HongKong;
Resistance:	0R to22 MR;	Temperature Coefficient:	350 PPM;
Package / Case:	Surface Mount;	Package Preview:	;
Media Available:	Other;	Mounting Type:	dip or welding;
Circuit Type:	Isolated;	Tolerance:	2% 5% 10%;
Composition:	Ceramic + Copper ( or Iron );	Material:	ceramic +copper or iron;
Type:	Film Resistor;	Brand:	Carbon film resistors;
Payment:	TT Paypal WU;	Package Type:	Throught Hole;
Cross Reference:	MFR;	Coating, Housing Type:	carbon film painting;
D/C:	001;

Products Description

1:	Stable Performace , extensive resistance , small size high operating temperature & high ultimate voltage
2:	Highly adaptive pulse load , good high frequency permance
3:	Operating ombient temperature : -55 ℃ - 125 ℃
4:	Resistance tolerance : ±2% ±5% ±10%
5：	Dimensions & Packing are customizable

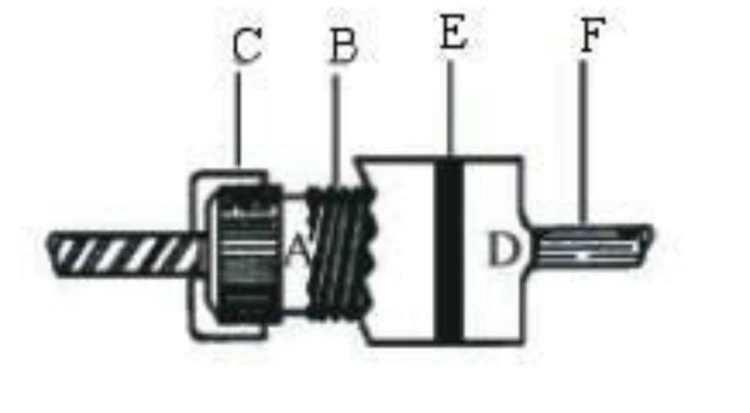

Construction Drawing

A	High Heat Exchange Ceramic Core
B	High Stability Electronic Conduction Film
C	Iron Cap
D	Epoxy Resin Coating
E	Color Ring
F	Tinned Copper Lead Wire or CP wire

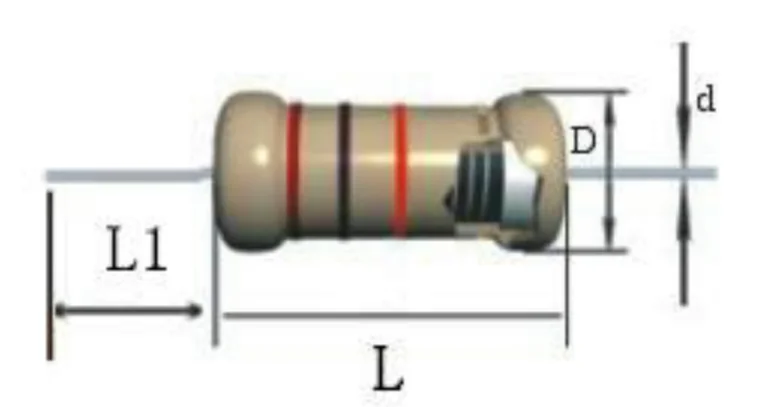

Products Dimensions

Power (Watt )	Dimensions ( mm )
Power (Watt )		L±1	D±0.5	d±0.05	L1±2
1/8W(1/4WS)	3.5	1.7	0.41	26
1/4W ( 1/2WS )	6.0	2.3	0.45 / 0.52	28
1/2W( 1WS)	9.0	3.2	0.58	28
1W(2WS)	11.0	4.5	0.75	33
2W(3WS)	15.0	5.0	0.75	33
3W(5WS)	24.0	8.0	0.75	33

Electricity Performace Parameter

Power ( watt)	Max Working Voltage	Max Overload Voltage	Max Puls Voltage	Max Insulation Voltage
1/8W ( 1/4WS)	200V	400V	500V	300V
1/4W ( 1/2WS)	250V	500V	750V	500V
1/2W ( 1WS )	350V	700V	1000V	700V
1W ( 2WS)	500V	1000V	1000V	1000V
2W ( 3WS)	500V	1000V	1000V	1000V
3W (5WS)	700V	1200V	1000V	1000V

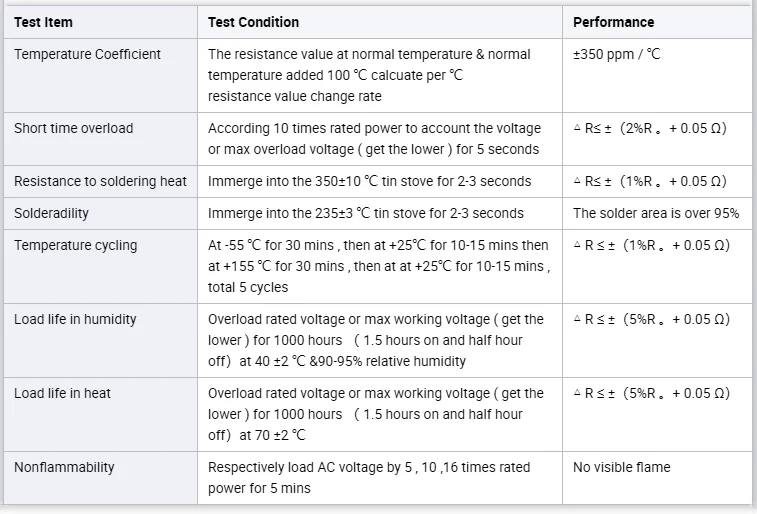

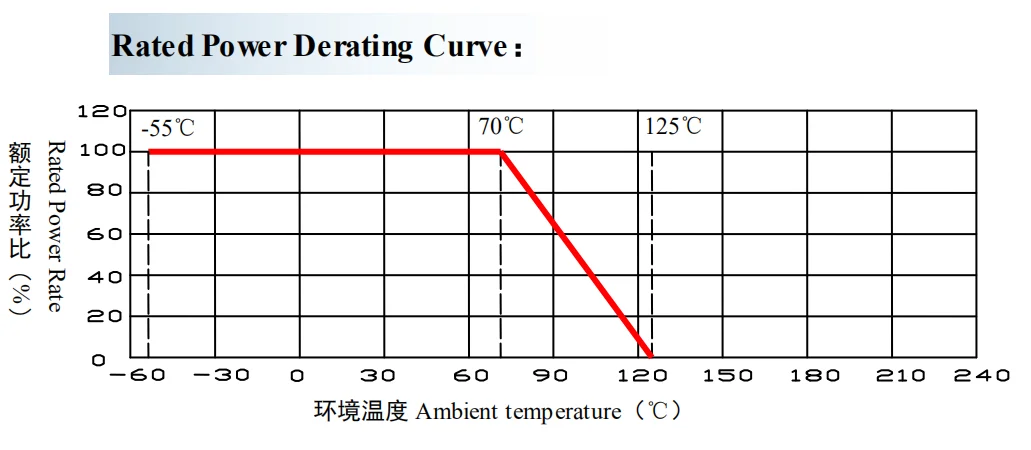

Performanc Test

Part No. Regulation

CFR	01B	J	T520	100K0
Products Name : Carbon Film Resistors	018=1/8W 014=1/4W 14S=1/4WS 012=1/2W 01B=1W 01S=1WS 02B=2W 02S=2WS 03B=3W 05S=5WS	G=2% J=5% K=10%	Forming	Resistance value ( Ω）
CFR : Copper lead wire CCR : CP lead wire					T260=T26 T520=T52 T630=T63	OR00=0.1 Ω 10R00=10 Ω 10K00=10KΩ 1M00=1MΩ
CFR : Copper lead wire CCR : CP lead wire					T260=T26 T520=T52 T630=T63	OR00=0.1 Ω 10R00=10 Ω 10K00=10KΩ 1M00=1MΩ

Packing & Delivery

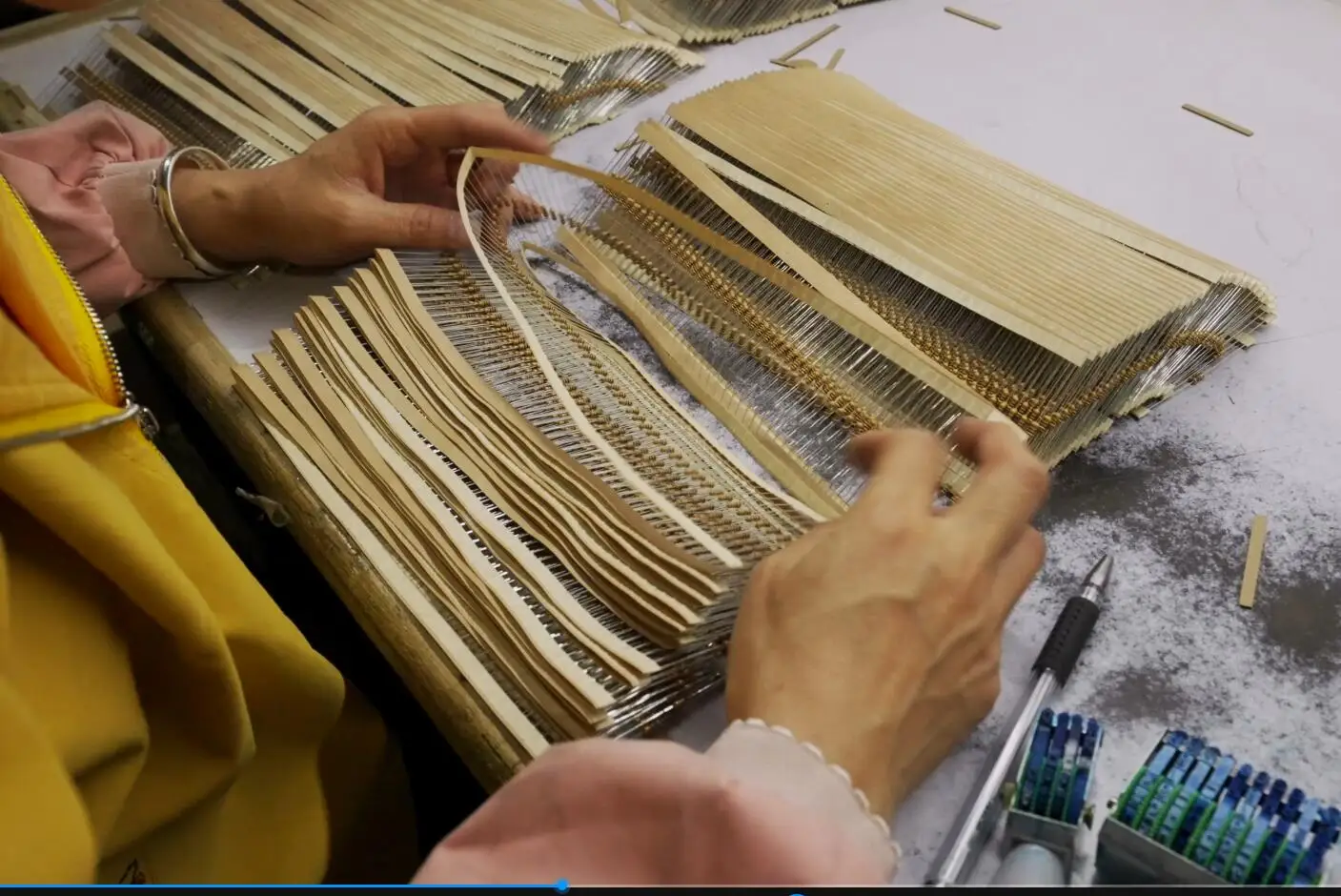

1：Some quantities goods ( 5000 PCS for 1/4W ) packed in the shockproof inner box

2: Then several inner boxes put in the outsiding cartons

1. we deliver the goods with your DHL/Fedex/etc account number .

2. DHL/UPS/FedEx/TNT for samples .

3. By air or by sea for batch goods.
4. Delivery Time:3-5 days for samples, 5-30 days for batch goods.
