2600Pcs 1/4W Resistor 1% 1R ohm~3M Metal Film Resistor Set 1K 10K 22K 100K 100ohm 220ohm 1M 2.2M Resistor Pack

PRODUCT DETAIL

technology:	metal film	Package preview:
Certificate:	RoHS TUV ISO9001	type:	fixed resistor
Package:	custom made	Processing:	Yes
Type of company:	factory	port:	Shenzhen
Resistance Tolerance:	1% or 5%	rated power:	1/4w
brand:	Bonans	ID:	custom made
Temperature Coefficient:	15ppm, 25ppm, 50ppm, 100ppm, 250ppm	model:	Carbon Film Resistor
Origin:	Sichuan, China	Supply capacity:	100000 pieces per day
Operating temperature:	*	Material:	metal film
color:	blue yellow, gray, khaki	Production experience:	13 years
Payment/Payment:	2021	type of packaging:	through hole

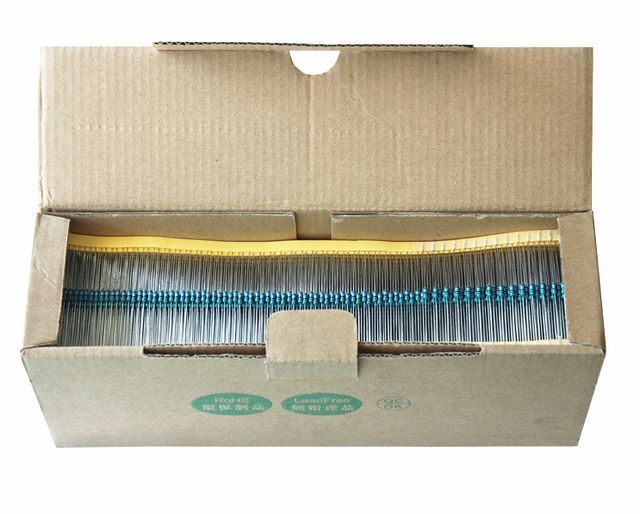

Packaging Details:	5000PCS/resistance/box	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal
Revolt:	10ohm~1Mohm	Design Manufacturer:	Yes

1% 1/8W 1/4W 1/2W 1W 2W Metal Film Resistor

Product Details

1)Insulation resistance:1000Mohms or more

2) Pressure resistance:The change of resistance value is within ±(2%+0.05ohm), without mechanical fracture

3)Intermittent overload:The resistance change should be within ±(2.00% + 0.05ohm

4)Terminal strength: resistance change should be within ±(0.5%+0.05ohm), and there should be mechanical damage

5) Heat-resistant welding: the resistance change should be within ± (1.0%+0.05ohm), and there should be mechanical damage

6)Soldering capacity:After the lead is immersed, more than 95% of the lead surface should be covered with new solder

welding

7)Humidity Load Test:The resistance value change is within ±(3.0% + 0.05ohm), and there must be no mechanical damage

8)Load life test:The change of resistance value should be within ±(3%+0.05ohm) without mechanical damage

score:

CF (Carbon Film Fixed Resistors)

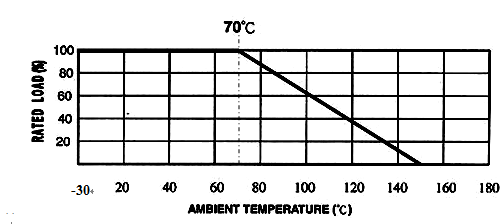

rated power:

mark:

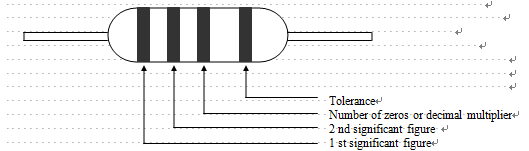

color reference

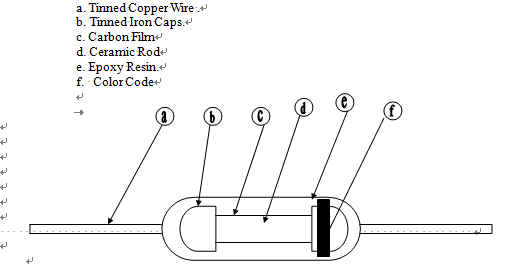

Structure and Dimensions:

put up:

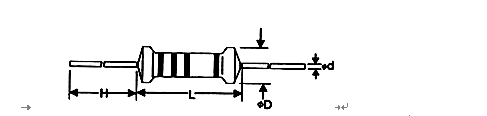

Dimensions:

table:
