WH148 50k carbon film switch rotary potentiometer for volume control

PRODUCT DETAIL
brand:BaonengKnob:usable
rated power:0.125Wbusiness type:manufacturer
Supply capacity:50000 pieces per daySpecial Resistance:usable
place of origin; place of origin:Sichuan, ChinaModel:Dual Potentiometer
Types of:rotary potentiometerResistance:1KΩ~2MΩ
OEM service:usableProduction experience:9 years
Packaging Details:According to customer requirements.maximum. Operating Voltage:200 VAC
technology:carbon filmResistance Tolerance:±20%
Shaft length:15MM 20MM 25MMCertificate:TUV RoHs ISO
model:WH148Material:carbon film
Axis type:KQ or metalOperating temperature:-10°~60°
port:Shenzhen. Shanghai. Ningbopayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal

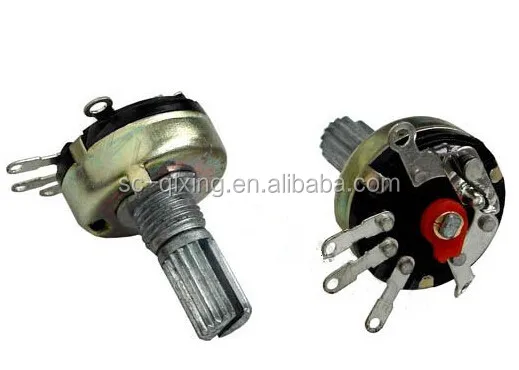

WH148 50k carbon film switch rotary potentiometer volume control

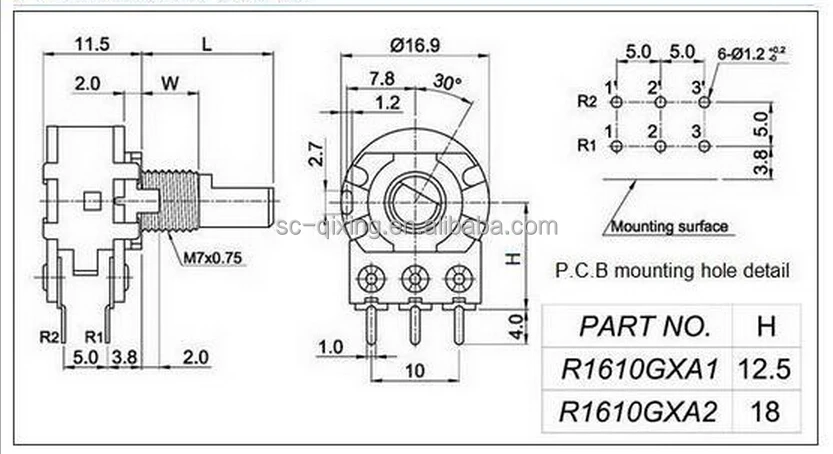

Dimensions of WH148 dual potentiometer
data sheet

total rotation angle

300°±5°

rotational moment

2~20mN.m(20~200gf.cm)



Shaft strength

6Kgf.cm

Push-pull strength

60N



Electrical Specifications:



total resistance

5KΩ~2MΩ

Resistance taper

A, B, C

rated power

Curve B: 0.125W

Other curve B: 0.063W

working voltage

Curve B: 200V AC

Other Curve B: 150V AC

Insulation resistance

Greater than 100MΩ at DC500V

Dielectric

AC500V, 1 minute

Resistance Tolerance

±20%

spinning noise

≤47mV

residual resistance

R≥250KΩ 0.1%max of the total resistance

250KΩ>R>10KΩ 20Ωmax 10KΩ≥R 10Ωmax

tracking error

~-40db±3db



Mechanical life:



Rotation life

10,000 cycles

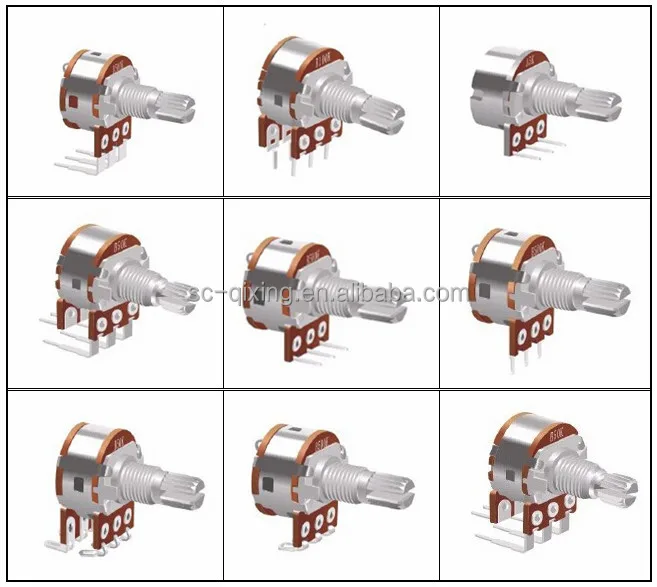

WH148 series potentiometer

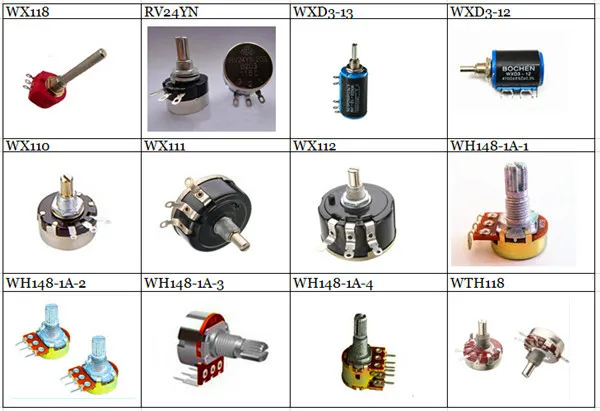

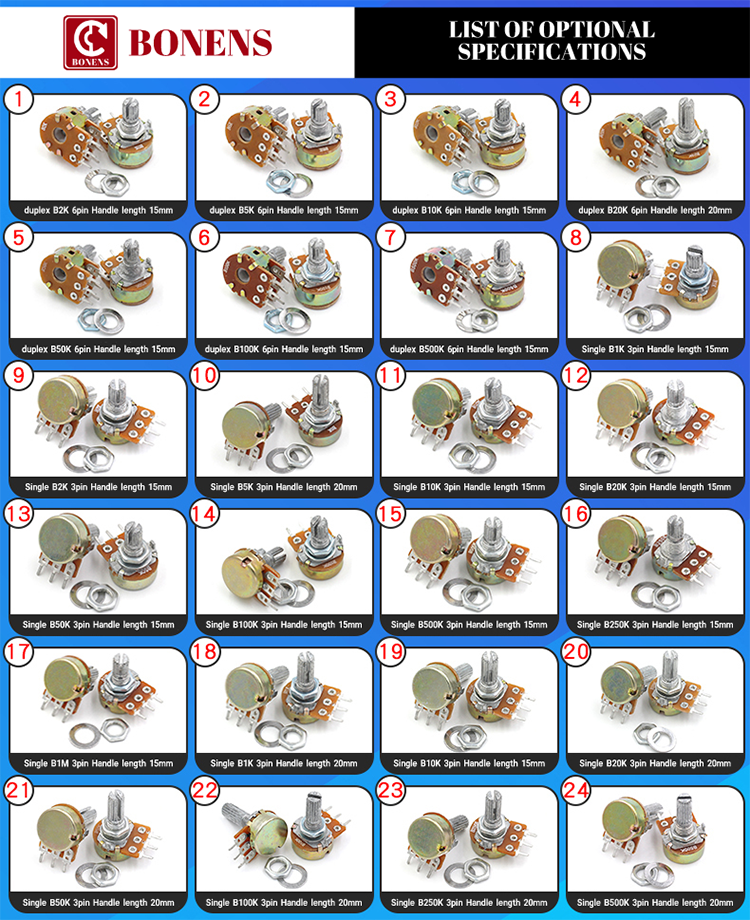

related potentiometer

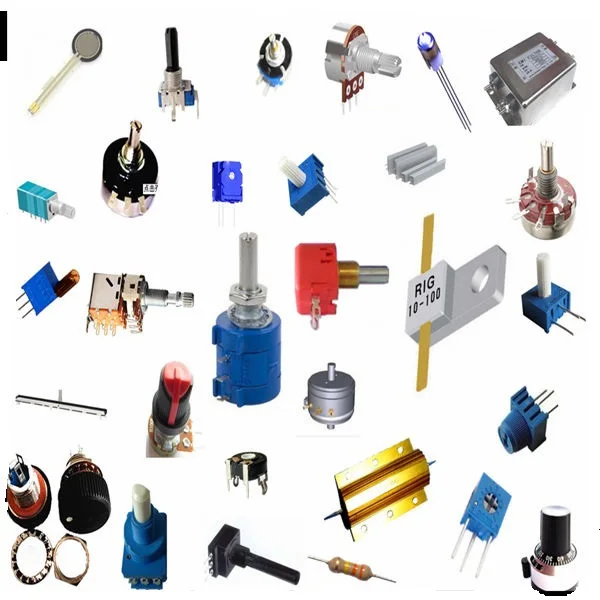

Our main products

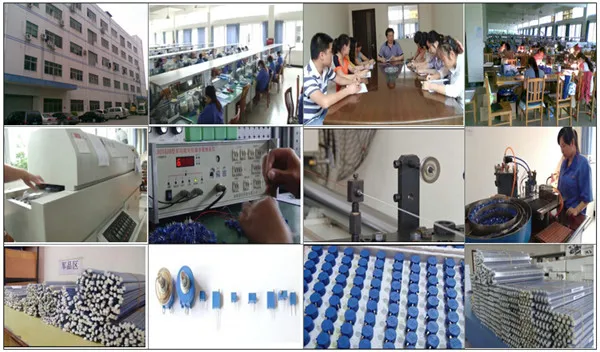

factory
certified
delivery conditions
payment terms
order guide

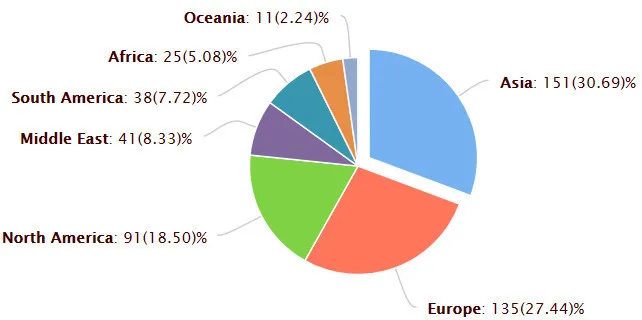

Business Scope



sample:

1. Sample:Samples are available.

2. Sampletime:It takes 3-10 days to prepare samples after payment.

3. Sample payment term:T/T, PayPal, Western Union



quality assurance:

1. Strict quality control before delivery

2. Quality assurance within one year



Advantage:

1. Low MOQ: 1 item

2. Accept new design: According to your requests

3. Good service:  customer is god

4. Good quality:smallStrict quality control and good reputation

5. Fast and cheap delivery:  Courier agent big discount (long-term contract)





Special resistors, OEM, free samples are available, please inquire for more details on price, packaging, shipping and discounts.
