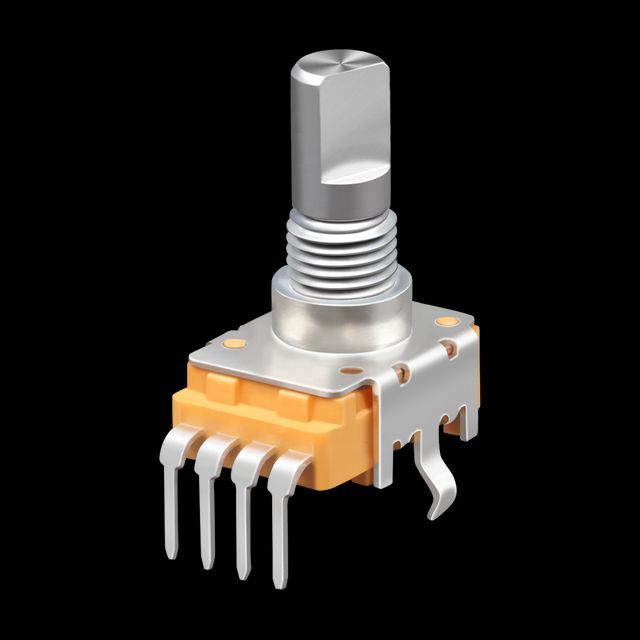

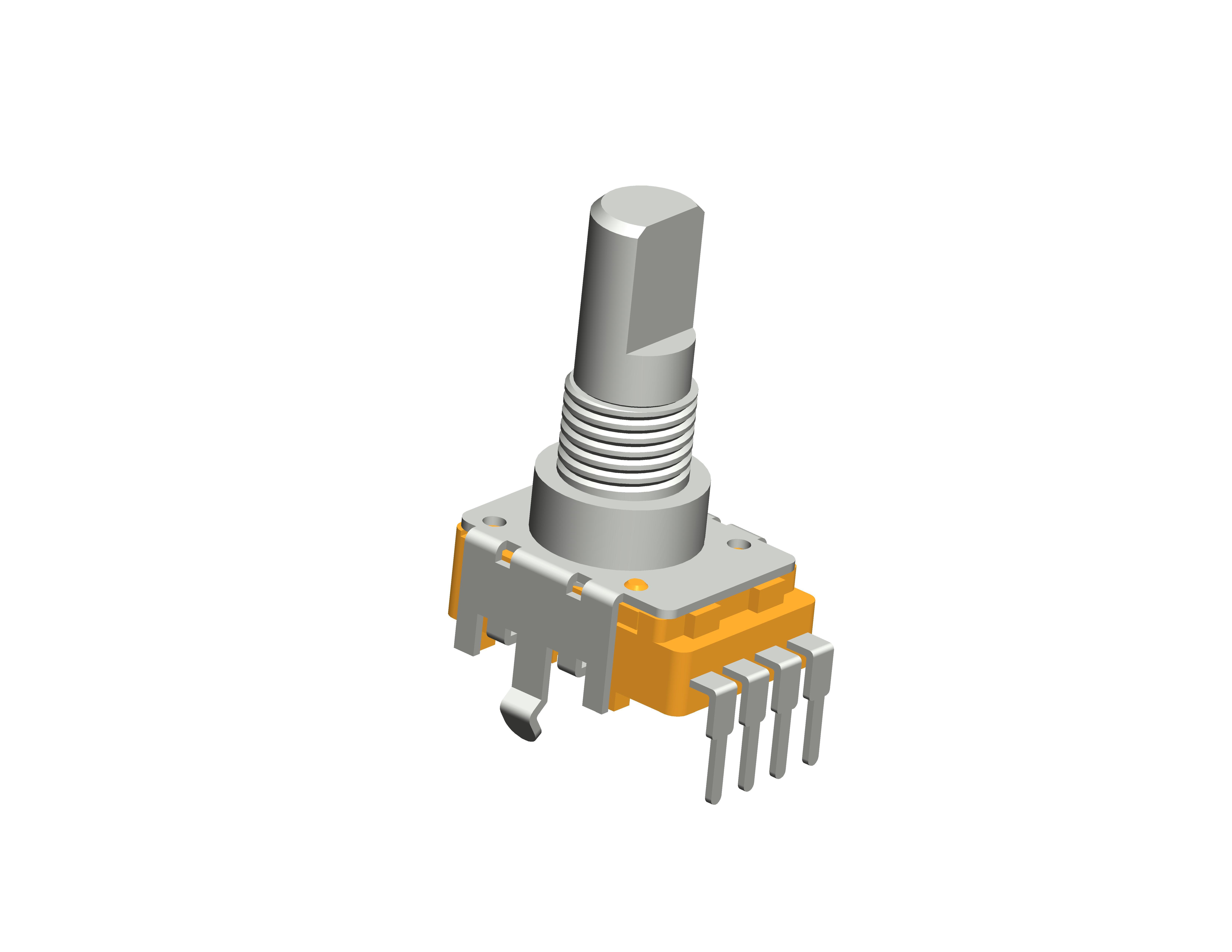

360 degree continuous potentiometer b50k volume control knob audio dual potentiometer 100k European Soundwell RA1151
- $0.15 / >=2000 pieces
- 2000 pieces
- Soundwell Electronic Products Guangdong Co., Ltd.
- Guangdong, China
- Mr Angelo Wu
PRODUCT DETAIL
| Operating temperature: | -10℃~70℃ | Resistance: | 20K |
| type: | rotary potentiometer | port: | Hongkong |
| Rotation life: | Minimum 20,000 cycles | brand: | Shengwei |
| turn around: | 360° | Supply capacity: | 10,000 pieces per day |
| Place of origin: | Guangdong, China | reputation: | China's top brands |
| payment terms: | wire transfer | technology: | carbon film |
| Rotating torque: | 1~4mN.m | Operating temperature: | -10℃~70℃ |
| Packaging details: | 1. Standard export carton with inner box 2. 1000 pieces per carton 3. Carton size: 46*28*30 | rated power: | 0.05W |
| model: | RA1151 | brand: | RA1151 rotary potentiometer |
| Restriction of Hazardous Substances Directive: | 100% | Resistor tolerance: | ±20% |
360 degree continuous potentiometer model | RA1151 series |
Total rotation angle | 360° |
rotational torque | 1~4mN.m |
Operating temperature | -10℃～70℃ |
Rotation life | Minimum 20,000 cycles |
360 degree continuous potentiometerMain specifications
rated power | 0.05W | ||||||
Total rotation angle | 360° | ||||||
rotational torque | 1~4mN.m | ||||||
Operating temperature | -10℃～70℃ | ||||||
Rotation life | Minimum 20,000 cycles | ||||||
Application areas | Professional audio and other related electronic equipment. | ||||||
Features | 360° unlimited rotation; Reliable performance and smooth feel; There are several different models available. | ||||||
Function | It mainly plays the role of adjusting volume, changing sound effects, and controlling functions. | ||||||
360 degree continuous potentiometerSpecification
1. Mechanical characteristics
1. Effective electrical angle: 360° 2. Rotation torque: 1~4mN.m 3. Shaft push and pull force: 20N 4. Shaft vertical traction force: 5N
2. Electrical characteristics
1. Total resistance range: 20K±20% 2. Rated power: 0.05W 3. Insulation resistance: 100MΩ DC 250V 1 minute 4. Dielectric voltage: AC 150V 1 minute
3. Endurance characteristics

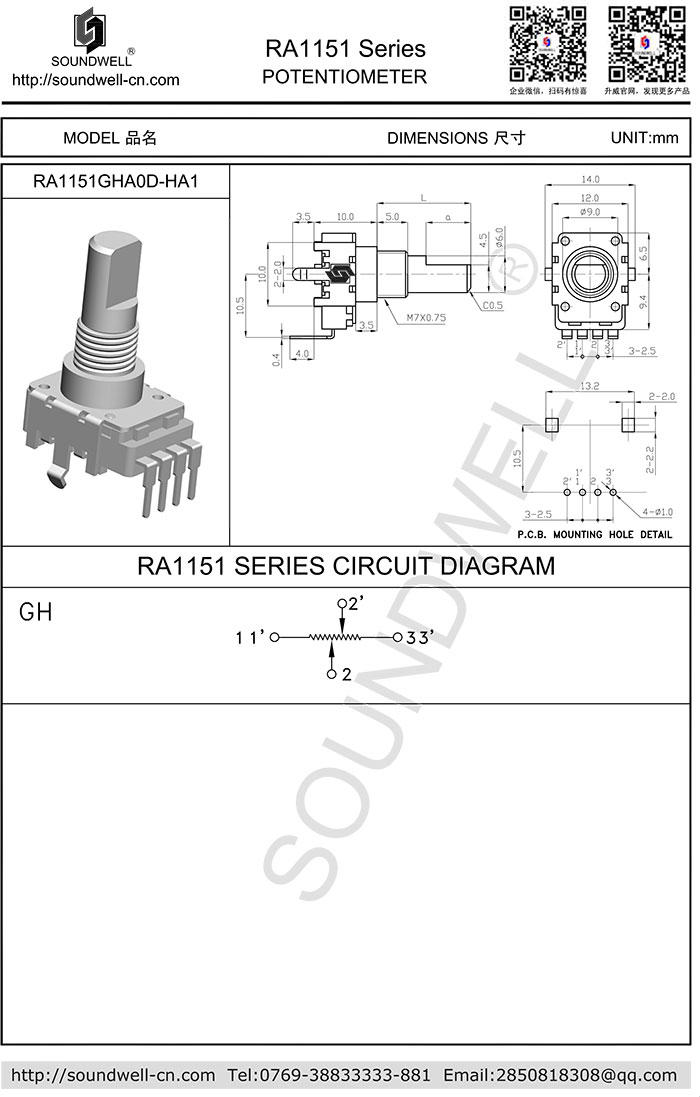

Note: In this product catalog, if some parameters or drawings are inconsistent with the "Approval Form", the "Approval Form" shall prevail.
