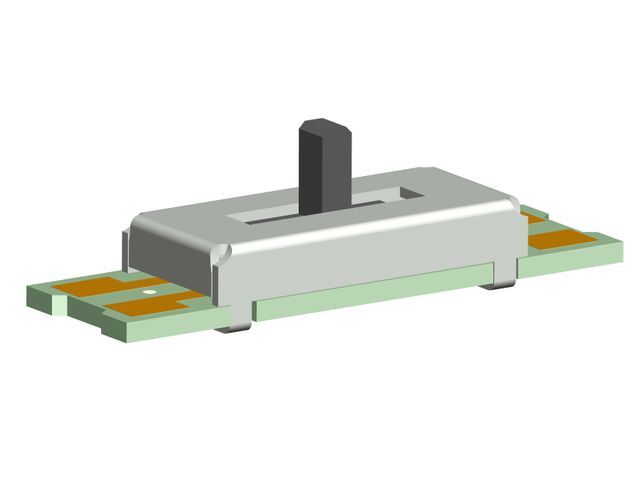

SV0508GCAOX-WA0 5mm travel slider potentiometer

PRODUCT DETAIL
aspect:17mmOrigin:Guangdong, China
Potentiometer, slide potentiometer:100%RoHS part:100%
Packaging Details:plastic box, cartonport:Hongkong
brand:prestigemodel:SV0508GCAOX-WA0
payment terms:wire transferMeasuring range:5mm
Verifiable dimensions:5mmSupply capacity:10000 pieces per day

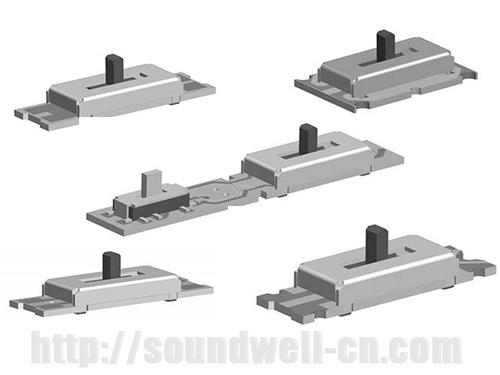

Slide potentiometer model
SV05 series
Taxi stroke
5 mm
Resistance Tolerance
±20%
Operating temperature
-10℃ ~70℃
Resistance taper
Second
sliding life
5,000 minutes

5mm Travel Slide Potentiometermain specifications

travel
5mm
Resistance Tolerance
±20%
rated power
0.05W
Operating temperature
-10℃ ~70℃
service life
5,000 minutes
application
Volume control for in-line headphones.
Function
Small size, high precision;
PCB that saves the space of the whole machine.

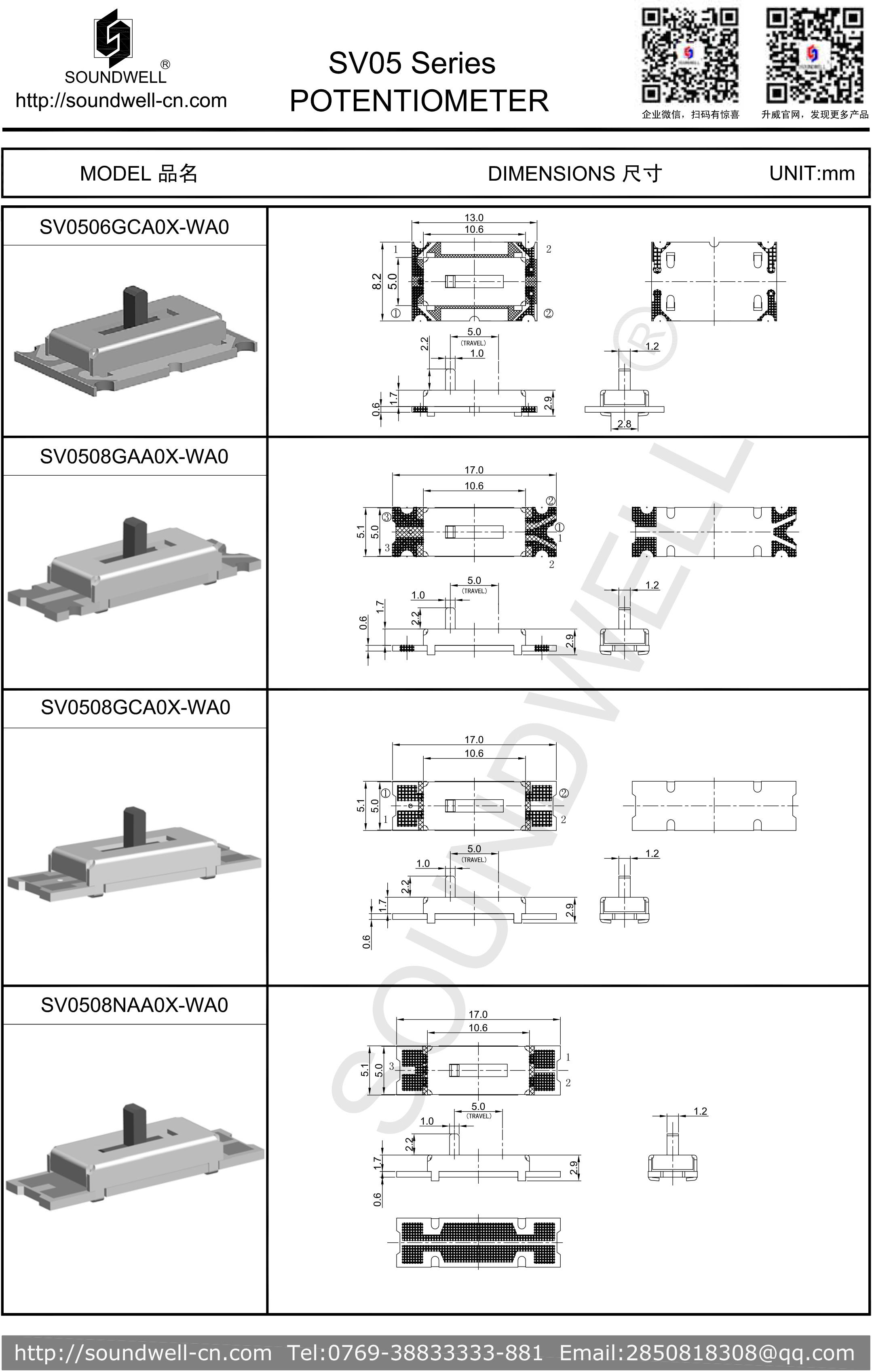

5mm Travel Slide PotentiometerSpecification

1. Mechanical properties
1. Operating force: 10~100gf.cm 2. Sliding stroke: 5±0.5mm 3. Lever stop force: ≥3.0Kgf.cm
2. Electrical characteristics
1. Total resistance range: 1KΩ<1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%2. Resistance taper: B 3. Rated power: 0.005W 4. Insulation resistance: 100MΩ 1 Minute at DC 250V 5. Dielectric voltage: 1 Minute at AC 100V
3. Endurance characteristics

1. Service life: at least 5,000 cycles
Note: In this catalog, if some parameters or drawings are different from the "Approval Letter", the "Approval Letter" shall prevail.
