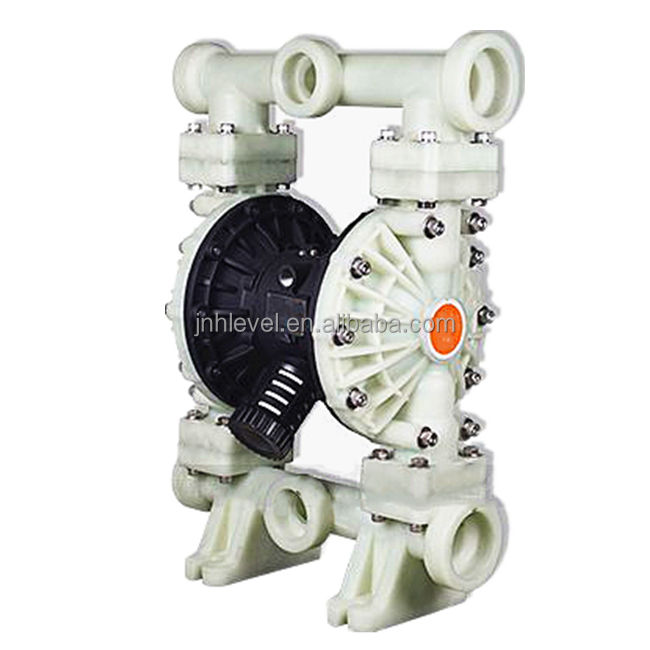

1.5 inch PP pneumatic double diaphragm glue pump

PRODUCT DETAIL
Name:PP pneumatic diaphragm pumpflow:170 liters/minute
connect:Thread (bsp), customizable flangeweight:13.5
Health status:newCore component warranty:3 years
Warranty:3 yearsCore components:Pump
Main selling points:long lastingMarketing type:Hot Products of 2023
Place of origin:ChinaPackage preview:
particle:<4mmhead:84m
Air inlet size:1/2 inchLift height:5.48 meters
Dimensions (length*width*height):49*26*53cmMaterial:PP
Diaphragm material:2 pieces of Santoprene + 2 pieces of PTFESupply capacity:10,000 sets per month
Packaging details:cartonVideo outbound inspection:if
Applicable industries:Manufacturing plants, construction and engineering, energy and mining, food and beverage outlets, otherShowroom location:Canada, Vietnam, Philippines, Indonesia, Russia, Spain, Thailand, South Korea, United Arab Emirates, Japan, Malaysia
brand:Class Hpayment terms:Western Union, wire transfer
Transmission length:0.08 kmdiameter:1.5 inches, DN40mm
Mechanical test report:if
Product Description

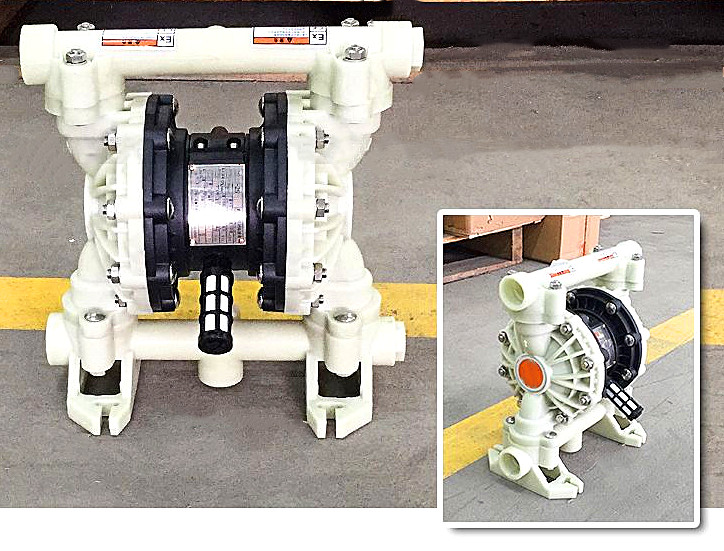

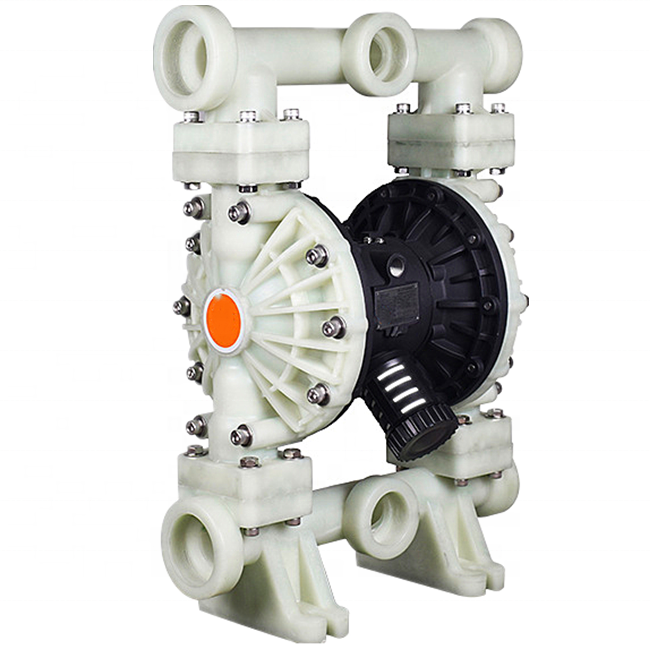

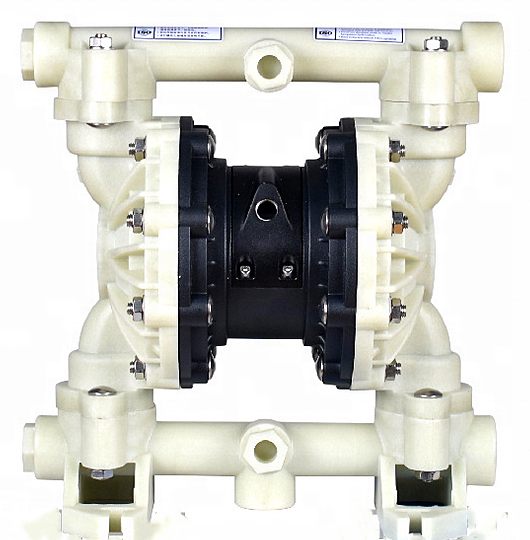

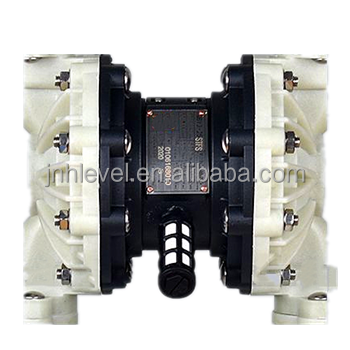

QBY3-40, 1.5-inch pneumatic PP pneumatic diaphragm pump, self-priming, CE certificate
Model
QBY3-40
Material
polypropylene
flow
170 liters/minute
import and export
1.5 inches, 40 mm
pressure
8.4 bar
air inlet
1/2 inch
Suction lift height
5.48m
maximum particle size
3.2 mm
Air consumption
0.67 cubic meters/minute
Performance
Durable, long service life (5-year warranty for the body), low noise, low vibration, no collision problems, and excellent workmanship. Suitable for liquids and difficult-to-flow materials. It has the advantages of self-priming pump, submersible pump, slurry pump, impurity pump, etc.

Self-preparing
No water filling is required, the self-priming height can reach 4.5m, and the particle size can reach 3mm; the wear on the pump is very small when transporting slurry and impurities.
The flow rate and head can be adjusted through the damper.
Safe operation
There are no rotating parts, no shaft seal, and the medium and pump running parts are separated by a diaphragm. When pumping toxic and corrosive materials, it will not cause environmental pollution or harm the human body.
No electricity required, safe for flammable and explosive environments.

China Diaphragm Pump Manufacturer Air Operated Diaphragm Pumps for Solutions and Powders

Pneumatic diaphragm pump is a new type of conveying device, used to convey various liquids, slurries, powders and other materials, even high-viscosity, volatile, flammable and highly toxic liquids

feature:
Our diaphragm pumps feature a non-sealed design
Explosion proof
Suitable for low cutting conditions
Easy maintenance
Allow no-load operation
Light and portable
Self-priming start
Multiple material options, suitable for a variety of materials
advantage:
1) It can work under harsh air sources, and the reversing valve is reliable and not easily damaged.
2) The air path is smooth, and there is no air path obstruction in the 1/2' to 3' pump, ensuring flexible reversal.
3) The reversing valve is fully serviceable externally.
4) Fewer moving parts compared to other diaphragm pumps.
5) Pilot-operated reversing valve has long service life and ensures continuous operation.
6) A reversing valve is suitable for pumps of different specifications.

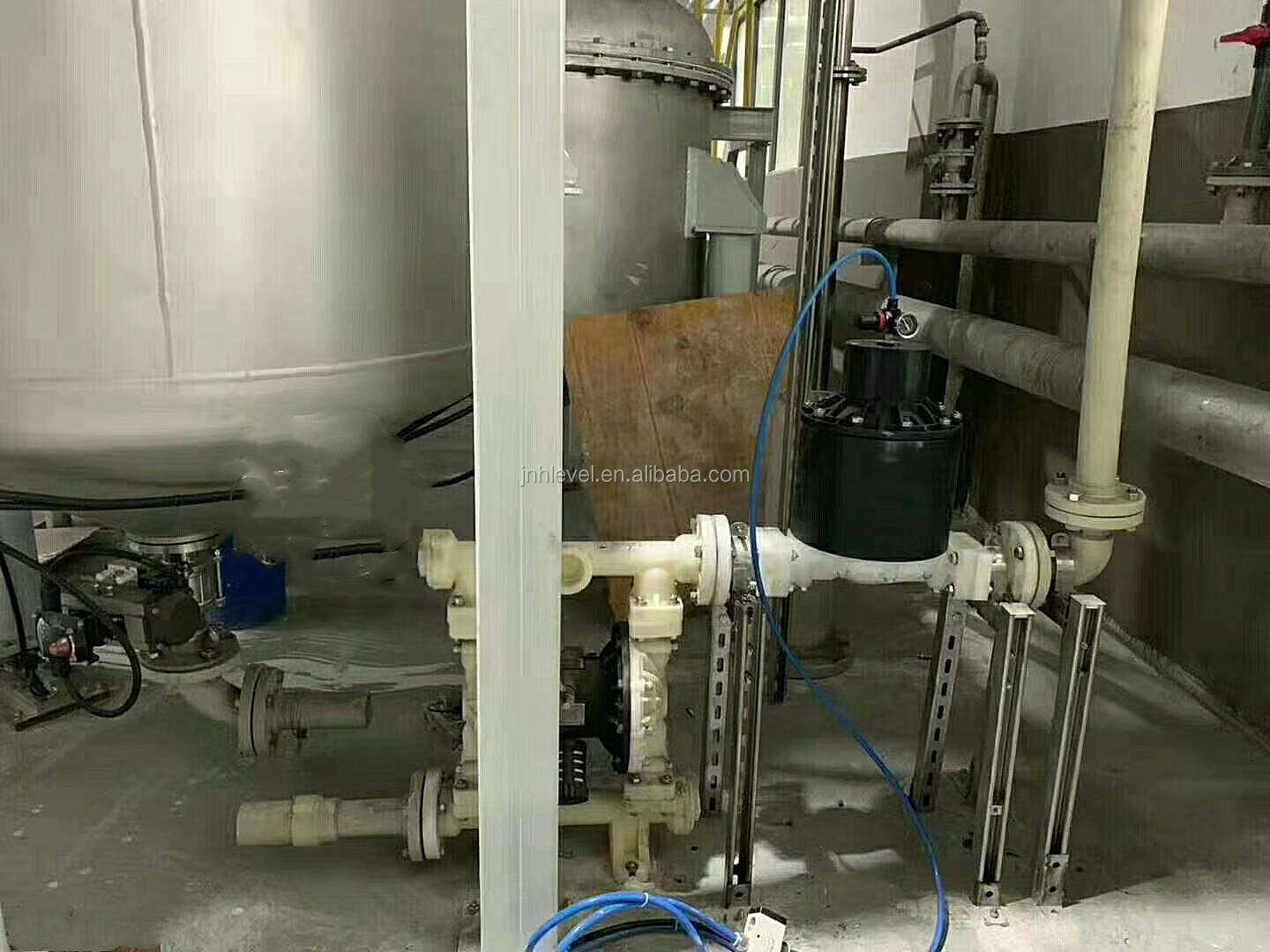

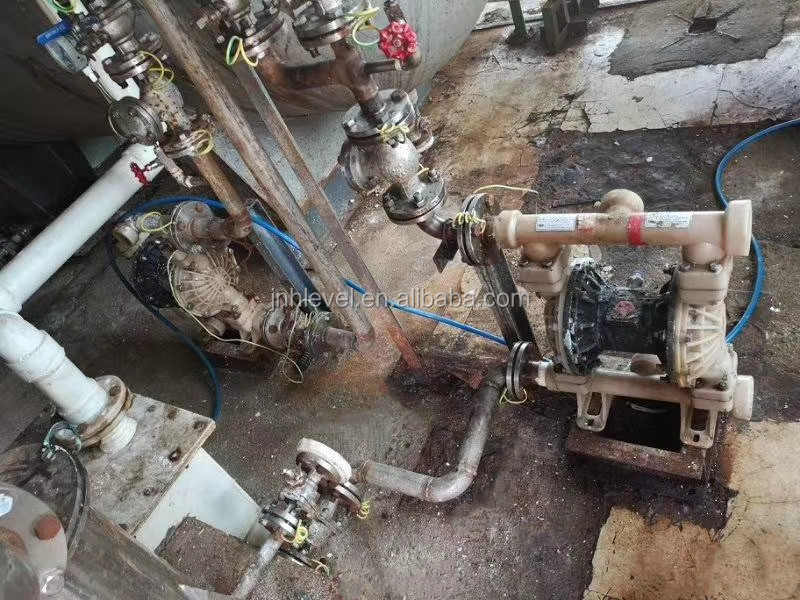

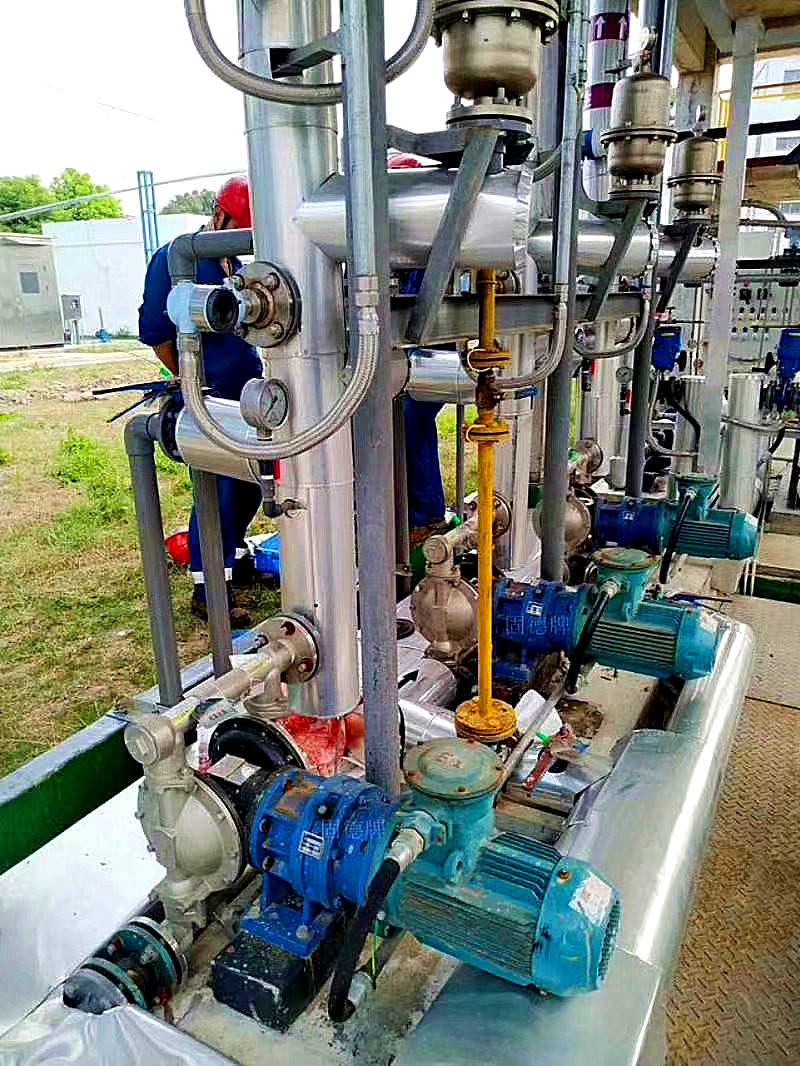

application:
Diaphragm pumps can be used in ship/bus/train unloading, chemical production, batch processing and mixing, tank or tank farm conveying, general feed conveying, system flushing, wastewater treatment or fluid filtration, packaging or filling, recovery and recycling .

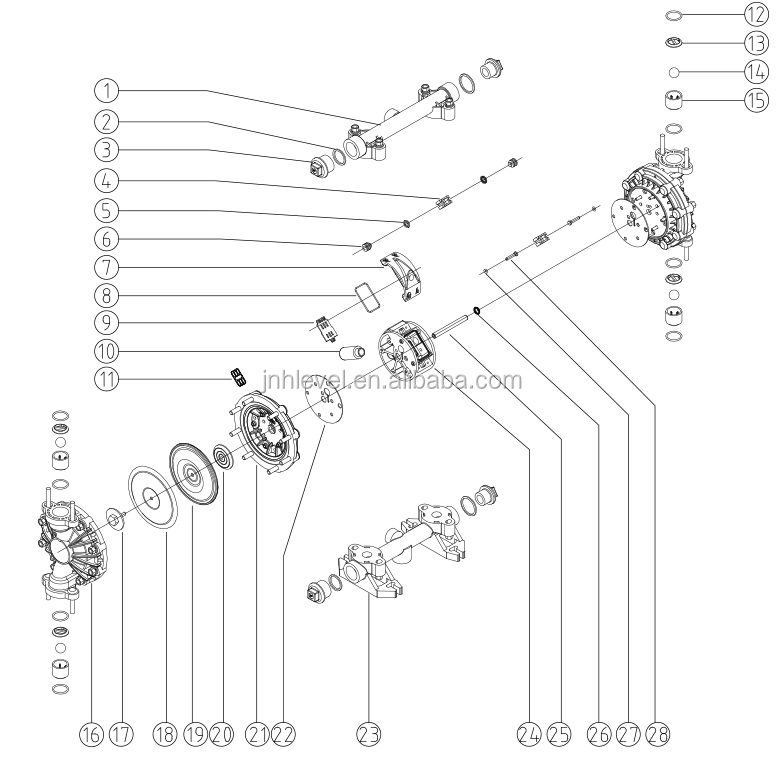

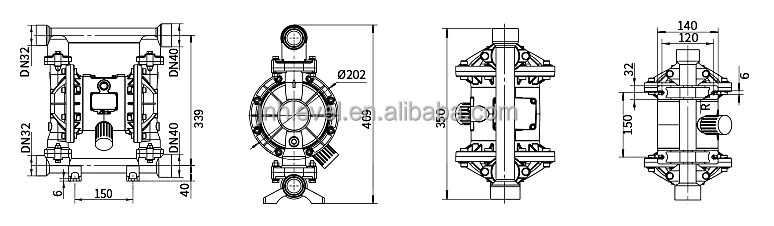

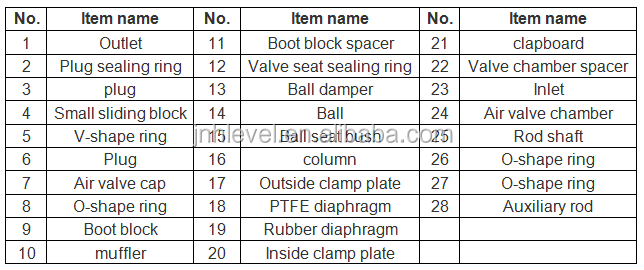

structure

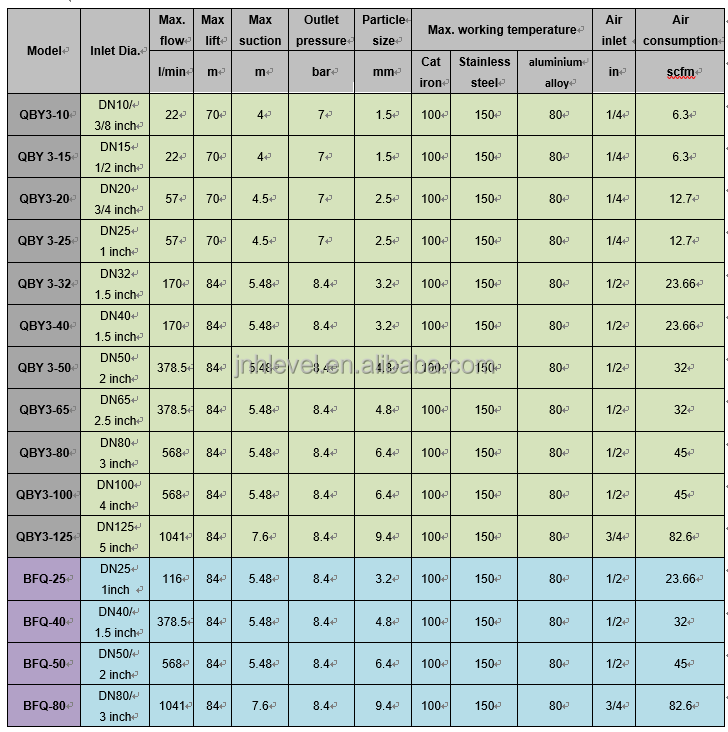

Specification
Applications

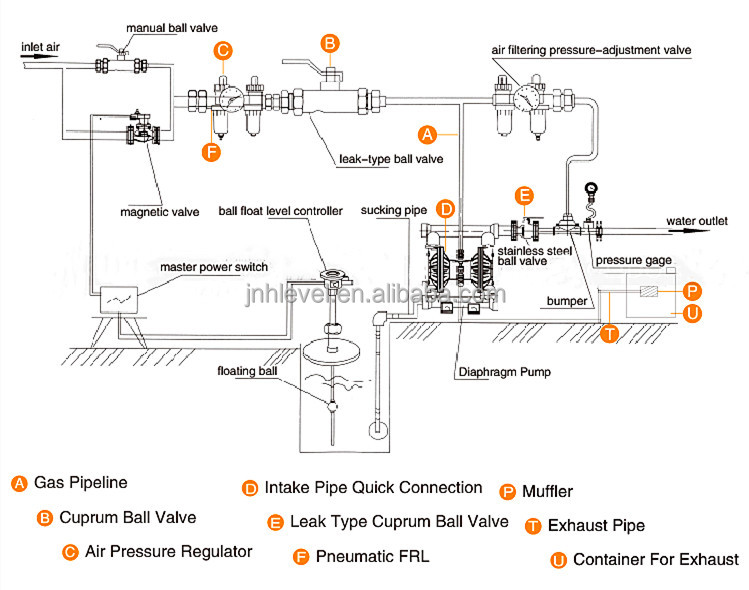

Application submitted
Material
Chemical
Acids, bases, solvents, suspensions, dispersions.
Petrochemical industry
Heavy oil, grease, mud, sludge
Painting industry
Resins, solvents, colorants, coatings
Daily chemical industry
Detergents, shampoos, lotions, lotions, hand creams, surfactants
Ceramic industry
Mud, porcelain slurry, lime slurry, clay slurry
mining
Coal slurry, magma, mud, mortar, lubricating oil
water treatment
Lime slurry, soft sediment, wastewater, chemicals, wastewater
food industry
Liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey
Beverage industry
Yeast, syrup, concentrate, gas-liquid mixture, wine, juice, corn steep liquor
medical
Solvents, acids, alkalis, plant extracts, ointments and other types of medicinal liquids
papermaking
Adhesives, resins, paints, inks, pigments, hydrogen peroxide
electronic product
Solvents, plating solutions, cleaning solutions, nitric acid, waste acid, corrosive acid, polishing fluid
textile
dyes, resins, gels
architecture
Grout, Tile Adhesives, Rock Grout, Ceiling Finishes
Automobile industry
Polishing lotions, oils, coolants, automotive primers, oil emulsions, varnishes, varnish additives, degreasers
furniture
Adhesives, varnishes, dispersants, solvents, stains, wood glue, epoxy resins, starch adhesives
