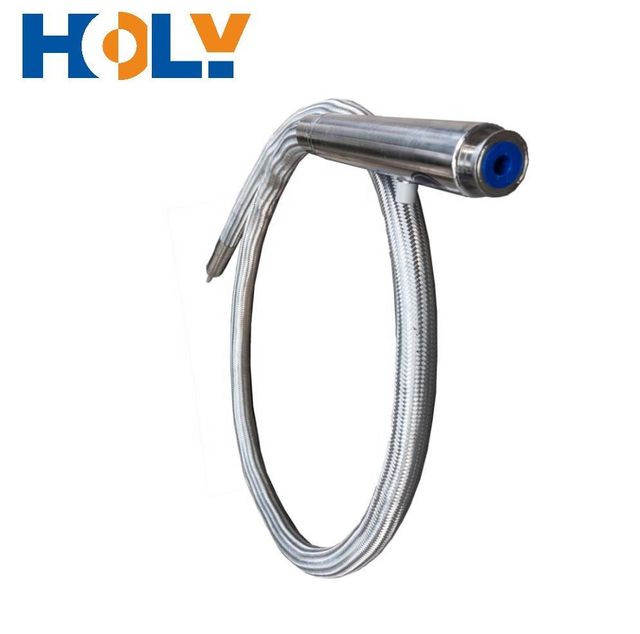

ASME & CE DN10-150 Stainless Steel Low Temperature Vacuum Jacketed Braided Hose
- $150.00 /meter
- 1 meter
- Chengdu Holy Cryogenic Equipment Co., Ltd.
- Sichuan, China
- Mr
PRODUCT DETAIL
| After Warranty Service: | Video technical support | Main selling point: | energy saving |
| port: | Shanghai Port, Qingdao Port, Shenzhen Port, Chongqing Port | place of origin; place of origin: | Sichuan, China |
| Warranty: | 1 year | Supply capacity: | 2000 meters per quarter |
| After-sales service provided: | Video technical support | Showroom location: | not any |
| After-sale service: | Online support | Function: | conveying cryogenic liquids |
| application: | industrial | Certification: | ASME & ISO9001 |
| Material: | Stainless steel | Core Components Warranty: | 1 year |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Lifting height: | 200 meters |
| brand: | HL | type: | pipeline |
| After warranty: | spare parts | Marketing Type: | normal product |
| Video external inspection: | if | weight: | 10 |
| Mechanical test report: | if | Packaging Details: | Metal shelves without wood. The vacuum insulated pipe (VIP) should be cleaned before packing and keep the inner pipe filled with nitrogen. VIP is wrapped by two layers of packing material. The first layer, VIP is completely sealed with film to prevent moisture, and the second layer is completely wrapped with packing cloth, mainly to prevent dust and scratches. Packaged VIPs will be placed on metal shelves as shown. |
| Packaging Preview: | Generator Certification: | ASME and CE | |
| Health status: | new | Transmission length: | 10 km |
| Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Advertising Agencies, other | Core components: | 300 series stainless steel pipe, 300 series stainless steel pipe fittings, compensator |
introduce

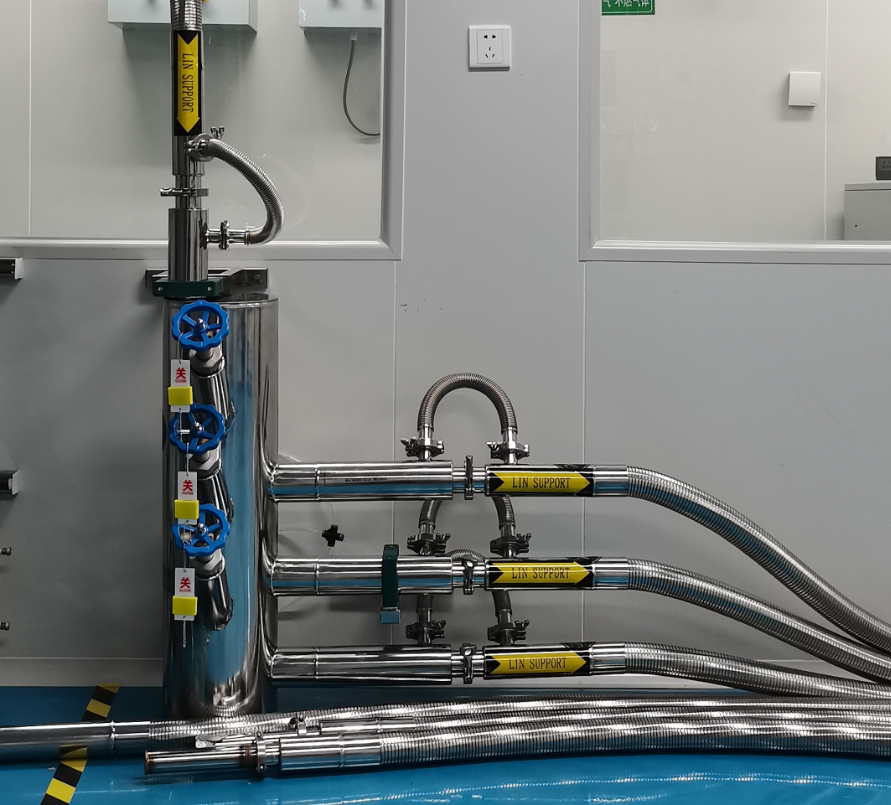

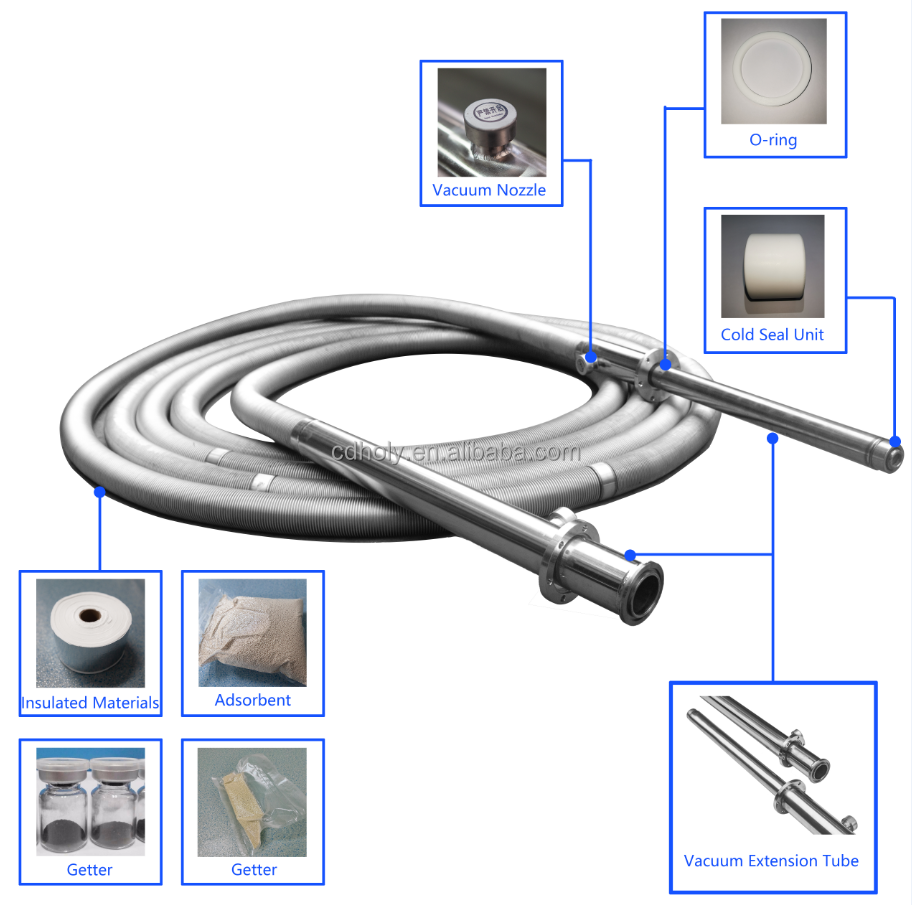

Vacuum insulation piping system, namely vacuum jacket piping system, adopts high vacuum, multi-layer and multi-screen special insulation material, undergoes a series of extremely strict technical treatment and high vacuum treatment, and is used for LO2, LN2, Lal, LH2, LHe and LNG.
Product Details

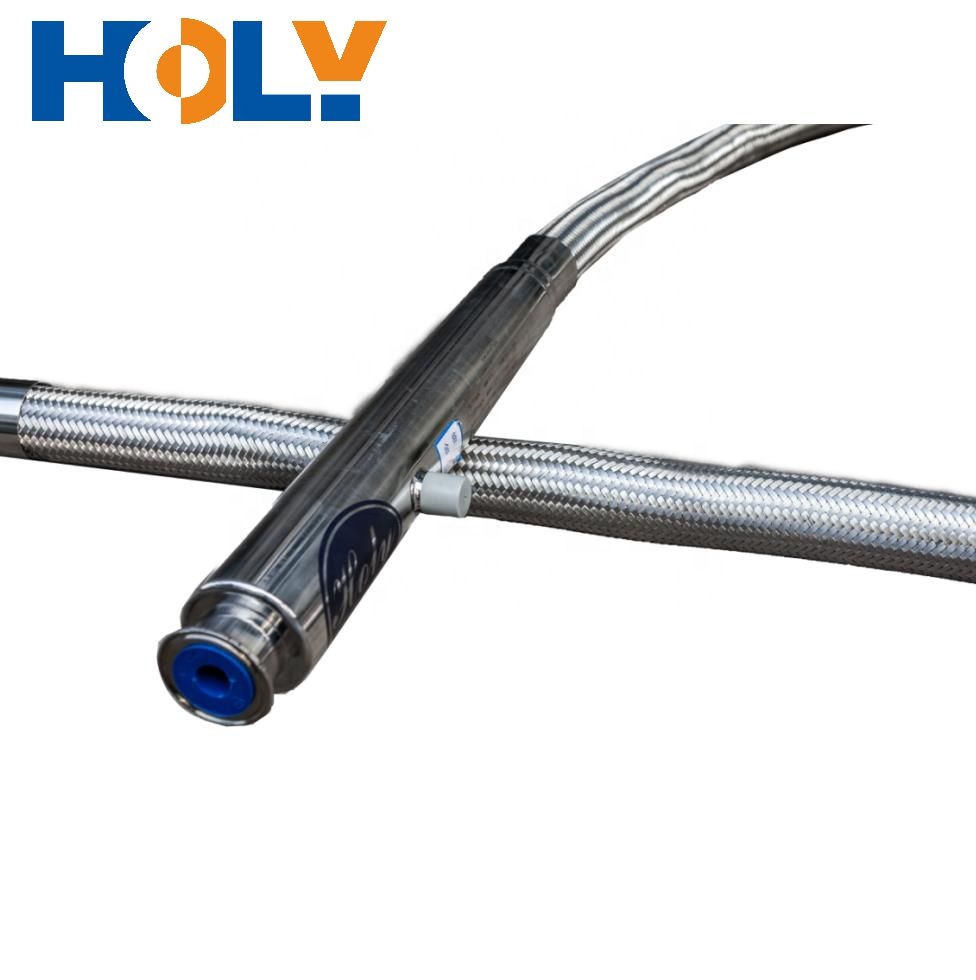

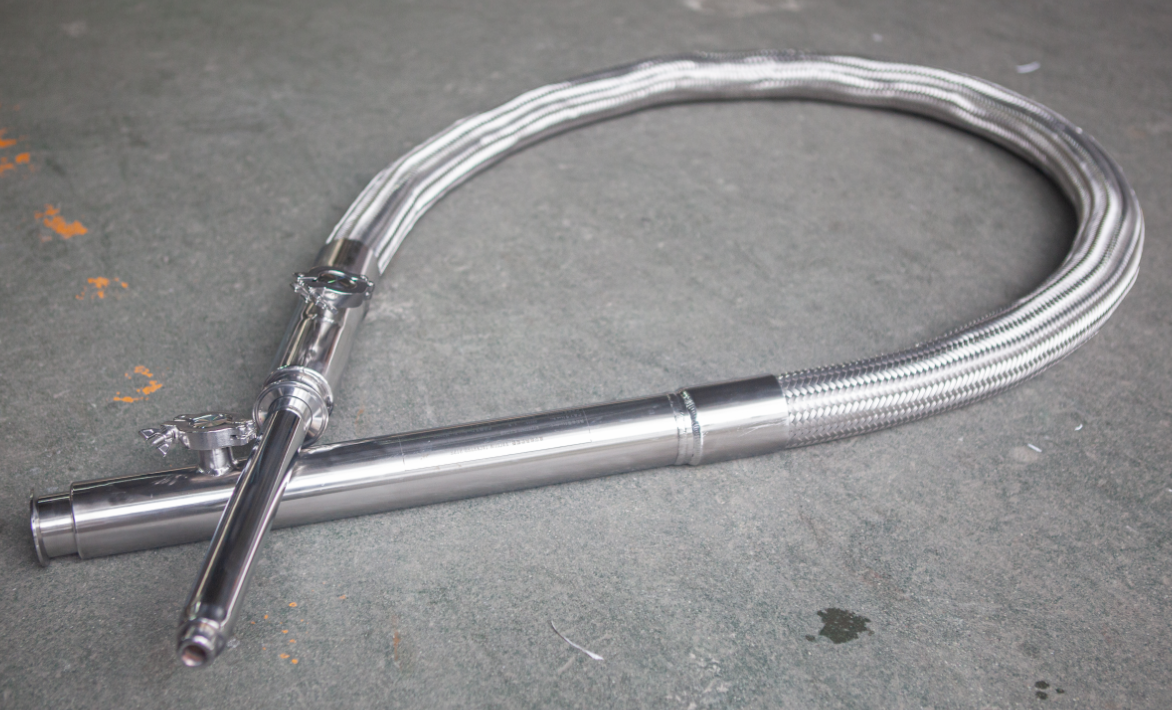

In order to best meet the different needs of customers, the vacuum insulated hose has developed four connection types, namely vacuum bayonet connection type with clamp, vacuum bayonet connection type with flange and bolt, screw connection type and welding connection type. They have different advantages and are suitable for different working conditions.
Vacuum bayonet connection type with clip | Vacuum bayonet connection type with flange and bolt | Solder connection type | Threaded joint connection type | ||||
Connection Type | clip | Flanges and Bolts | welding | Wire | |||
Connector Insulation Type | vacuum | vacuum | perlite or vacuum | Wrap insulation | |||
On-site insulation treatment | Do not | Do not | Yes, perlite is filled into or evacuated from the insulating sleeve at the joint. | Yes | |||
Nominal diameter of inner tube | DN10(3/8")~DN25(1") | DN10(3/8")~DN80(3") | DN10(3/8")~DN150(6") | DN10(3/8")~DN25(1") | |||
design pressure | ≤8 bar | ≤16 bar | ≤40bar | ≤16 bar | |||
Install | simple | simple | welder | simple | |||
length | 1~8.2 meters | ||||||
Material | Stainless steel 304, 304L, 316, 316L | ||||||
Moderate | LN2, LOX, LAr, LHe, LH2, liquified natural gas | ||||||
