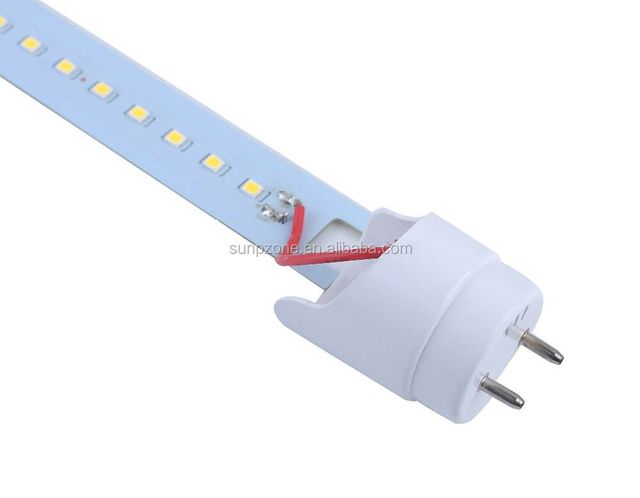

100-347v t8 LED tube light 18w plug and play tube

Price:$4.00 / 1 - 999 pieces
$3.00 / >=1000 pieces
Min. Order:1 piece
Supplier:Shenzhen Sunpzone Lighting Electronic Co., Ltd.
Region:Guangdong, China
Contact:Mr Frank Du

PRODUCT DETAIL

type:	T8 LED Fluorescent Lamp	Color temperature:	3000-6000k
Color rendering index:	80%	Color rendering index (Ra):	80
cover:	Clear, milk or striped clear cover	Supply capacity:	45000 pieces per month 100-347v ul dlc LED T8 tube ballast compatible
payment terms:	L/C,T/T,Western Union	Lifetime (hours):	50000
lumen:	2160-2700Lm	Warranty Period (Years):	5
Lumen Efficiency:	120-150LM/W	port:	Shenzhen
Working hours (hours):	50000	model:	sun zone
Certification:	(USA&CA) ETL certification, DLC, CE, ROHS, DLC ETL ROHS CE	Packaging Details:	40 pcs/carton, carton size: 1252717cm, weight: 13kgs 100-347v t8 led tube 18w plug and play tube
Life:	5+ years	strength:	18W
Lamp luminous efficiency (lm/w):	160	Lamp holder/base:	G13
Input voltage (V):	100-347Vac	Color Temperature (CCT):	5000K (Daylight)
Input voltage:	AC 100-347V	Lighting Solutions Services:	Lighting and circuit design, DIALux evo layout, project installation
Dimmers supported:	Yes

100-347v t8 led tube light 18w plug and play tube

Product Description

Great alternative to 4' T8 or T12 fluorescent tubes

feature:

1.100-347v for most T8 and T12 ballasts.

2. 120 degree beam angle uniform light distribution

3.50,000 hour life, more than 10 years in most applications

4.Design Lights Consortium comes with 3 years warranty

5. Provides more light than 32W fluorescent tubes while reducing power consumption by 44%

6. Does not contain mercury or other toxins

7. Replace fluorescent tubes with this compatible tube to avoid initial labor costs. Once a fluorescent ballast fails, there is no need to install a new ballast.

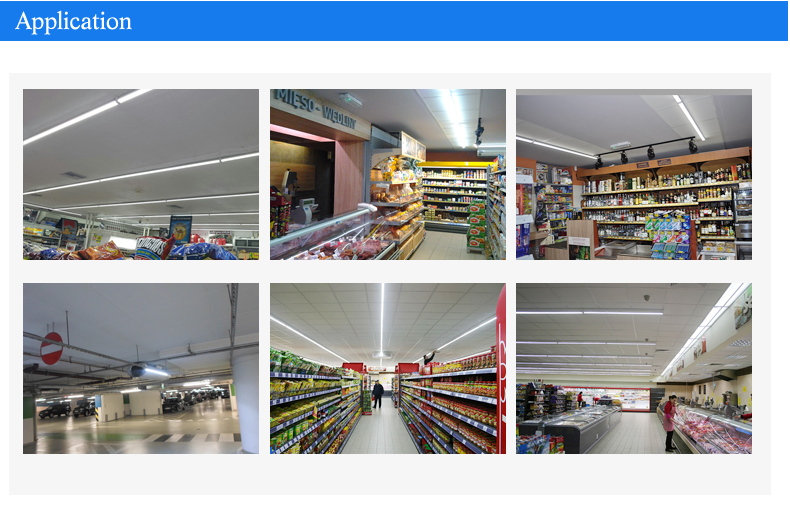

8. The tube can simply work with direct A/C power supply. Suitable for offices, showrooms, refrigerators, ceiling lights, etc.

9. The T-8 LED lights operate at line voltage with or without an existing electronic ballast; an outlet connected to line voltage, or both ends.

10. Heat sink: 6063 extruded aluminum with cooling ribs for better thermal management

Specification:

1. Tube power: 18W;

2. Luminous flux of lubricating oil (lm): 2160-2700LM;

3. Lamp luminous efficiency (lm/w): 120-150LM/W.

4. Color rendering index (Ra>): >85;

5. Input voltage: 100-347Vac;

6. Certification: UL DLC ETL CE RoHS;

7. Color temperature (CCT): 2700K, 3000-3500K, 4000-4500K, 5500-6000K;

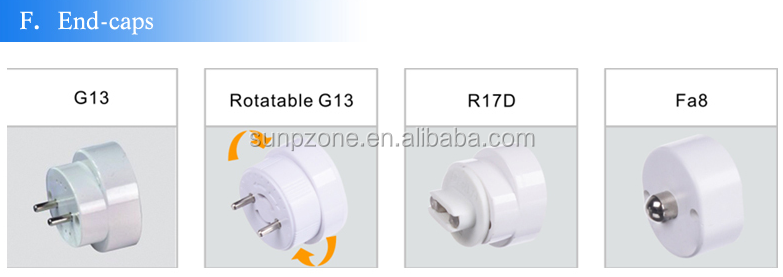

8. Base type: G13/FA8/R17D

9. LED light source: Epistar chip.

10. Warranty period: 3 years;

11. Working life (hours) 50000;

12. Working temperature (℃): -40-50;

13: Lamp body material: aluminum;

14: lid: transparent or milk;

15: Size: diameter 25.4*1200mm.

DLC model: SPZT8B418T

Physical Specifications

light source	Epistar
size	Diameter 25.4*00mm.
weight	200 g

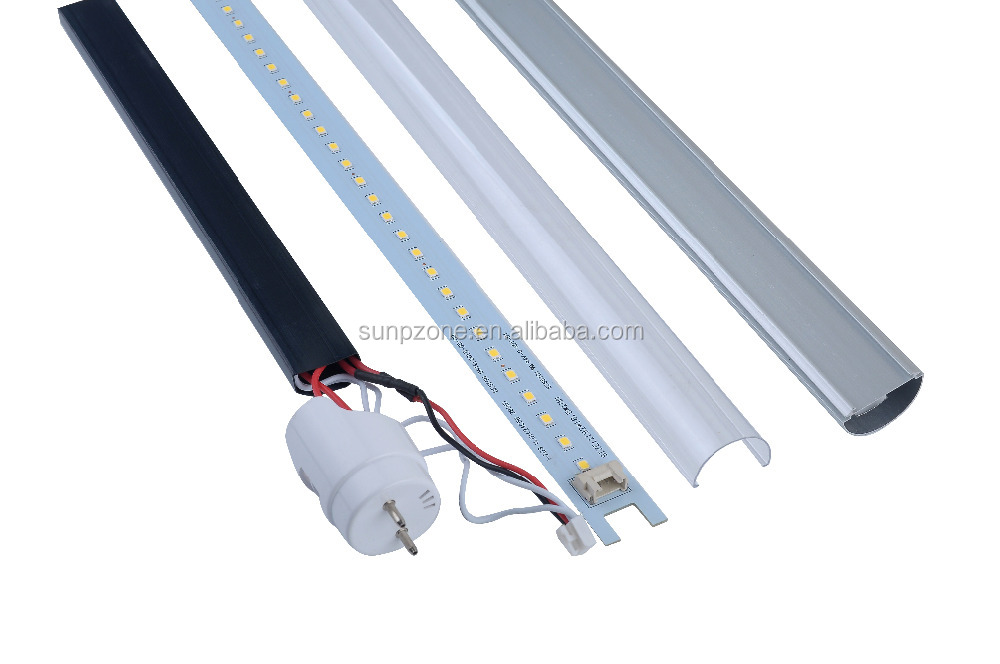

Material	Aluminum shell + PC lens (transparent, peeling or milky white)
Operating temperature	(-20)~40°C (-4~104°F)
IP level	IP44
Electrical Specifications
LED power (W)	18 watts
It is recommended to replace	18W traditional fluorescent tube
Power Efficiency	>85%
Input voltage	100-347V AC
Frequency Range	50 ~ 60 Hz
life	>5 years
Optical Specifications
LED luminous efficiency	120-150lm/w
total lumens	Width: 810 lumens	Dark white: 900lm	CW: 980 lumens
Color Rendering Index (CRI)	Radium>80
light decay	<4% at 3000 hours
Beam angle	Horizontal axis 120° Vertical axis 60°
Illuminance (E)	(height = 1 m) = 121lux
	(height = 2 m) = 30.3lux
	(height=3 m)=13.5lux
Effective lighting area	(height = 1 m) = 2.1 x 2.2m
	(height = 2 m) = 4.8 x 2.6 m
	(height = 3 m) = 7.8 x 4.6 m
temperature color	Warm White (WW): 2700~3500K
	Pure white (PW): 4000~5500K
	Cool white (CW): 6000~7000K

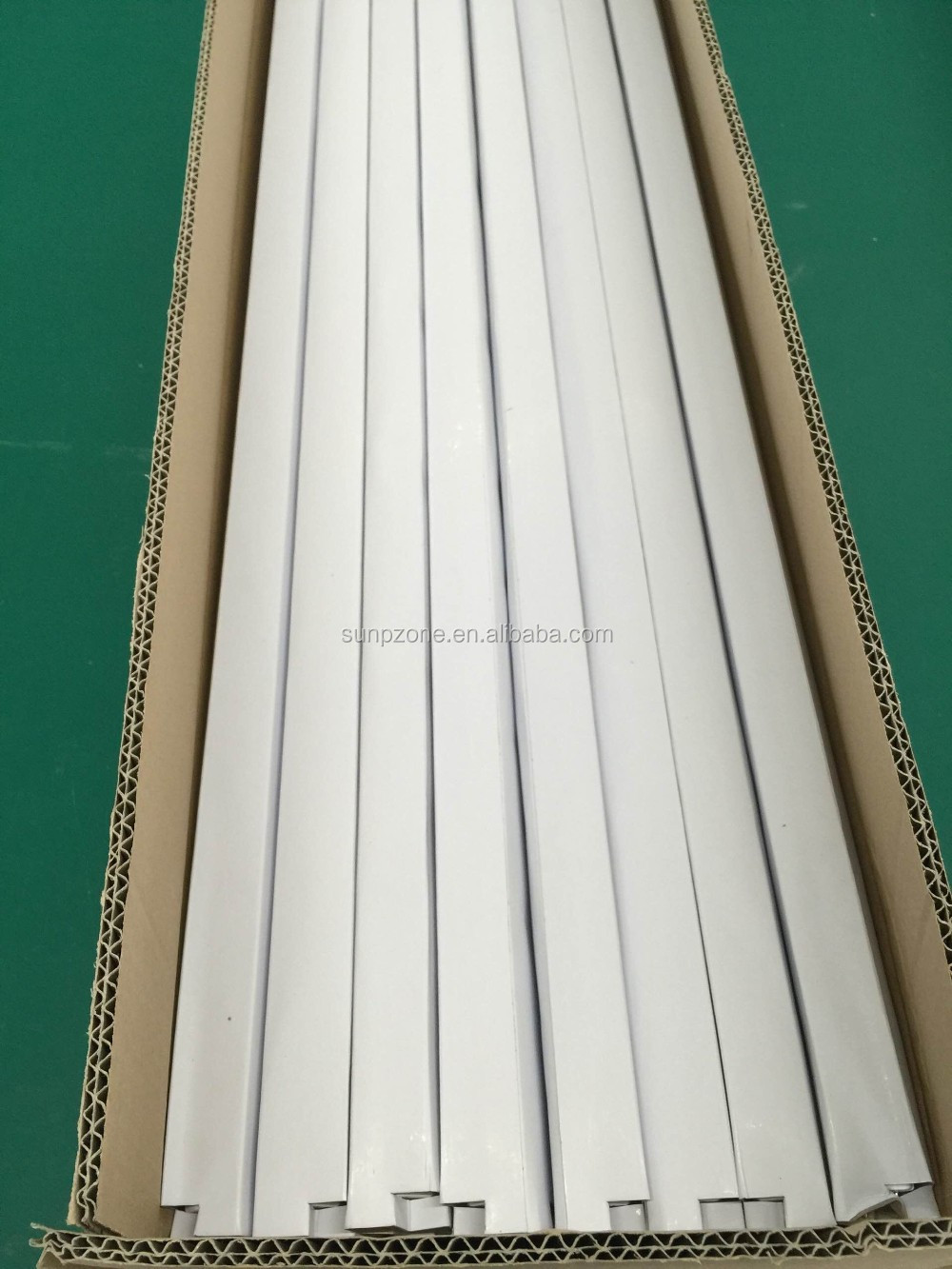

Packaging Information
Package	Foam protection or carton
Packaging Quantity	40/box
carton size	1252717cm
Carton Gross Weight	13kg
Container Loading Quantity	16000pcs/20'GP, 32000pcs/40'GP
