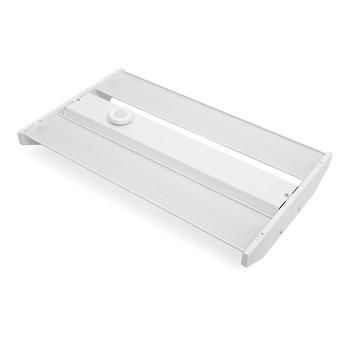

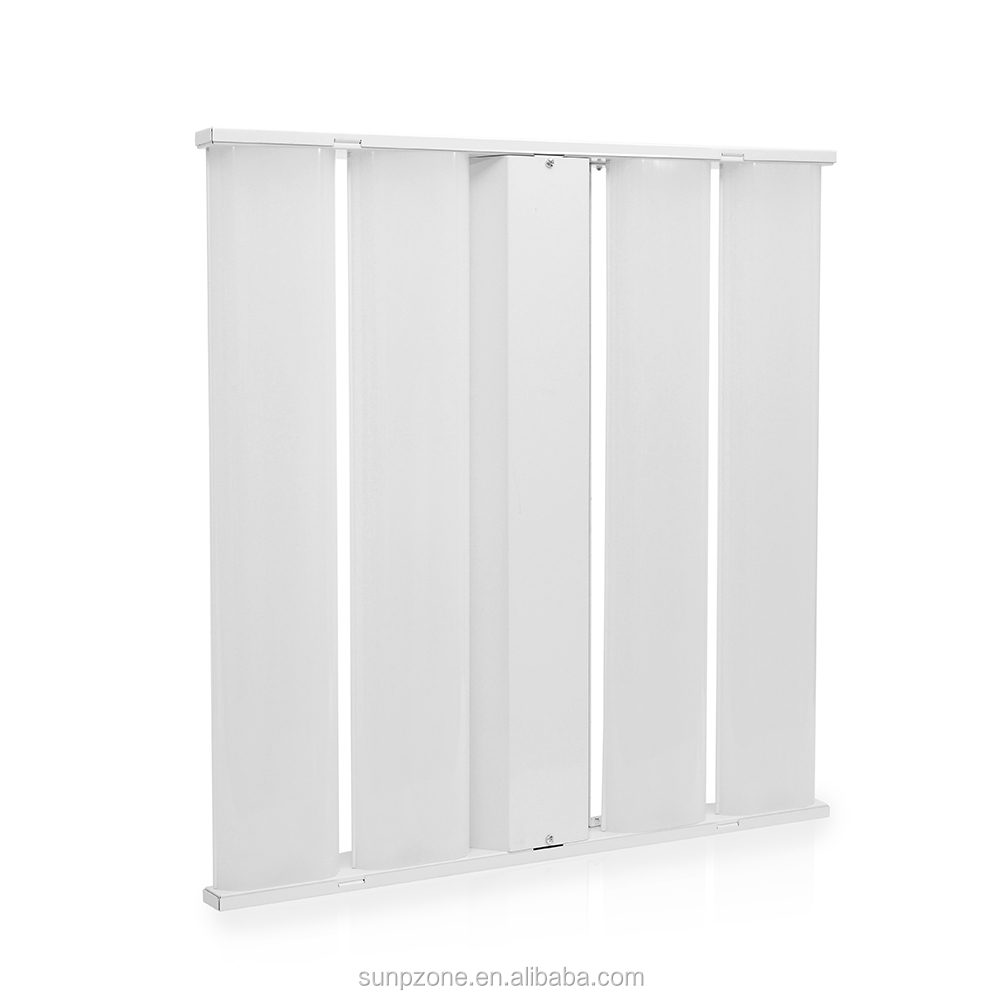

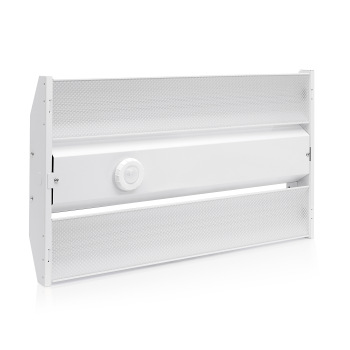

Commercial Linear Low Bay Lighting Led Warehouse Led High Bay Lighting Low Bay Lighting For US Market
- $35.56 / 1 - 99 pieces
$34.93 / 100 - 999 pieces
$33.96 / >=1000 pieces - 1 piece
- Shenzhen Sunpzone Lighting Electronic Co., Ltd.
- Guangdong, China
- Mr Frank Du
PRODUCT DETAIL
| Install: | Suspension/Surface/Adjustable | Color temperature (correlated color temperature): | 5000K (sunlight) |
| sensor: | Microwave sensors are available | Lamp Luminous Efficiency (lm/w): | 160 |
| Supported dimmers: | Yes | Working hours (hours): | 50000 |
| use: | Replacement HID, T8 or T5 Fluorescent Lighting for 15' to 45' Ceilings | payment terms: | T/T, Western Union, Paypal |
| aspect: | 1ft*2ft | LED light source: | SMD 2835 |
| port: | Shenzhen | Luminous efficiency (lm/w): | 160 |
| Package preview: | cover: | Milky White Cover/Clear Cover/Prism | |
| Input voltage (V): | AC100-277V&AC100-347V | Warranty period (years): | 5 years |
| Supply capacity: | 65000 pieces per month | type: | SPZLLB12F65P |
| Color rendering index (Ra): | 80 | Dimmable: | 0-10V dimmable |
| Color temperature: | 4000K/5000K/5700K | Lifespan (hours): | 50000 |
| Protection class: | IP44 | Main material: | Aluminum + acrylic lens |
| Lighting Solutions Services: | Lighting and circuit design, engineering installation | light source: | to lead |
| Packaging Details: | Sales unit: Single piece Package size: 25.20"*8.27"*16.54" Gross weight per piece: 8.5 KG Packing type: 2 pieces per carton | Certification: | ETL |
Specification
Welcome to SunPZone LED Lighting
• Intelligent lighting: zigbee wireless control, daylight sensor dimming, microwave sensor dimming, three in one (0 - 10v, PWM,
resistor) dimming is available.
resistor) dimming is available.
• Wirelessly connect to software for easy reporting and fine-tuning of lighting settings anytime, anywhere.
• Software-defined coordinated control and progressive dimming maximize occupant comfort and save energy
• Integrate occupancy sensing, daylight sensing and power metering for maximum efficiency
• Big Rebates Save even more with utility rebates. All models are included in the DLC Premium list
• Keep cool. Operates 24/7 in high ambient temperatures (up to 55°C).
• Integrate occupancy sensing, daylight sensing and power metering for maximum efficiency
• Big Rebates Save even more with utility rebates. All models are included in the DLC Premium list
• Keep cool. Operates 24/7 in high ambient temperatures (up to 55°C).
Model | watt (W) | Input voltage | lumen (long meter) | DLC The main purpose | IP rate | size (inch) |
SPZLLB12F65P | 65 | 100-277V 100-347V | 10400 | Low Bay Lighting | IP40 | 23.74*14.17*2.95 |
SPZLHB12F80P | 80 | 100-277V 100-347V | 12800 | High Bay Fixtures | IP40 | 23.74*14.17*2.95 |
SPZLHB12F100P | 100 | 100-277V 100-347V | 16000 | High Bay Fixtures | IP40 | 23.74*14.17*2.95 |
SPZLHB14F130 | 130 | 100-277V 100-347V | 18200 | High Bay Fixtures | IP40 | 45.67*14.17*2.95 |
SPZLHB14F165P | 165 | 100-277V 100-347V | 26400 | High Bay Fixtures | IP40 | 45.67*14.17*2.95 |
SPZLHB22F200P | 200 | 100-277V 100-347V | 32000 | High Bay Fixtures | IP40 | 23.74*23.74*2.95 |
SPZLHB24F240P | 240 | 100-277V 100-347V | 38400 | High Bay Fixtures | IP40 | 45.67*23.74*2.95 |
SPZLHB24F320P | 320 | 100-277V 100-347V | 51200 | High Bay Fixtures | IP40 | 45.67*23.74*2.95 |
Product Description
Commercial Linear Low Bay Lighting Led Warehouse Led High Bay Lighting Low Bay Lighting For US Market
• Available from 65W-320W.
• Long service life of 50,000 hours.• Uniform lighting effect.
• Quick Start.
• No flickering effect; no glare.
• High heat dissipation efficiency: heat conduction column is used to help heat dissipation.
• Contains no mercury or lead; environmentally friendly.
• 60% energy saving than traditional light sources.
• DLC ETL CE and RoHS certified
Gain versatility without sacrificing continuity
• Its modular design offers the flexibility of different outputs and multiple distributions, all from the same basic luminaire structure, allowing you to choose the right solution for each space in your application while maintaining luminaire continuity.
Choose your light distribution
• Each optic is designed for a specific purpose. General distribution allows light wash in any application.
• Aisle beams have an asymmetrical distribution in the aisle or rack area.
• Narrow beam focuses light on higher ceiling areas.
• Center beam is designed for medium installation heights.

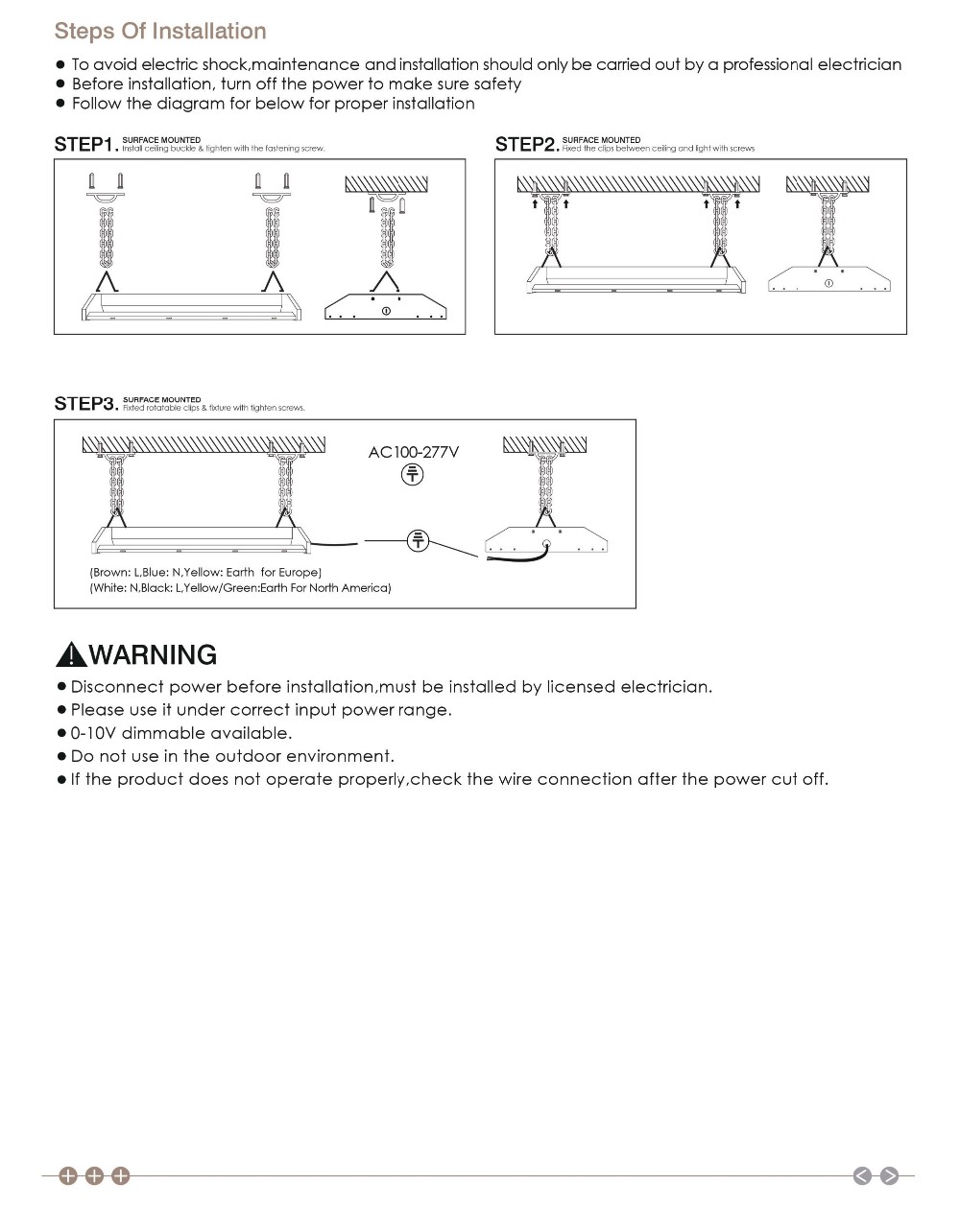

Installation process
Commercial Linear Low Bay Lighting Led Warehouse Led High Bay Lighting Low Bay Lighting For US Market

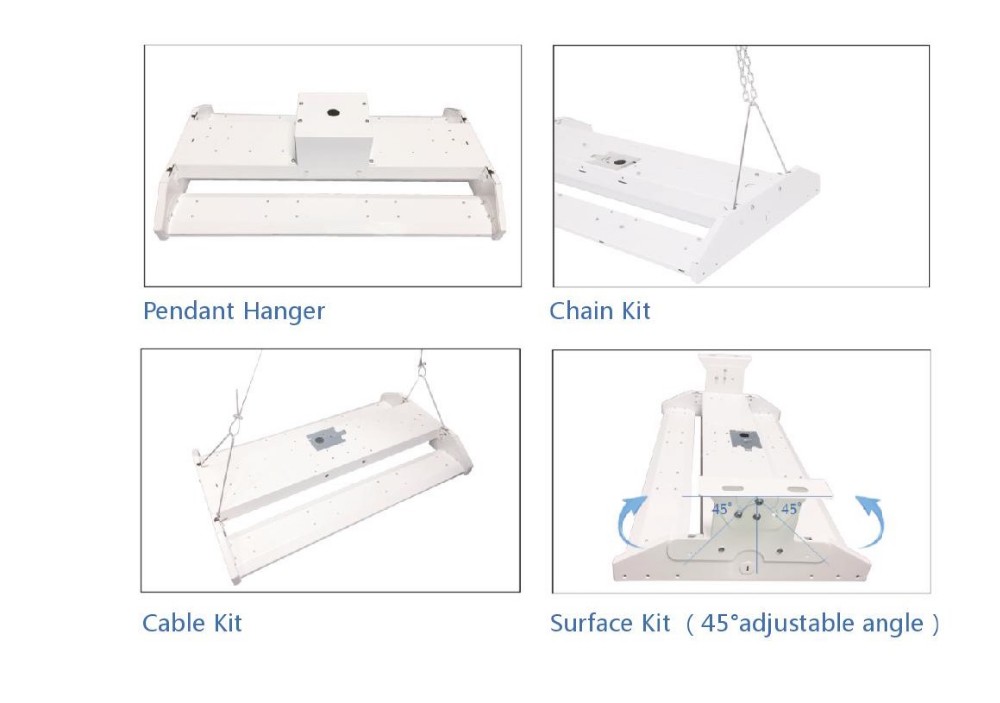

installation options

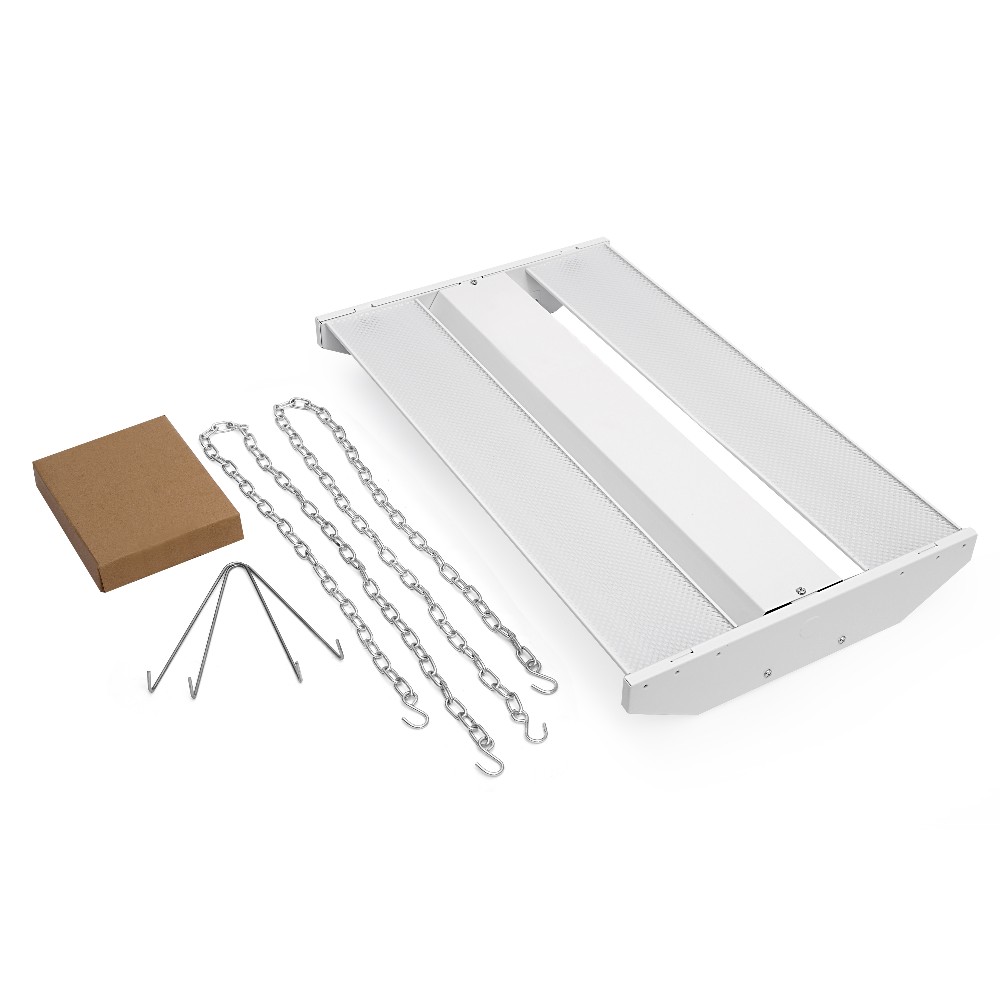

•Mounting Type: Standard Pendant Kit/Surface Mount
•Dimming: 0-10v dimmable / external motion sensor

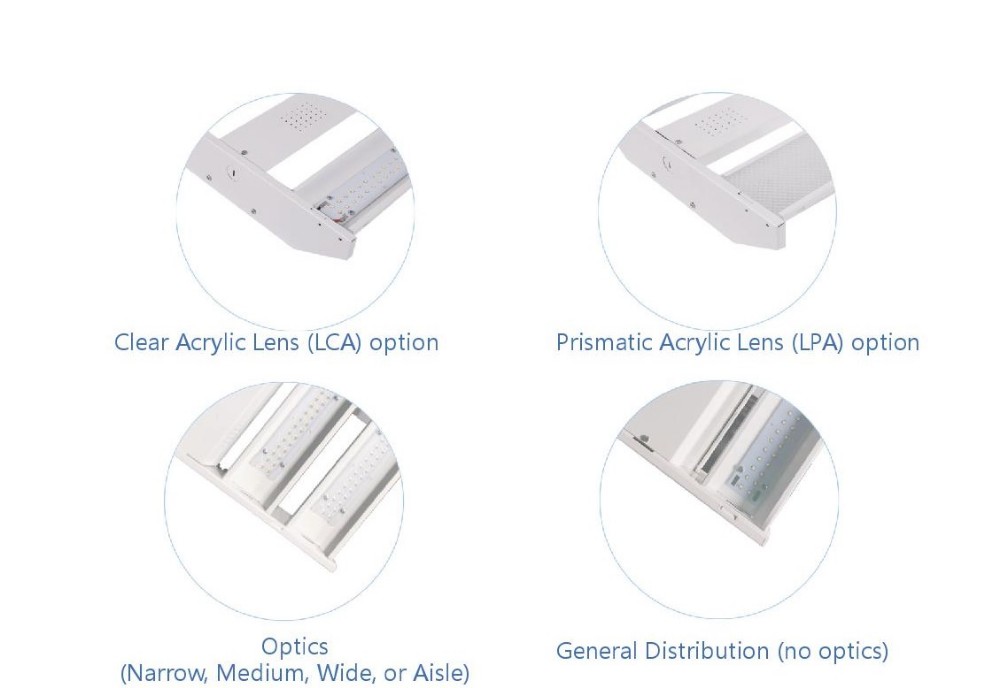

•Cover Options: No Cover/Clear PC Cover/Prism Cover
Model | Carton size (inch) | Number / Box (pieces) | Gross weight/box (LB) |
SPZLLB12F65P | 25.5*16.9*8.3 | 2 | 22.92 |
SPZLHB12F80P | 25.5*16.9*8.3 | 2 | 22.92 |
SPZLHB12F100P | 25.5*16.9*8.3 | 2 | 22.92 |
SPZLHB14F130 | 47.6*16.9*8.3 | 2 | 37.47 |
SPZLHB14F165P | 47.6*16.9*8.3 | 2 | 37.47 |
SPZLHB22F200P | 25.5*25.1*8.3 | 2 | 34.28 |
SPZLHB24F240P | 47.6*25.1*8.3 | 2 | 56.88 |
SPZLHB24F320P | 47.6*25.1*8.3 | 2 | 56.88 |

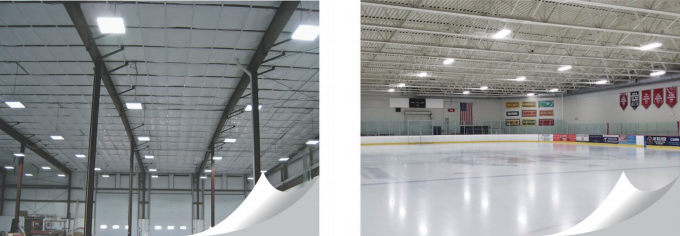

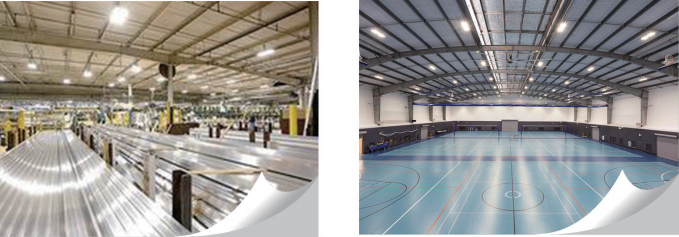

Application field
Commercial Linear Low Bay Lighting Led Warehouse Led High Bay Lighting Low Bay Lighting For US Market
• Warehousing
• gymnasium
• light industrial space
• office
• classroom
• retail space
• parking structures
• Other large indoor spaces with installation heights of 15' – 40'.

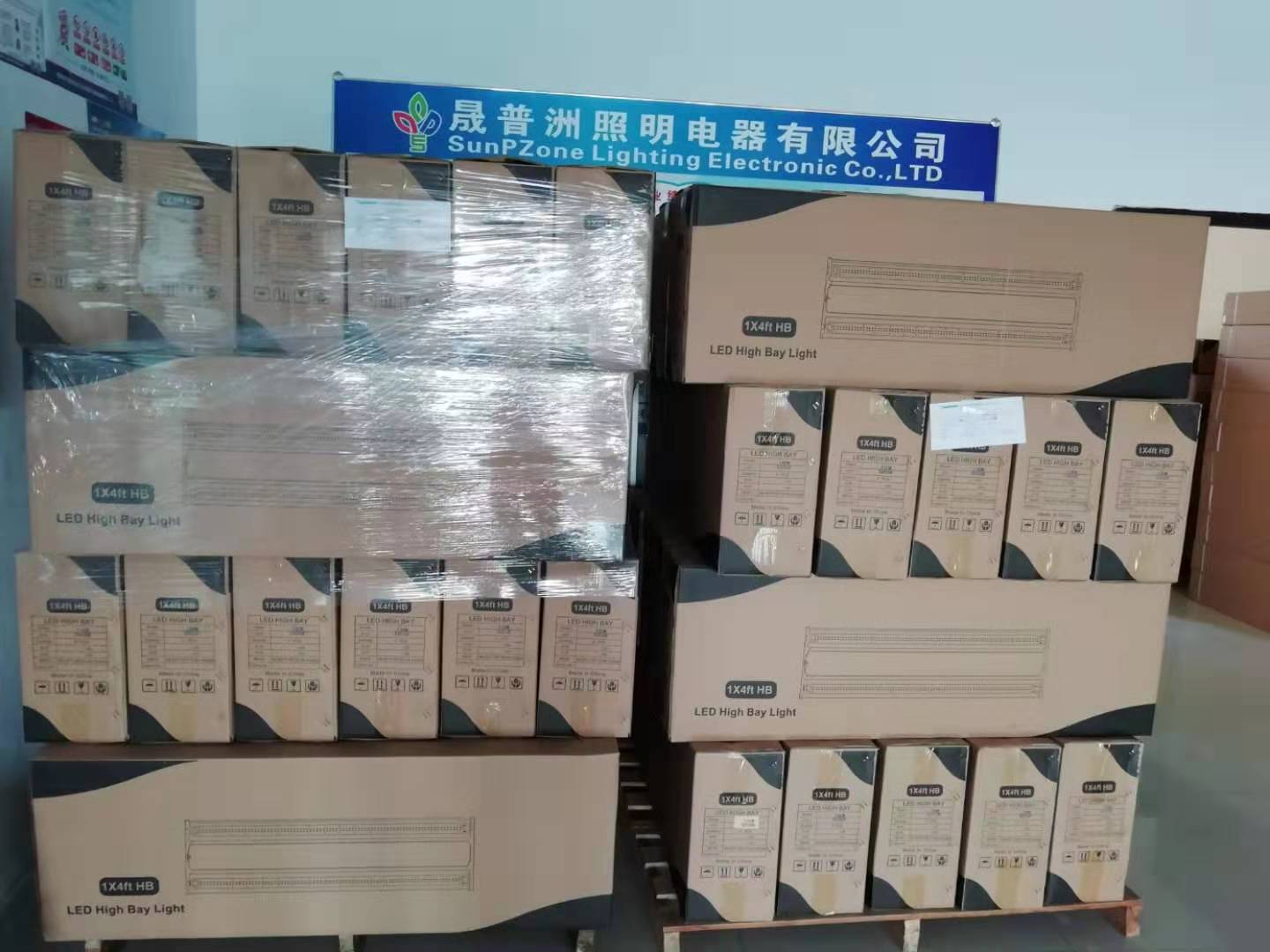

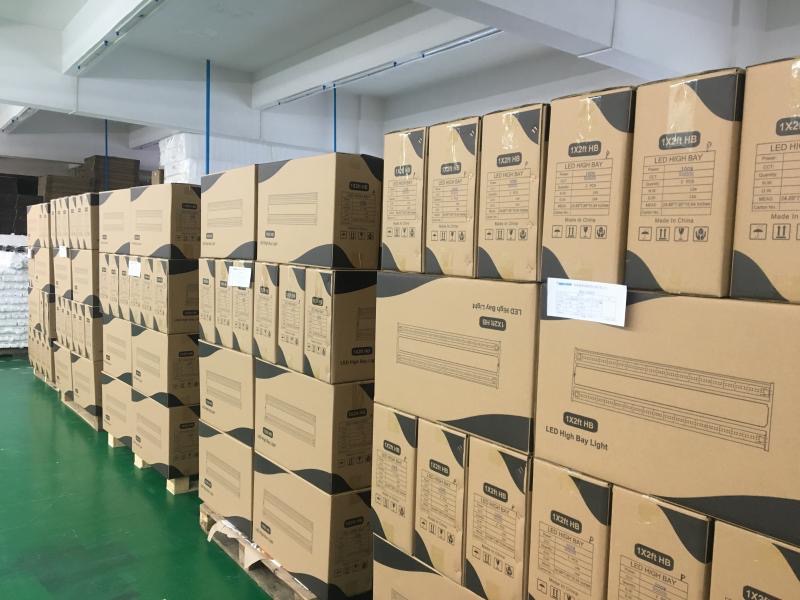

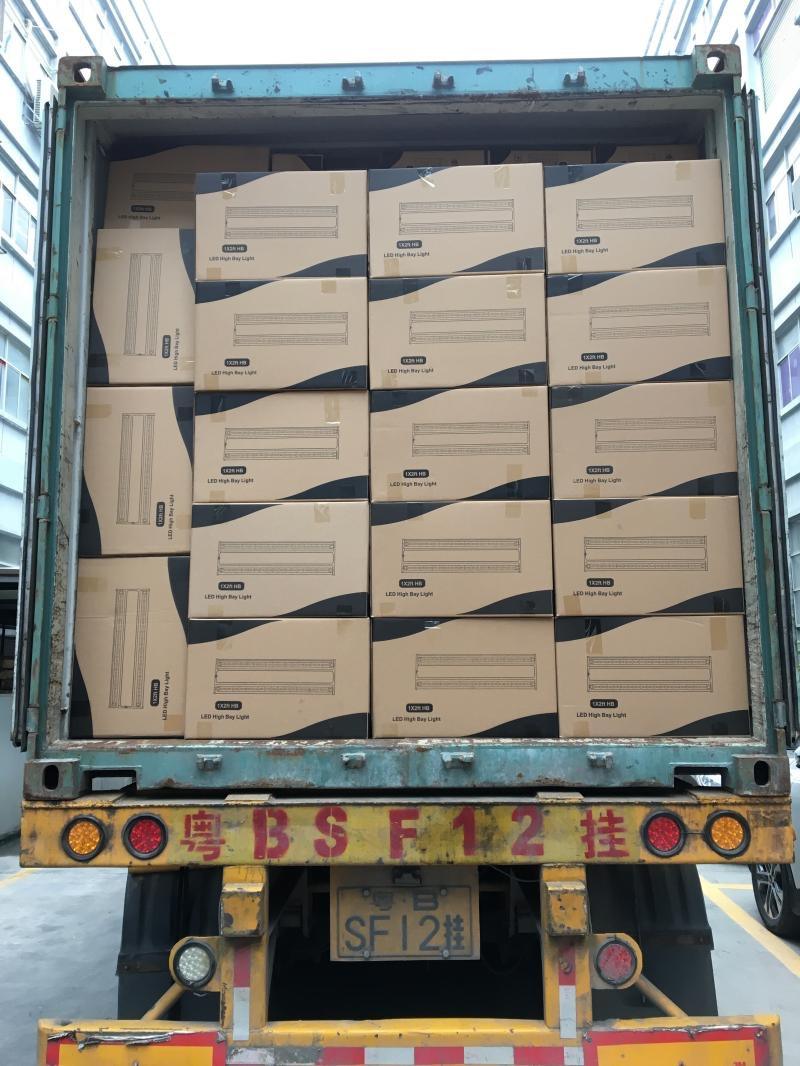

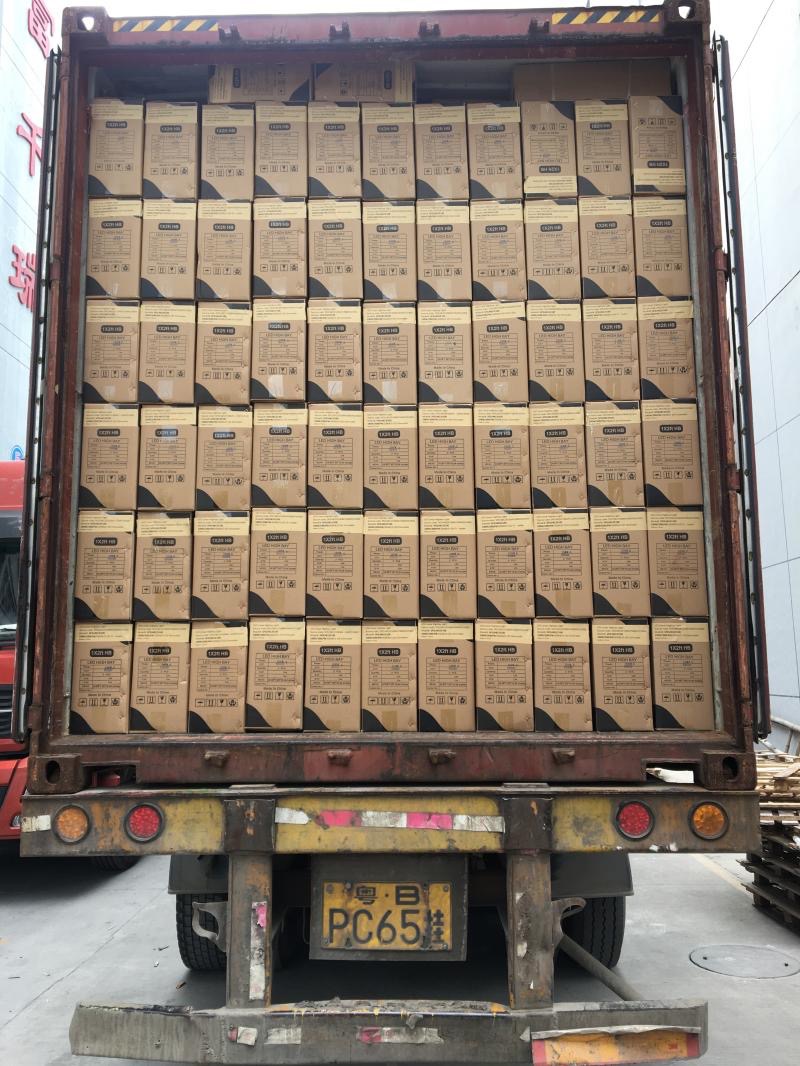

Packaging and Shipping
