1200C 1400C 1700C 1800C refractory polycrystalline mullite/ceramic fiber high temperature furnace chamber
- $15.37 /piece
- 1 piece
- Zhengzhou Hengtong Furnace Co., Ltd.
- Henan, China
- Ms Richel Cheng
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Grade: | HP (High Pure); |
| application: | for furnace; | Shape: | plate; |
| Model Number: | HT-FC; | Width: | 300/600/1000mm; |
| material: | ceramic fiber; | content: | 99.7%; |
| packing: | wooden box; | Supply Ability: | 100000 Set/Sets per Month; |
| Shrinkage (1800℉, 3h): | 3%(24h); | Thickness: | 10-50mm; |
| Delivery Detail: | 3 days after receiving your payment; | Working Temperature: | 1000-1800; |
| Place of Origin: | Henan China; | Ultimate Strength (≥ MPa): | 0.5MPa; |
| Application: | Liners Of Industrial Furnace; | Packaging Detail: | wooden box with plastic foam; |
| Chemical Composition: | AL2O3+SIO2; | size: | as your request; |
| Thermal Conductivity: | 0.18; | Brand Name: | HT; |
| certificate: | CE ISO; | Fiber Diameter: | 3-5um; |
| Port: | as your request; | Length: | 600/900/1000/1200mm; |
| Product name: | high temperature furnace chamber; | Max temperature: | 1700C; |
| Working temperature: | 1600C; |
1400C 1700C 1800C refractory polycrystalline mullite/ceramic fiber high temperature furnace chamberr
furnace chamberis made from high purity nano ceramic fiber by spun or blown process. It is asbestos free. No chemical binder is added. Double-size needling provides blanket with great tensile or handling strength for easy installation. Blankets are available in classified temperature from 1100º C to 1800º C.
technical parameter of furnace chamber:
Properties | 1000 Board | 1260 Board | 1400 Board | 1500 Board | 1600 Board | 1700 Board | 1800 Board |
|
Classification Temperature | 1000 °C | 1260 °C | 1400 °C | 1500 °C | 1600 °C | 1700 °C | 1800 °C |
|
Room Temperature Properties(23°C/Relative Humidity 50%) |
|
| ||||||
Density kg/m³ | 280 | 280 | 280 | - | - | - | - |
|
300 | 300 | 300 | - | - | - | - |
| |
350 | 350 | 350 | 350 | 350 | 350 | 350 |
| |
- | - | - | 400 | 400 | 400 | 400 |
| |
Strength to resist bending(MPa) | ≥0.5 | ≥0.8 |
| |||||
Tensile strength(MPa) | ≥0.25 | ≥0.35 |
| |||||

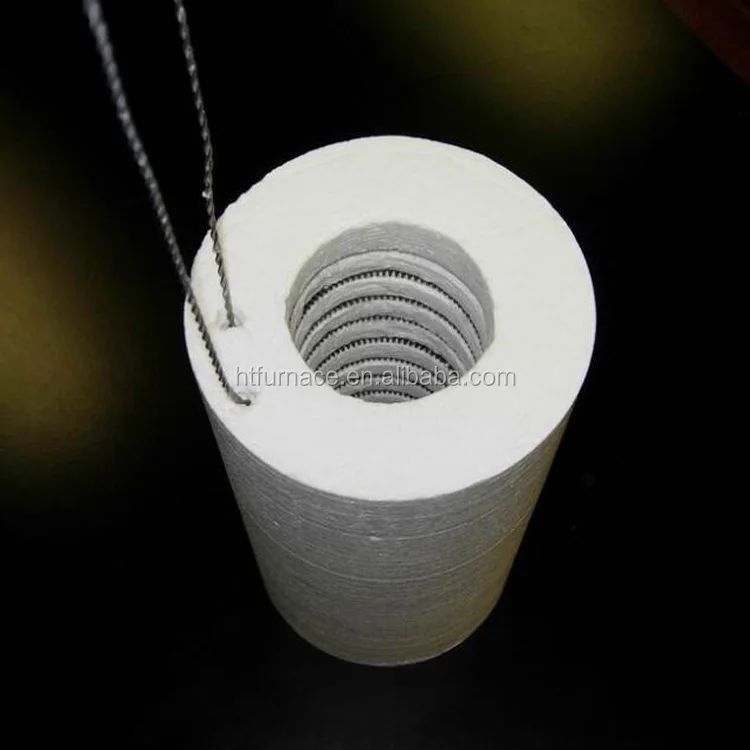

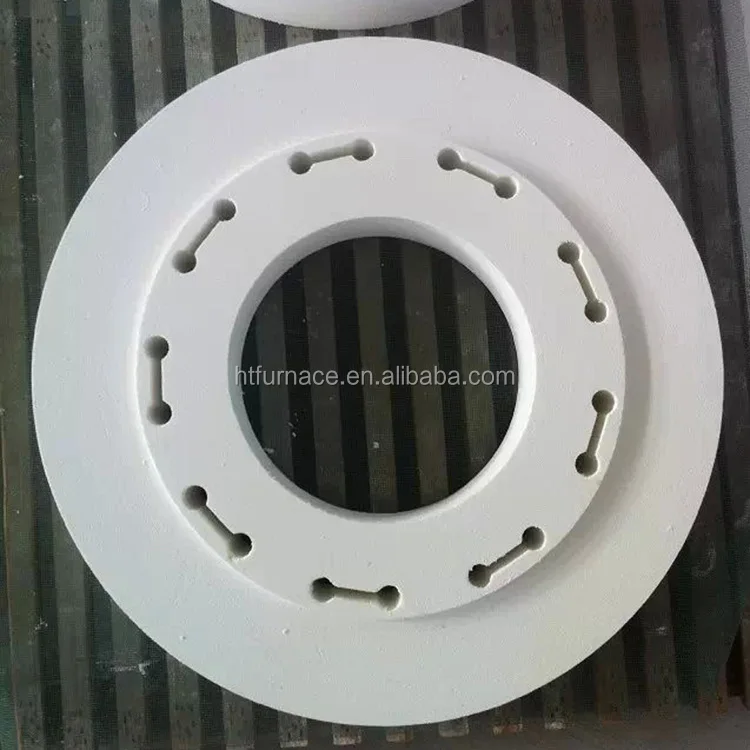

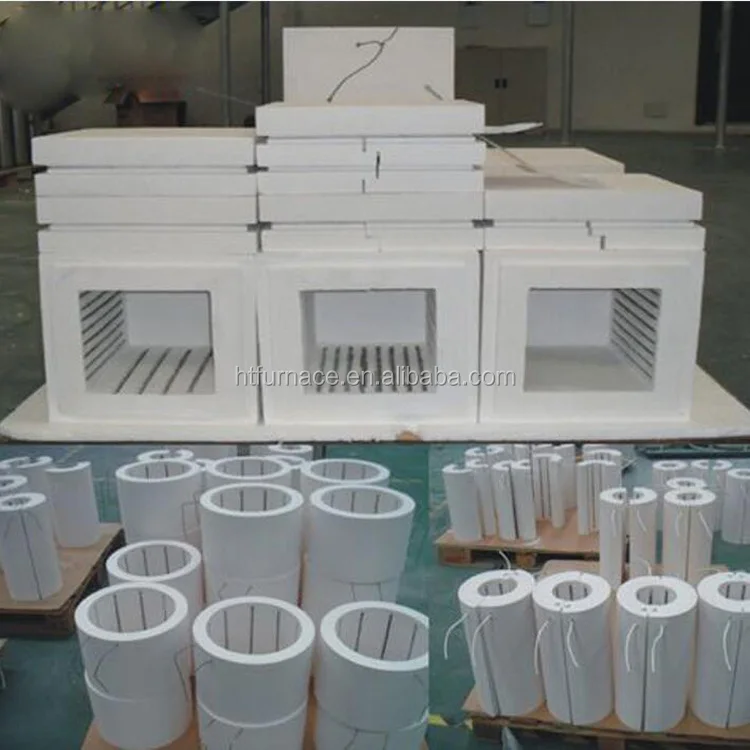

photos show of furnace chamber:
packing of furnace chamber:
delivery of furnace chamber:
Why HT:
1. control the cost easiler.
2. more support in technique problem.
3.Our products are complete in specifications with various of sizes.
4.We enjoy a good reputation in the customers in domestic and overseas markets.
