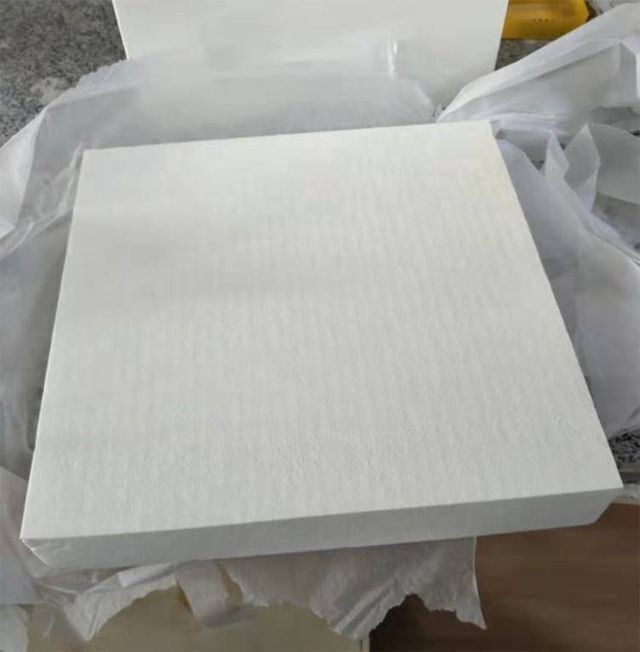

Refractory alumina ceramic fiber board for furnace
- $0.50 / >=5 pieces
- 5 pieces
- Zhengzhou Mission Ceramic Products Co., Ltd.
- Henan, China
- Mr Frank Zhang
| Color: | White; | Package: | Wooden Box; |
| Temperature: | 1600-1850c; | Density: | 500/550kg/m3; |
| Thickness: | 20-150mm; | Ultimate Strength (≥ MPa): | Various; |
| Type: | Thermal Insulation Material; | Payment Terms: | L/C,Western Union,T/T; |
| Length: | 900-1000mm; | Packaging Detail: | Refractory alumina ceramic fiber board for furnace package is Wood box paded with foam; |
| Shrinkage (1800℉, 3h): | <1%; | Working Temperature: | 1260C, 1300C, 1500C,1600C,1800C; |
| Product name: | Refractory alumina ceramic fiber board for furnace; | Width: | 600mm; |
| Place of Origin: | China; | Fiber Diameter: | Various; |
| Application: | Heat Insulation; | Grade: | HA (High Aluminum); |
| Model Number: | MSCF; | Brand Name: | MISSION; |
| Port: | QINGDAO SHANGHAI ZHENGZHOU; | SIZE: | 600x300/900x600/1200x1000mm; |
| Chemical Composition: | Al2O3+SiO2=99.8%; | Supply Ability: | 5000 Ton/Tons per Month Refractory alumina ceramic fiber board for furnace; |
| Thermal Conductivity: | Various; | Package Preview: | ; |
Refractory alumina ceramic fiber board for furnace is our main product. Mission can supply Industrial ceramic fibre in the world .Mission can make high quality alumina fiber blanks and blanket. They are widely used as furnace lining in all kinds high temperature furnace and kiln. And also used for other high temperature resistance application.
Refractory alumina ceramic fiber board for furnaceSpecifications
1. High quality ceramic fiber board.
2. High working tmperature.
3. Fast delivery and very competitive prices.
Refractory alumina ceramic fiber board for furnace Temperature and technical data.
|
Type |
MSCF-1000 |
MSCF-1260 |
MSCF-1400 |
MSCF-1600 |
MSCF-1800 |
|
|
Temperature°C |
1000°C |
1260°C |
1400°C |
1600°C |
1800°C |
|
|
Density(Kg/m3) |
300-600 |
300-600 |
300-600 |
450 |
550 |
|
|
Chemical Components |
Al2O3 |
38 |
42 |
50 |
68 |
85 |
|
Al2O3+SiO2 |
96.0 |
98 |
99 |
99.5 |
99.8 |
|
|
Fe2O3 |
0.2 |
0.2 |
0.2 |
~ |
~ |
|
Refractory alumina ceramic fiber board for furnace Standard Sizes
900x600x(20-150)mm 1000x600x(20-150)mm
Other shapes and Sizes can be made according to your requirements!
Refractory alumina ceramic fiber board for furnace Features.
1. Good High temperature stability, Low thermal conductivity,
2. Good thermal shock resistance, Corrosion resistance
3. Easy to be machined and cut. Precise thickness and sizes.
4. Good resistance of fire and high temperature gases.
5. Easy to installed.
6. Special shapes can be made.
Refractory alumina ceramic fiber board for furnace Application.
Furnace lining and backing of various high temperature furnace and kiln.
Other high temperature appliation
Tips:
Customized production is available, for more information, please do not hesitate to tell me.
Zhengzhou Mission Ceramic Products Co., Ltd
No.11 Zhengshang Road, Zhengzhou, Henan, China
Tel: 86-371-56689683
Mob:86-136-7369-5024
Fax: 86-371-61176723
Skype: helenmission
1. Warped with bubble plastic paper.
2. Put in wood box padded with foam board.
3. Sealed the box with screws which is easy to be opened.
4. Fragile warning stick.
Shipping Method: By sea, by Air, by express way.
Delivery time: 3-30 days
Zhengzhou Mission Ceramic Products Co., Ltd. Locates in Zhenzhou City, Henan Province, central part of China. We have been working in advanced ceramic and thermal industry since 2013. Our products has been exported to more than 40 countries like USA, UK, Russia, France, Australia Korea etc. We win good reputation from customers because of good quality and service.
1. Alumina ceramic products, including tubes, rods, crucibles, plates, and other part made by your Design.
2. Zirconia Ceramic products, including tubes, crucibles, plates and other parts as you need.
3. Silicon carbide ceramic products, includng beams, plates, tubes, crucibles etc.
4. Boron nitride ceramic products, including plates, crucible, and other parts as you need.
5. Alumina ceramic fiber products, including fiber, board, and other parts as you need.
6. Heating elements, including MoSi2 heating element and MoSo2 heating element.
