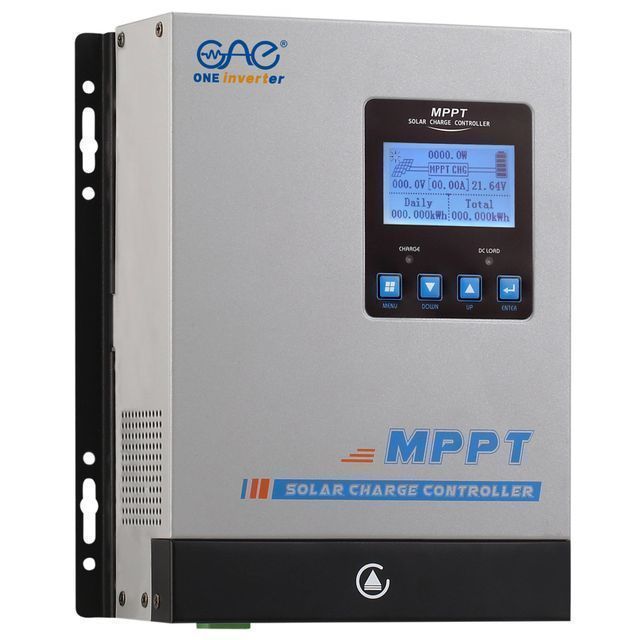

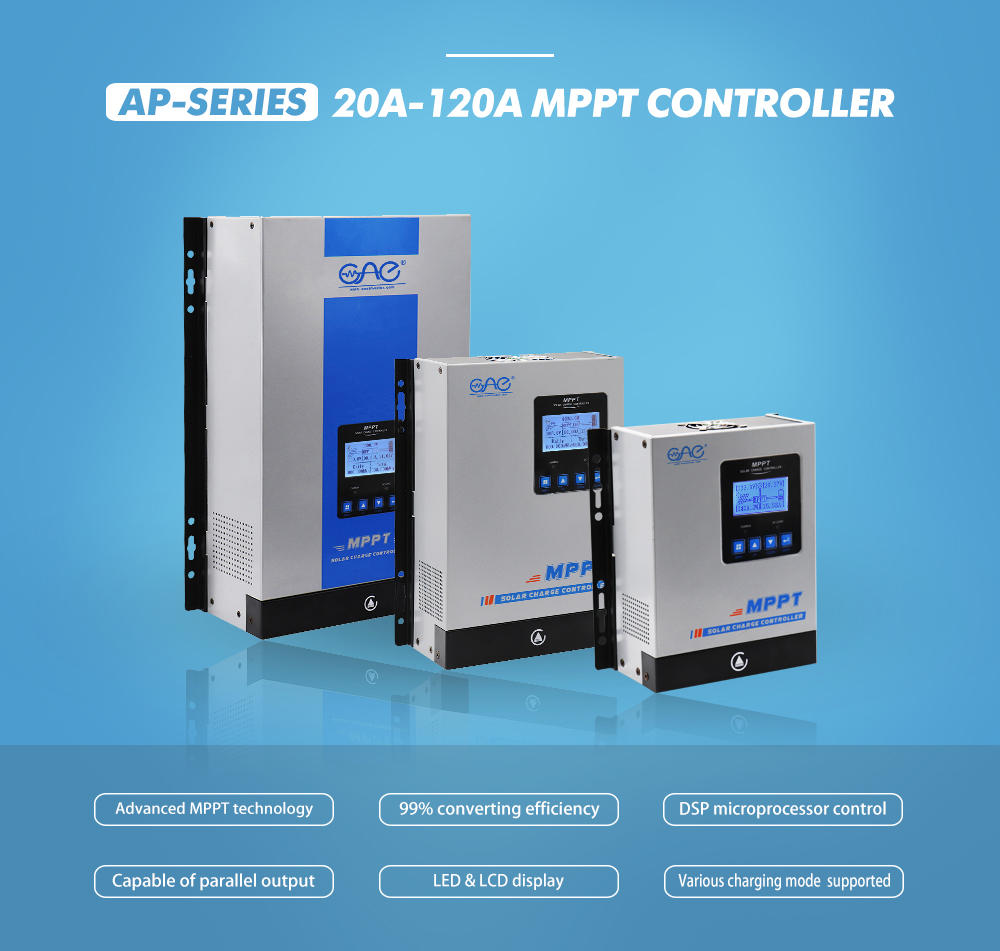

12v/24v/48v/96v mppt inverter solar system 20A 30A 40A 50A 60A 80A 100A 120A MPPT solar charge controller

PRODUCT DETAIL
Certification:CE FCC EMCWorking hours (hours):24/7
model:AP-80type:MPPT
Maximum photovoltaic power:4540wapplication:Charger Controller, Solar System Controller
Supply capacity:99999 sets per dayexhibit:LCD+LED
Rated current:10A/20A/30A/40A/50A/60A/70A/80A/100ASystem Voltage:12/24/48/96vdc
payment terms:wire transfer, paypalcommunicate:RS485
Maximum PV Voltage:150VDCPackaging Preview:
MPPT efficiency:99%Function:Constant voltage/Equalization/Float charge

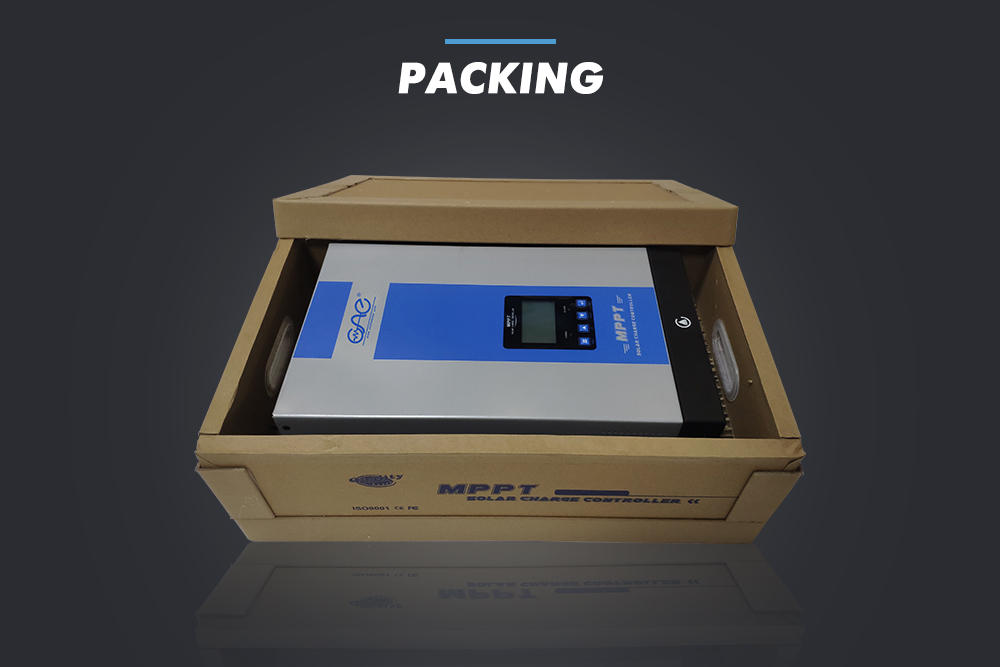

Packaging Details:1 pc/color box, 4 color boxes in one cartonWarranty:12 months, 12 months
place of origin; place of origin:Guangdong, Chinabrand:an inverter
port:Guangzhou. ShenzhenOriginal Equipment Manufacturer:accept
Certificate:CE FCC EMC ISOCharging Mode:3
Product Description
Specification
Model
AP-20
AP-30
AP-40
AP-50
AP-60
AP-80A
AP-100
AP-120
Rated current
20A
30A
40A
50A
60A
80A
100A
120A
Maximum charging current
22A
32A
42A
52A
62A
82A
102A
122A
MPPT range operating voltage
12V system
18VDC~80VDC
24V system
30VDC~100VDC
36V system
40VDC~100VDC
48V system
60VDC~150VDC
96V system
120VDC~200VDC
Maximum PV array power
12V system
280W
420W
570W
700W
900W
1140W
1400W
1800W
24V system
550W
840W
1130W
1400W
1700W
2260W
2800W
3400W
36V system
840W
1260W
1710W
2100W
2700W
3420W
4200W
5400W
48V system
1100W
1650W
2270W
2800W
3400W
4540W
5600W
6800W
96V system
7200W
9120W
11200W
14400W
Supported battery types
Sealed lead-acid/gel/NICAL/LIFEPO4 lithium battery
charging mode
Three stages: constant current (MPPT), equalizing charge, floating charge
maximum efficiency
≥99%

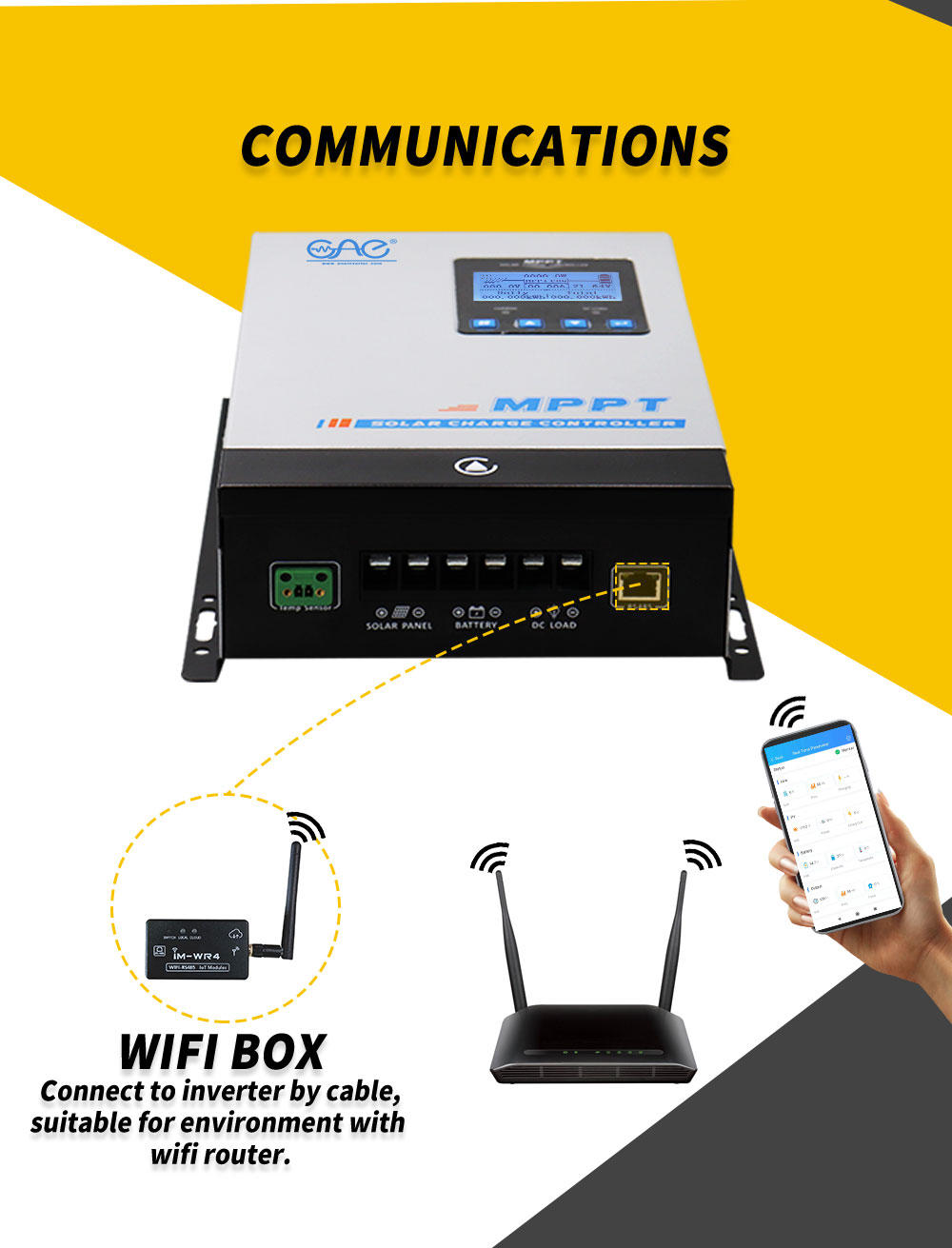

communicate
RS485

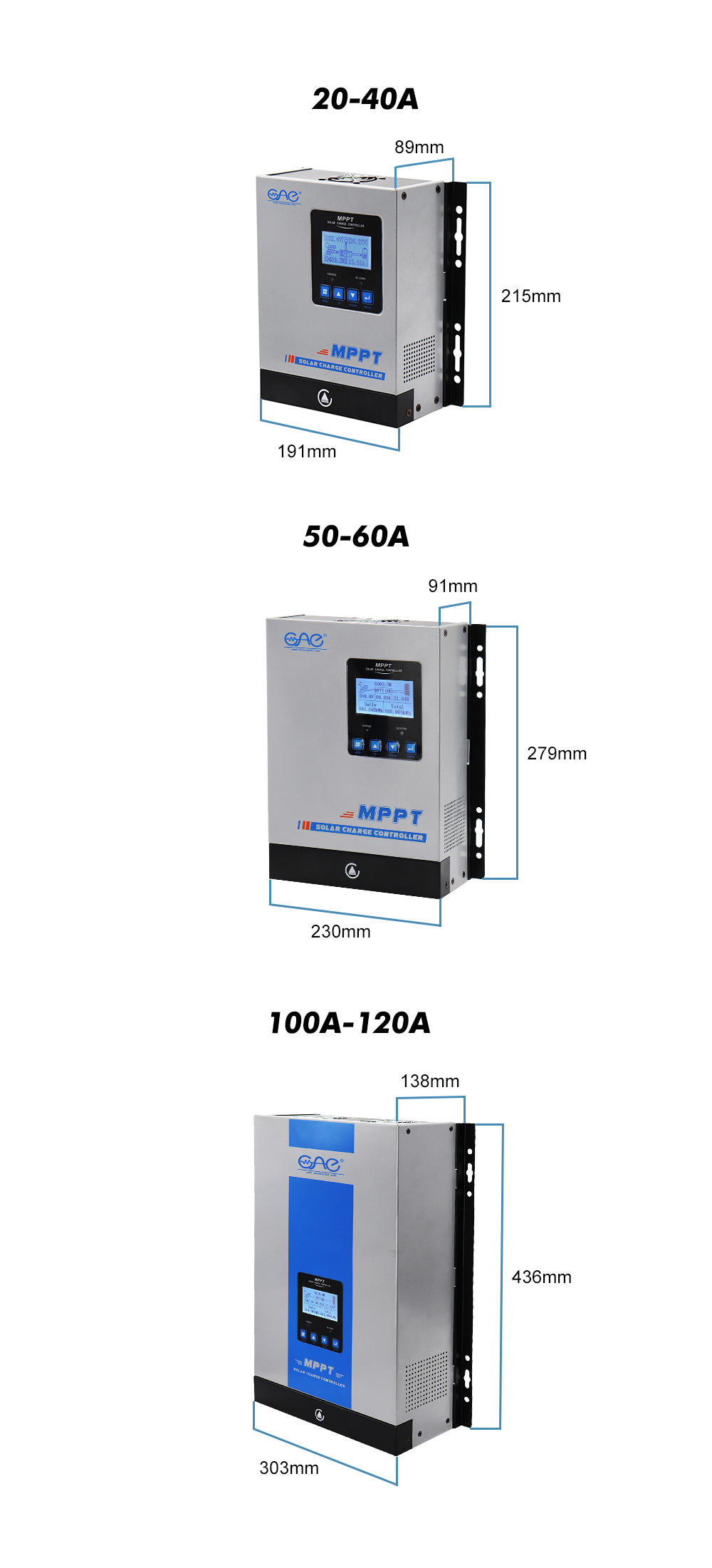

carton size
315*235*150MM
355*270*135MM
570*360*200
GW
3.5KGS
4.5KGS
13KGS
*Product specifications are subject to change without notice

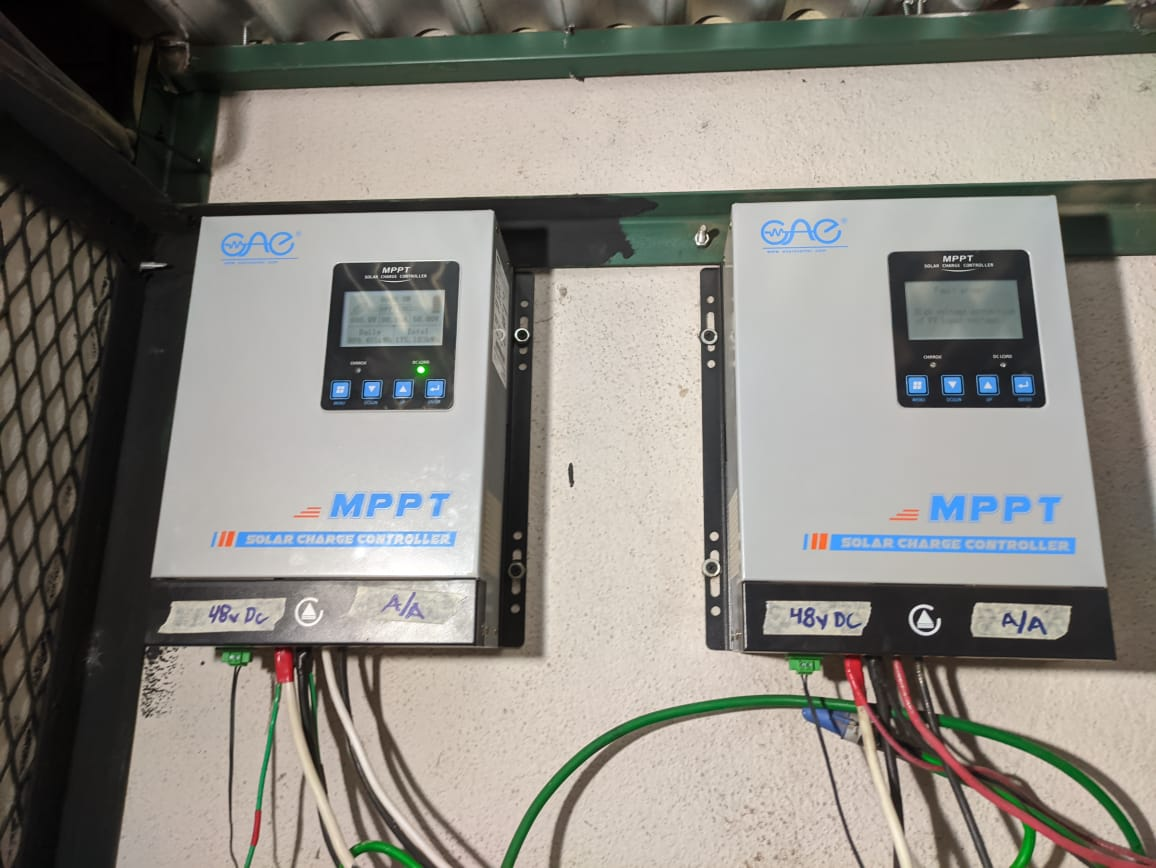

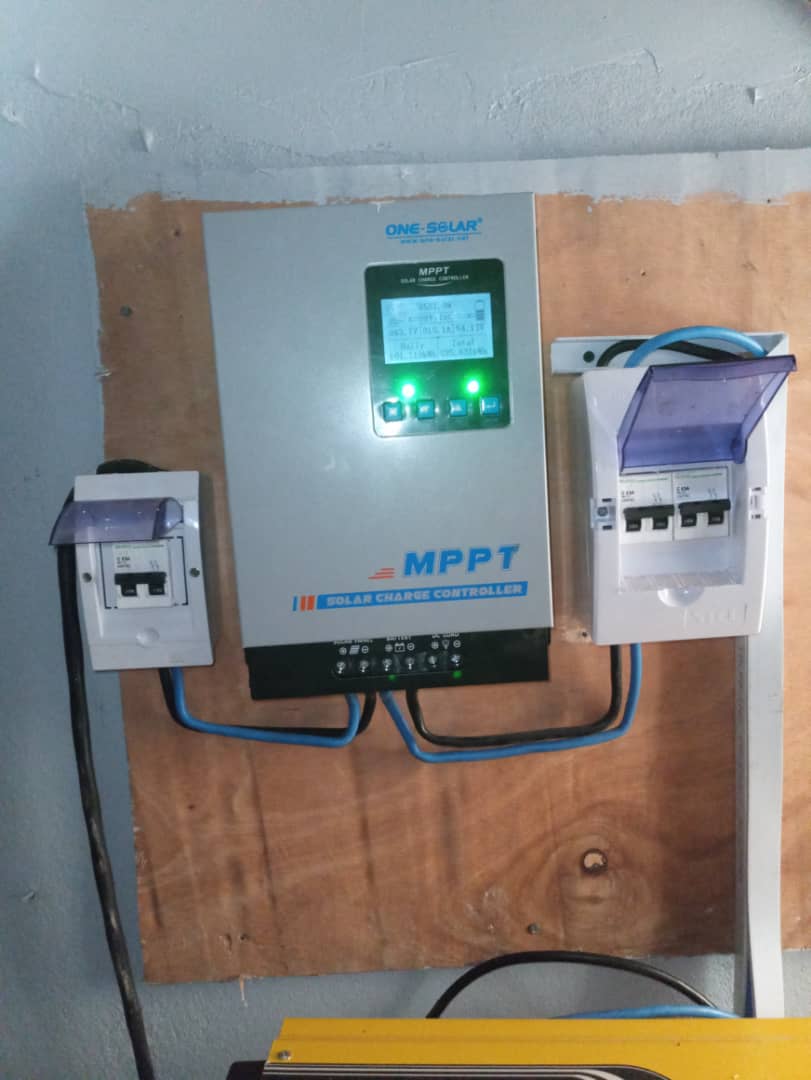

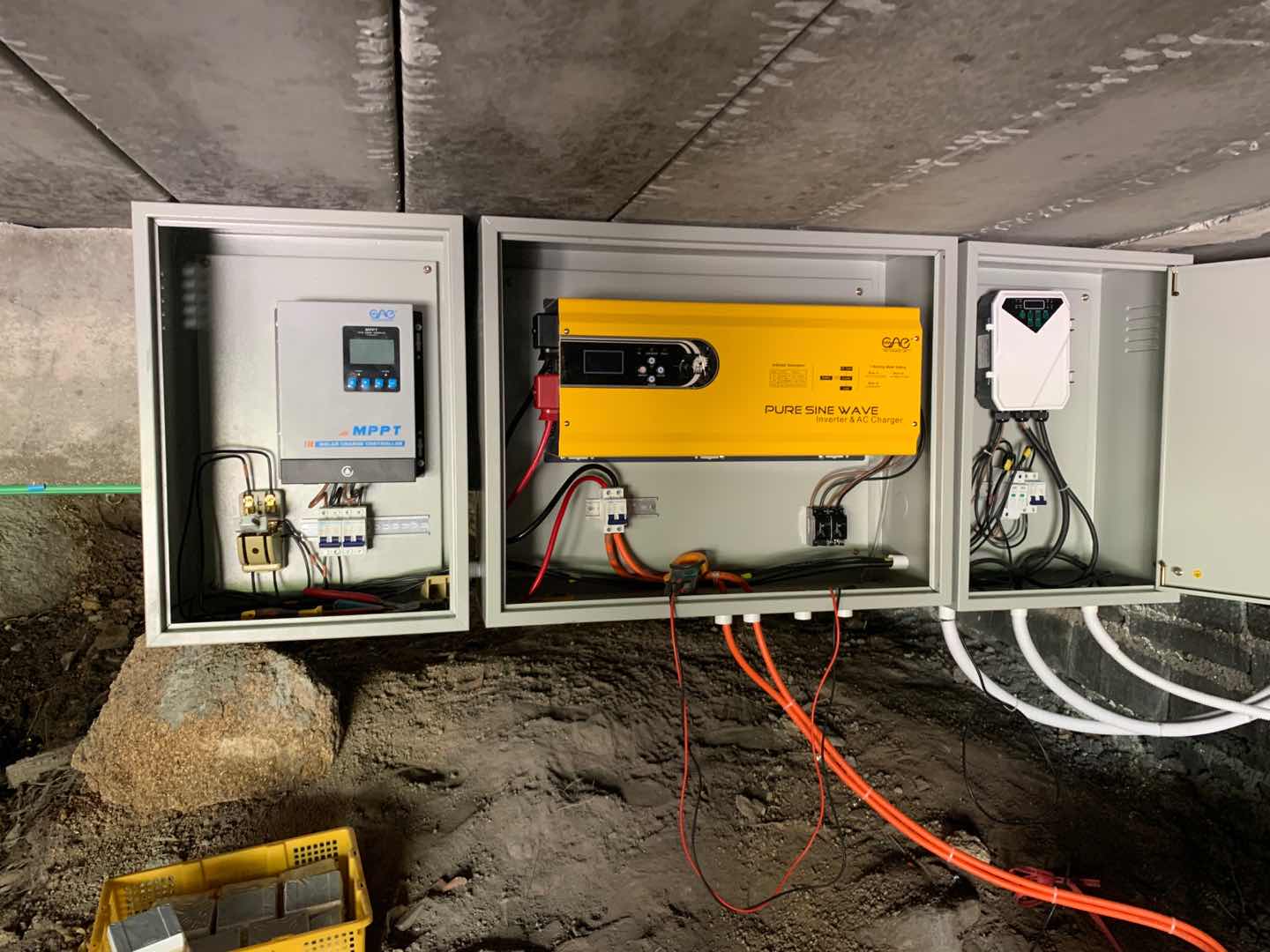

customer photo
