HNT Solar Charger Controller PWM 12v 24v LCD Display 10A 20A 30A for Household Power Supply

PRODUCT DETAIL

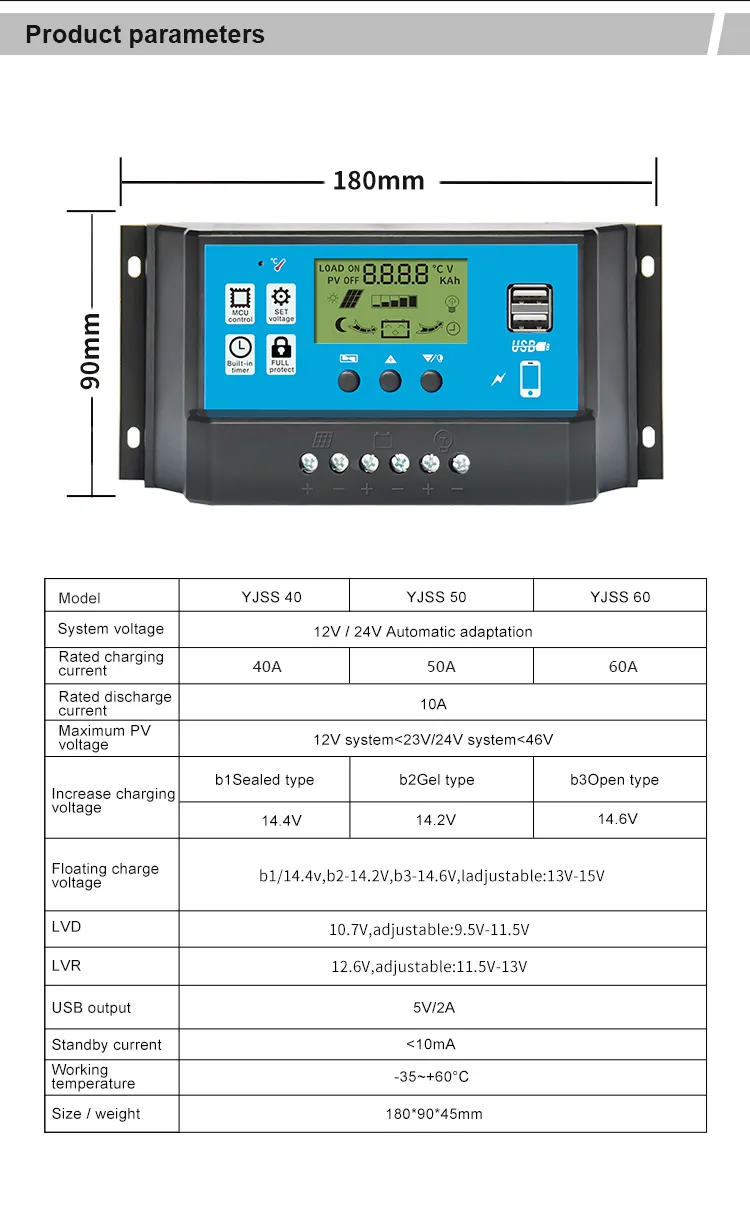

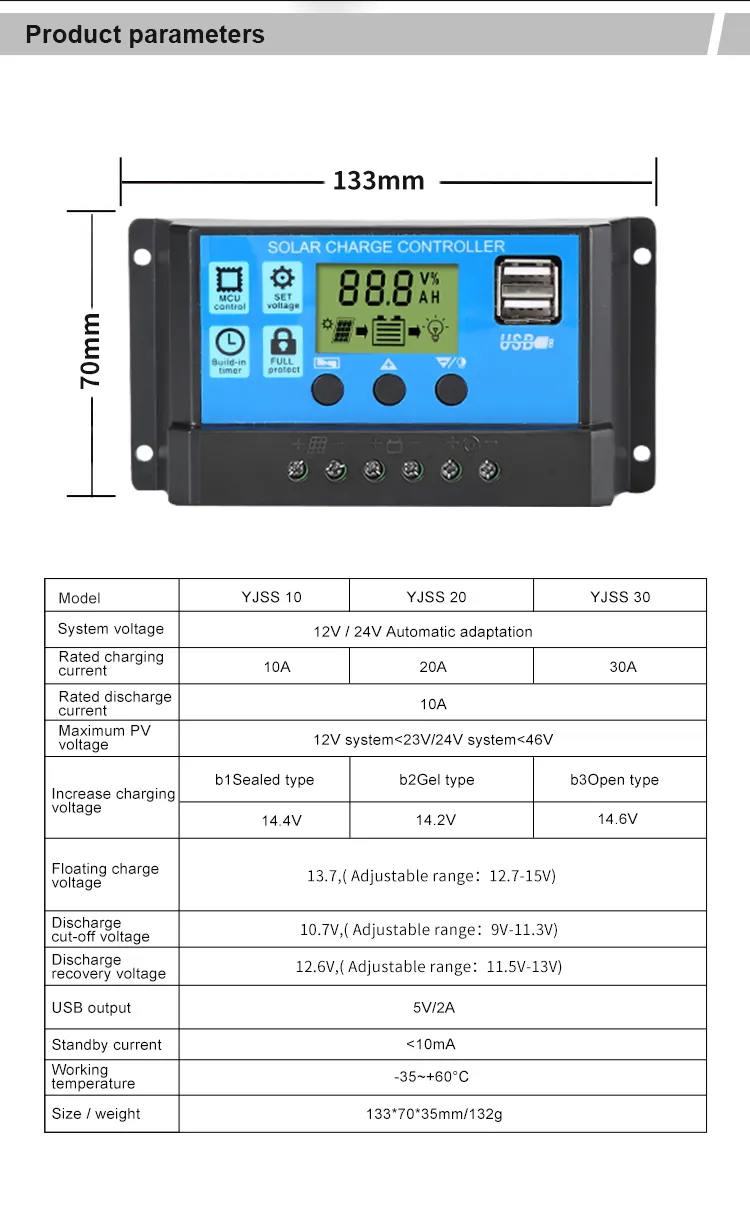

Battery Type:Lead Acid Battery ChargerWorking hours (hours):24 hours
model:HNT-06brand:HNT
Maximum photovoltaic voltage:50VOrigin:Guangdong, China
application:Charger controllers, wind controllers, collector controllers, water heater controllers, solar workstations, lighting controllers, thermostats, voltage controllers, solar system controllersWarranty:3 years
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramCertificate:ROHS,CE,ISO9001,ISO14001,CE
Operating temperature:-35~+60℃size:13.3*7*3.5cm
Float charge voltage:15V/30VFee method:charging in the sun
Maximum photovoltaic power:1500WPackaging Details:1. Use high hardness sponge 2. Corrugated box with the highest strength 3. Wrap the outer box with tape and add a layer of protection 4. Customize according to customer requirements
Discharge stops:11.3V/22.6Vtype:pulse width modulation
Supply capacity:1,000,000 pieces per dayUSB output:5V/2A max
Disconnect and reconnect:13V/26Vport:Shenzhen/Guangzhou
Package preview:
Product Description
Lead Acid Battery Voltage Regulator PWM Solar Charge Controller
12V/24V Automatic 10A 20A 30A 40A 50A 60A available

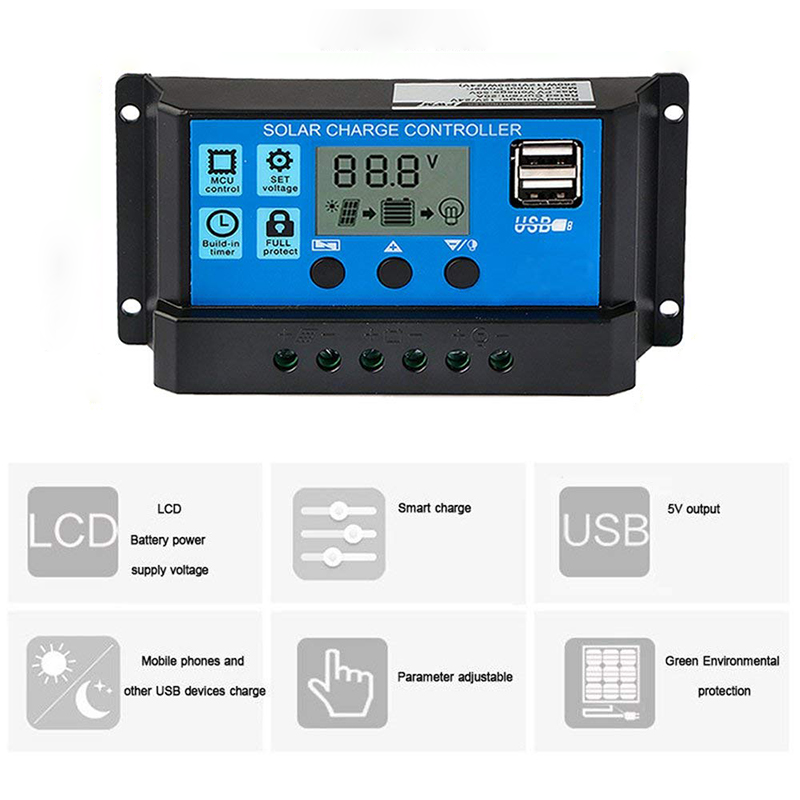

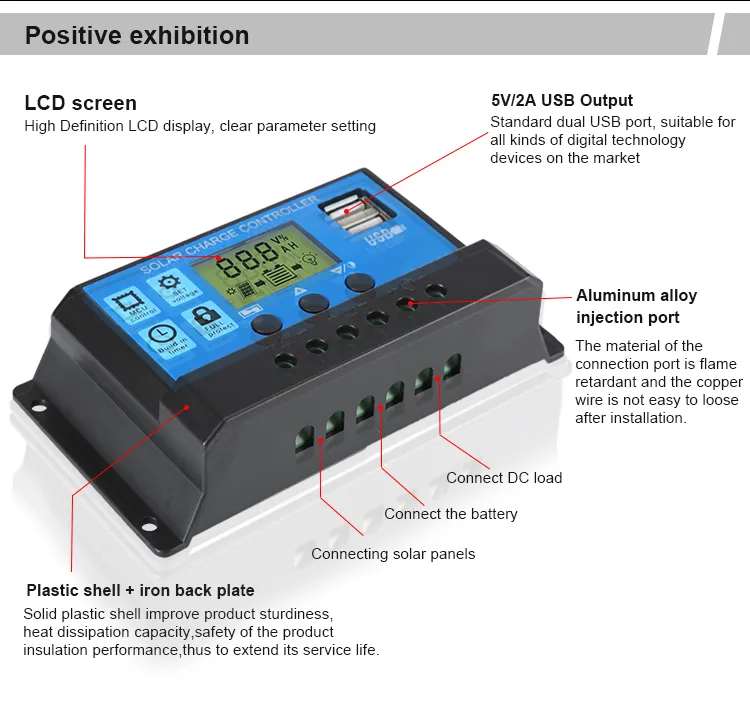

1. Dual USB sockets.
2. Aluminum alloy injection port.
3. Plastic shell + iron backboard.

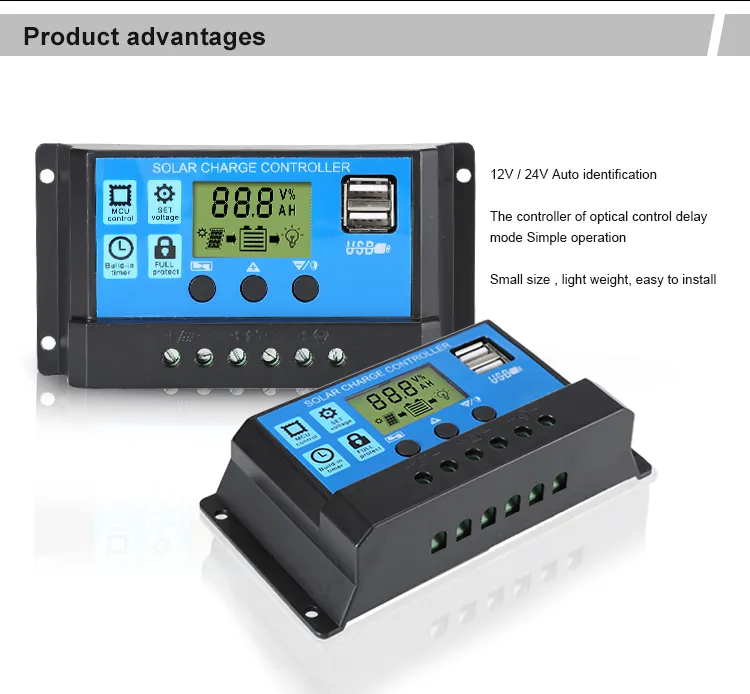

4.12V/24V adaptive, small size, easy to operate.
5.LCD, programming parameters, data memory function.

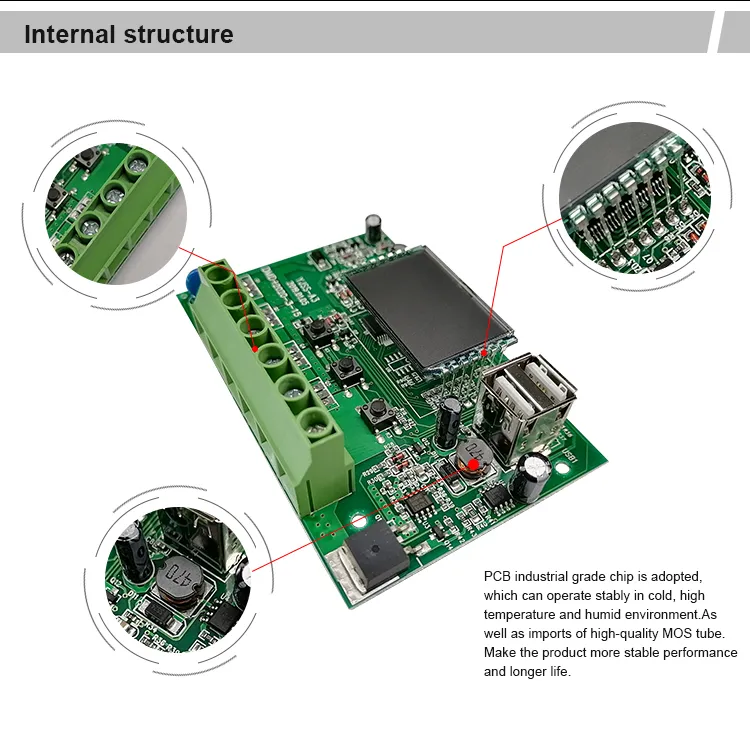

6. Adopt PCB industrial grade chip, adapt to harsh environment.
Anomalies
reason
solution
sunny but not charging
Photovoltaic panel open circuit or reverse connection
reconnect
Loading icon is off
Wrong mode setting/low battery
reset/charge
The loading icon flashes slowly
overload
Reduced load watts
The loading icon flashes quickly
Short circuit protection
auto reconnect
shutdown
battery too low reverse
Check battery/connection
* Regulators are suitable for lead-acid batteries: OPEN, AGM, GEL. Not for use with NiMH, Li-Ion or other batteries.

* The charge regulator is only suitable for regulating solar modules. Do not use DC or other power sources as a charging source.
Product packaging

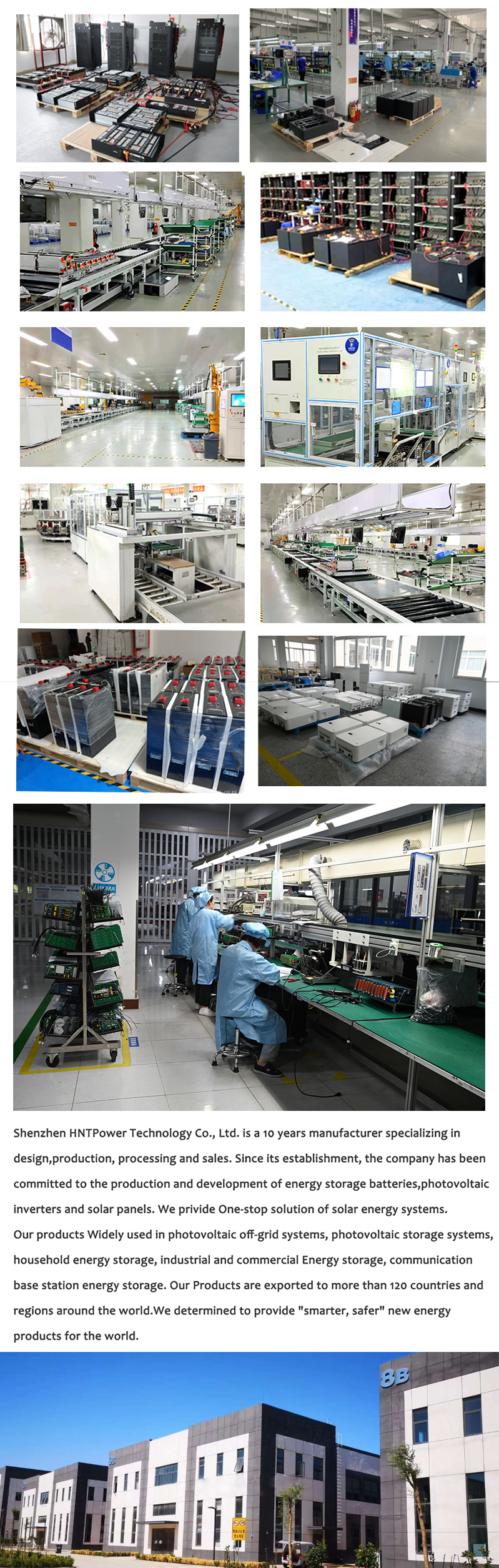

Our factory
