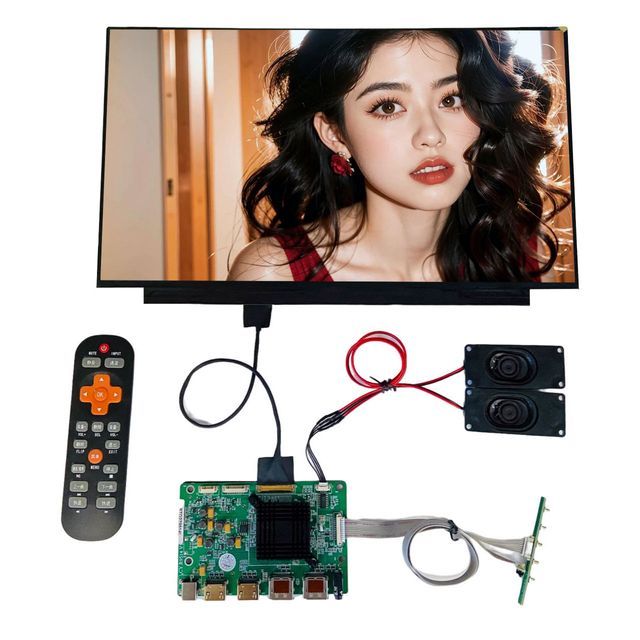

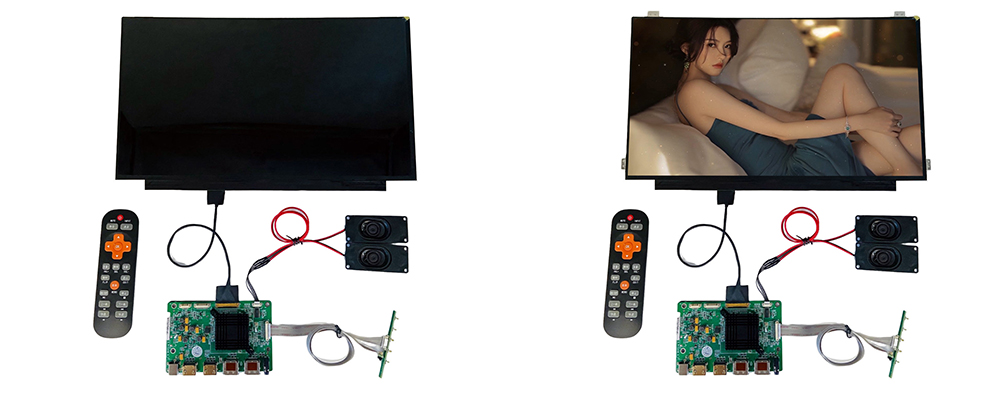

14 inch BOE 4K TFT NV140QUM-N61 LCD Module Support 3840*2160(RGB) with LCD Controller Panel LCD Kit RTD279514

Price:$150.00 /piece
Min. Order:1 piece
Supplier:Shenzhen Caison Technology Co., Ltd.
Region:Guangdong, China
Contact:Mr Alex chao

PRODUCT DETAIL

Supported colors:	16.7M 100% sRGB	Brand Name:	BOE
solve:	3840(RGB)X2160, UHD 315PPI	brightness:	400 cd/m² (typical)
Frame rate:	60 Hz	Payment Terms:	L/C, Western Union, T/T
Viewing angle:	85/85/85/85 (typical) (CR≥10)	Display size:	14
Response time:	35 (Typical) (Tr+Td)	Contrast ratio:	800:1 (Typical) (TM)
Origin:	Guangdong, China	View Directions:	symmetry
type:	LCD display	environment:	Working temperature: -20～60℃; Storage temperature: -20～65℃

Product Description

4K LCD panel specifications

Panel brand	BOE	Model Part Number	NV140QUM-N61
Panel size	14.0”	Panel Type	Oxide TFT-LCD, LCM
solve	3840(RGB)×2160, ultra-high definition 315PPI	Pixel format	RGB vertical stripes
Activity Area	309.31(W)×173.99(H) mm	Baffle opening	-
Outline dimensions.	315.01×199.04×2.4 (height×depth×depth)	surface	Anti-glare (haze 40%)
brightness	400 cd/m² (typical)	Contrast	800:1 (typical) (TM)
Perspective	85/85/85/85 (typical) (CR≥10)	Response time	35 (Typical) (Tr+Td) ms
Beautiful scenery	symmetry	Working Mode	ADS, normally black display, transmissive
Color Depth	16.7M 100% sRGB	Backlight	8S8P WLED , 15K hours, with LED driver
Outline shape	Ultra-thin (PCBA flat, T≤3.2mm)	touchscreen	No
Refresh rate	60 Hz
Signal Type	eDP (4 lanes), HBR2 (5.4G/lane), 40-pin connector
Supply voltage	3.3V (typical)
Maximum Rating	Storage temperature: -20～65℃ Operating temperature: -20～60℃

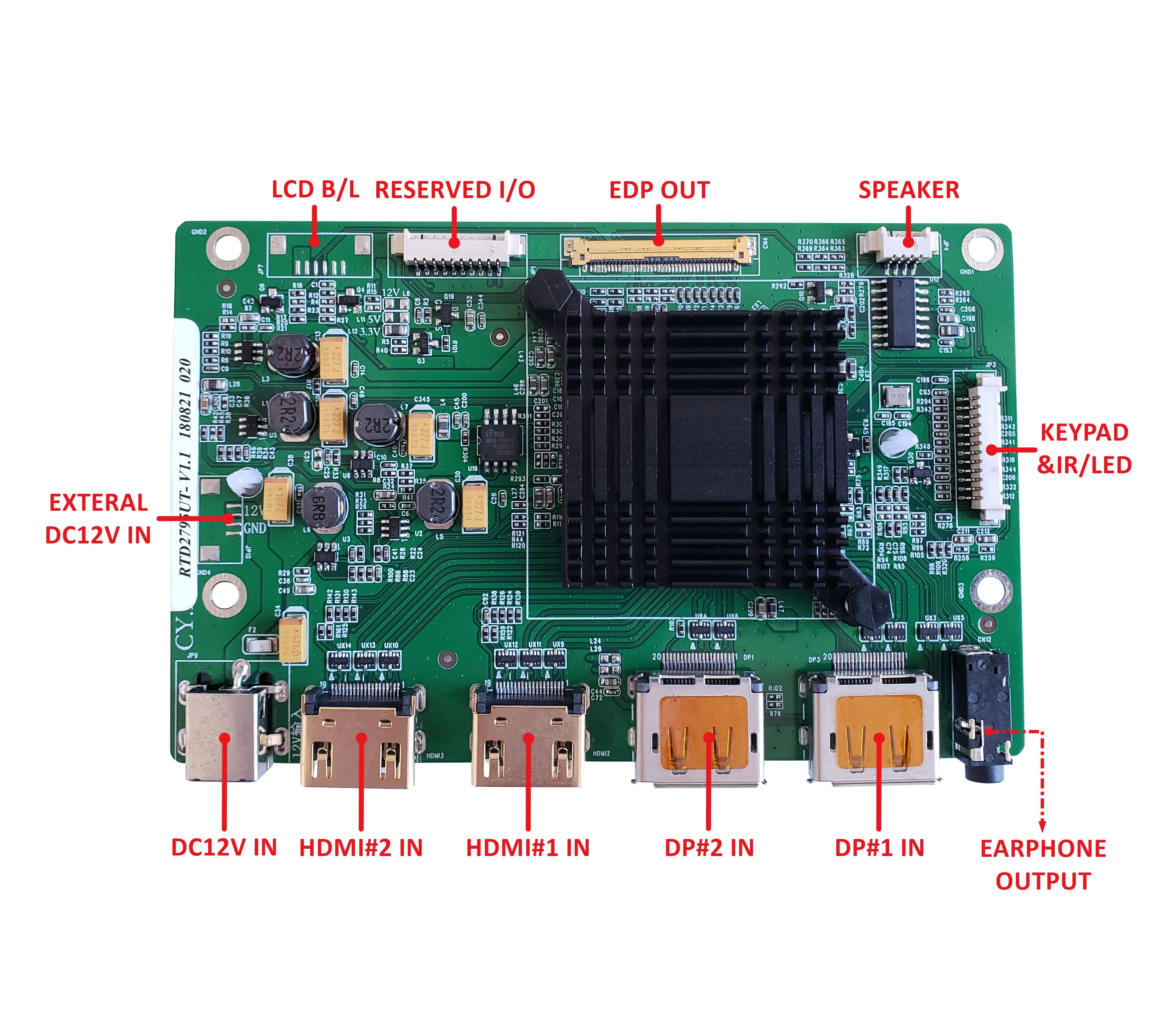

1.4K LCD control panel specifications

R9511 is an LCD display control board that supports up to UHD resolution. This product supports TFT LCD for
VGA, SVGA, XGA, SXGA, UXGA, QHD and UHD resolutions, for example: LG, Philips, SAMSUNG, AUO.

Supports HDR10 high dynamic range images (High Dynamic Range, HDR), which is different from ordinary
images, can provide more dynamic range and image details, according to the different exposure time of LDR
(Low Dynamic Range) images, using the best detail of the LDR image for each exposure time
To HDR image synthesis, it can ultimately better reflect the visual effects in the real environment.

Supports AMD graphics card FreeSync 2.0 technology to improve screen tearing and stuttering issues, and improve
Image quality.

The HDMI interface supports HDMI2.0 protocol and supports hardware decoding signals up to 4K@60Hz

The DP interface supports DP1.1 and DP1.2 protocols, and supports hardware decoding signals up to 4K@60Hz

The screen supports 180 degree rotation

5-button control button and supports remote control

Onboard stereo amplifier 3WOSD for easy control of all functionsAutomatically adjust screen image controls, brightness, and contrast controls.

Color balance and color temperature control.

OSD supports Chinese and English

Panel interface type	eDPHRB, eDPHRB2
Product images	118x75 mm
LCD Resolution	Up to 3840x2160 @60Hz
Signal interface	DMI, DPint, 3.5 headphone output
strength	Power Input	DC 12V
		Power Control	Normal working mode, low power consumption mode
		Power Management	Standby power consumption ≤1W
OSD Menu	Image and position adjustment	Brightness/contrast/saturation/hue/position adjustment
OSD Language	Chinese English..
keyboard	Keyboard type	GPIO to GND
		Keyboard Number	5Key
		Keyword Description	Power VOL- VOL+ Menu Input
Audio output power	2X3W (8Ω)
Color Temperature model	Warm/Cool/Standard/Use		116mm (L) x 87.3mm (W) x 19mm (H)
