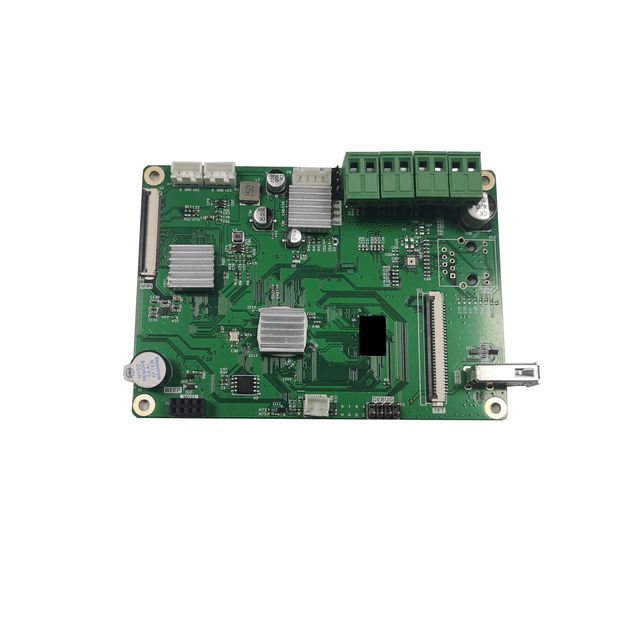

CORE VALUE 5.5 5.9 8.9 9.25 10.1 13.3 15.6 23.8 inch LCD driver board 3D printer controller
- $58.00 /set
- 1 set
- Shenzhen Aptus Technology Co.,Ltd
- Guangdong, China
- Mr Daniel Lee
PRODUCT DETAIL
| payment terms: | wire transfer | Packaging Details: | carton |
| Supported file formats: | vlr, osf | Origin: | China |
| power input: | 12/24V 5-15A | USB interface: | 1. USB2.0 |
| brand: | Vallar Core | Recommended slicing software: | Slicer |
| Package preview: | weight: | 60 grams | |
| port: | Shenzhen | Dimensions: | 120x85x18mm |
| Wireless interface: | 1 | Model: | Vallar Core |
| Pulse Width Modulation Specifications: | 1KHz,5V | Supply capacity: | 10000 sets per month |
Product Description

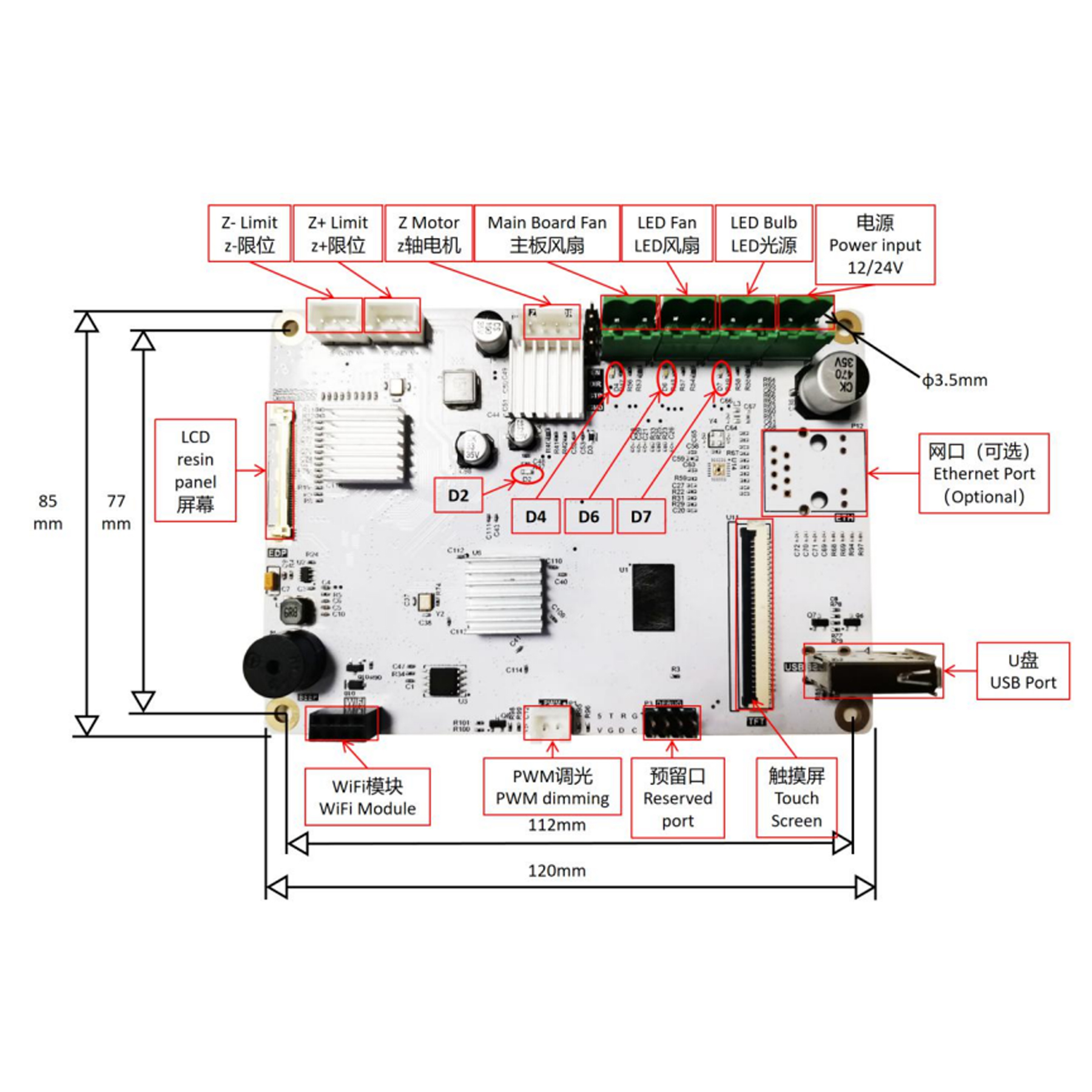

interface name | interface model |
Z-limit, Z+limit | XH2.54, 3Pin |
Z motor | XH2.54, 4Pin |
Motherboard fan, LED fan, LED bulb, power input | KF2EDGK-5.08, 2Pin |
wireless module | 2.54mm, 2×4Pin |
PWM dimming | XH2.54, 2Pin |
reserved port | 2.54mm, 2×4Pin |
Mainboard built-in power indicators: D2, D4, D6, D7.
D2 | System Indicator |
D4 | motherboard fan indicator |
D6 | LED fan indicators |
D7 | LED indicator |
Note: Before installing or removing any hardware devices, the power supply must be disconnected to avoid damage to the motherboard.
The 3D printer screen and touch screen currently used by the product are:
Resistive screen | size |
3.5 inches | |
4.3 inches |
capacitive screen | size |
4.3 inches | |
5 inch | |
7 inch |
3D printer LCD monitor | solve | size |
2K | 5.96", 6.08" | |
4K | 5.5", 6.23", 6.6", 8.9", 9.1", 13.3", 15.6" | |
5K | 10.1” | |
6K | 8.9", 9.25", 12.8", 13.3" | |
7K | 13.6” | |
8K | 7.1", 10.1" |
If the screen you need to drive is not listed in the table, pleasetouchour sales staff. We can provide customized service.
