15dBm flame amplifier with smart connector for US market
- $13.00 /piece
- 1 piece
- Raygnal Technology (Shenzhen) Co., Ltd.
- Guangdong, China
- Mr Allen Liao
| Noise Figure: | 1.0dB | place of origin; place of origin: | Guangdong, China |
| type: | 3g signal booster | payment terms: | L/C,Western Union,T/T,MoneyGram |
| port: | Shenzhen | Packaging Preview: | |
| model: | RGLFL15-G | Supply capacity: | 5000 pieces per month |
| Transmit power: | 15dBm | Packaging Details: | Standard export carton |
| temperature: | 0°C ~60°C | Receive gain: | 17 dB |
| impedance: | 50 ohms | frequency: | 902-928MHz |
| DC supply voltage: | 5-15V | DC supply current: | 200 mA |
| plug: | American | cable: | 60 cm |

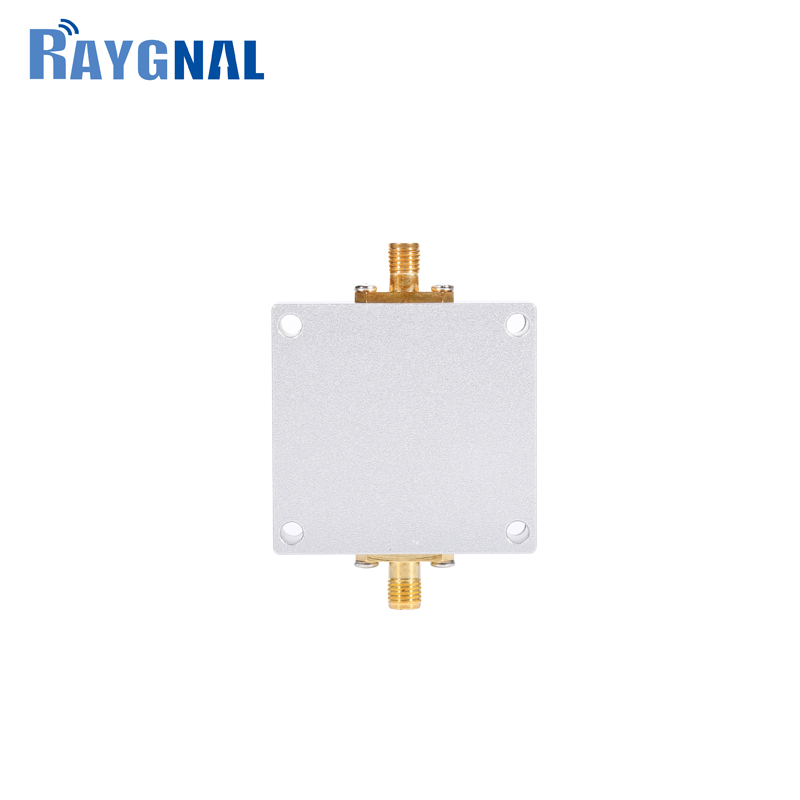

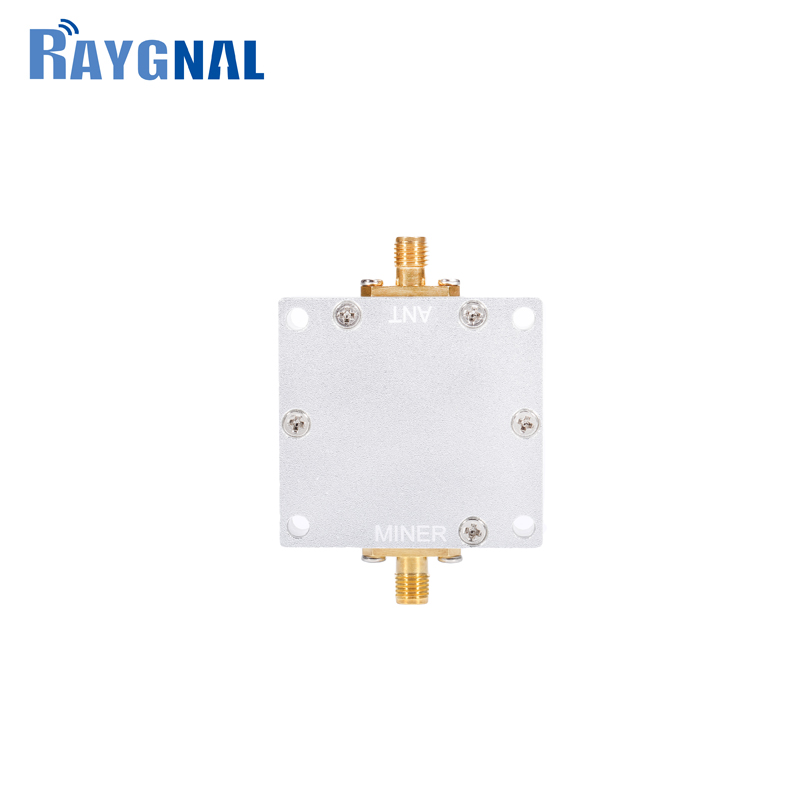

915MHz Miner AMP Bias tee Lora Helium Signal Extender (Bidirectional Amplifier)
A 915MHz helium signal amplifier is used as a receive preamplifier with automatic RX and TX boost. It is a good helper for helium miners to optimize the LORA network. The specific operating frequency of EU is 902-928MHz (915). Power can be supplied directly through the power plug or using a bias tee on the coaxial cable. A built-in filter avoids interfering with out-of-band signals.
feature
Ultra low noise
5V to 15V Wide Operating Input Range
Plug and play, easy to operate
Plug and play or cable powered (can be powered via additional red wire/back wire on RX side coax)
Specification
|
namber |
Icondition |
smallSpecification |
|
1 |
Frequency Range |
902-928MHz |
|
2 |
Operating Voltage |
5-15V |
|
3 |
receive gain |
17 dB |
|
4 |
spread |
bypass |
|
5 |
maximum output power |
15dBm/30mW |
|
8 |
Noise Figure |
0.9dB |
|
9 |
powered by |
38 mA |
|
10 |
TX/RX switching time delay |
0.2 µs |
|
12 |
Operating temperature |
-40°C+70°C |
|
13 |
Storage temperature |
-40°C+150°C |
|
14 |
Working humidity |
Up to 95% relative. humidity |
|
15 |
RF Connector |
Input/Output: SMA-Female |
|
16 |
Power outlet |
US power plug or USB cable |
|
17 |
Shell size |
40*42*12mm |
|
18 |
Shell material |
aluminum |
|
19 |
net weight |
0.15kg |
phosphorusPackage
1PCS* Amplifier
1PCS* USB cable
1PCS* Power Plug
