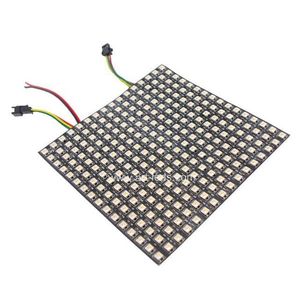

16x16 array dc5v ws2812b rgbw led matrix waterproof sk6812 panel
- $40.00 / 1 - 99 pieces
$39.00 / >=100 pieces - 1 piece
- Shenzhen Art Led Technology Co., Ltd.
- Guangdong, China
- Mr Art LED
| Color Temperature: | RGBW Pixel Digital; | Luminous Flux(lm): | 18-20lm/led; |
| Certification: | ce,RoHS; | Emitting Color: | Tri-Color(Red-Blue-Green); |
| Type: | LED Dot Matrix; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Application: | Display, DIY, Animation; | Pixel pitch(mm): | 10mm; |
| Chip Material: | Gaas; | Power Dissipation: | 0.3; |
| PCB Size: | 16x16cm; | Brand Name: | Art LED; |
| Voltage: | DC5V; | Viewing Angle(°): | 140; |
| Supply Ability: | 1000 Pieces per Week; | Product name: | Flexible SK6812 RGBW Digital Pixel LED Matrix 16x16 - 256 RGBW LED Pix; |
| Power: | 60w,60W; | Storage Temperature(℃): | -20 - 60; |
| Warranty(Year): | 3-Year; | PCB Color: | Black PCB; |
| Controller: | Arduino/T1000s/DMX512/Raspberry Pi/Glediator; | Color Rendering Index(Ra): | 80; |
| LED quantity: | 256LEDs/pcs; | IC Chip: | ws2812b sk6812 RGBW; |
| Place of Origin: | Guangdong, China; | Packaging Detail: | 1 pcs/ bag in ESD package 100 pcs/carton carton size: 26x26x18cm; |
| Optical Attenuation(%): | 0.3; | Port: | Shenzhen; |
| Lighting solutions service: | Agi32 layout,auto CAD layout; | Operating Temperature(℃): | -65 - -30; |
| Luminous Efficacy(lm/w): | 80; | Luminous Intensity: | R:500-650mcd G:370-530mcd B:120-165mcd; |
16x16 array dc5v ws2812b rgbw led matrix waterproof sk6812 panel
Product details
| Product name | Flexible SK6812 RGBW Digital Pixel LED Matrix 16x16 - 256 RGBW LED Pix |
| Pixel pitch(mm) | 10mm |
| LED quantity | 256LEDs/pcs |
| PCB Size | 16x16cm |
| Voltage | DC5V |
| Power | 60W |
| Application | Display, DIY, Animation |
| IC Chip | ws2812b sk6812 RGBW |
| PCB Color | Black PCB |
| Controller | Arduino/T1000s/DMX512/Raspberry Pi/Glediator |
| Product Keywords | dc5v ws2812b rgbw led matrix,dc5v waterproof rgbw led matrix,dc5v sk6812 rgbw led panel |

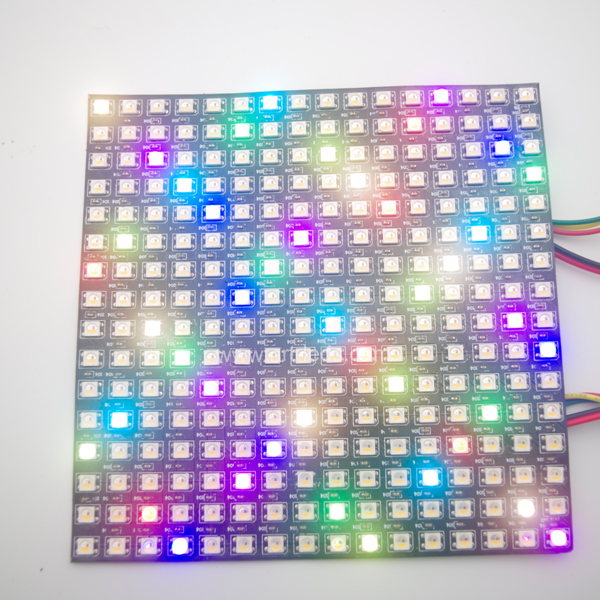

1. For sk6812 WS2812B LED Flexible rgb led matrix fans, we now have Flexible SK6812 RGBW LED Matrix 16x16 - 256 RGBW LED Pixels! Control all 256 ultra bright LEDs, set each RGBW LEDs as you wish to scroll message or draw little images.

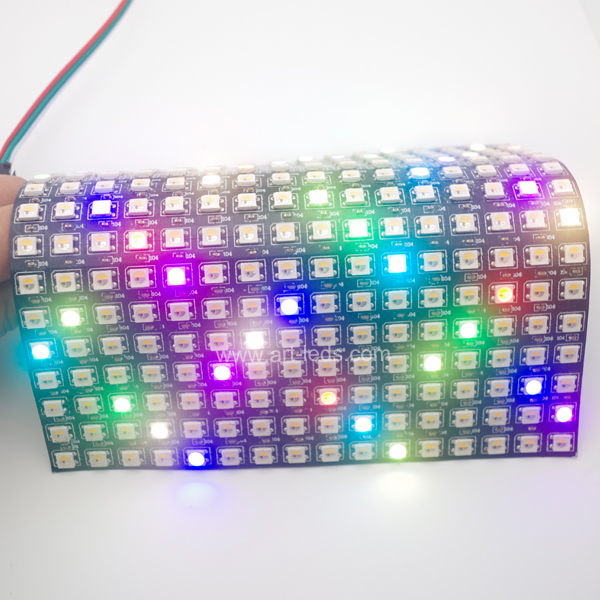

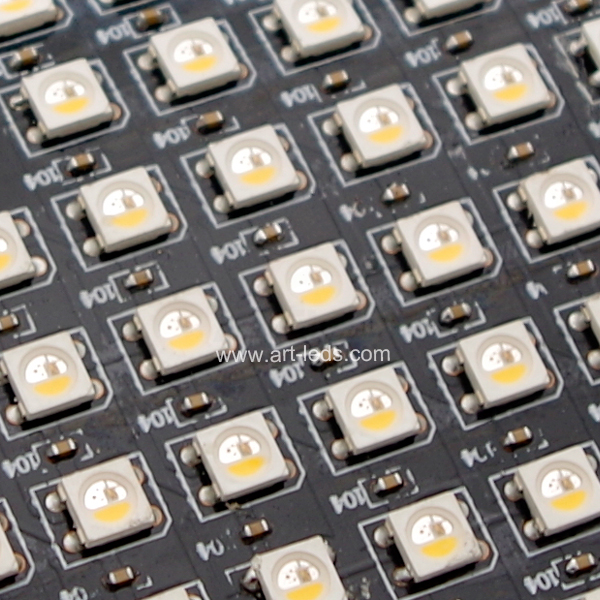

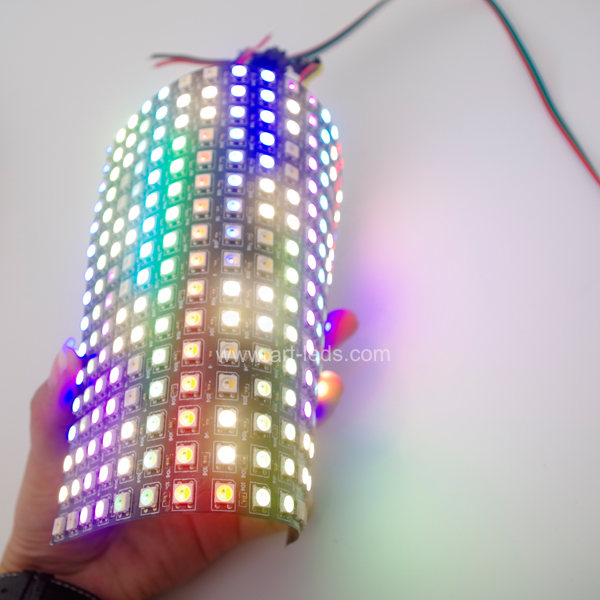

2. ThisFlexible SK6812 RGBW Pixel LED Matrix 16x16 - 256 RGBW LED Pixels has a thick flexible PCB backing that can be gently bent and curved around surfaces. And also, they are the same integrated LEDs that used in our addressable sk6812RGBW led pixel tapes.

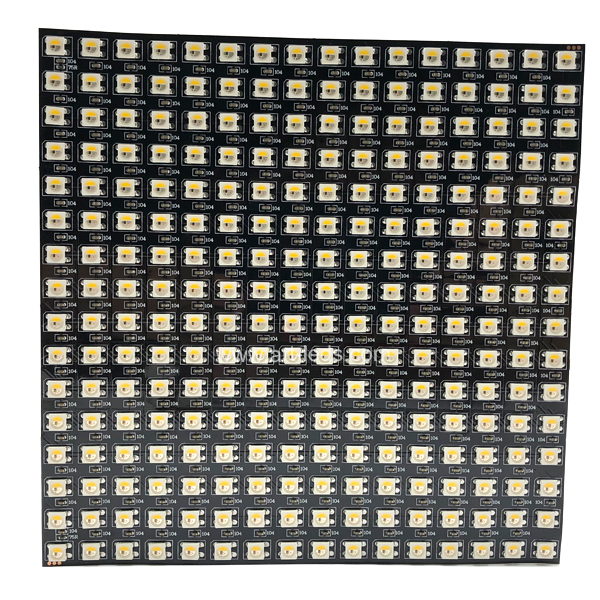

3. Flexible SK6812 RGBW Digital LED Pixel Matrix 16x16 - 256 RGBW LED Pixels has 8 pixels in each of its 32 lines, 256 LEDs in total. This is a continuous strip of leds making it easy to program for displays and is flexible so can be wrapped around objects and works with a 5v power supply.
4. Don't forget, with 256 LEDs, you could use over 10A of current if turn on all the LEDs on to white which we really don't recommend.

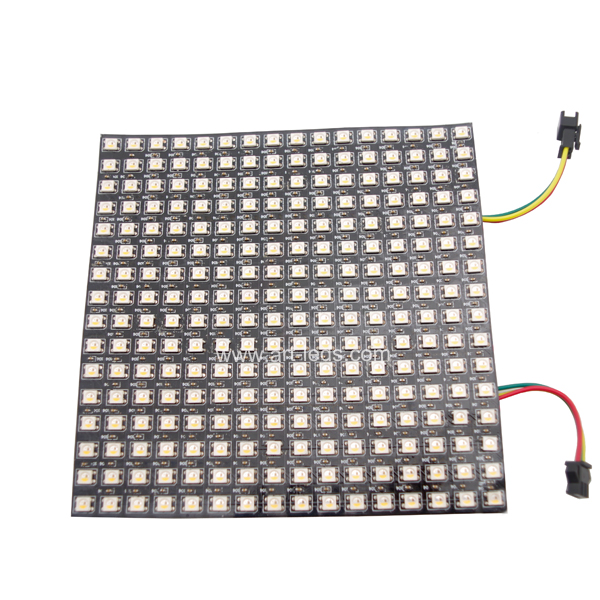

5.Bendable SK6812RGBW LED Matrix 16x16 - 256 RGBW LED Pixels has two 3pin JST-SM conductor cables contains 1 JST-SM 3pin output side and 1 JST-SM 3pin input side.
6. Not only have controablle SK6812 RGBW LED Matrix 16x16 - 256 RGBW LED Pixels, but also have 8x8 and 16x16 and other customized flexible /solid RGBW led matrix panels.
7. In terms of White CCT of this RGBW led matrix panel, there are warm white 3000k, neutral white 4500k and blue white 6500k to choose.
Note: all flexible matirx are not designed for repeated flexing.
Flexible APA102c 5050 LED Pixel Matrix 16x16 - 256 RGB LED Pixels
Flexible ws2812b LED Matrix 8x32 - 256 RGB SK6812 RGBW LED Pixels
10mm spacing between led centers 5vdc sk6812 rgbw digital matrix 5v smd5050 rgbww sk6812rgbw
sk6812RGBW led pixel Matrix widely used in furniture, automotive, advertising, lighting, ships and home decoration industries.
1.City skyline lighting including buildings, advertising wall signs, Christmas landscape decoration.
2. Irregular design of body decoration, hotels, clubs, KTV places such as polygonal walls, drop ceilings and groove design.
3.Home cove trim ,door frames, bar, wine cabinet, wardrobe, TV cabinet.
4.entertainment, stage, live performance,etc.
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
