Flexible ws2812b 8x32 LED rgb pixel matrix
- $1.00 /piece
- 1 piece
- Shenzhen Art Led Technology Co., Ltd.
- Guangdong, China
- Mr Art LED
| Light Attenuation (%): | 0.3 | Pixel pitch (mm): | 10mm |
| Storage temperature (℃): | -20 - +60 | Certification: | ce, RoHS |
| Packaging Details: | 1 pc/bag ESD packing 100 pcs/box Carton size: 26x26x18cm | Integrated circuit chip: | ws2812b sk6812 |
| Chip material: | Gass | application: | animation |
| type: | LED dot matrix | Working temperature (℃): | -65 - -30 |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | Luminous flux (lm): | 18-20lm/led |
| port: | Shenzhen | Number of LEDs: | 256 LEDs/pc |
| Delivery Details: | 1-7 days | Board size: | 8x32cm |
| Power consumption: | 0.3 | product name: | bendable ws2812b flexible 8x32 led rgb pixel matrix |
| Luminous color: | Tri-color (red-blue-green) | light intensity: | R: 500-650mcd G: 370-530mcd B: 120-165mcd |
| strength: | 60w, 60W | Supply capacity: | 1000 pieces per week |
| Color temperature: | RGB pixel numbers | brand: | Art LED |
| Color rendering index (Ra): | 80 | Controller: | Arduino/T1000s/DMX512/Raspberry Pi/Gladiator |
| Voltage: | DC5V | Board Color: | black printed circuit board |
| Viewing angle (°): | 140 | place of origin; place of origin: | Guangdong, China |
bendable ws2812b flexible 8x32 led rgb pixel matrix
1. For ws2812 pixel fans, we now have the Bendable ws2812b flexible 8x32 led rgb pixel matrix! Control all 256 super bright LEDs, setting each LED as desired to scroll messages or draw small images.
2. This bendable ws2812b flexible 8x32 LED RGB pixel matrix has a thick flexible PCB backing that can be gently bent and bent around the surface. Also, they are the same integrated LEDs used in our addressable sk6812/ws2812 LED pixel strips.
3. Bendable ws2812b flexible 8x32 led rgb pixel matrix with 8 rows of 32 pixels each for a total of 256 LEDs. This is a continuous LED strip that can easily program the display and is flexible so it can wrap around objects and work with 5v power.
4. Don't forget that with 256 LEDs you can use more than 15A if you turn all the LEDs on white, which we really don't recommend.

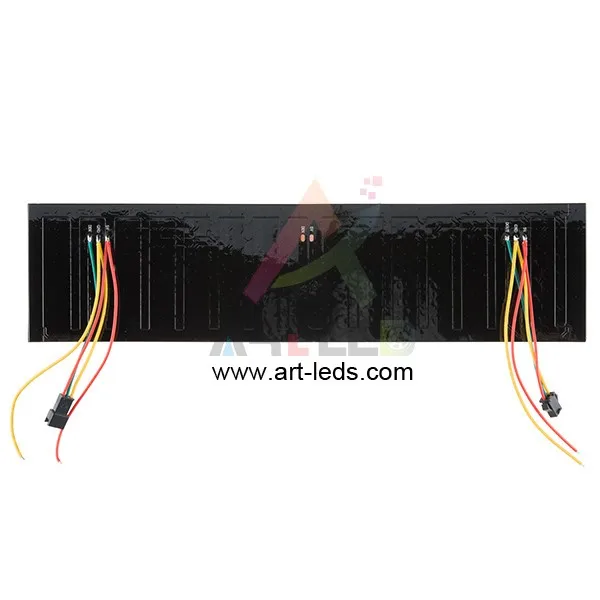

5. Bendable ws2812b flexible 8x32 led RGB pixel matrix has two 3pin JST-SM conductor cables containing 1 JST-SM 3pin output side and 1 JST-SM 3pin input side.
Thanks to the connectors, multiple Bendable ws2812b flexible 8x32 led rgb pixel matrices can be linked, any number, just pay attention to how much current they require. When you link multiple blocks, we recommend powering each panel.
notes:All flexible matirx are designed for repetitive bending.
Bendable ws2812b flexible 8x32 led rgb pixel matrix Features:
light source | bendable ws2812b flexible 8x32 led rgb pixel matrix |
Beam angle | 140 degrees |
Operating Voltage | DC5V |
Wattage consumption | 60±W |
Pixel pitch (mm) | 10mm |
The number of LEDs on the whole chip | 256 |
PCB board size | 80mm x 320mm , 2.5mm thickness |
current | 15.3A at 5 V, full brightness |
| brightness | R-650mcd, G-520mcd, B-460mcd |
Operating temperature | -20℃-60℃ |

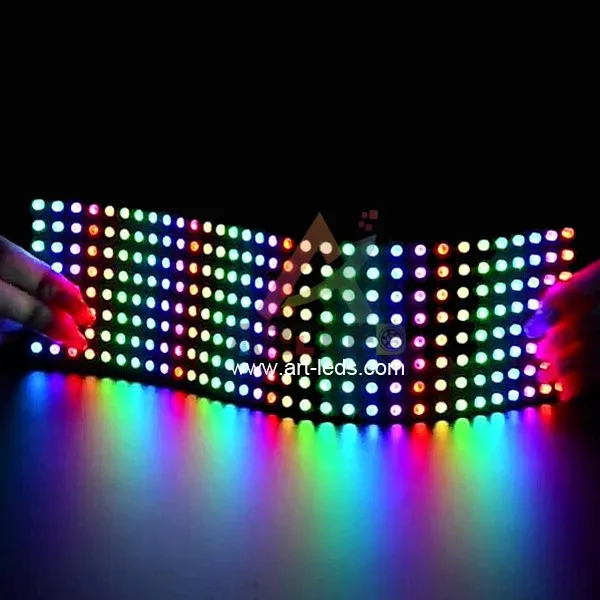

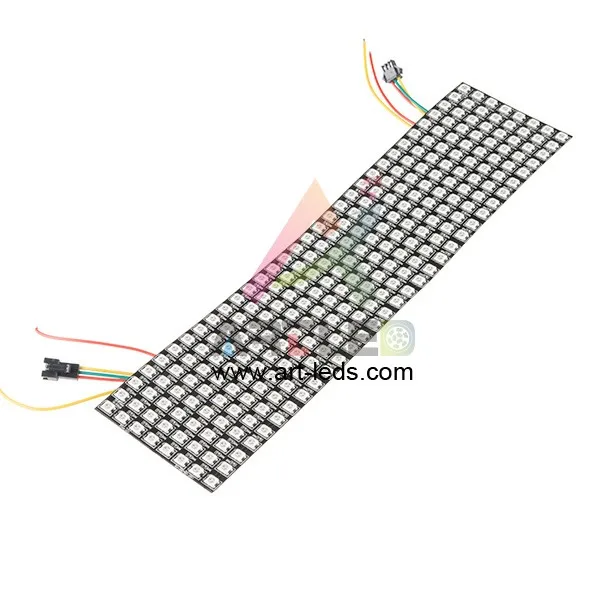

bendable ws2812b flexible 8x32 led rgb pixel matrix detailed image
bendable ws2812b flexible 8x32 led rgb pixel matrix application:
Widely used in furniture, automobiles, advertising, lighting, ships and home decoration and other industries.
1. City skyline lighting includes buildings, advertising wall signs, Christmas landscape decorations.
2. Irregular designs of body decoration, hotels, clubs, KTV places such as polygonal walls, ceilings and groove designs.
3. Home decoration, door frame, bar, wine cabinet, wardrobe, TV cabinet.
4. Entertainment, stage, live performance, etc.
trade terms
1.payment terms:
T/T, Western Union, Aliexpress Escrow
2. Delivery time:
Usually we have materials in stock, regular order delivery time is 1--7 days after profoma invoice is paid,
OEM products: 10--15 days (customized PCB board).
3. Warranty:
2 years warranty from the date of purchase of our LED products.
4. Delivery method:
DHL, Fedex, TNT UPS, EMS door-to-door service, sea, air, etc.
