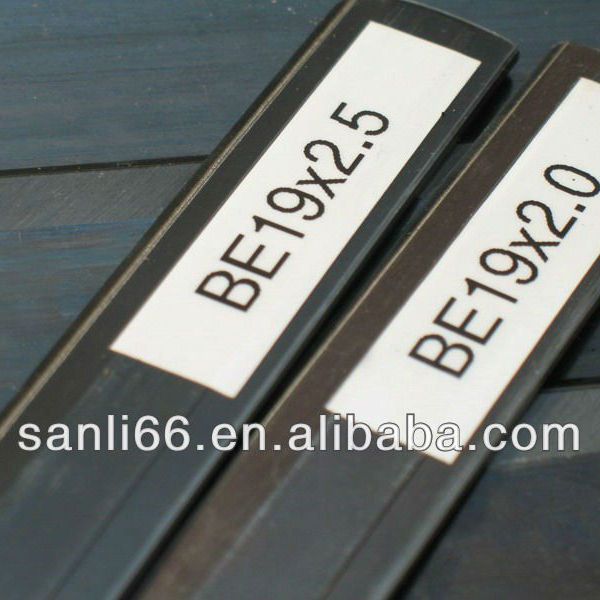

19 x 2 BE BD rule die steel for the Turkish market
- $0.75 / >=10000 meters
- 10000 meters
- Chongqing Huaxi Sanli Packaging Cutting Tool Co., Ltd.
- Chongqing, China
- Mr Carster Wu
| contour: | BE, BD, AE, AD, TE, TESG | payment terms: | wire transfer |
| Packaging Details: | 80m/roll | Supply capacity: | 1,000,000 meters/month |
| model: | 32 X 2.5 BE | high: | 19mm, 32mm, 36mm, 40mm, 43mm, 50mm |
| place of origin; place of origin: | Chongqing, China | Final packaging: | 2000m/pallet, 5000m/pallet |
| brand: | Sanli | thickness: | 2.0mm, 2.5mm, 3.0mm |
| port: | Chinese port | Package: | coil |
19 x 2 BE BD rule die steel for the Turkish market
♦ Specifications
| AE | advertise | Yes | BD | TE | TES |
| 19×2.0 | 19×2.0 | 19×2.0 | 19×2.0 | ----- | ----- |
| 19×2.5 | ----- | 19×2.5 | 19×2.5 | ----- | ----- |
| 32×2.0 | ----- | 32×2.0 | 32×2.0 | 32×2.0 | ----- |
| ----- | ----- | ----- | ----- | ----- | 32×2.2 |
| 32×2.5 | ----- | 32×2.5 | ----- | 32×2.5 | ----- |
| ----- | ----- | 32×3.0 | ----- | 32×3.0 | ----- |
| ----- | ----- | 50×2.5 | ----- | 50×2.5 | ----- |

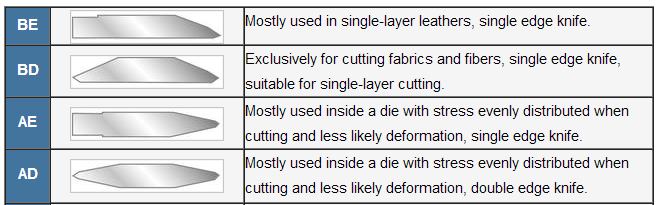

♦ Cutting profiles
BE is the basic profile for cutting single layer leather or similar materials.
BD (Double Edge Profile) for leather cutting
AE is the symmetrical profile of a single layer cut
AD is a double-edged symmetrical profile for leather cutting

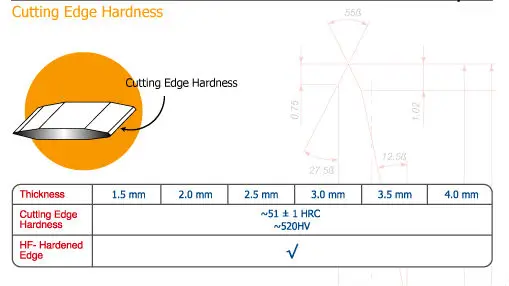

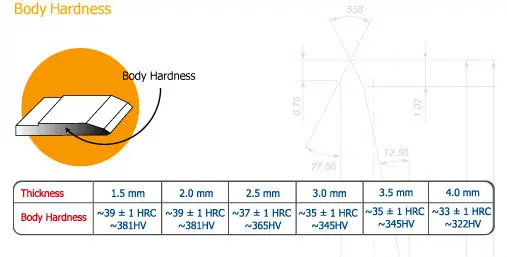

♦ Hardness
| thickness | body hardness | edge hardness |
| 2.0mm | Human Rights Commission 36-38 | Human Rights Commission 52-53 |
| 2.2mm | Human Rights Commission 36-38 | Human Rights Commission 52-53 |
| 2.5mm | Human Rights Commission 36-38 | Human Rights Commission 52-53 |
| 3.0mm | Human Rights Commission 36-38 | Human Rights Commission 52-53 |

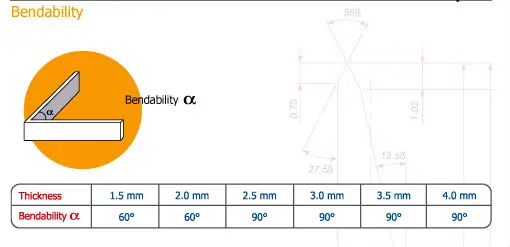

♦ Bending angle
| thickness | 2.0mm | 2.2mm | 2.5mm | 3.0mm |
| Bending angle | 120○ | 100○ | 100○ | 100○ |

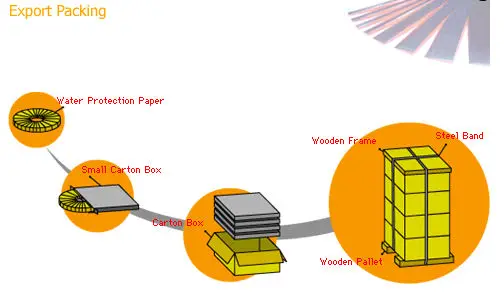

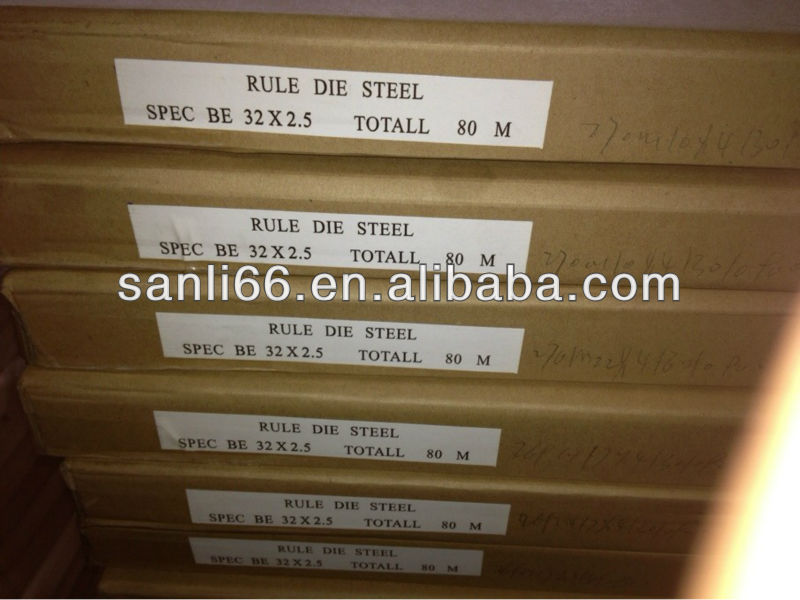

♦ Packaging
| thickness | 2.0mm | 2.2mm | 2.5mm | 3.0mm |
| Package | 80m/roll | 80m/roll | 80m/roll | 60m/roll |
♦ Application

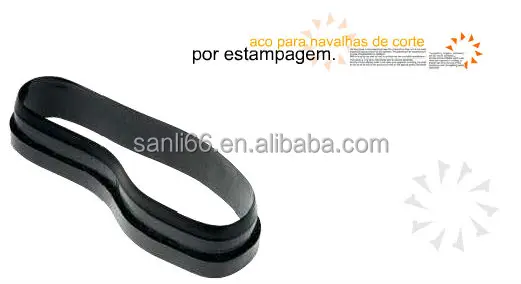

Commonly used in shoes, leather, artificial leather, textiles, rubber, plastics, fabrics, etc.
♦ Technical Specifications
Sanli steel ruler combines excellent flexibility with ideal hardness. The HF-treated cutting edge guarantees a long cutting life. The edges are sharpened by a grinding process, providing a sharp and clean finish.
