RULE CUT 32 x 2

PRODUCT DETAIL
contour:BE, BD, AE, AD, TE, TESG;thickness:2.0mm, 2.5mm, 3.0mm, 3.5mm;
model:is 32 x 2;type:other shoe materials;
Supply capacity:500,000 meters per month;high:19mm, 32mm, 35mm, 40mm, 50mm...;
place of origin; place of origin:Chongqing, China;Package:coil;
Packaging Details:80m, 75m, 70m, 60m;Edge hardness:Human Rights Commission 52-55;
Final packaging:2000m/pallet, 5000m/pallet;port:Chinese ports;
brand:Sanli, ninja;Delivery Details:10 days;
Body hardness:Human Rights Commission 37-39;payment terms:wire transfer;

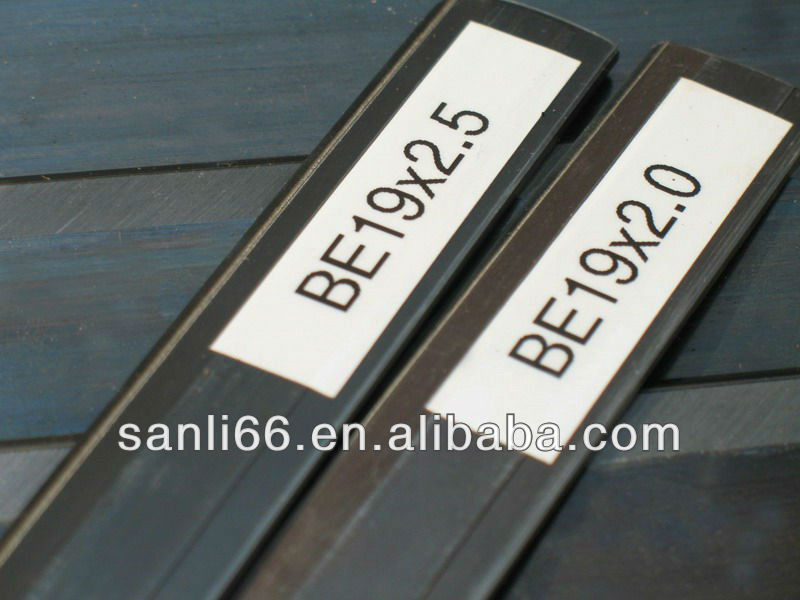

Regular Cut 32 x 2





♦ Specifications

AEadvertiseYesBDTETES
19×2.019×2.019×2.019×2.0----------
19×2.5-----19×2.519×2.5----------
32×2.0-----32×2.032×2.032×2.0-----
-------------------------32×2.2
32×2.5-----32×2.5-----32×2.5-----
----------32×3.0-----32×3.0-----
----------50×2.5-----50×2.5-----
----------50×3.0
-------------------





BE is the basic profile for cutting single layer leather or similar materials.



BD (Double Edge Profile) for leather cutting



AE is the symmetrical profile of a single layer cut



AD is a double-edged symmetrical profile for leather cutting





♦ Hardness

thicknessbody hardnessedge hardness
2.0mmHRC 38HRC 52~55
2.2mmHRC 35HRC 52~55
2.5mmHRC 35HRC 52~55
3.0mmHuman Rights Commission34HRC 52~55





♦ Bending angle

thickness2.0mm2.2mm2.5mm3.0mm
Bending angle120100100100





♦ Packaging

thickness2.0mm2.2mm2.5mm3.0mm
Package80m/roll80m/roll75m/roll60m/roll





♦ Application

 Commonly used in shoes, leather, artificial leather, textiles, rubber, plastics, fabrics, etc.

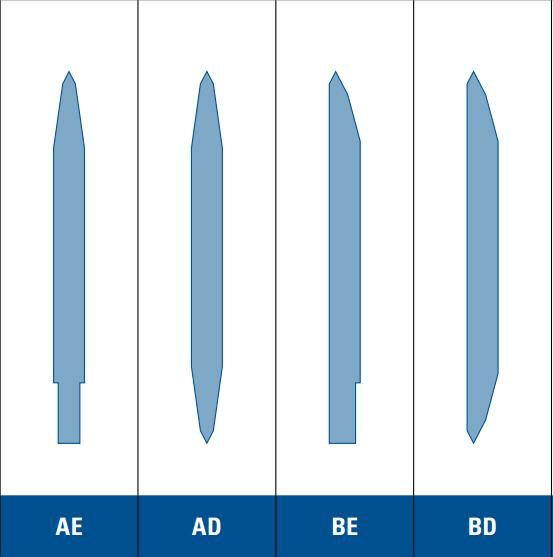

♦ Cutting profiles

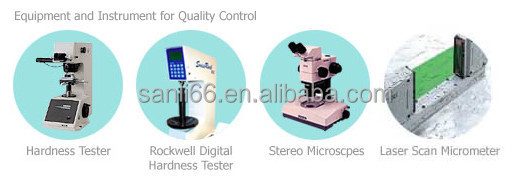

Quality Control

Sanli steel ruler combines excellent flexibility with ideal hardness. HF-treated cutting edges ensure long cutting life. The edges are sharpened by a grinding process, providing a sharp and clean finish.

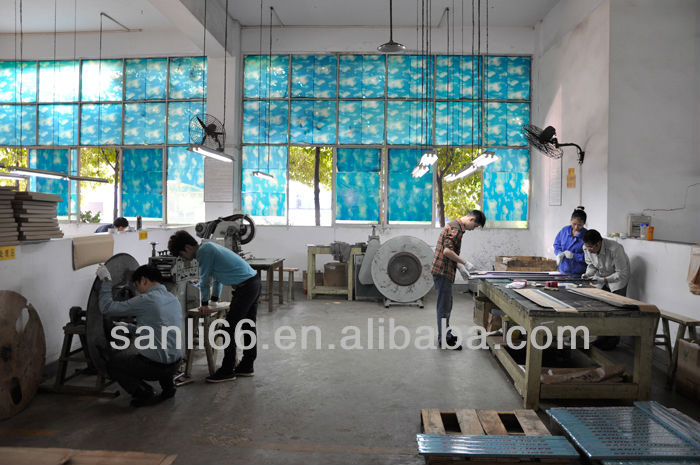

workshop view

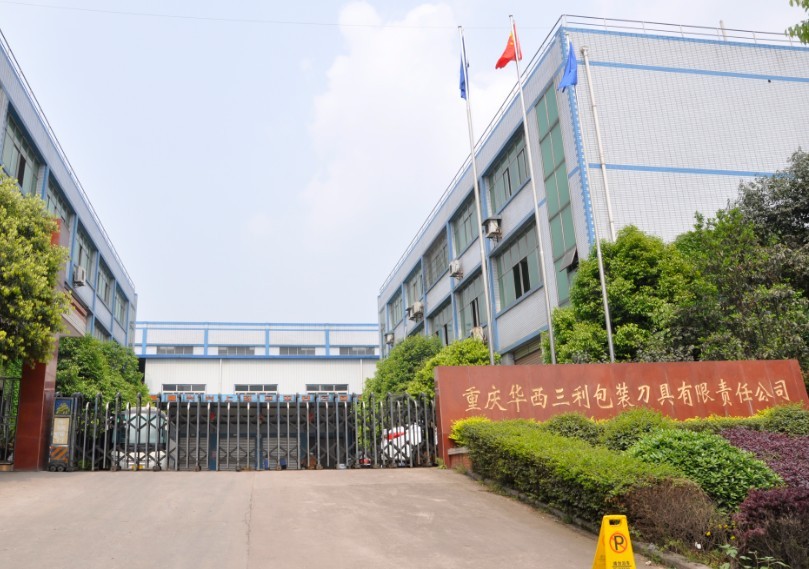

factory gate

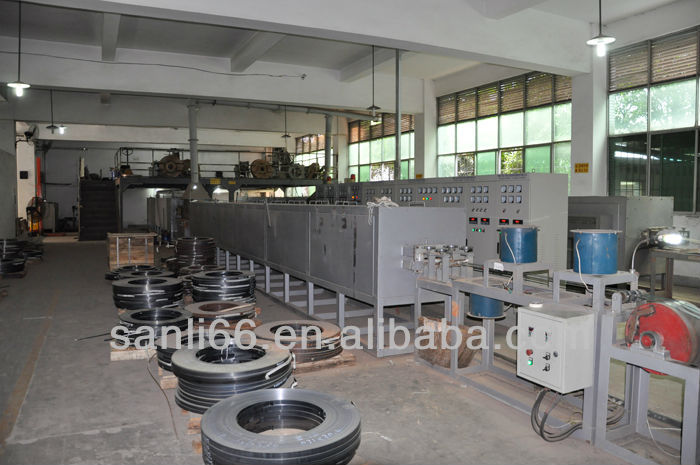

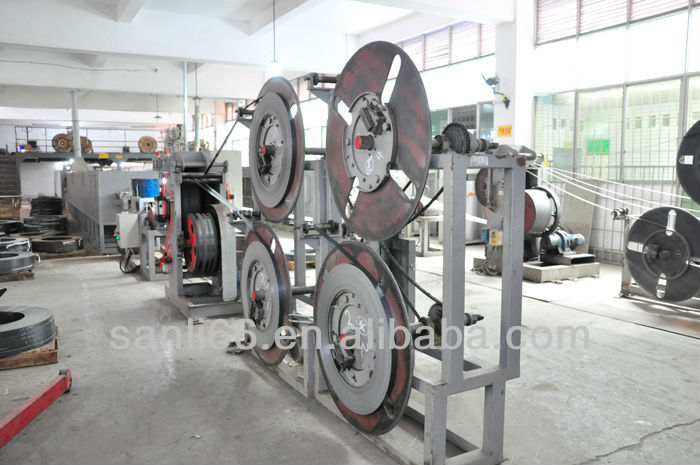

Heat treatment line





Heat treatment line

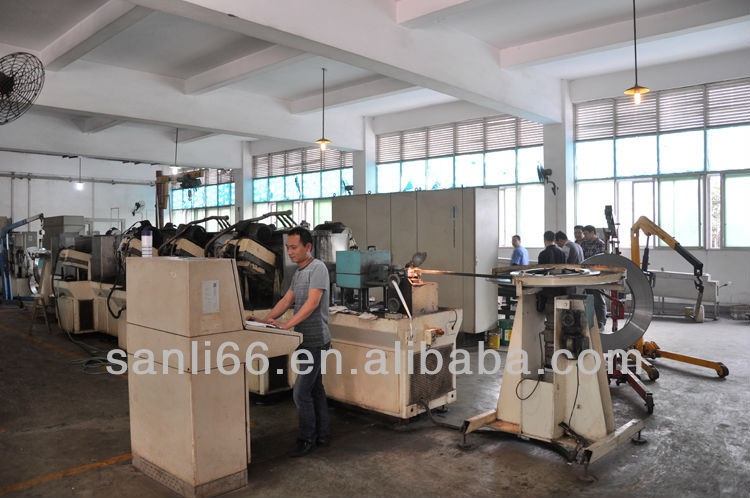

German edger, very sharp

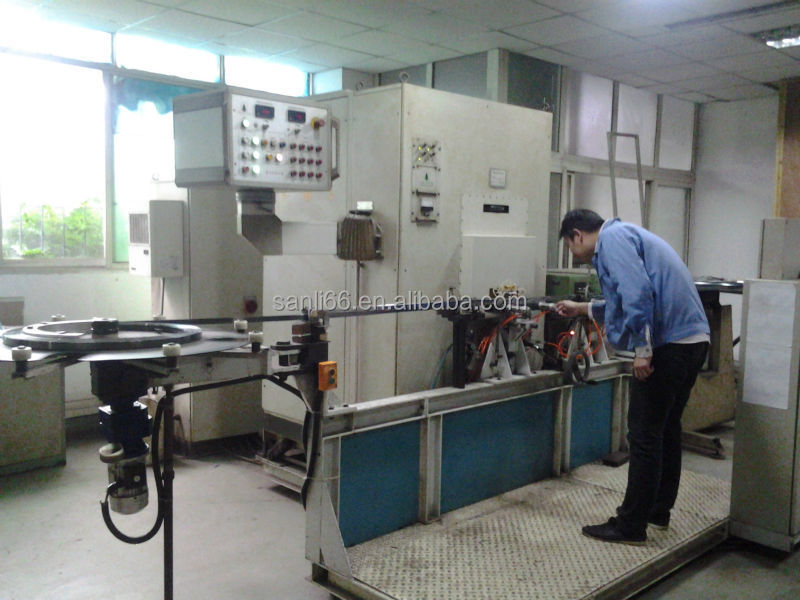

German high frequency induction hardening machine

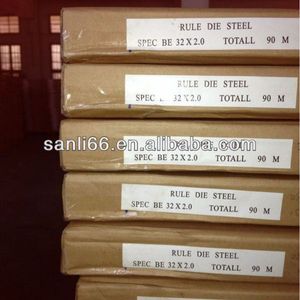

Packaging Group
