2 Channel HDMI USB 3.0 Video Capture Card PIP PBP Device Device Video with Loop Mixer Switcher for Live Streaming and Recording
- $89.90 / 2 - 199 pieces
$87.00 / 200 - 499 pieces
$85.00 / 500 - 1999 pieces
$65.00 / >=2000 pieces - 2 pieces
- Shenzhen Gaia Vision Technology Co., Ltd.
- Guangdong, China
- Mr Tony Chiang
PRODUCT DETAIL
input interface: | USB Type-C | Output Interface: | USB, Type-C, USB 3.0 |
brand: | Processing | use: | Video capture, streaming media, live broadcast, recording |
application: | streaming recording | product name: | 2-channel HDMI USB 3.0 video capture card |
model: | HD-02A | Capture resolution: | 1920x1080@60Hz |
solve: | 1440x900, 800x480, 1920x1080, 2160P, 4K | payment terms: | L/C, Western Union, T/T |
Packaging Details: | gift box | port: | Yantian |
Capture format: | RGB, YUY2, JPEG, Picture: JPEG Video: AVI Audio: WAV, AVI, MP4, XRGB | power supply: | 5V DC/AC |
Input resolution: | 3840x2160@60Hz | enter: | HDMI 2.0*2 |
Private Mold: | Yes | support: | OBS, vMix, TikTok, Youtube Live... |
support system: | XSplit, QuickTime Player, Chrome, Skype, DirectSound, Wirecast, Safari, Adobe Flash Media Live Encoder, DirectShow, OBS, OS X, Xbox, PlayStation 4, Windows 10, Android 5.0 or later | Certification: | EU CE certification |
Video format: | RGB, YUY2 | output: | USB 3.0 and HDMI 1.3 |
Supply capacity: | 100000 pieces per month |
Product Description

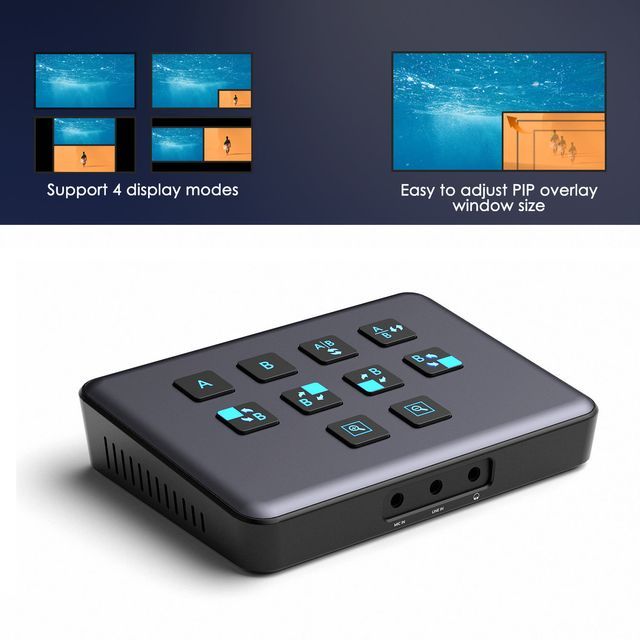

2 Channel HDMI USB 3.0 Video Capture Card PIP PBP Device Device with Loop Video, Video Mixer HDMI Switcher for Live Streaming and Recording

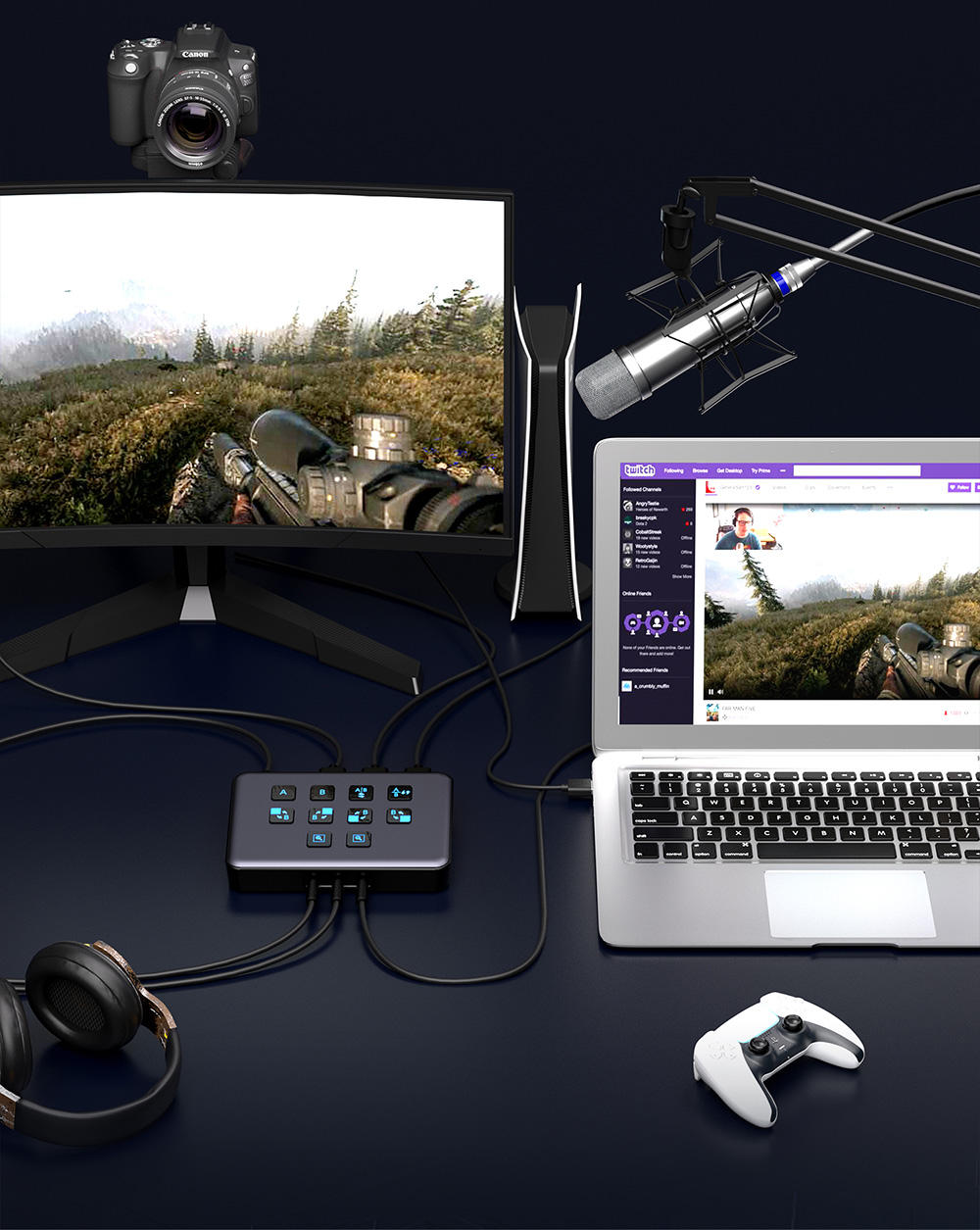

The USB 3.0 dual-channel HDMI video capture card can capture dual 4K HDMI input video signals at the same time, and supports HDMI 1080P loop-out at the same time, as a video mixer and HDMI switcher. Compatible with Windows7/8/8.1/10/11, Linux and Mac OS, and backward compatible with USB2.0, connected to the computer through the USB 3.0/Type-C interface, and realize preview, recording, live broadcast and other functions through playback/capture software.
Specification
1. The input supports up to 4K@60Hz, and the resolution of loop out and capture video is up to 1080P@
2. The recording video format supports RGB/24bit, YUY2/
3. Support UAC/UVC protocol, support 48KHz audio sampling rate.
4. No driver required, compatible with Windows 7/8/8.1/10/11, Linux and Mac OS.
5. Support HDR color input, loop output and capture.
6. Support microphone audio input, line audio input, earphone monitoring.
7. Low power consumption, ultra-low latency, clearer picture quality, RGB color range 0~255.
2. The recording video format supports RGB/24bit, YUY2/
3. Support UAC/UVC protocol, support 48KHz audio sampling rate.
4. No driver required, compatible with Windows 7/8/8.1/10/11, Linux and Mac OS.
5. Support HDR color input, loop output and capture.
6. Support microphone audio input, line audio input, earphone monitoring.
7. Low power consumption, ultra-low latency, clearer picture quality, RGB color range 0~255.
thing | Specification |
USB-C | USB 3.0, 5Gb/s transmission bandwidth |

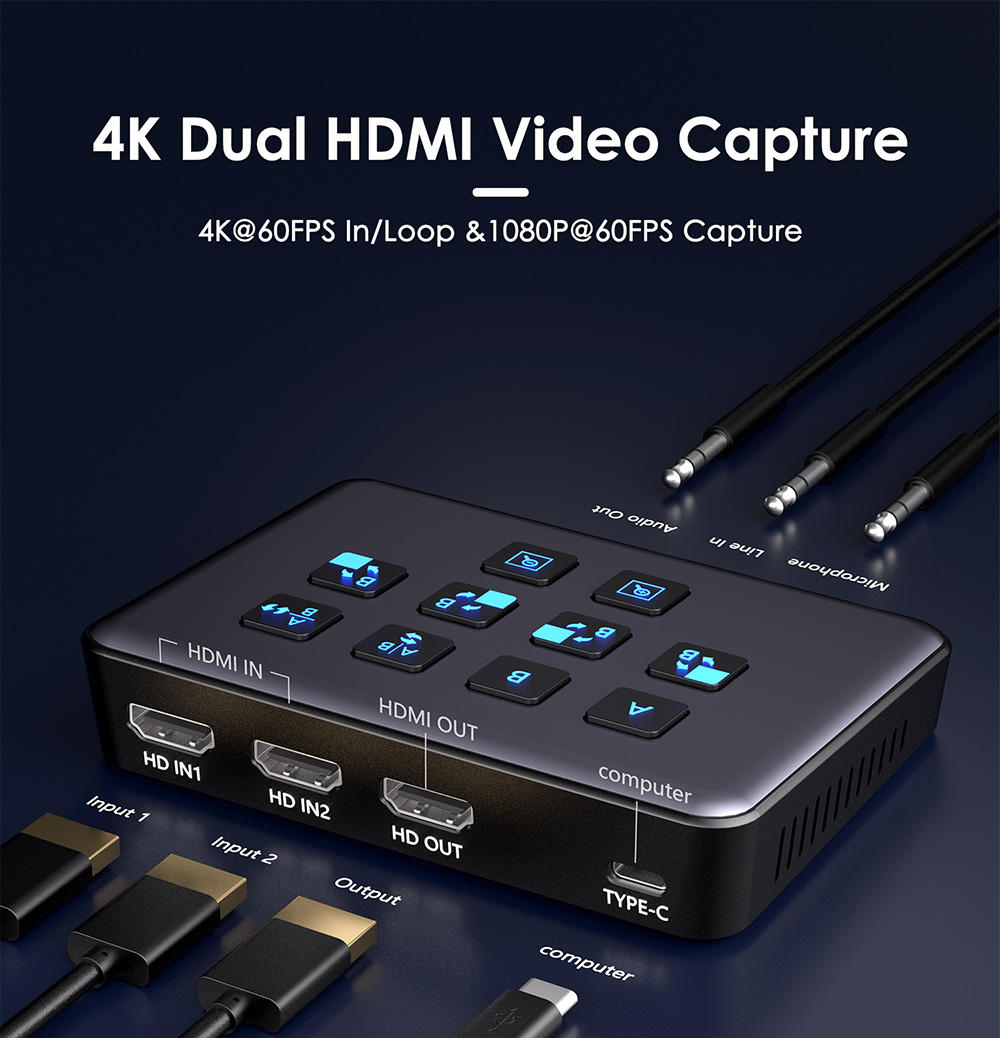

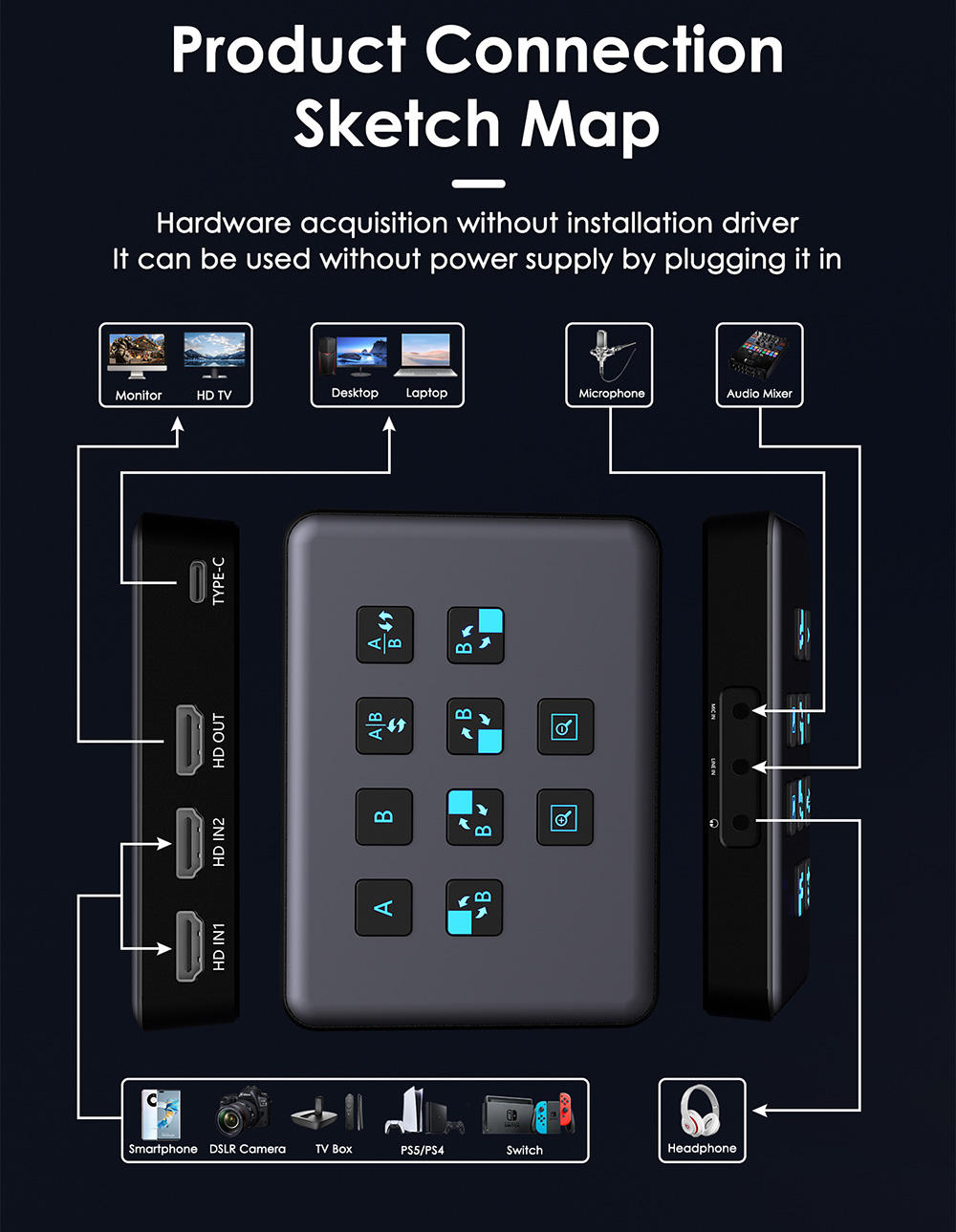

enter | 2*HDMI video input, 1*Line in audio input, 1*Mic audio input. |
output | 1*HDMI Loop Out, 1*USB-C to Computer, 1*Headphone Audio |
capture | Compliant with UVC (USB Video Class) and UAC (USB Audio Class) standards. |
input format | HDMI 2.0 |
capture video format | RGB, YUY2 |
input resolution | 720P, 1080P, 4K@30Hz, 4K@60Hz |
USB3.0 capture video format | YUY2 16 bit, RGB 24 bit |
HDCP | support |
high dynamic range | Support 4K/60Hz HDR input and loop output, support the acquisition of HDR chroma, backward compatible. |
compatible software | Windows Media Encoder, Adobe Flash Media Live Econder, Reel Producer Plus QuickTime Player, VLC, OBS, vMix, PotPlayer... |
