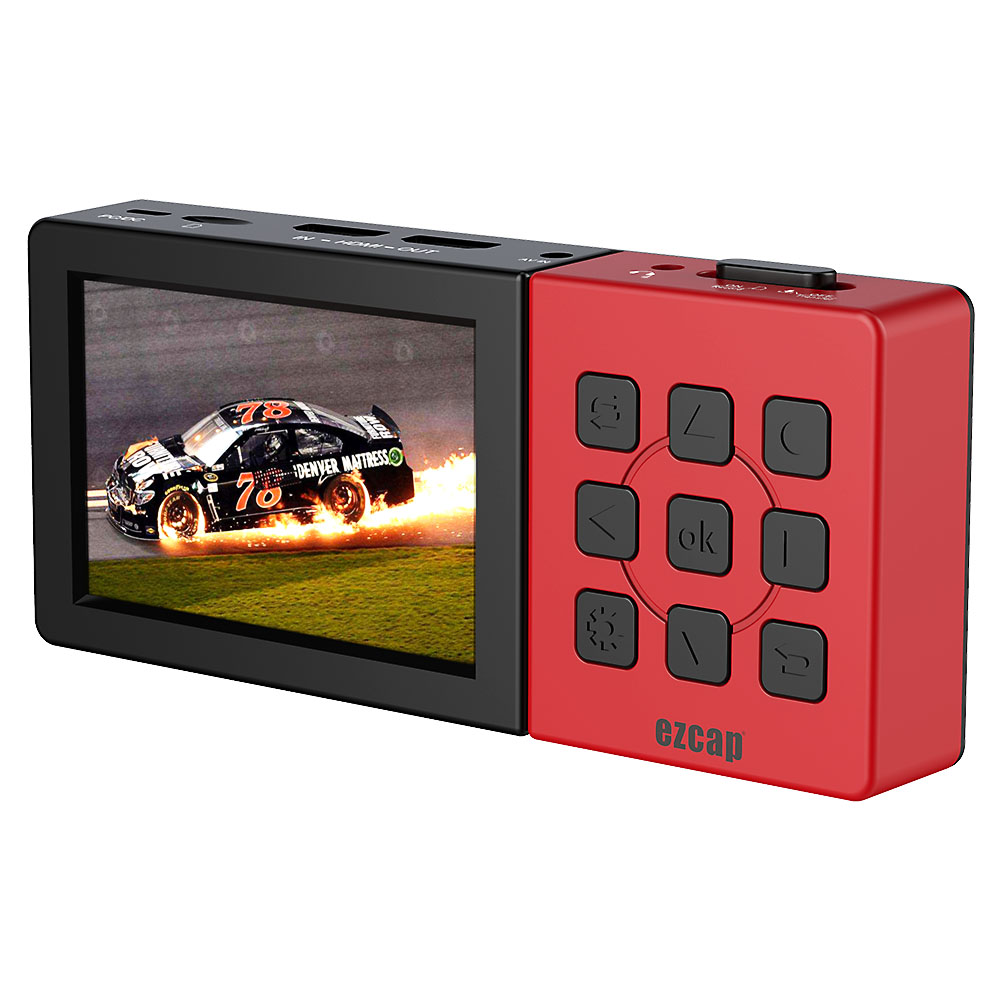

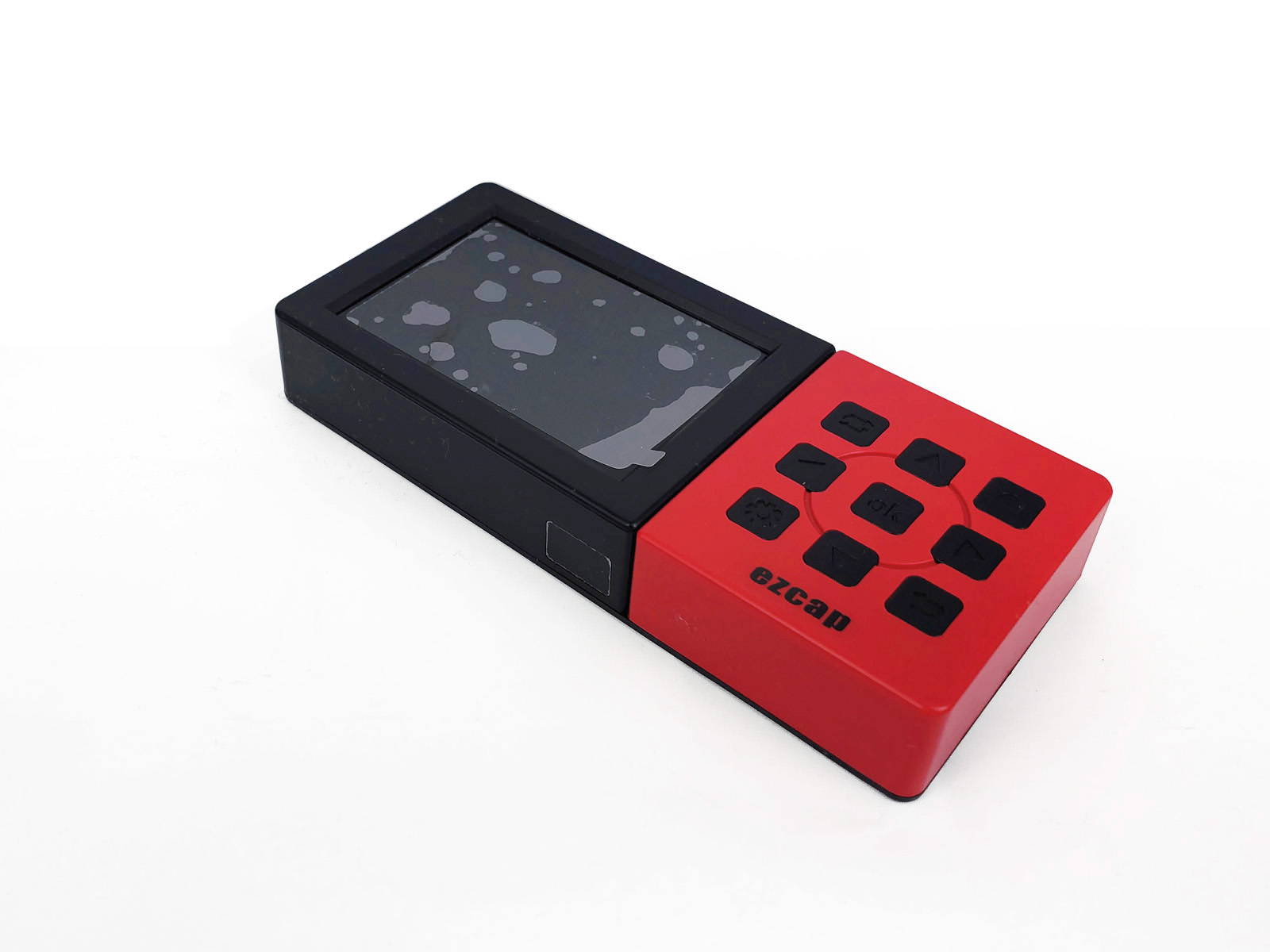

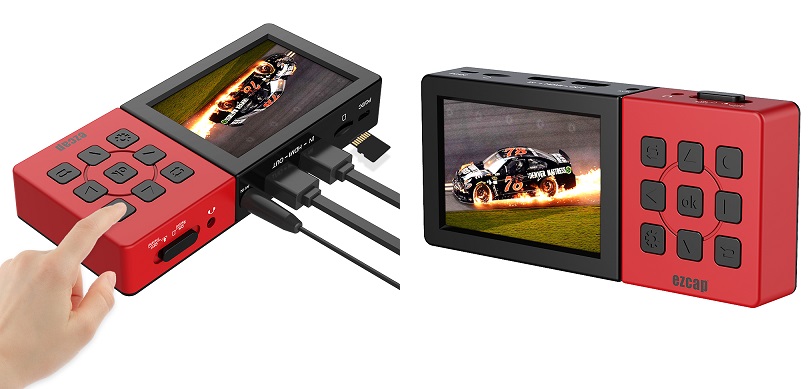

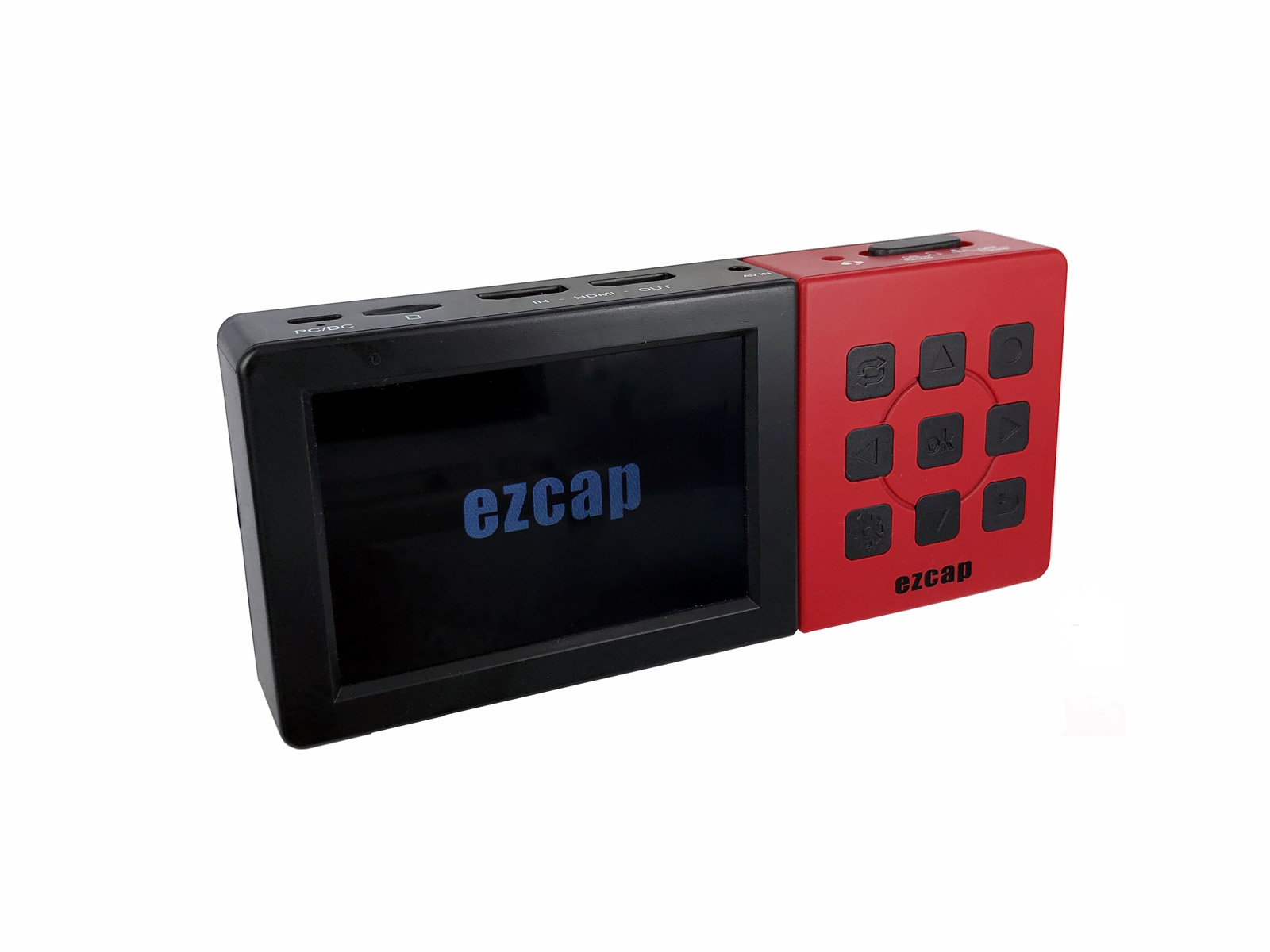

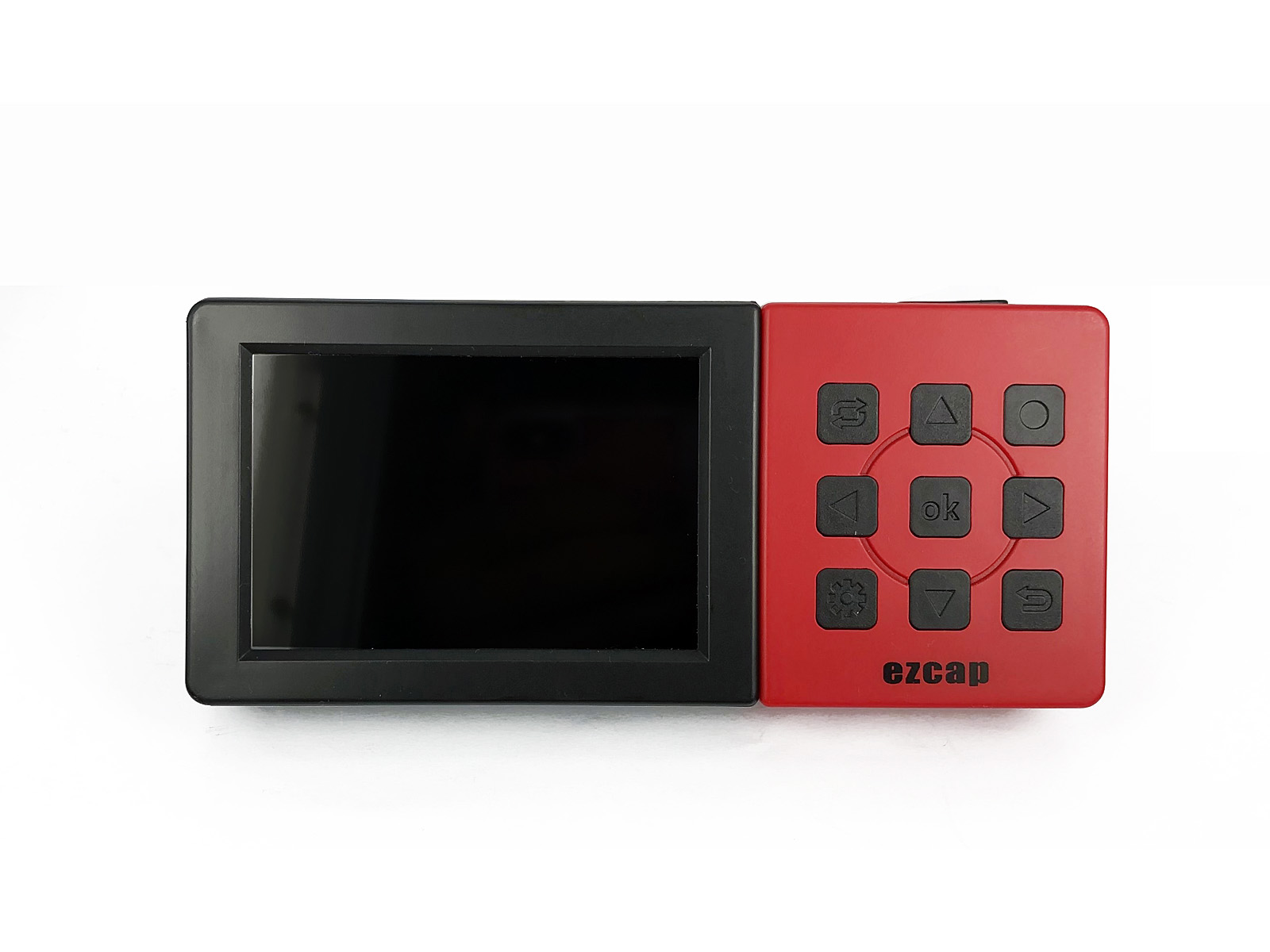

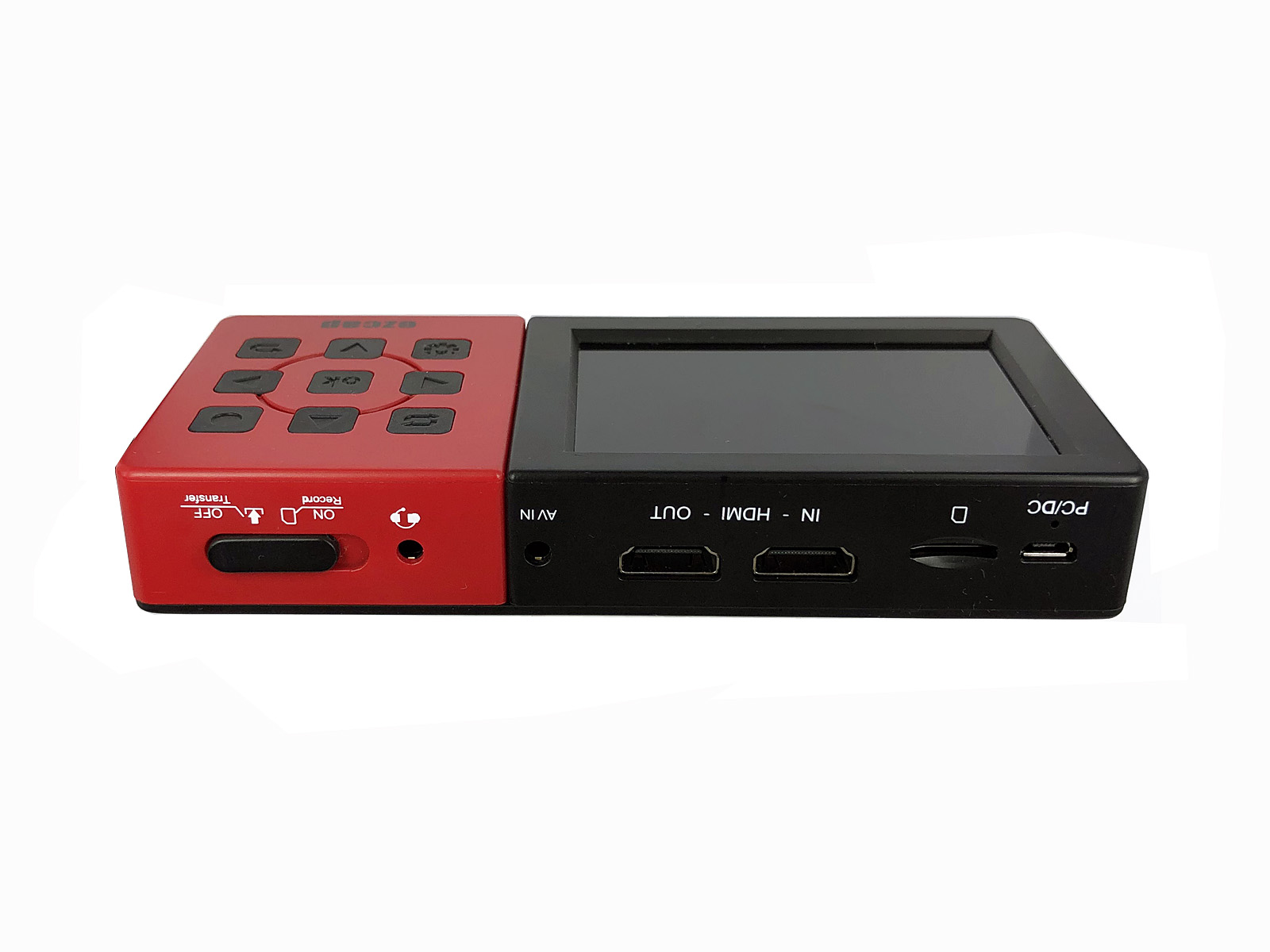

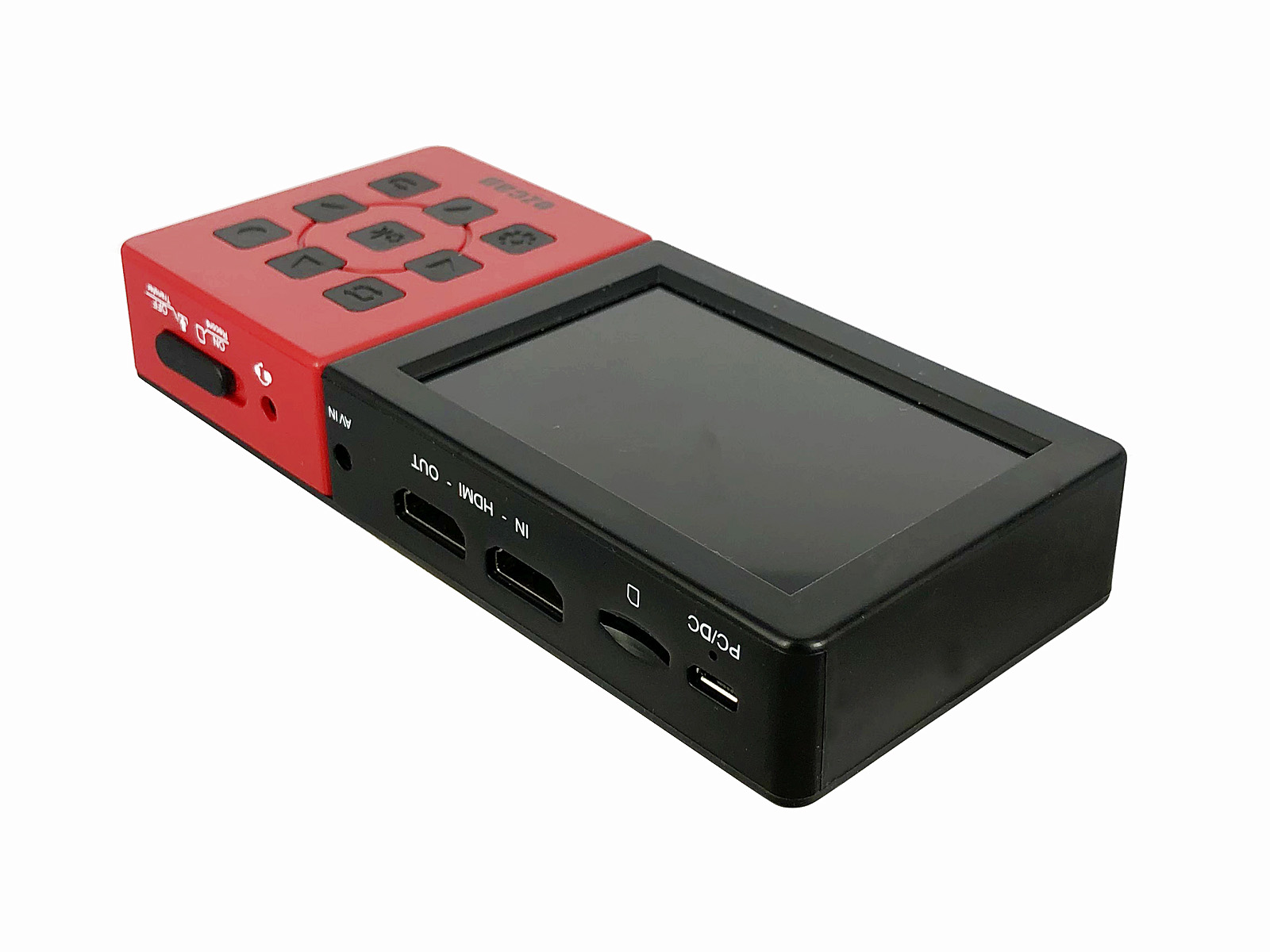

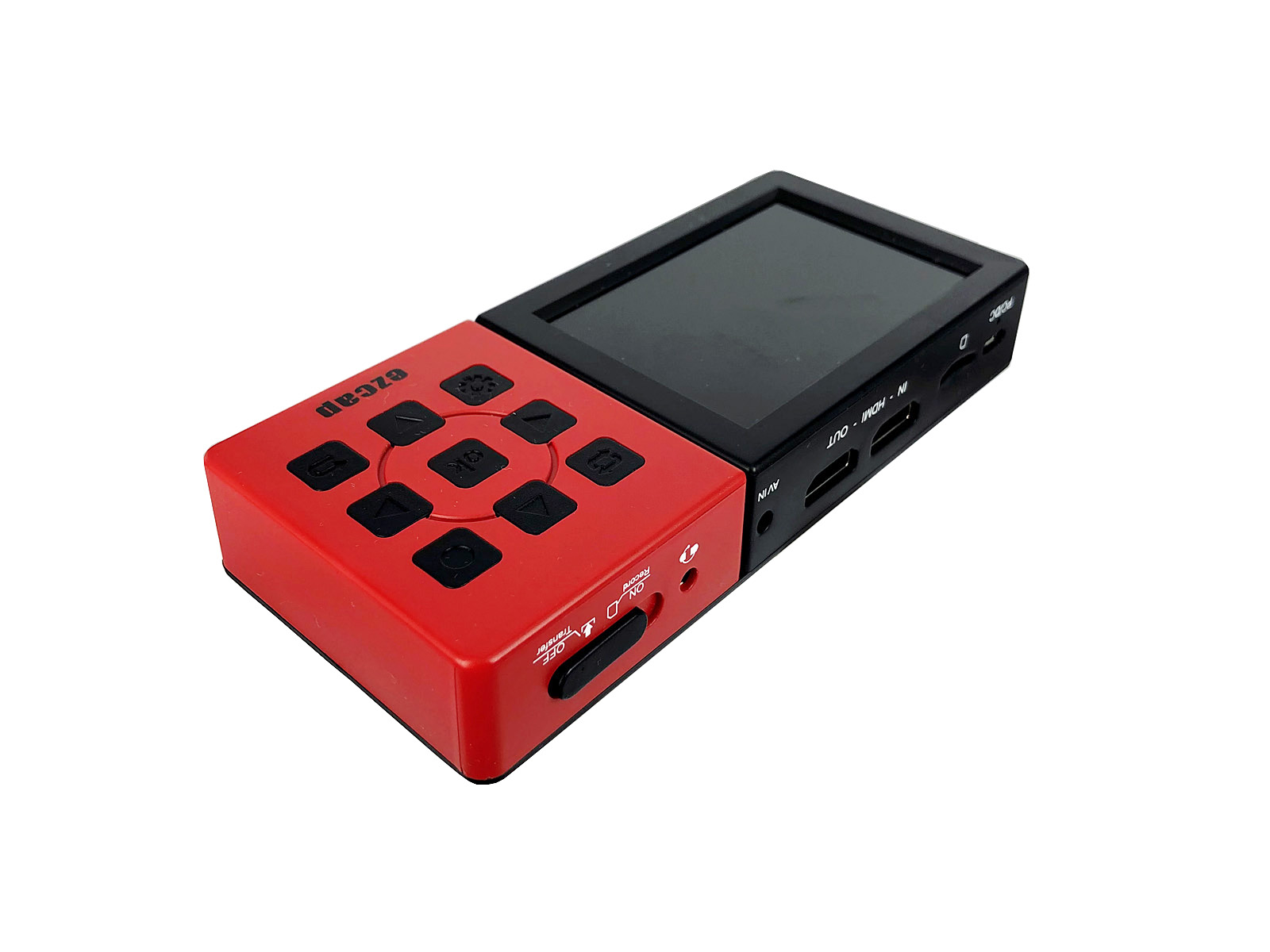

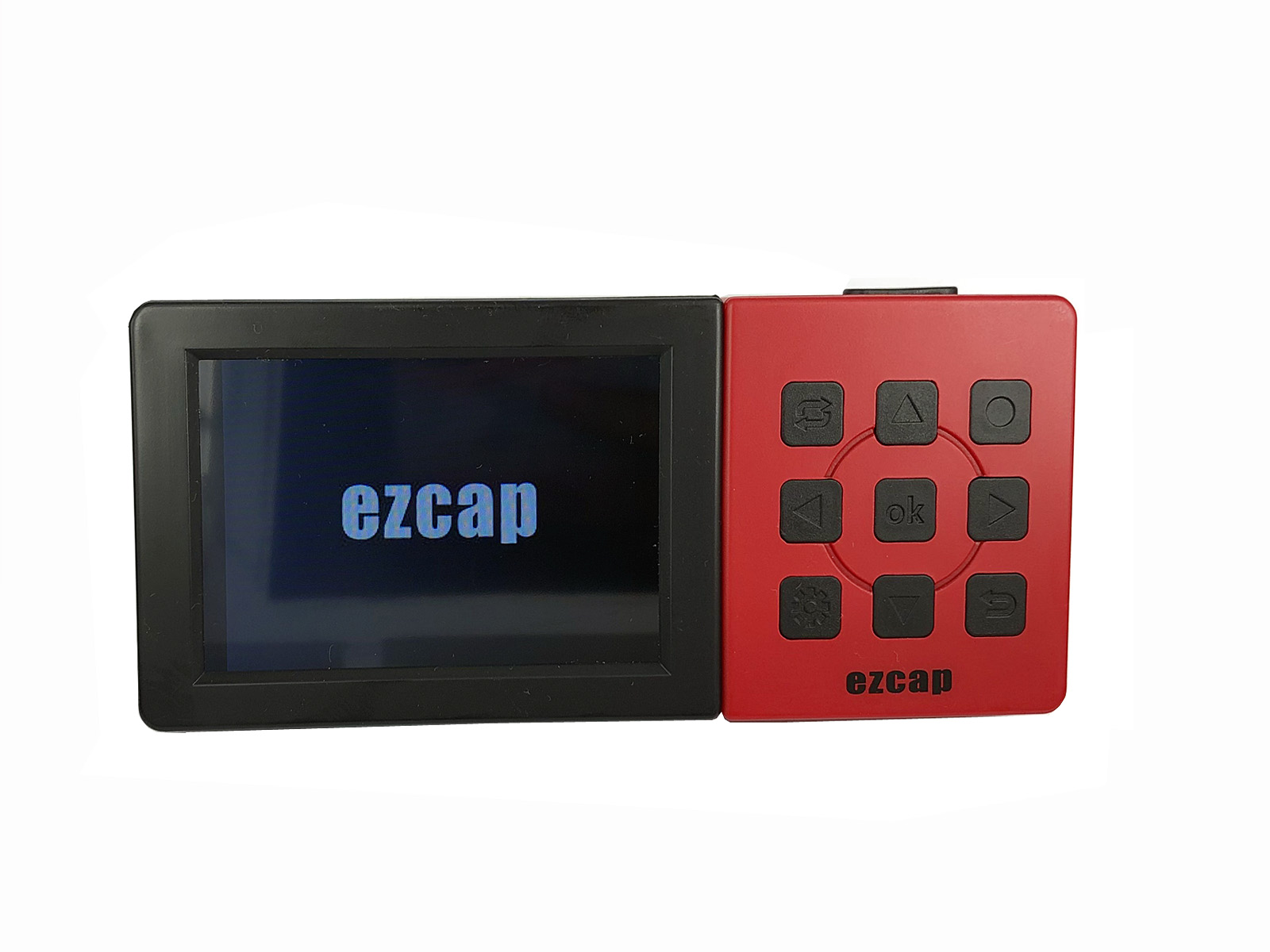

3.5 inch LCD Portable HDMI Video Capture Box 1080P 30 with HDMI Loop Game Recorder Ezcap273a Microphone Ezcap Mini USB
- $70.00 / >=1000 sets
- 1000 sets
- Shenzhen Forward Video Technology Co., Limited
- Guangdong, China
- Ms Lily Liu
Storage medium: | MicroSD card supports up to 128Gb | input interface: | HDMI |
Audio input: | microphone | power supply: | 5V DC/AC |
Output Interface: | mini usb | DC: | 5V 1A |
Recording Audio Format: | AAC Stereo | Capture format: | MP4 |
port: | Shenzhen | Recording video format: | MPEG4 H.264 |
brand: | ezcap | Supply capacity: | 10000 sets per month |
payment terms: | L/C,Western Union,T/T | Battery: | 3000 mA, 2 hours playback, 1 hour recording |
Resolution: | 480X234 | interface: | USB 2.0 device, MicroSD port |
Packaging Details: | Gift box 20pcs/CTN GW:12KG | Packaging Preview: | |
Maximum file size: | 2GB / each file | Video format: | MP4 |
type: | capture box | Recording Quality: | Maximum: 20Mbps@1080P 60fps |
screen size: | 3.5" |
* Independently record 1080 60hz HD video through HDMI pass-through.
* Support microphone mixer and snapshot functions.
* Built-in battery.
3.5-inch screen preview and playback
Independently record 1080 60hz HD video/analog video
Support snapshots during recording
Support recording "pause" function
with playback function

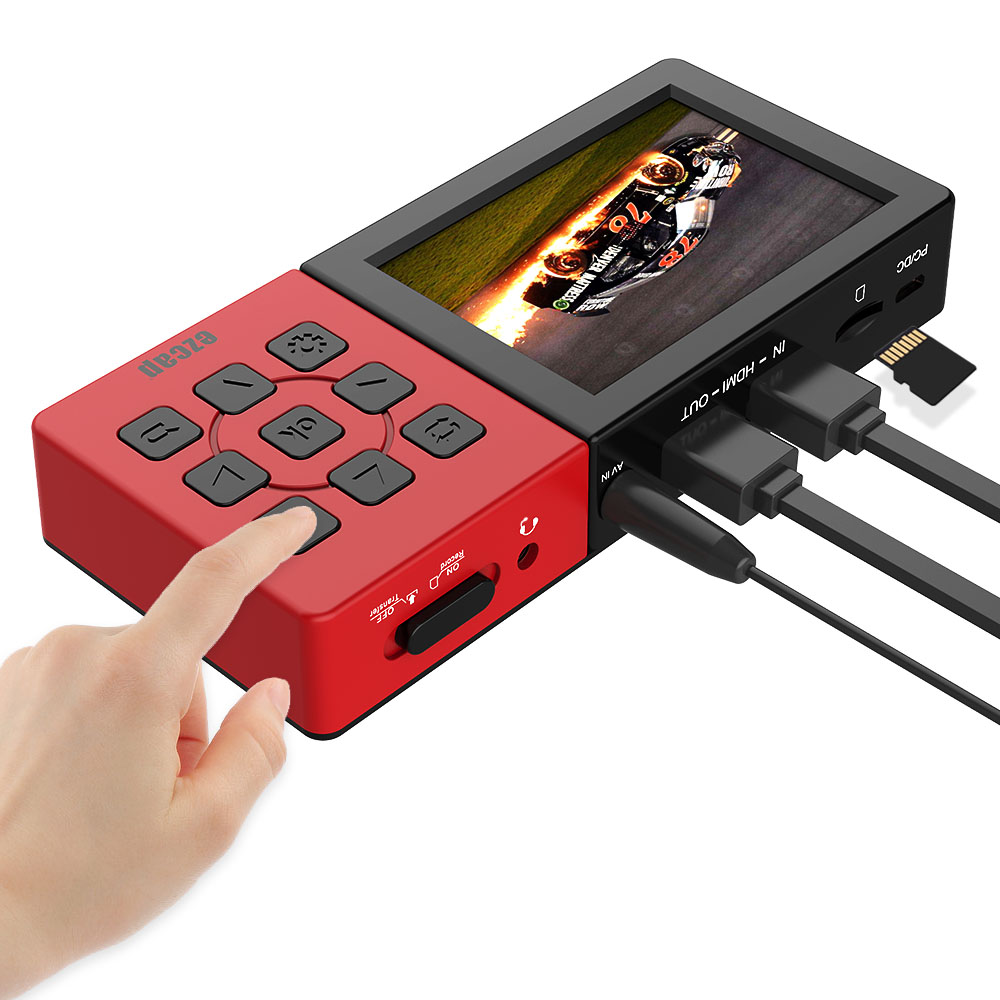

HDMI input & passthrough
Built-in battery
Supports microphone mixer
Specification:

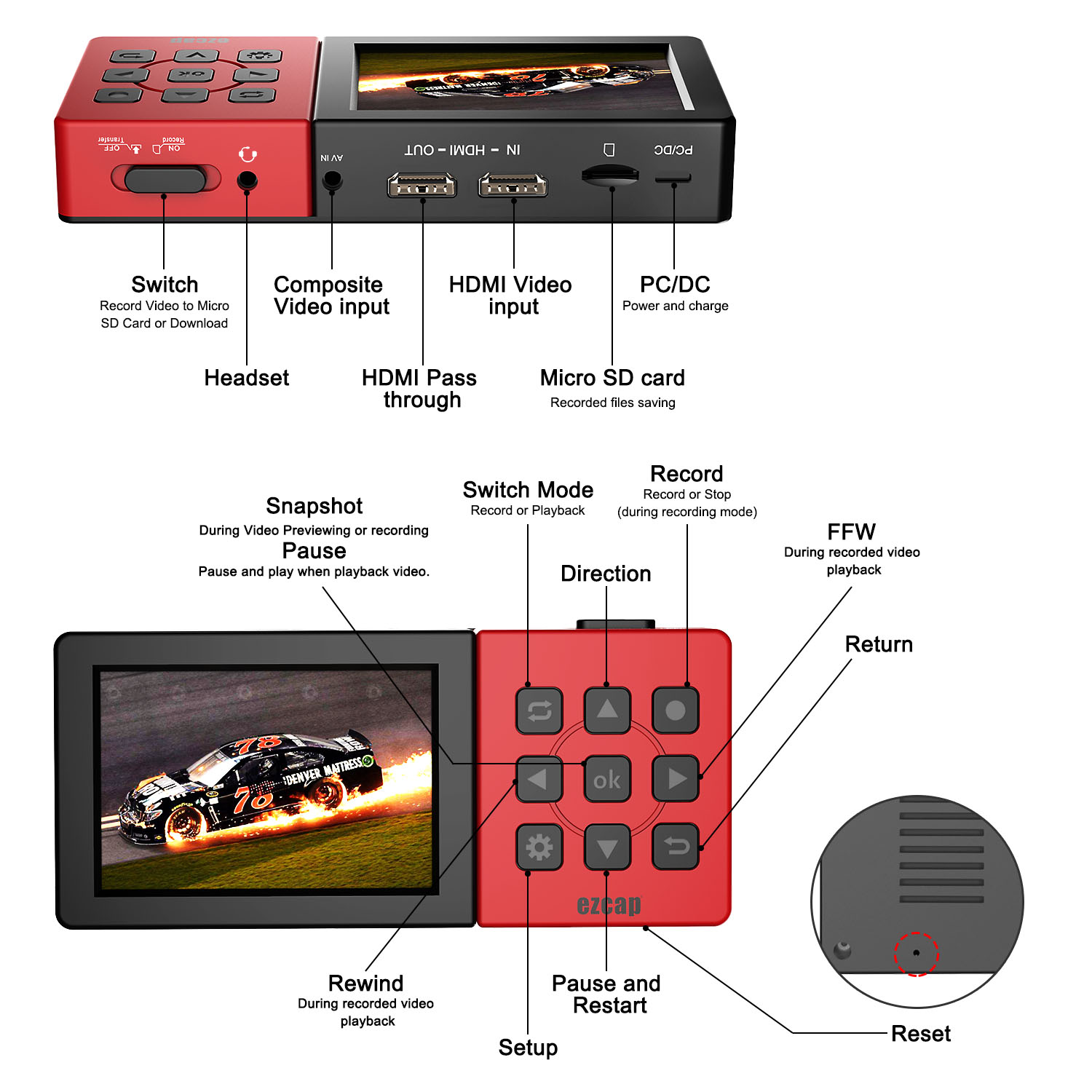

connect |
||
interface |
USB 2.0 |
|
video input |
HDMI, composite video (3.5mm jack) |
|
audio input |
HDMI, Mic in (3.5mm jack, TRRS CTIA), L/R Stereo Audio (3.5mm jack from composite video) |
|
video output |
HDMI, 3.5-inch TFT |
|
Audio output |
HDMI, speaker, headphone out (3.5mm jack, TRRS CTIA) |
|
hardware extra |
||
aspect |
150*66.5*23mm |
|
weight |
180 grams |
|

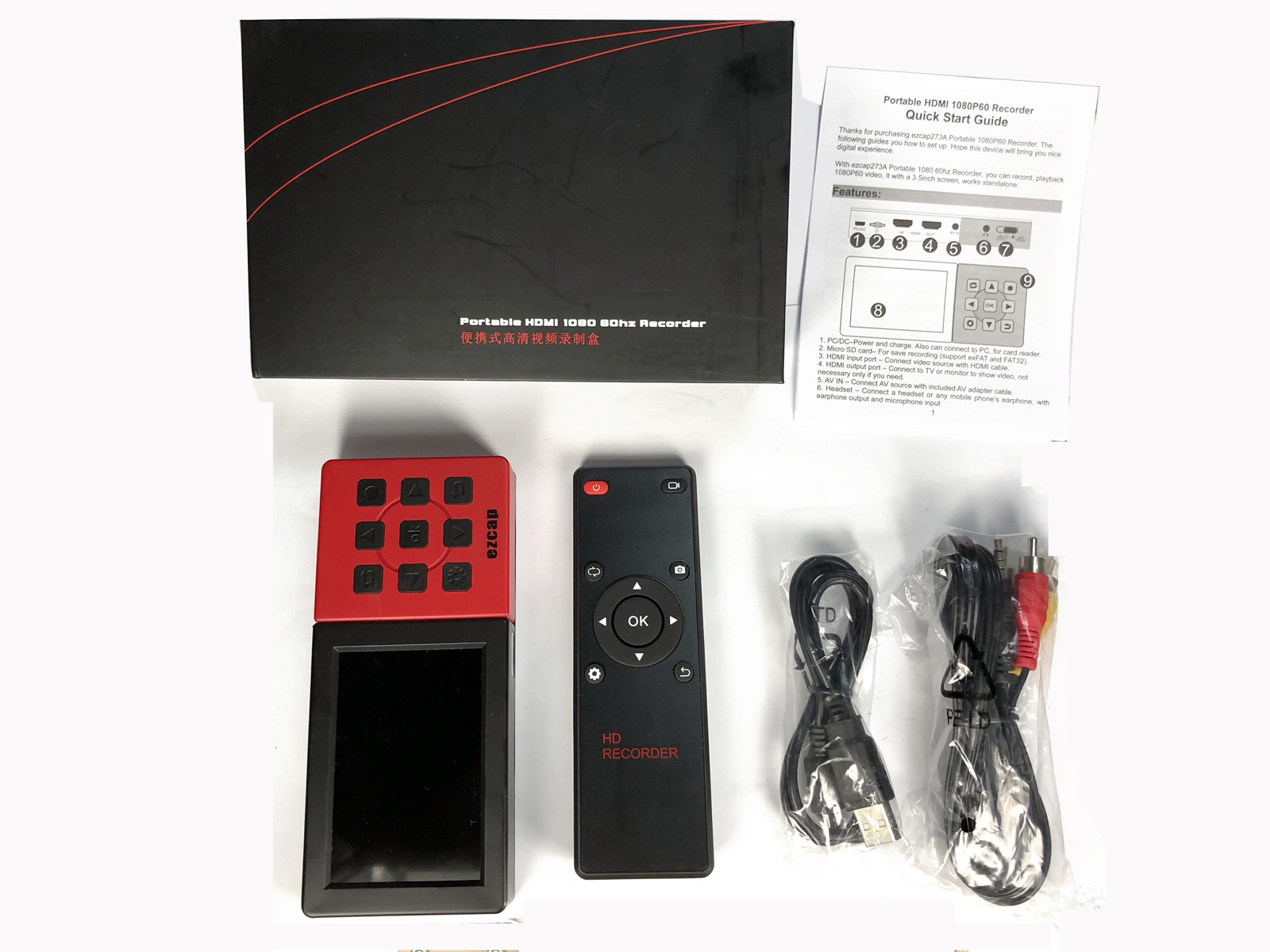

Package Contents |
||
equipment |
ezcap273A |
|
other |
USB cable, manual, remote control, AV adapter cable |
|
standard |
||
Resolution |
Input/Passthrough: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (50p), 1920 x 1080 ( 60p) |
|
Shooting: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (60p), 1920 x 1080 (50p), 1920 x 1080 (60p) |
||
recording quality |
Maximum 22Mbps@1080P 60fps |
|
record format |
h.264 mp4 |
|
largest file |
3.8GB |
|
Battery |
3000mAh, 3 hours of playback, 1.6 hours of recording. |
|
DC |
5V 2A |
