201 Grade Stainless Steel Angle Steel ASTM A276 and A484 20x20x3mm-100x100x15mm No. 1 Finished, 6m Exported to 50 Countries

PRODUCT DETAIL
surface:NO.1Gross weight per piece:1000.000 kg
model:20X20X3 to 100x100x15type:equal
length:6000mmplace of origin; place of origin:Jiangsu, China
application:structural supporttolerant:±5%
shape:Isometric stripsMinimum order quantity:500kg
technology:hot rolledstandard:Aisi,ASTM,DIN,EN,GB,JIS
pack:Standard Seaworthy PackagingPackaging Details:A generation. General Standard Export Ocean Packaging: Each bundle is secured at least three times, wrapped in durable PVC material. ii. Special packing: Laminated, wooden case packing.
brand:Join SEN/SENPOSingle package size:600X30X20 cm
Demi:+86-13092222971Certification:International Organization for Standardization
grade:200 seriesProcessing service:Bending, welding, uncoiling, punching, cutting
Packaging Preview:Sales unit:single product
Product Description



304/304L Stainless Steelsteelanglebaris a hot rolled stainless steel corner (usually 90° corner) shape with inner radius corners, ideal for all structural applications where higher strength and superior corrosion resistance are required. 304/304L stainless steel angles have excellent corrosion resistance and good mechanical properties. It is widely used in all types of manufacturing projects exposed to the elements - chemical, acidic, fresh and salt water environments. Stainless steel angles can also be stamped, drawn or formed.

Standard: ASTM A276, ASTM A484

Table 1.Composition Range of Grade 304 Stainless Steel

grade

C

manganese

silicon

phosphorus

small

chromium

Mo

you

n

304

minute.

maximum.

-

0.08

-

2.0

-

0.75

-

0.045

-

0.030

18.0

20.0

-

8.0

10.5

-

0.10

304L

minute.

maximum.

-

0.030

-

2.0

-

0.75

-

0.045

-

0.030

18.0

20.0

-

8.0

12.0

-

0.10

304H

minute.

maximum.

0.04

0.10

-

2.0

-

0.75

-0.045

-

0.030

18.0

20.0

-

8.0

10.5

-





Table 2.Mechanical properties of grade 304 stainless steel

grade

Tensile strength (MPa) min

Yield strength 0.2% Proof (MPa) min

Elongation (% in 50mm) min

hardness

Rockwell B (HR B) max

Brinell (HB) maximum

304

515

205

40

92

201

304L

485

170

40

92

201

304H

515

205

40

92

201

304H also requires ASTM No 7 or coarser particle size.





iv. Size: Width 20-140mm, Thickness: 3-14mm

v. Length: 2m to 9m or random

six. Finish condition: cold drawn, peeled, polished, bright, polished, polished

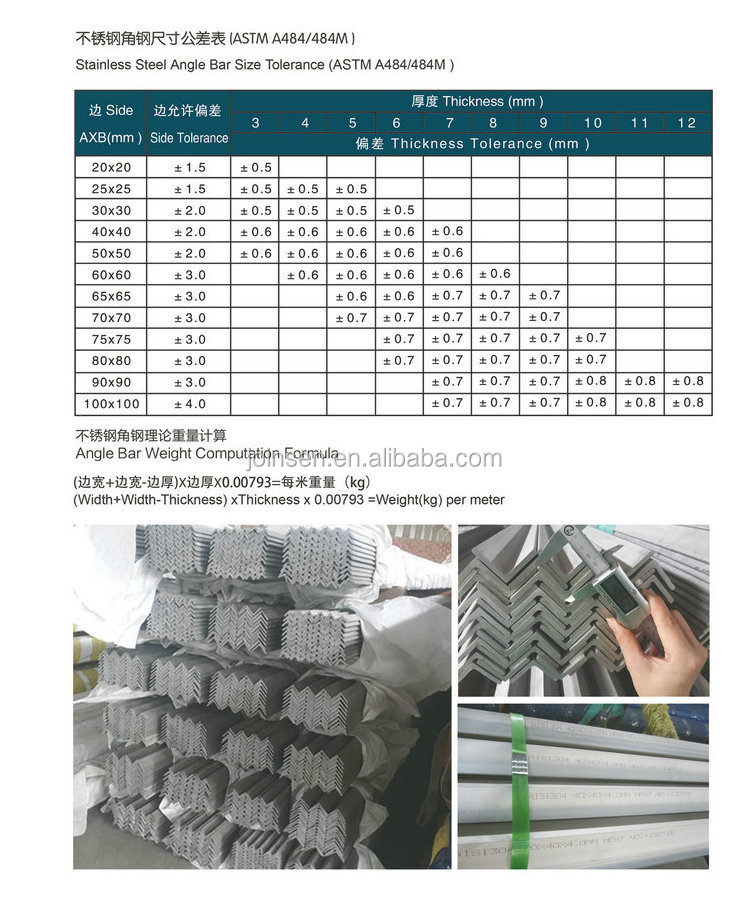

seven. Tolerance: According to the table below

Eight. HS Code: 72223000





our service



commercial terms

Package

A generation. General Standard Export Ocean Packaging: Each bundle is fixed at least three times, wrapped in durable PVC material.

ii. Special packing: Laminated, wooden case packing.

MOQ: 1 ton

expiration of pay:30% T/T payment in advance, balance before shipment or B/L copy

Time of Shipment:Goods should be packed in 20ft containers or LCL

quality assurance:The mill test certificate is provided, and third-party inspection is acceptable. Free samples are available for testing. Welcome to our factory for personal inspection.
