High strength and long service life stainless steel square bar 25x25mm cold drawn
- $2400.00 / 1 - 4 pieces
$2380.00 / 5 - 19 pieces
$2350.00 / 20 - 99 pieces
$2330.00 / >=100 pieces - 1 piece
- Taizhou Join Sen Special Steel Product Co., Ltd.
- Jiangsu, China
- Ms Demi Huang
| type: | Introduction | Processing service: | Bending, welding, uncoiling, punching, cutting |
| application: | Building Decoration | technology: | cold drawn |
| model: | 25X25MM | length: | 1-12m |
| technology: | cold rolled | tolerant: | ±3% |
| delivery time: | 15-21 days | brand: | Join SEN/SENPO |
| shape: | square section | Sales unit: | single product |
| Single package size: | 600X30X20 cm | place of origin; place of origin: | China |
| Demi: | +86-13092222971 | Packaging Preview: | |
| grade: | TP304 | Packaging Details: | High strength long life stainless steel square bar 25x25mm cold drawn i. General Standard Export Ocean Packaging: Each bundle is secured at least three times, wrapped in durable PVC material. ii. Special packing: Laminated, wooden case packing. |
| Gross weight per piece: | 1000.000 kg | surface: | HL & Bright |
| Alloy or not: | non-alloy | standard: | Aisi |

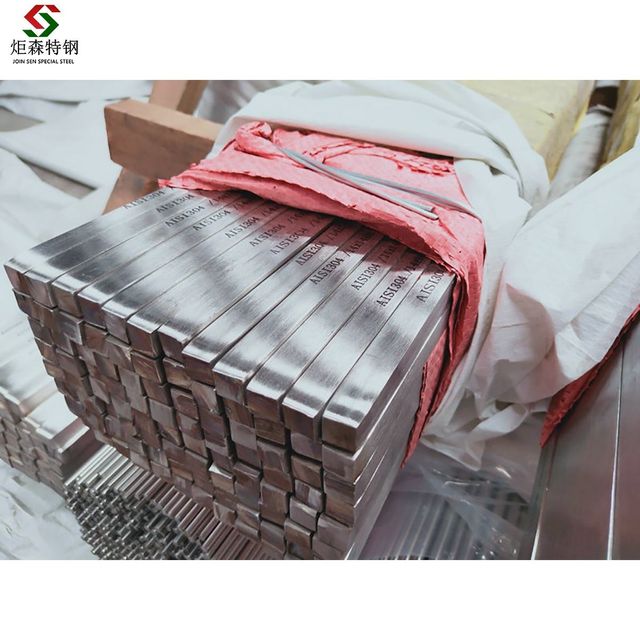

Stainless Steel Square Bar
A generation. Key words: stainless steel square steel, square steel, stainless steel square steel, square steel, square steel
ii. Material grade: 201, 301, 302, 303, 304, 304L, 316, 316L, 321, 309S, 309H, 310, 310S, 2205, 416, 431, 430, etc.
iii. Standards: ASTM A276, ASTM A484

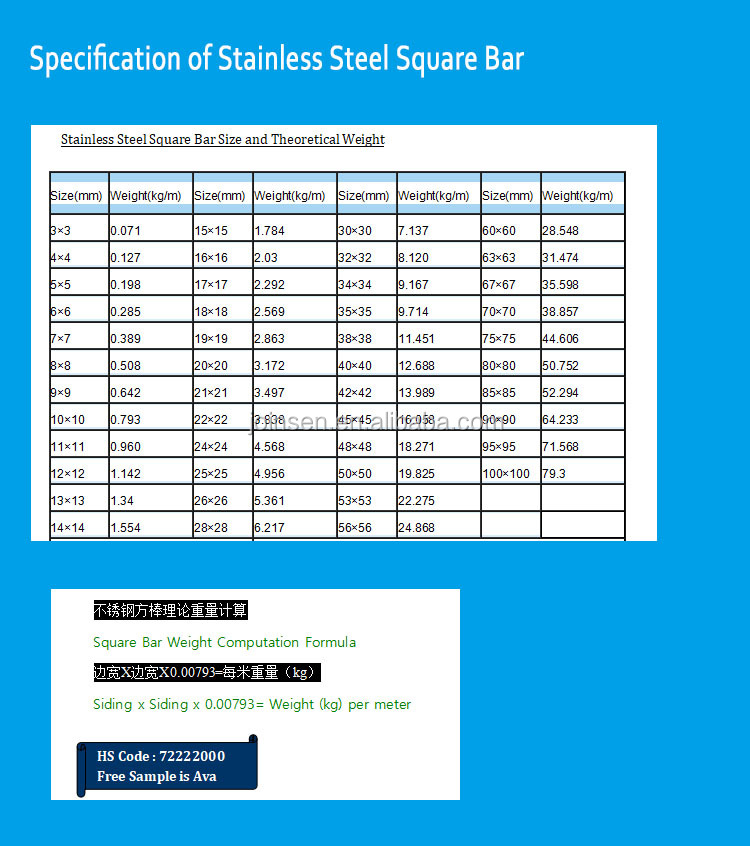

iv. Size: 5x5mm to 90x90mm or 1/4”-4”
v. Length: normal 6 meters, 2 meters to 9 meters or random
six. Finish condition: cold drawn, peeled, polished, bright, polished, polished
seven. Tolerance: H9-H11 or K9-K11 to ISO bar dimensional tolerance
Eight. HS Code: 72224000
Standard: ASTM A276, ASTM A484
Table 1.Composition Range of Grade 304 Stainless Steel
|
grade |
C |
manganese |
silicon |
phosphorus |
small |
chromium |
Mo |
you |
n |
|
|
304 |
minute. maximum. |
- 0.08 |
- 2.0 |
- 0.75 |
- 0.045 |
- 0.030 |
18.0 20.0 |
- |
8.0 10.5 |
- 0.10 |
|
304L |
minute. maximum. |
- 0.030 |
- 2.0 |
- 0.75 |
- 0.045 |
- 0.030 |
18.0 20.0 |
- |
8.0 12.0 |
- 0.10 |
|
304H |
minute. maximum. |
0.04 0.10 |
- 2.0 |
- 0.75 |
-0.045 |
- 0.030 |
18.0 20.0 |
- |
8.0 10.5 |
- |
Table 2.Mechanical properties of grade 304 stainless steel
|
grade |
Tensile strength (MPa) min |
Yield strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) maximum |
||||
|
304 |
515 |
205 |
40 |
92 |
201 |
|
304L |
485 |
170 |
40 |
92 |
201 |
|
304H |
515 |
205 |
40 |
92 |
201 |
|
304H also requires ASTM No 7 or coarser particle size. |
|||||
commercial terms
Package
A generation. General Standard Export Ocean Packaging: Each bundle is secured at least three times, wrapped in durable PVC material.
ii. Special packing: Laminated, wooden case packing.
MOQ: 1 ton
expiration of pay:30% T/T payment in advance, balance before shipment or B/L copy
Time of Shipment:Goods should be packed in 20ft containers or LCL

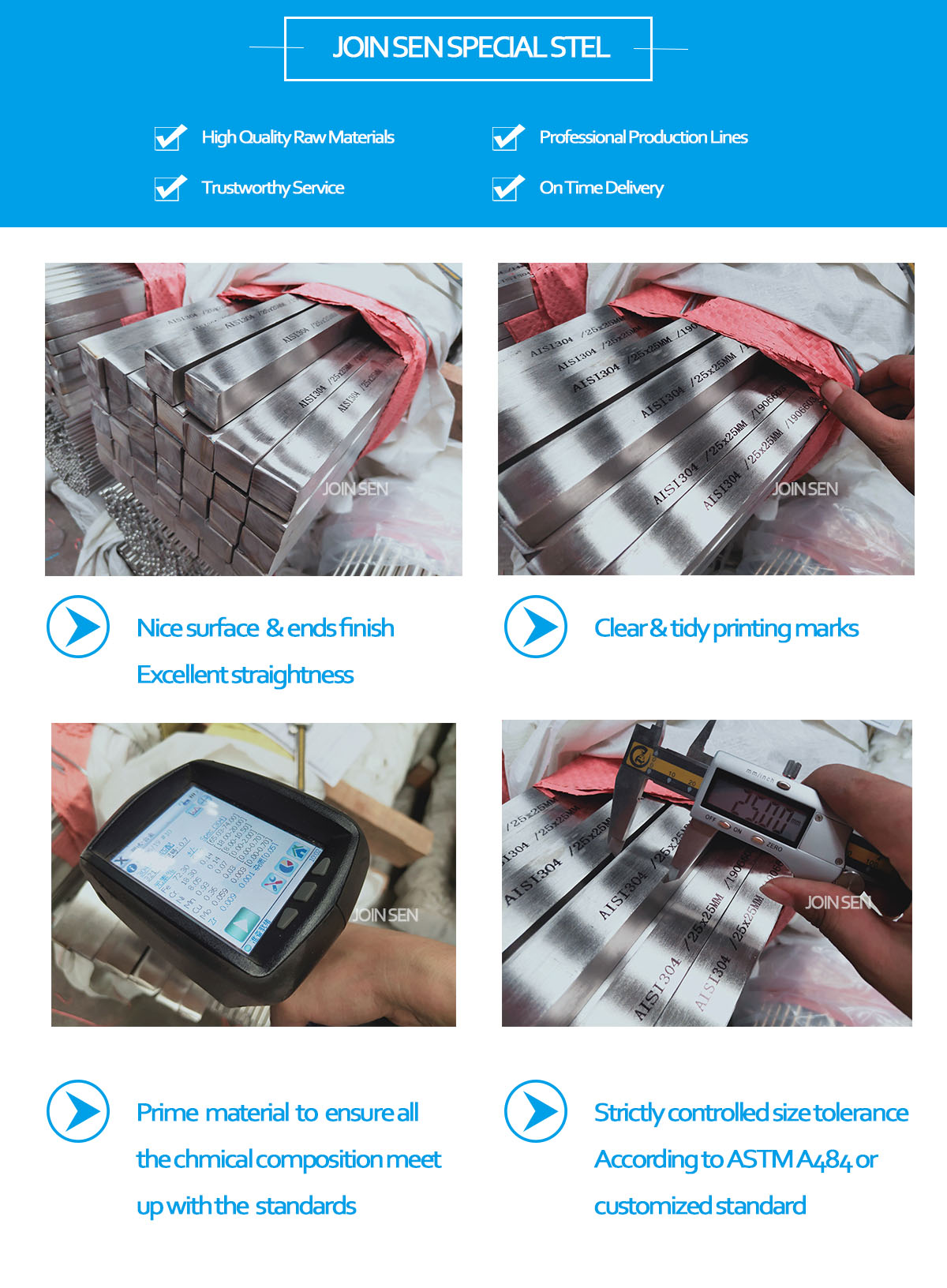

quality assurance:The mill test certificate is provided, and third-party inspection is acceptable. Free samples are available for testing. Welcome to our factory for personal inspection.
