2019 Hot Selling H.265 HD 1080P 2MP Outdoor Waterproof Video Security CCTV System ONVIF 8CH POE Camera NVR Kits
- $1.00 /piece
- 1 piece
- Cantonk (guangzhou) Corporation Limited
- Guangdong, China
- Ms Yolanda Huang
PRODUCT DETAIL
| POE: | 4 x Independent 100Mbps PoE Network Interfaces; | IP Camera specification: | 1/2.9" CMOS Sensor, HISILICON Hi3516E WDR, With IR-CUT; |
| Brand Name: | Cantonk/OEM; | Place of Origin: | Guangdong China; |
| Resolution: | 2MP; | Package Preview: | ; |
| Packaging Detail: | Color box packaging/Customer box/White box/Kraft paper; | Camera Input: | 9CH (5M/4M/3M/2M/1M, etc); |
| Kit include: | 1x NVRC836PKT 8 x 20M Cat5e 8 x IPSU20HHF200; | APP: | BITVISION; |
| Port: | Guangzhou/Shenzhen; | Supply Ability: | 20000 Piece/Pieces per Day; |
| Audio Input/Output: | 1CH RCA Input/1CH RCA Output; | Payment Terms: | L/C,D/A,D/P,T/T,Paypal; |
| Video Compression: | H.265/H.265+, H.264/H.264+; | Warranty: | 2 Years; |
| Model Number: | NVRC836PM8HHF200S; | Certificate: | ISO FCC CE RoHS; |
Product Description
Product Model | NVRC836PM8HHF200S |
Material | Metal |
Function | Plug & Play |
Package | Color Box Packaging |
8CH 2MP POE NVR Kits Specification
Model: NVRC836PM8HHF200S

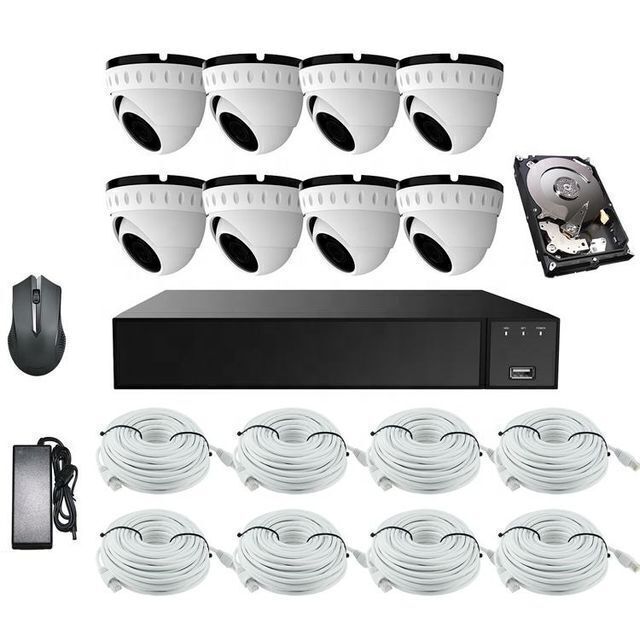

POE Camera & NVR Included
1x NVRC836PKT / 8 x 20M Cat5e / 8 x IPSU20HHF200
Camera Specification
1/2.9" CMOS Sensor, HISILICON Hi3516E WDR, With IR-CUT; Including Internal POE Main Stream: 3M@20FPS,1080P/720P@25FPS; 3MP HD Lens
POE Camera & NVR Included
1x NVRC836PKT / 8 x 20M Cat5e / 8 x IPSU20HHF200
Camera Specification
1/2.9" CMOS Sensor, HISILICON Hi3516E WDR, With IR-CUT; Including Internal POE Main Stream: 3M@20FPS,1080P/720P@25FPS; 3MP HD Lens
NVR Specification
◆Slution: HISILICON Hi3536D ◆IP Camera Input: 9CH (5MP/4MP/3MP/2MP/1MP, etc) ◆POE: 8 x Independent 100Mbps PoE Network Interfaces (Total Power Output≧100W)" ◆Incoming Bandwidth: 60Mb ◆Compression Method: H.265/H.265+, H.264/H.264+ ◆Recording Resolution: 5M/4M/3M/1080P/960P/720p, etc (All Real Time) ◆Preview Resolution: Multi-channels@Main Stream/Sub-stream ◆Playback Resolution: 1CH@5M/4CH@1080P ◆Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup ◆HD Output/VGA Output: 1920×1080/1280×1024/1280×720 ◆Audio Output: 1CH 3.5mm Headphone Socket ◆Network Interface: 9xRJ-45 10/100Mbps Self-adaptive Ethernet Interfaces ◆Backup: 2xUSB2.0 ◆1 SATA Hard Disk Interface (2.5"/3.5" SATA, Up to 8TB) ◆Support Remote View by Smart Phone, Support Plug and Play ◆Power Input: DC52V/2.5A ◆Dimensions (L×W×H): 310*295*46(mm) ◆Weight: 10.8kg
◆Slution: HISILICON Hi3536D ◆IP Camera Input: 9CH (5MP/4MP/3MP/2MP/1MP, etc) ◆POE: 8 x Independent 100Mbps PoE Network Interfaces (Total Power Output≧100W)" ◆Incoming Bandwidth: 60Mb ◆Compression Method: H.265/H.265+, H.264/H.264+ ◆Recording Resolution: 5M/4M/3M/1080P/960P/720p, etc (All Real Time) ◆Preview Resolution: Multi-channels@Main Stream/Sub-stream ◆Playback Resolution: 1CH@5M/4CH@1080P ◆Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup ◆HD Output/VGA Output: 1920×1080/1280×1024/1280×720 ◆Audio Output: 1CH 3.5mm Headphone Socket ◆Network Interface: 9xRJ-45 10/100Mbps Self-adaptive Ethernet Interfaces ◆Backup: 2xUSB2.0 ◆1 SATA Hard Disk Interface (2.5"/3.5" SATA, Up to 8TB) ◆Support Remote View by Smart Phone, Support Plug and Play ◆Power Input: DC52V/2.5A ◆Dimensions (L×W×H): 310*295*46(mm) ◆Weight: 10.8kg
Product Usage
Want to more product information, Please pay attention to the following code ^_^
Skype: effice.cantonk
Mobile/ Wechat/ Whatsapp: +86 18680488258
Skype: effice.cantonk
Mobile/ Wechat/ Whatsapp: +86 18680488258
Online Demo
APP is Bitvision
NVR User:[email protected] Password:12345678
XVR User:[email protected] Password:12345678
IPC User：[email protected] Password:12345678
IP-PTZ User:[email protected] Password:12345678
Fisheye User：[email protected] Password:12345678
Related Products
Private model & Best Selling
Shell Mode: TA30
Material: Metal
Install: Indoor & Outdoor
Best Selling Bullet Camera
Shell Mode: R25Material: Metal
Install: Indoor & Outdoor
Install: Indoor & Outdoor
Best Selling Dome Camera
Shell Mode: SU20Material: Metal
Install: Indoor & Outdoor
Install: Indoor & Outdoor
Packing&Shipping
Standard XVR/NVR Box
Without MOQ & Cost for Cantonk starndar package
Title goes here.
Without MOQ & Cost for Cantonk starndar package
White Box
Design customer box, Grey Box, White Box have MOQ (500pcs for Free)
Certifications
Company Introduction
About factory
Founded in 2008, with years' efforts, Cantonk has grown up to be a leading CCTV manufacturer located in Guangzhou, China with the
certification ISO9001:2015 , and nowadays we have the factory with floor space around 50,000 square meters and over 1200pcs
employees, which include housing production lines, SMT production lines, Cameras Production Lines, and XVR/NVR production lines.
With complete quality/cost control, Cantonk has got absolute advantages to spread solutions, products and services in over 150pcs
countries.
Presently Cantonk factory has large production capacity over 500,000pcs products monthly to make short lead time. Meanwhile we pay
high attention on workers' trainings and quality control processes from the raw materials to finished products, and 100%
non-defections before delivery is our permanent pursuit.
What we are doing now is keeping improving, we believe that with no words you could see Cantonk's highest quality, latest
technology and warm-heart in our products.
About products
We have full series of security solutions from AHD/CVI/TVI/SDI Cameras (2MP to 5MP), Network Cameras (2MP to 4K), XVR/NVR, WIFI
Cameras Kits, and Accessories etc. All products have the certificates of CE/FCC/ROHS etc.
About R&D
We have a strong R&D group with 200pcs workers to do firmware and software, and every year Cantonk invests more and more on R&D to
get new technology and innovations, and guarantee the highest quality, reliability and stability. Just cause of the hard-working
R&D department standing behind, we can do all kinds of OEM/ODM services to meet different markets' and customers' requirements
quickly.
About Target
Our target is to do more capital input to R&D and fully focus on better technology, higher quality and absolute professionality,
and use perfect CCTV solutions all over the word, then our annual sales turnout has more than 30% increases by expanding powerful
OEM/OBM distributors/agents.
Founded in 2008, with years' efforts, Cantonk has grown up to be a leading CCTV manufacturer located in Guangzhou, China with the
certification ISO9001:2015 , and nowadays we have the factory with floor space around 50,000 square meters and over 1200pcs
employees, which include housing production lines, SMT production lines, Cameras Production Lines, and XVR/NVR production lines.
With complete quality/cost control, Cantonk has got absolute advantages to spread solutions, products and services in over 150pcs
countries.
Presently Cantonk factory has large production capacity over 500,000pcs products monthly to make short lead time. Meanwhile we pay
high attention on workers' trainings and quality control processes from the raw materials to finished products, and 100%
non-defections before delivery is our permanent pursuit.
What we are doing now is keeping improving, we believe that with no words you could see Cantonk's highest quality, latest
technology and warm-heart in our products.
About products
We have full series of security solutions from AHD/CVI/TVI/SDI Cameras (2MP to 5MP), Network Cameras (2MP to 4K), XVR/NVR, WIFI
Cameras Kits, and Accessories etc. All products have the certificates of CE/FCC/ROHS etc.
About R&D
We have a strong R&D group with 200pcs workers to do firmware and software, and every year Cantonk invests more and more on R&D to
get new technology and innovations, and guarantee the highest quality, reliability and stability. Just cause of the hard-working
R&D department standing behind, we can do all kinds of OEM/ODM services to meet different markets' and customers' requirements
quickly.
About Target
Our target is to do more capital input to R&D and fully focus on better technology, higher quality and absolute professionality,
and use perfect CCTV solutions all over the word, then our annual sales turnout has more than 30% increases by expanding powerful
OEM/OBM distributors/agents.
Our Services & Strength
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
* How to buy from us?
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge by
courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
For after sales-service. Please contact the sales persons directly or contact us
* Trade Conditions
1. MOQ
No limite on the first purchase; 10 pcs /per model after sample order.
2. Payment Terms
T/T, Paypal and L/C for option.
a. By T/T: Bank transfer to Cantonk company bank account
b. By Paypal: There will be 4% of total price as paypal fee
c. By L/C(letter of credit): the order is more than USD10,000.00
3. Lead time
a. 7 Days after payment arrived, for sample order less than 15PCS
b. 10-14 Days after payment for a formal order
4. Attention
a. We don't accept any shipment who couldn't be done custom clearance in China
b. With domestic RMB payment to our account, we need to get 11% added-value tax.
VIEW MORE
