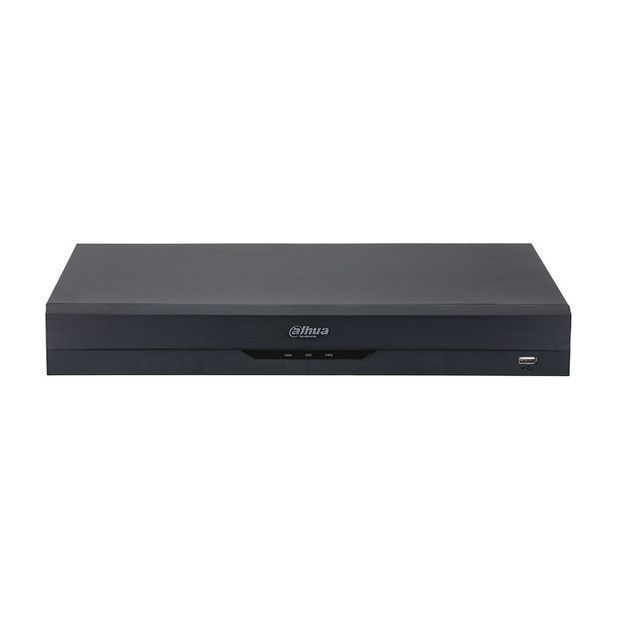

Dahua XVR5216A-4KL-I3 16 Channels 5-in-1 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder for Dahua HDCVI Cameras

system

main processor

embedded processor

operating system

embedded operating system

perimeter protection

Performance

2 channels, 10 IVS per channel

object classification

Person/vehicle secondary identification for trip wire and intrusion

artificial intelligence search

Search by target category (people, cars)

face recognition

Performance

Up to 12 face pictures/second processing

2-channel video stream face recognition, only supports analog cameras

stranger mode

Detect faces of strangers (not in the device's face database). The similarity threshold can be set manually.

artificial intelligence search

At most 8 target face pictures can be searched at the same time, and the similarity threshold can be set for each target face picture.

trigger event

Buzzer, voice prompt, email, snapshot, recording, alarm output, PTZ activation, etc.

patch plus

Performance

16 channels

artificial intelligence search

Search by target category (people, cars)

video and audio

Analog camera input

16 channels, BNC

HDCVI camera input

4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,

720P@25/30fps

AHD camera input

4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI camera input

4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS camera input

PAL/NTSC format

IP camera input

16+16 channels, each channel up to 8MP

audio input/output

4/1, RCA

two-way dialogue

Reuse audio in/out, RCA

Record

compression

AI coding/H.265+/H.265/H.264+/H.264

resolution

4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF

recording rate

Mainstream: Full channel 4K (1fps–7fps); 6MP (1fps–

10 frames per second); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps);

4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps);

Subframe: 960H(1fps–15fps);

D1/CIF (1fps–25/30fps)

bit rate

32 Kbps–6144 Kbps per channel

recording mode

Manual, schedule (regular, continuous), MD (video detection: motion detection, video loss, tampering), alarm, stop

recording interval

1 – 60 minutes (default: 60 minutes), pre-record: 1 second to 30 seconds, post-record: 10 seconds to 300 seconds

audio compression

G.711A, G.711U, PCM

audio sample rate

8 KHz, 16 bits per channel

audio bitrate

64 Kbps per channel

exhibit

interface

1 HDMI, 1 VGA

resolution

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

Graphics card: 1920×1080, 1280×1024, 1280×720

multi-display

When IP extension mode is not enabled: 1/4/8/9/16

When IP extension mode is enabled: 1/4/8/9/16/25/36

screen display

Camera name, time, video loss, camera lock, motion detection, video recording

network

interface

1 RJ-45 port (1000MB)

Network features

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP search (support Dahua network camera, DVR, NVS, etc.)

maximum. user access

128 users

cell phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI compliant

Video detection alarm

trigger event

Recording, PTZ, tour, video push, email, FTP, snapshot, buzzer and screen prompt

video detection

Motion detection, MD area: 396 (22 × 18), video loss, tampering and diagnostics

Alarm input

16

Relay output

3

playback and backup

play back

1/4/9/16

search mode

Time/date, alarm, MD and precise search (down to the second)

playback function

Play, Pause, Stop, Rewind, Fast forward, Slow forward, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

backup mode

USB device/network

storage

internal hard drive

2 SATA ports, each disk capacity up to 10TB

Electronic SATA

Not applicable

Auxiliary interface

USB

2 USB ports (1 USB 2.0, 1 USB 3.0)

RS485

1 port for PTZ control

RS232

Not applicable

electric

power supply

DC 12V/5A

energy consumption

(no HDD)

<15W
