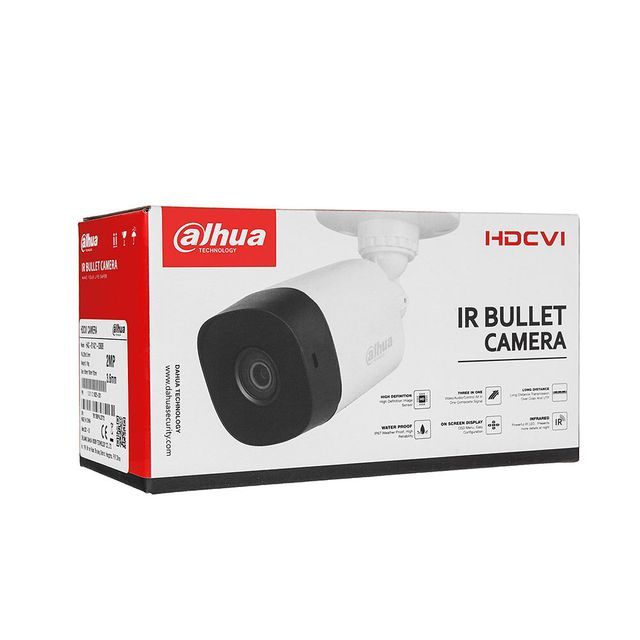

Original Dahua HAC-B1A21 2MP HDCVI infrared bullet camera

PRODUCT DETAIL
Function:Reset, night vision, water/weatherproof, one-way audiomodel:HAC-B1A21
brand:DahuaWide dynamic range:wide dynamic range
casing:plasticCustomization support:Customized logo, OEM, ODM
Package preview:product name:2MP Hac Bullet Camera
special function:Night vision, motion detection, waterproof/weatherproofWarranty:2 years, 2 years
style:bolt actionpayment terms:Western Union, wire transfer, MoneyGram
sensor:complementary metal oxide semiconductorLens type:fixed lens
focal length:3.6mm (2.8mm, 6mm optional)Place of origin:Zhejiang
Certification:CEData storage options:DVR
port:ShenzhenPackaging details:Carton color box
Video compression format:H.265application:Indoor and outdoor
Supply capacity:10,000 pieces per month

Original Dahua HAC-B1A21 2MP HDCVI infrared bullet camera

contact information

Kelly Feng

WhatsApp/WeChat: +86 18676701283

www.ancotechcctv.com

Room 309, Building 1, Tongfang Creative Industrial Park, Baoan District, Shenzhen, China

Product Description

HAC-B1A21

2MP HDCVI IR Box Camera

> Max. 30fps@1080P

> HD and SD output switchable
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. Infrared length 20m, smart infrared
> IP67, DC 12V

camera

Image Sensor

1/2.7"CMOS

Effective Pixels

1920(horizontal)×1080(vertical), 2MP

Scan system

progress

electronic shutter speed

PAL: 1/25~1/100000 seconds

NTSC: 1/30~1/100000s

Minimum illumination

0.04Lux/F1.85, 30IRE, 0Lux infrared on

signal-to-noise ratio

More than 65 decibels

Infrared distance

Up to 20m (66 feet)

Infrared on/off control

automatic / manual

lens

Lens type

Fixed lens/fixed aperture

Installation type

boarding

focal length

3.6mm (2.8mm, 6mm optional)

Maximum aperture

F1.85

perspective

Height: 93° (103°, 54.7°)

focus control

not applicable

close focus

800mm (2000mm)

31.50 inches (78.74 inches)

distance

Note: DORI distances are "general proximity" distances that make it easy to find a camera that suits your needs. DORI distance is calculated from sensor specifications and laboratory test results according to EN 62676-4, which defines standards for detection, observation, identification and recognition respectively.



Dory

definition

distance

detection

25 pixels/meter

(8 pixels/foot)

3.6 mm: 51 meters (167 feet)

6 mm: 80 meters (262 feet)

observe

63 pixels/meter

(19 pixels/foot)

3.6 mm: 20 meters (66 feet)

6 mm: 32 meters (105 feet)

make out

125 pixels/meter

(38 pixels/foot)

3.6 mm: 10 meters (33 feet)

6 mm: 16 meters (51 feet)

confirm

250ppm

(76 pixels/foot)

3.6 mm: 5 meters (17 feet)

6 mm: 8 meters (26 feet)

Pan/Tilt/Rotate

Pan/Tilt/Rotate

Horizontal rotation: 0°~360°

Tilt: 0°~90°

Rotation: 0°~360°

video

solve

1080P (1920×1080)

Frame rate

25/30fps@1080P, 25/30/50/60fps@720P

video output

1 channel BNC high-definition video output/CVBS video output (switchable)

sooner or later

Automatic (ICR)/manual

OSD menu

multi-language

Backlight compensation mode

BLC/HLC/DWDR

wide dynamic range

wide dynamic range

gain control

automatic gain control

Noise reduction

two-dimensional

white balance

automatic / manual

Smart infrared

automatic / manual

+

Certification

Certification

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014)

interface

audio port

not applicable

Electrical

power supply

12V DC±30%

energy consumption

maximum. 2.7W (12V DC, infrared on)

environmental

Operating conditions

-40°C ~ +60°C (-40°F ~ +140°F) / less than 95% RH

*Start-up should be performed above -40°C (-40°F)

Storage conditions

-40°C ~ +60°C (-40°F ~ +140°F) / less than 95% RH

Entrance protection and anti-vandalism

IP67 rating

put up

casing

plastic

aspect

70 mm × 70 mm × 149 mm (2.76 inches × 2.76 inches × 5.87 inches)

net weight

0.14 kg (0.31 lb)

gross weight

0.17 kg (0.37 lbs)
