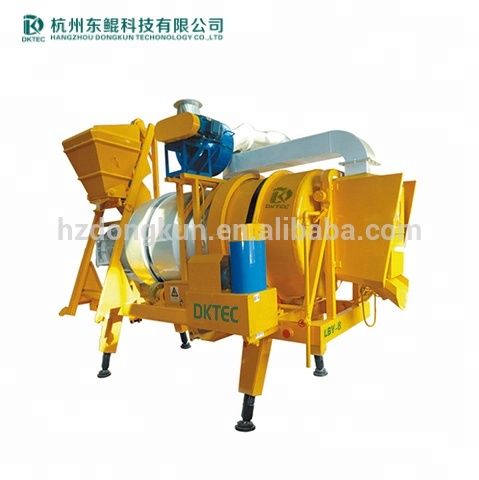

20tph Asphalt Mobile Asphalt Mixer
- $2028.00 /set
- 1 set
- Hangzhou Dongkun Technology Co., Ltd.
- Zhejiang, China
- Ms Summer Leung
| Packaging Details: | Main products are in bare packaging, spare parts are packed in boxes or wooden cases | Mechanical test report: | if |
| Local service location: | Philippines, Indonesia | Video external inspection: | if |
| Marketing Type: | New Products 2020 | Showroom location: | Vietnam, Philippines, Indonesia, Pakistan, Mexico, Thailand, Kenya, Chile, Romania, Kazakhstan, Uzbekistan, Tajikistan, Malaysia, Morocco |
| After-sales service provided: | Video technical support, online support | brand: | DKTEC/COMACO |
| Health status: | new | Certification: | ISO 9001:2008 |
| place of origin; place of origin: | Zhejiang, China | Core Components Warranty: | 1 year |
| Fuel consumption (coal burner): | 13--15kg/ton | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| port: | Shanghai | Unique Selling Points: | low fuel consumption |
| Core components: | Engine, Bearing, Motor | Fuel consumption (oil burner): | 5-7.5kg/ton |
| Production temperature: | 120-180° adjustable | After Warranty Service: | Video technical support, online support |
| Supply capacity: | 300 pieces per month | strength: | to be confirmed |
| Warranty: | 1 year | Applicable industries: | Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Retail, Construction Engineering, Energy and Mining |
| Voltage: | to be confirmed | Optional: | Coal mill, water and dust filter, asphalt tank, control room |

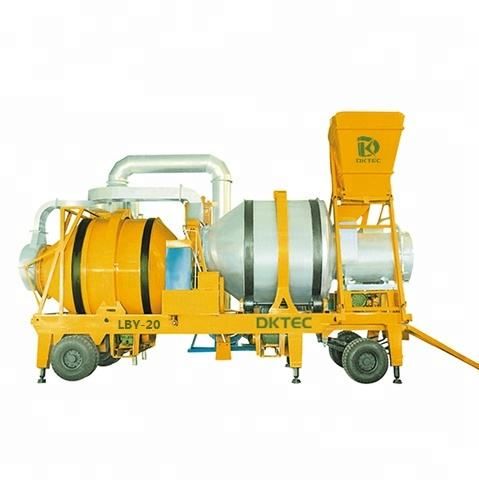

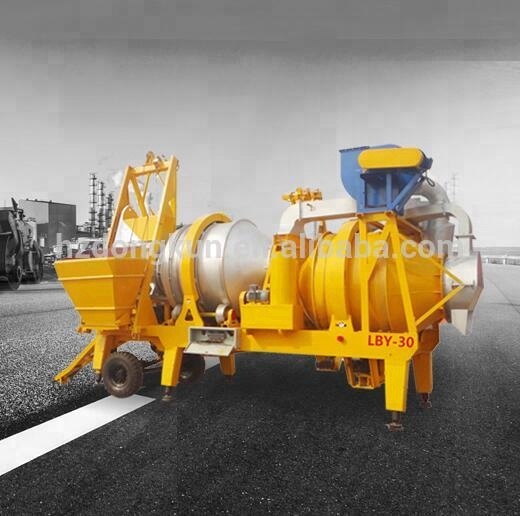

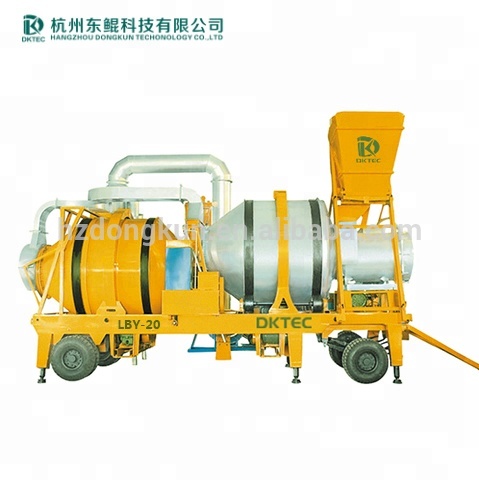

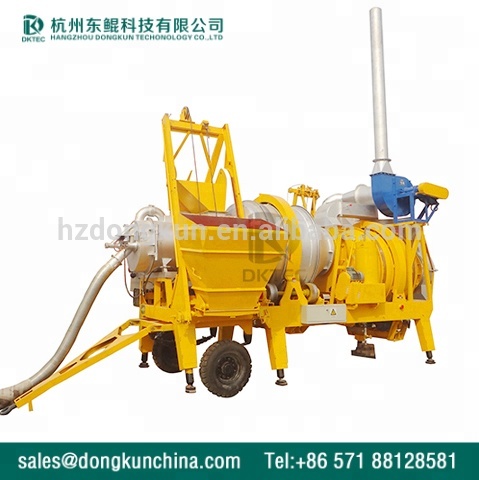

Mobile Small Capacity Asphalt Station
1. The integrated design of drying and batching drum reduces start-up costs for customers
2. Simple structure and easy operation, the drum rotates counterclockwise to dry (from the burner), the drum rotates clockwise to discharge (from the burner), and the wind rotates in the center of the drum
3.PLC control, touch screen, automatic/manual switching
4. Traction chassis for easy transportation and installation
5. The burner can be used for coal and oil, at the customer's choice
date
|
model |
LBY-8 | LBY-10 | LBY-15 | LBY-20 | LBY-30 | |
| capacity | 8 tons/hour | 10 tons/hour | 15 tons/hour | 20 tons/hour | 30 tons/hour | |
| strength | oil burner | 24kW | 25kW | 36kW | 49kW | 83kW |
| coal burner | 40kW | 43kW | 56kW | 73kW | 86kW | |
| production temperature | 120-180° adjustable | |||||
| Fuel consumption | oil burner | 5-7.5kg/ton | ||||
| coal burner | 13-15kg/ton | |||||
| optional |
Coal mill, water and dust filter, asphalt tank, control room |
|||||

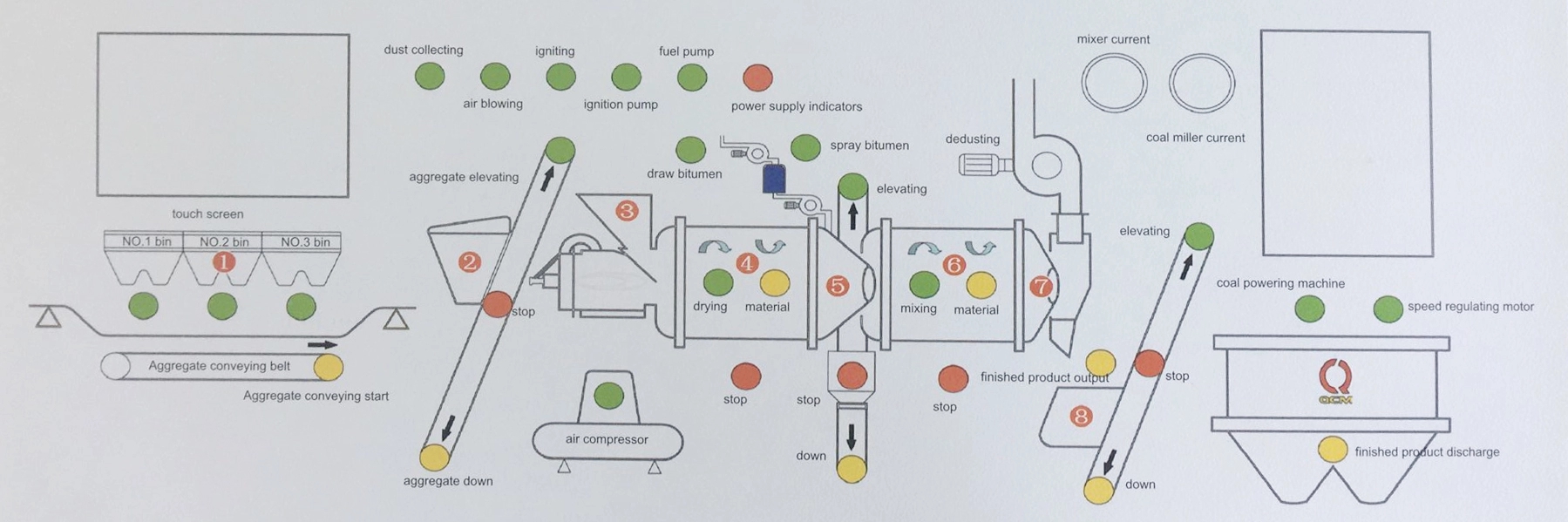

Automobile production line
1. The integrated design of drying and batching drum reduces start-up costs for customers
2. Aggregate feeding
3. The aggregate is discharged into the drying cylinder
4. The ore is continuously raised in the drying cylinder to form a "material curtain", which conducts strong heat exchange with the flame of the burner, and transports the aggregate to its hoist.
5. The hot aggregate is discharged into the mixing drum, and the LBY series adopts a filter elevator to make the filler enter the mixing drum. Then more aggregate is lifted and discharged into the arum
6. Minerals, fillers and asphalt are continuously lifted and uniformly mixed in the mixing drum. Continuous cleaning of the hoist for drying drums and aggregates
7. Asphalt discharge: After the hot ore aggregate is evenly combined, the finished material is discharged, and the mixing drum ends the mixing
8. If there is a storage bin, the finished material is lifted to the storage bin by its elevator, the disc is loaded into the storage bin, and then put into storage

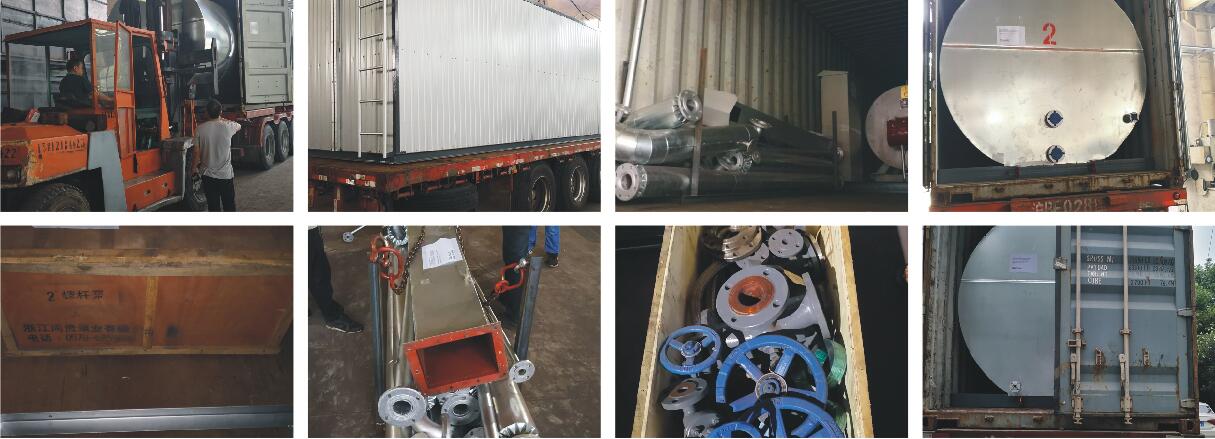

Packaging and Delivery
♦pre-sale service ♦After-sales service
* Inquiry and consultation support. * Training how to install/use the machine.
*Technical information provided. * Good and fast shipping arrangement
* Price provides detailed configuration. * Engineers can repair machinery overseas.
♦strong logistics
Not only take care of your products, but also deliver them as quickly as possible to meet delivery times;
Oneabout us
Hangzhou Dongkun Technology Co., Ltd. (DKTEC) supplies equipment for concrete batching plants, asphalt batching plants, and crushing plants. We have the advantage in supplying complete spare parts and accessories solutions for all of the above factories. We have our own brand DKTEC & COMACO.
Our goal is to be your plant guardian.
