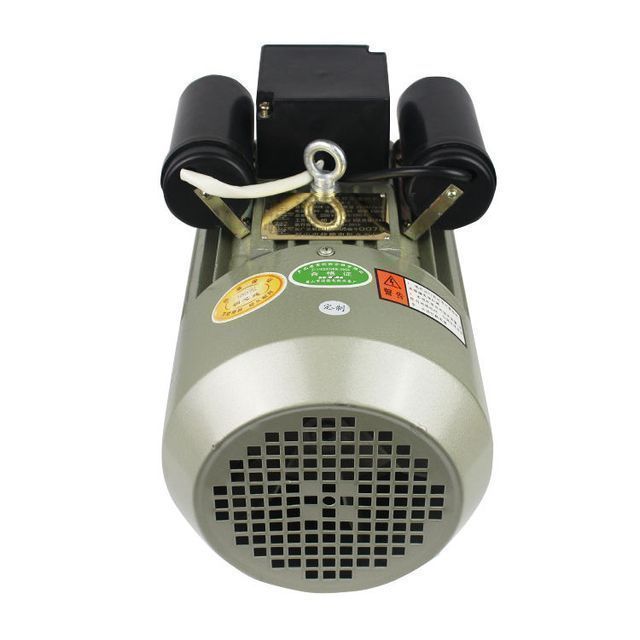

2800rpm speed 100% copper wire wound Glencore YL induction drive motor 1hp 1.5hp 2hp 2.5hp 3hp 4hp single phase motor

PRODUCT DETAIL
efficiency:i.e. 2current:9.44A

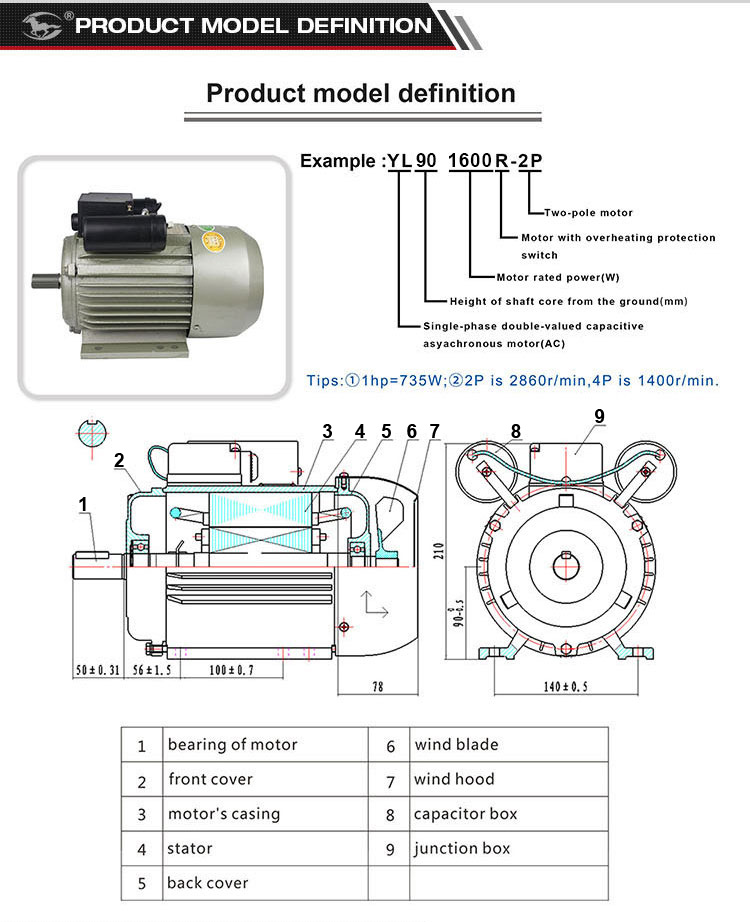

model:YL90-1600R-2PSupply capacity:5000 sets per month
Bearing diameter:24mmProtective function:IP44
type:Induction motorplace of origin; place of origin:Sichuan, China
Capacitor QT:2AC voltage:220v
Packaging Details:Internal foam packaging, external wooden box packaging.Plane ground height:90mm
Copper wire winding:Yespayment terms:Western Union, D/P, D/A, T/T, MoneyGram
speed:2850 rpmstage:Simplex
Warranty:1 yearbrand:care
Packaging Preview:Certification:ce, CCC, ISO9001
port:Shanghai, Shenzhen, Yiwu, Guangzhou, ChengduVoltage:220v
Bearing exposed length:50mmfrequency:50/60 Hz
strength:1.6kW

2800rpm speed 100% copper wire wound Glencore YL induction drive motor 1hp 1.5hp 2hp 2.5hp 3hp 4HP single phase motor

1.Caring has hundreds of intelligent processing equipment.
2.Caring has passed ISO9001 management system certification. The motor obtains the corresponding CCC and CE certificates.
3.Caring has won more than 30 national technology patents and a number of provincial honors. The cutting pump has obtained the national invention patent.



Product Description

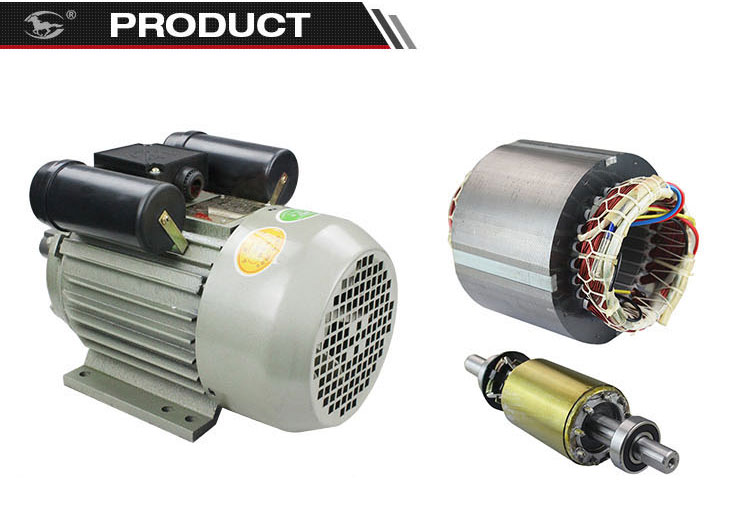

YL90 2-pole (2800 rpm) series single-phase ordinary motors are available in 750W, 1100W, 1600W, 1800W and 2200W models. Stator, rotor, shaft, bearing, centrifugal switch and other key components are all high-quality large-scale products, using 100% pure copper core winding, manufactured in strict accordance with the national standard process, the power is substandard, the horsepower is sufficient, the power is strong, the performance is stable, and durable!





Common equipment supporting motor parameters

number equipment Output(Kw) Speed ​​(r/min) number equipment Output(Kw) Speed ​​(r/min)

1

rice machine 2.2 or 3.0 2800 7 hay cutter Plenty of Power 3.0 2800
2 table saw 1.5 or 2.2 2800 8 Grain suction machine

3.0

1400
3 Noodle machine 2.2 or 3.0 1400 9 roller shutter 2.2 1400
4 car washer 2.2 or 3.0 1400 10 Cutting Machine 2.2 2800
5 pesticide sprayer 2.2 or 3.0 1400 11 corn grinder 0.75 2800
6 Shredder 2.2 or 3.0 2800 12 Air compressor 2.2 2800

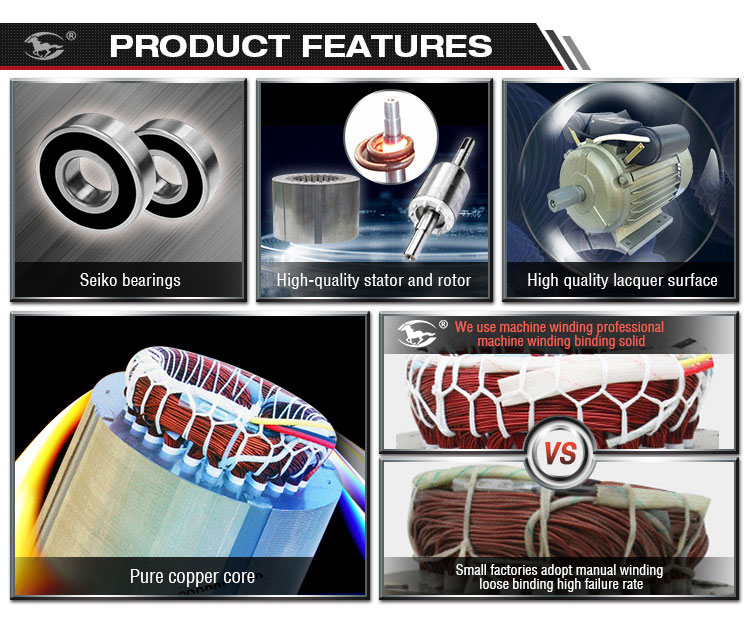

1. Seiko Bearings
Anti-rust, moisture-proof and wear-resistant, the machine runs smoothly and quietly at high speed

2. High quality stator and rotor
High-quality cold-rolled silicon steel sheet, high hardness, high power, high efficiency, long service life, the shaft adopts high frequency quenching

3. High quality paint finish
Pure high quality paint, 360 degree protection motor, cast iron barrel, strong and durable.
4. Pure copper core
Pure copper core/machine winding, strong bonding force, using F grade oxygen-free copper wire for winding, high temperature resistance, long life, not easy to damage, ordinary enameled wire can not compare with it.





Other types of smart motors

Model output Voltage frequency Capacitor QT current speed weight
kilowatt life value
YL90-750R-4P 0.75 1 220v 50Hz 2 5.1A 1400 rpm 17kg
YL90-1100R-4P 1.1 1.5 220v 50Hz 2 7.1A 1400 rpm 18kg
YL90-1500R-4P 1.5 2 220v 50Hz 2 9.44A 1400 rpm 20kg
YL90-1800R-4P 1.8 2.5 220v 50Hz 2 11.3A 1400 rpm 23kg

YL90-750R-2P 0.75 1 220v 50Hz 2 5.1A 2800 rpm 16kg
YL90-1100R-2P 1.1 1.5 220v 50Hz 2 7.1A 2800 rpm 17kg
YL90-1600R-2P 1.6 2 220v 50Hz 2 9.44A 2800 rpm 29kg
YL90-1800R-2P 1.8 2.5 220v 50Hz 2 11.3A 2800 rpm 21kg
YL90-2200R-2P 2.2 3 220v 50Hz 2 13.6A 2800 rpm 22 kg

YL100-2300R-2P 2.3 3 220v 50Hz 2 13.9A 2800 rpm 26kg
YL100-2600R-2P 2.6 3.5 220v 50Hz 2 15.8A 2800 rpm 27kg
YL100-3000R-2P 3 4 220v 50Hz 2 17.2A 2800 rpm 28kg
YL100-3500R-2P 3.5 4.8 220v 50Hz 2 19.8A 2800 rpm 31 kg

YL100-2200R-4P 2.2 3 220v 50Hz 2 13.6A 1400 rpm 31 kg
YL100-3000R-4P 3 4 220v 50Hz 2 17.2A 1400 rpm 33 kg

hint:

1. Note: Each of the above models has a corresponding motor (with flange)

If you need to purchase the above models or have other requirements, please consult customer service; technical parameters are updated at any time.

warn

Before operation, please confirm that the machine is grounded and connect the leakage protector

The motor has a thermal protector, in order to ensure safe operation during automatic shutdown, the power supply must be cut off.
