2T 3T 4T 5T 8T 10T 12T 14T 16T 18T hook lift body to suit your chassis for sale
- $3500.00 /piece
- 1 piece
- Chengli Special Automobile Co., Ltd.
- Hubei, China
- Ms xi chen
| After Warranty Service: | Video technical support,Online support,Field maintenance and repair service; | Gross Vehicle Weight: | 2000; |
| Name: | garbage truck body; | Chassis Brand: | Dongfeng Foton Forland Howo Faw; |
| Drive type: | 4X2 6X4 8X4; | Engine Capacity: | 5991; |
| Certification: | ISO9001, CCC; | Warranty: | 1 Year; |
| Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; | Size: | 5995*2200*1500; |
| Video outgoing-inspection: | Provided; | Drive Wheel: | 4X2; |
| Warranty of core components: | 1 Year; | Selling Units: | Single item; |
| Packaging Detail: | NUDE WITH WAXING; | Transmission Type: | Manual; |
| Emission Standard: | Euro 4; | Brand Name: | CLW; |
| Single package size: | 390X220X150 cm; | Fuel Type: | Diesel; |
| Keyword: | Hook Lift Garbge Truck; | Type: | Rear Loader; |
| Local Service Location: | None; | Installation service: | provided; |
| Marketing Type: | New Product 2020; | Condition: | New; |
| Truck type: | Rear Loader Arm Roll Garbage Truck; | Place of Origin: | Hubei, China; |
| After-sales Service Provided: | Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service; | Applicable Industries: | Construction works ; |
| Single gross weight: | 2000.000 KG; | Showroom Location: | None; |
| Loading capacity: | different types for option; | Machinery Test Report: | Provided; |
2T 3T 4T 5T 8T 10T 12T 14T 16T 18T hook lift body to suit your chassis for sale

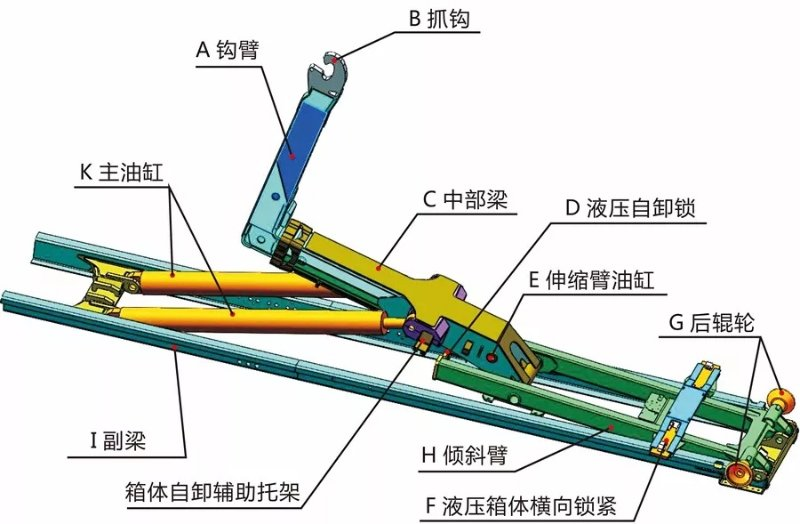

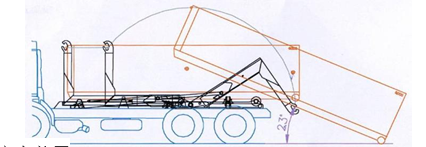

Hook Lift Mainly composed of A . Hooks Arm B. Hook C. Middle frame D. Hydraulic dump lock E. Telescopic oil cylinder F. Hydraulic box landscape locksystem
G. Back wheels H. Tilt arm I. vice beam J. box dump auxiliary bracket K. Main oil cylinder

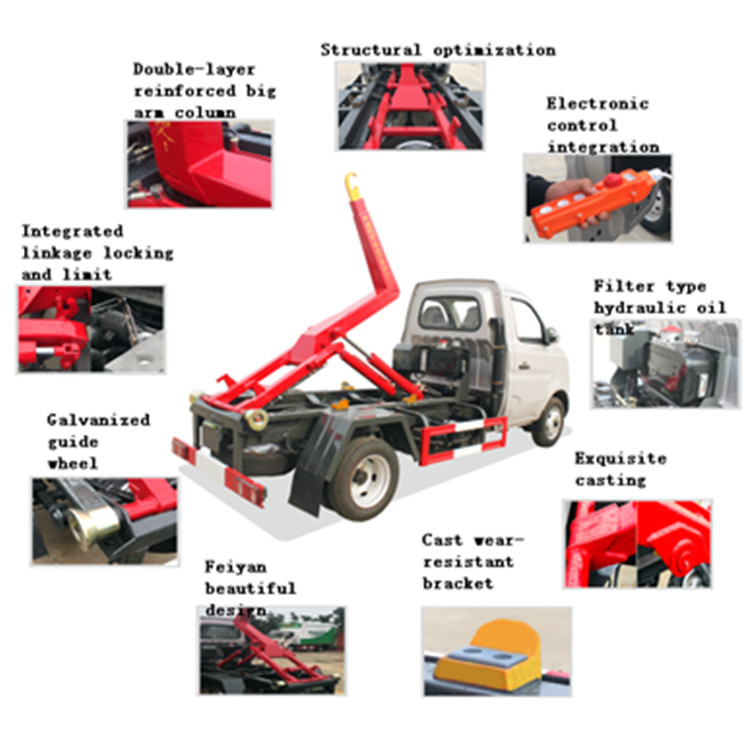

Detailed image
- Advanced structure and hydraulic system design
- All the operation system can be remote control ( within 30 m ), comvenient operation
- Antiseptic treatment
Hig strength design , discharge and loading system is much more easy .
Strength protected cover of back hydraulic system

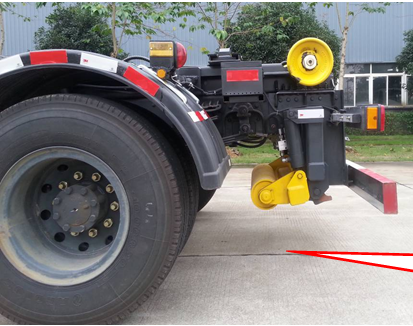

Stability supporting device

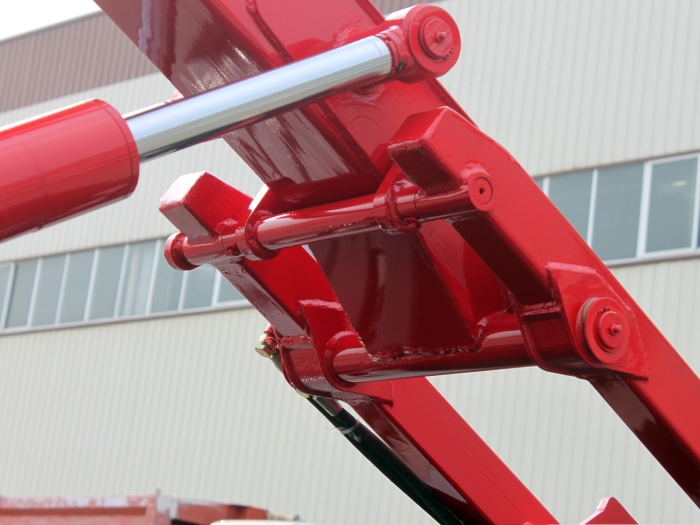

high quality hydraulic cylinder

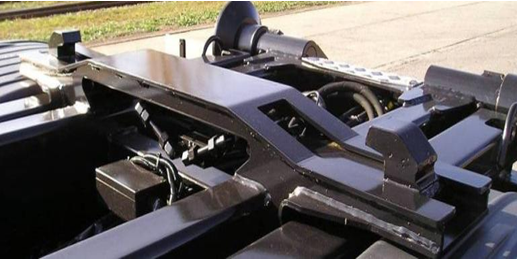

The hook lift lock you can choose Portrait or landscape

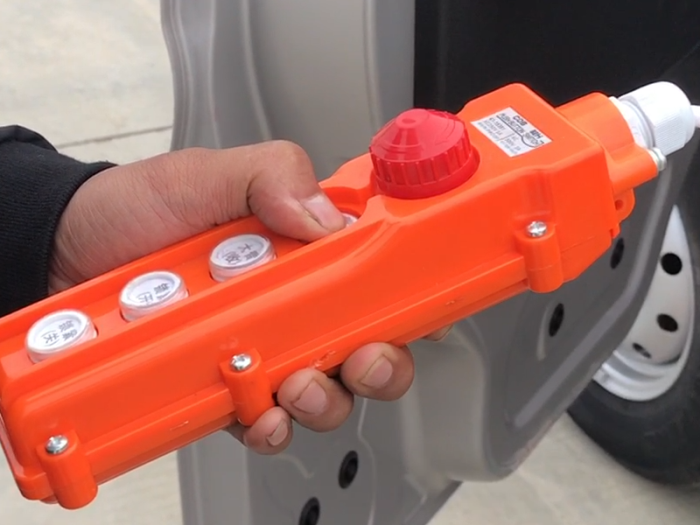

control type is remote control

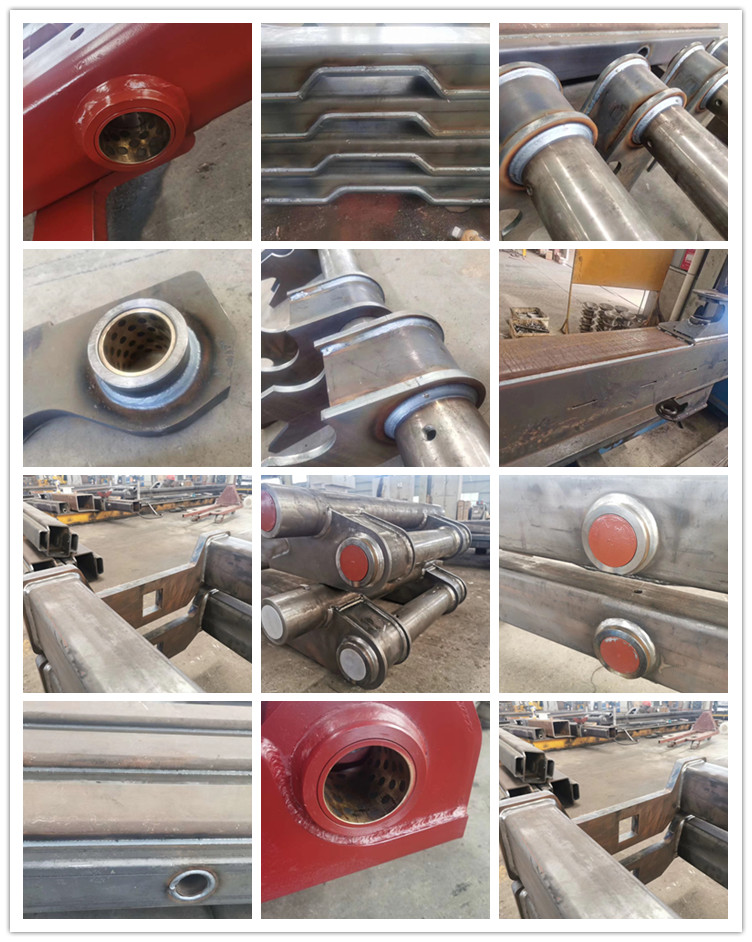

high strength welding line ,smooth and stronger , all use weld robot done the work
4cbm hook lift arm garbage truck body specification list for reference
| Box diemnsion | 3500*2200*1200 mm |
| Box material | Q235 Side 4 mm, Bottom 5 mm |
| Loading time | 50-60 s |
| Discharge system | 40-50 s |
| Discharge method | lifting /dump type |
| Dump angle | 50 degree |
| Discharge time | 30-40 s |
| hydraulic system pressure | 20-25 Mpa |
| Control system | manual / remote & electric & hydraulic |

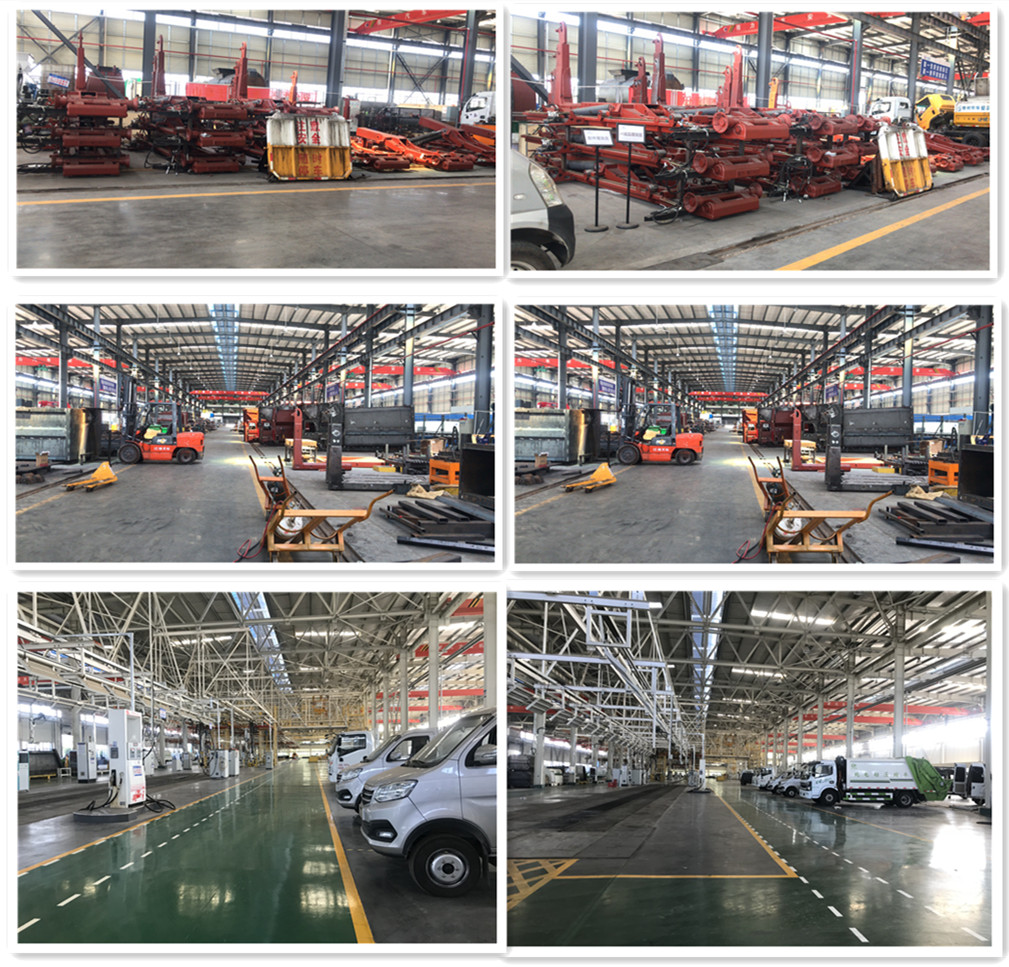

our work shop corner showing
The trucks details parts installed position showing here
We will match the truck body according to your requriement and chassis information .
Now more and more customers import truck body from our factory . We have rich experience to provide you best design and installation service with good rpice .

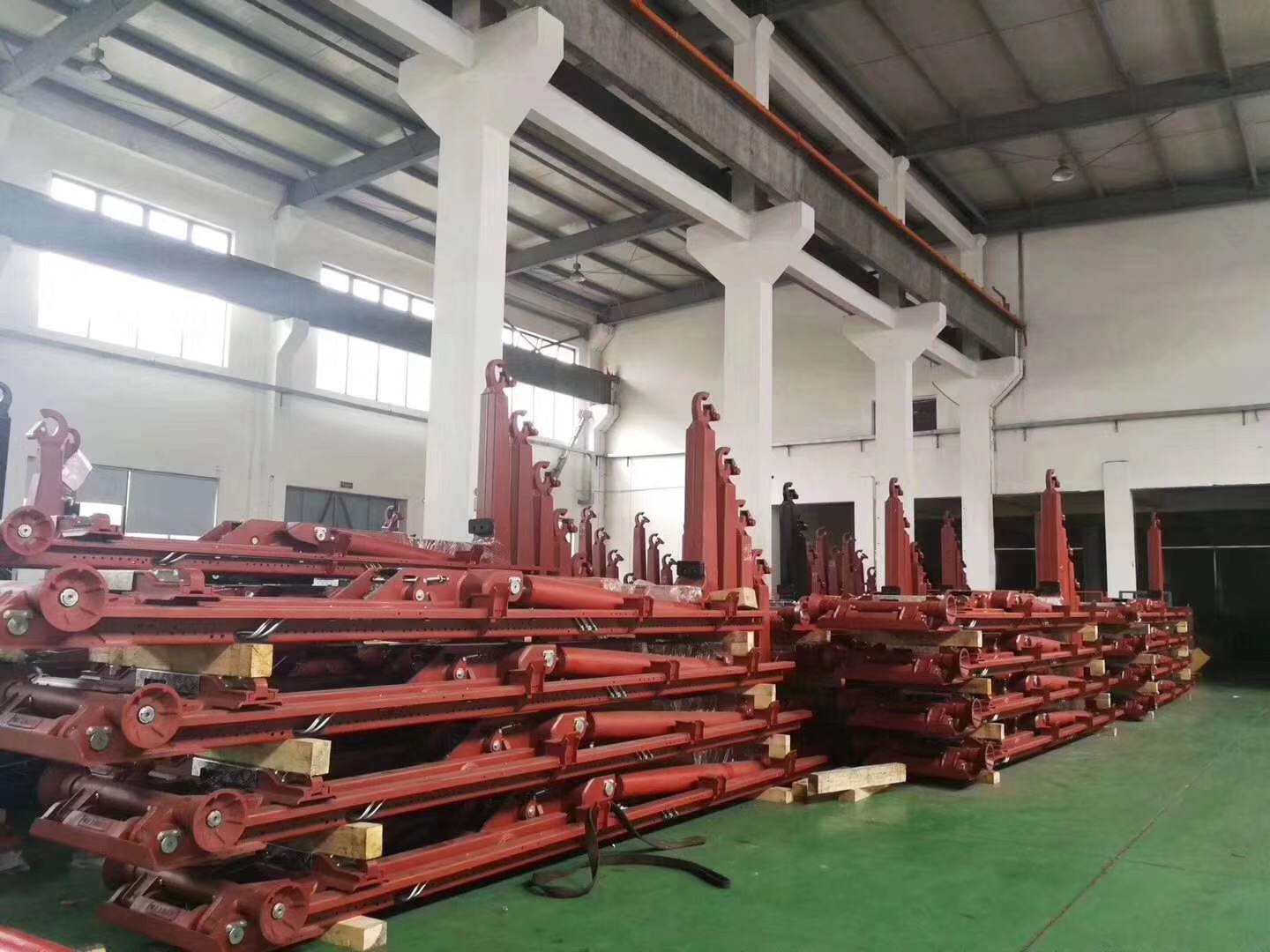

Hook lifts garabge truck workshop
If you are interested in garabge truck body , please feel free to contact us .
