dedicated 4.5 cubic meter T50 electric leaf collecting machine
- $50000.00 /piece
- 1 piece
- Jinan Baiyi Environmental Protection Technology Co., Ltd.
- Shandong, China
- Ms Young Joy
PRODUCT DETAIL
| Core Components: | Motor,Pump,Battery; | Transmission Type: | Automatic; |
| water tank: | 450L; | battery: | 72v/600AH; |
| Machinery Test Report: | Provided; | Packaging Detail: | iron frame, wooden packing, container; |
| Weight (KG): | 1500 kg; | Supply Ability: | 300 Pieces per Month; |
| Place of Origin: | Shandong, China; | suction pipe: | 200mm; |
| Fuel Type: | Electric; | Type: | Compactor; |
| gabage box: | 4.5 cubic meter; | Gross Vehicle Weight: | 1500; |
| Payment Terms: | L/C,T/T,Credit Card; | Package Preview: | ; |
| Brand Name: | Baiyi; | Size: | 5100x1440x2385; |
| Drive Wheel: | 4X2; | Showroom Location: | laos; |
| Video outgoing-inspection: | Provided; | Warranty: | 1 Year; |
| Port: | Qingdao, Shanghai; | Engine Capacity: | 0; |
| Warranty of core components: | 1 Year; | Applicable Industries: | Manufacturing Plant,Farms,Construction works ,Other; |
| Condition: | New; | Marketing Type: | New Product 2020; |
Products Description

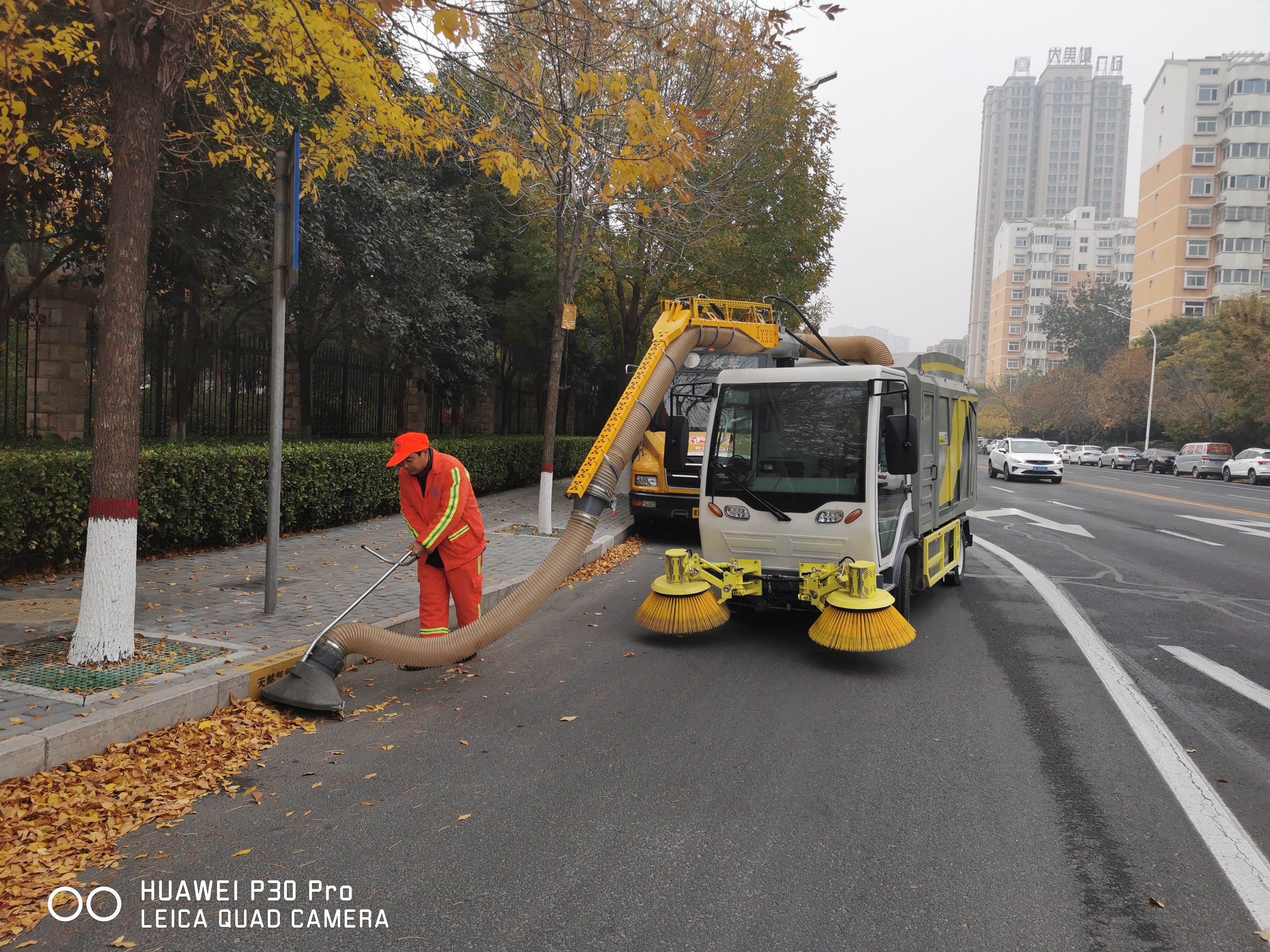

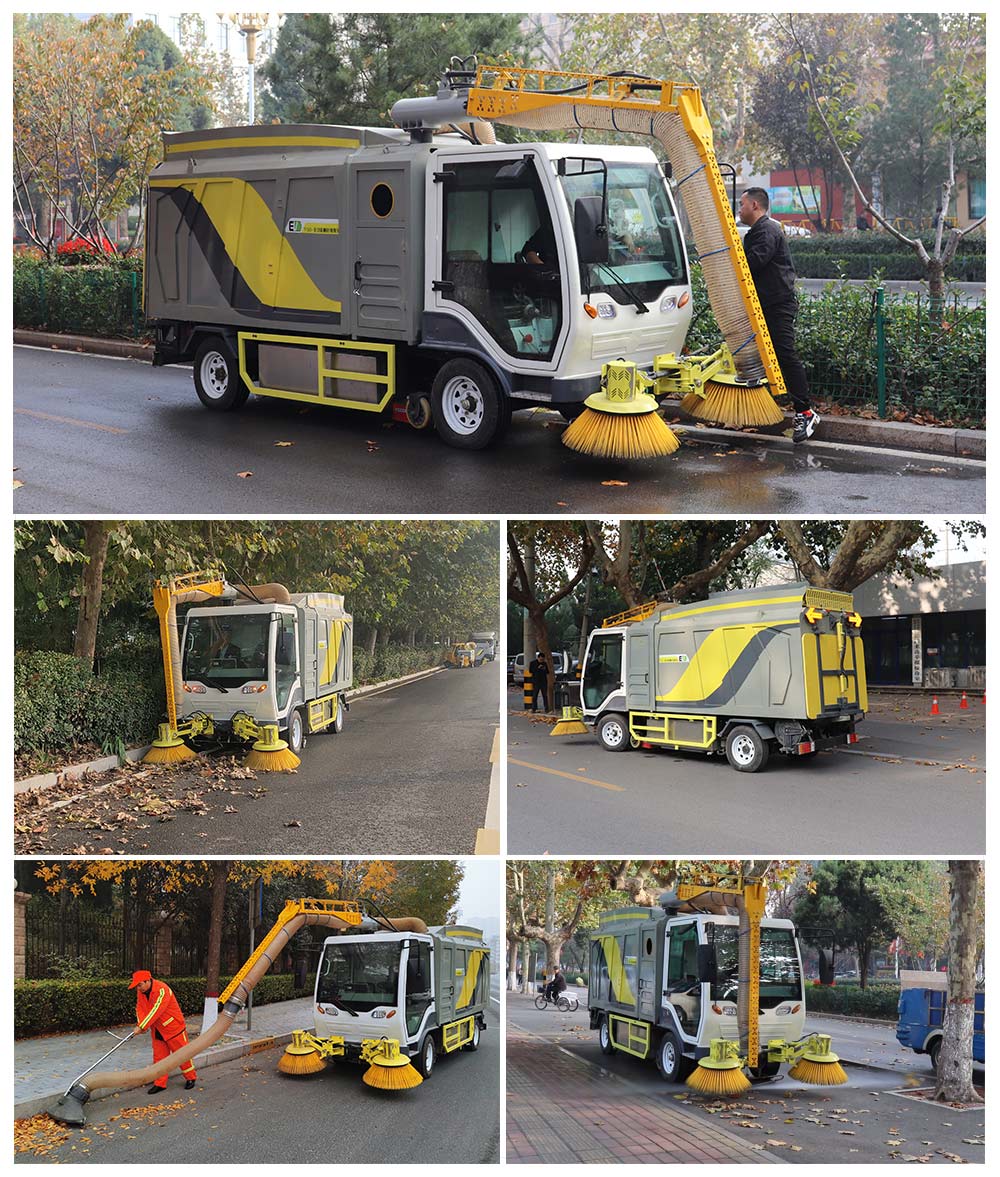

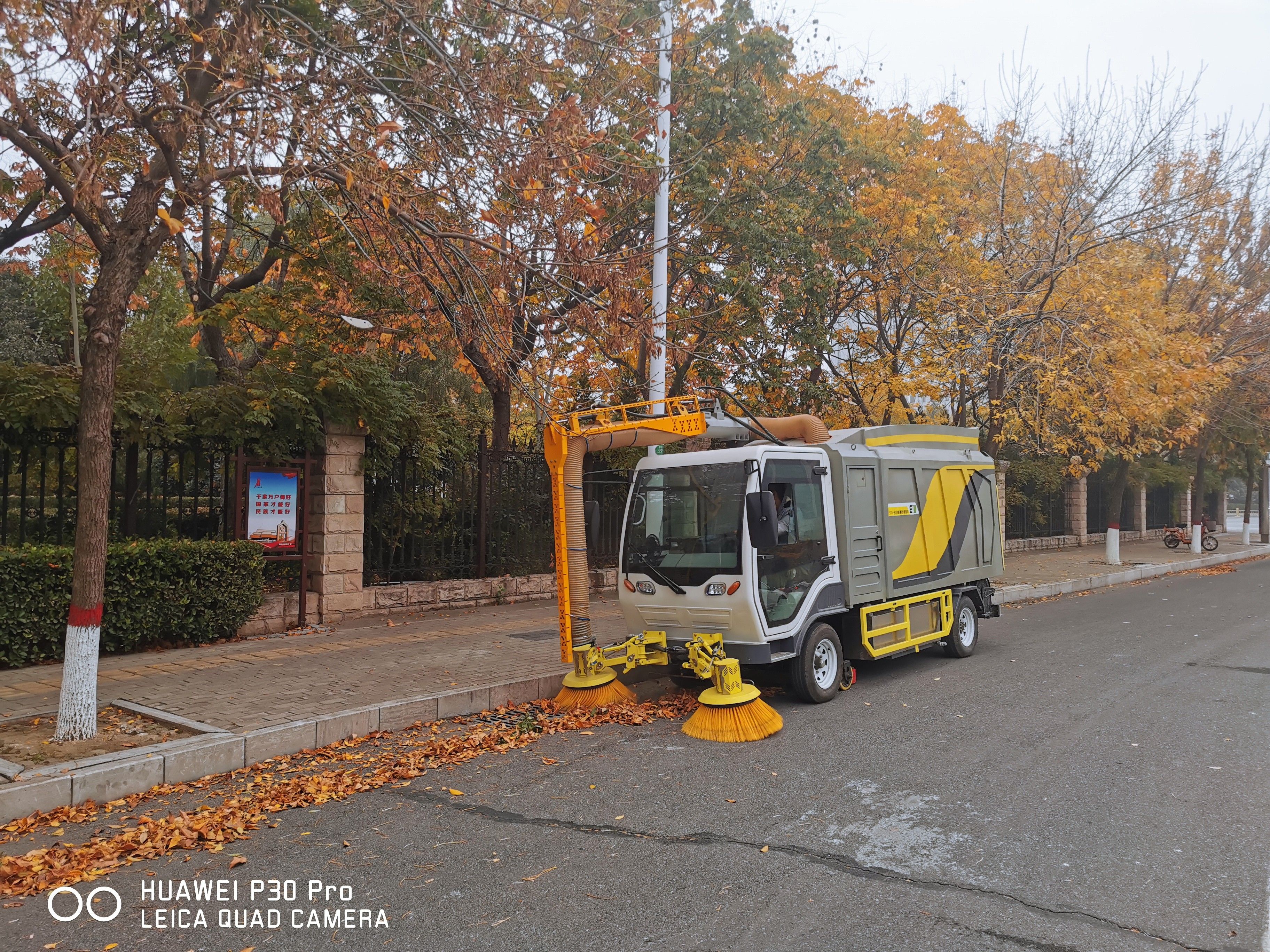

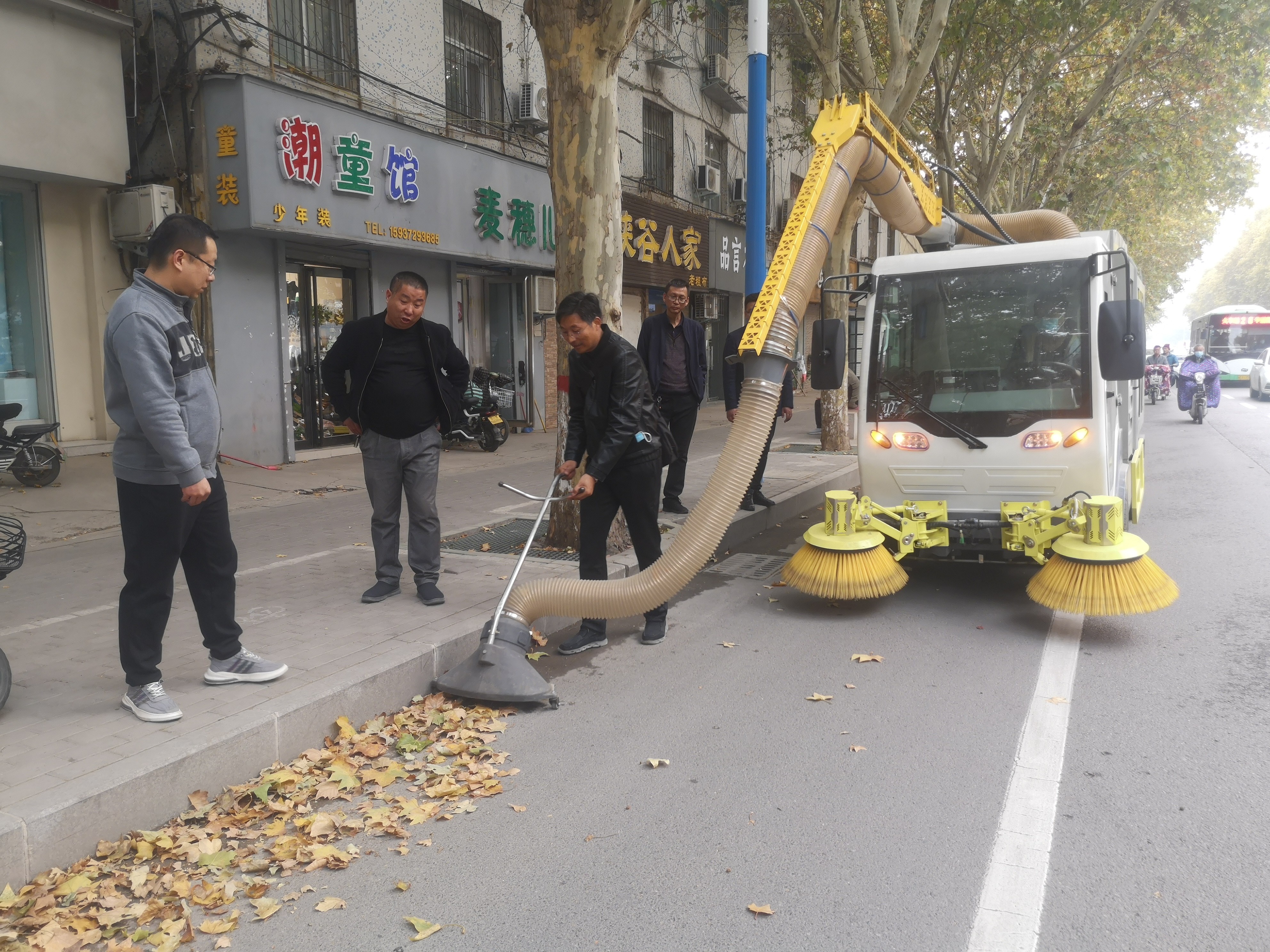

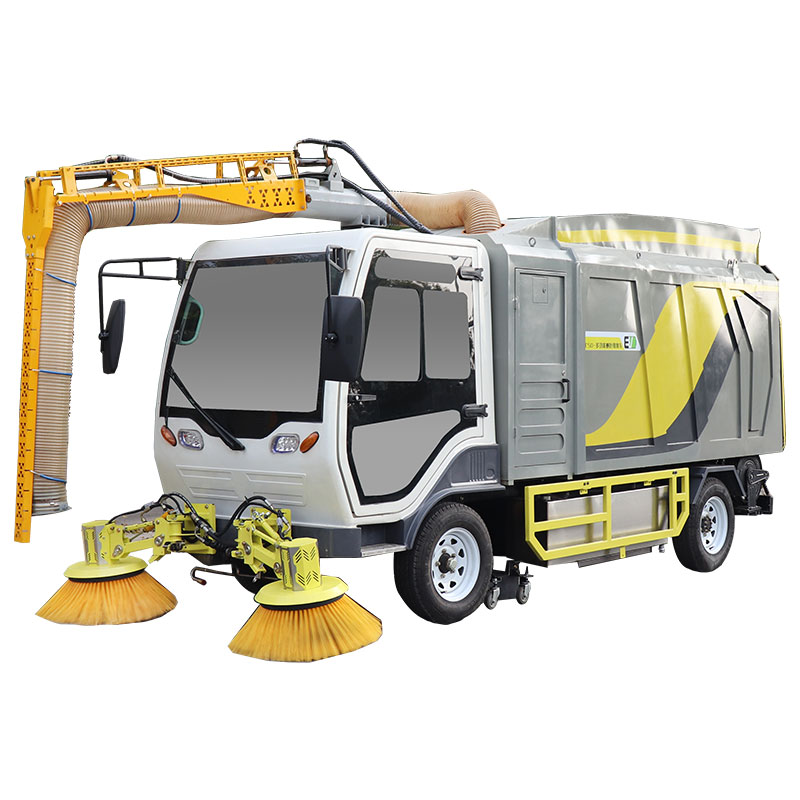

Electric leaf collector/sweeper
- Dedicated for tree leaf collection
- Also can used for road sweeper
Product Paramenters
ITEMS | UNITS | PARAMETER |
Driving Mode | / | Pure Electric(Lithium Battery) |
Rated Passengers | / | 2 |
Wheel Base | mm | 2770 |
Wheel Track | mm | 1255 |
Tires | / | 185-17 |
Max. Gradeability | / | 20% |
Brake System | / | Vacuum Servo |
Steering System | L | Electronic Power |
Battery | Ah/V | 600/72，lithium battery |
Charge Time | h | 5-8 |
Working Hours | h | 5-6 |
Collecting Width | m | 4-6 |
Working Speed | Km/h | 5-15 |
Bucket Volume | m³ | 4.8 |
Max. Pressure | mpa | 20 |
Filter Type | / | Two-stage Filtration System |
Collect Effect | / | Broken and Compress |
Hose Diameter | mm | 200 |
Length of Hand-held Hose | m | 6-10 |
Width of Side Suckers | mm | 700 |
Discharging Way | / | Hydraulic Dump |
Water Tank Volume | L | 1000 |
Front/Left/Right Flush Width | m | 3-6 |
Spray Gun Length | m | 15 |
Loading Capacity | kg | 1500 |
Dimensions | mm | 4865*1440*2358 |
Our Advantages
1. T50 Multi-functional Leaf Collecting Truck is the third generation upgrade product of our company, which can effectively solve the pain point of concentrated leaves season, large volume of leaves, difficult to collect and difficult to transfer.
2. The truck is equipped with 4.8 cubic dustbin, and equipped with a two-stage dust removal and filtration system, with large storage capacity, no dust and other characteristics.
3. The use of large suction fan, can quickly collect scattered and piles of leaves, the unique fan structure design, can break the leaves, compression, greatly reduce the volume of leaves, so that its storage capacity is larger, effectively solve the difficult storage, difficult to transport problems, greatly improve the efficiency of work.
4. In addition, the vehicle is also equipped with a high pressure washing system, which can be used as a high pressure washing vehicle in non-fallen leaves season to carry out high pressure washing operations on roadside stones, sidewalks, non-motorized driveways, trash cans, etc.
5. One machine multi-purpose, effectively improve the vehicle utilization rate.
2. The truck is equipped with 4.8 cubic dustbin, and equipped with a two-stage dust removal and filtration system, with large storage capacity, no dust and other characteristics.
3. The use of large suction fan, can quickly collect scattered and piles of leaves, the unique fan structure design, can break the leaves, compression, greatly reduce the volume of leaves, so that its storage capacity is larger, effectively solve the difficult storage, difficult to transport problems, greatly improve the efficiency of work.
4. In addition, the vehicle is also equipped with a high pressure washing system, which can be used as a high pressure washing vehicle in non-fallen leaves season to carry out high pressure washing operations on roadside stones, sidewalks, non-motorized driveways, trash cans, etc.
5. One machine multi-purpose, effectively improve the vehicle utilization rate.
Company Profile
Jinan Baiyi Environment Protection Technologty Co.,LTD

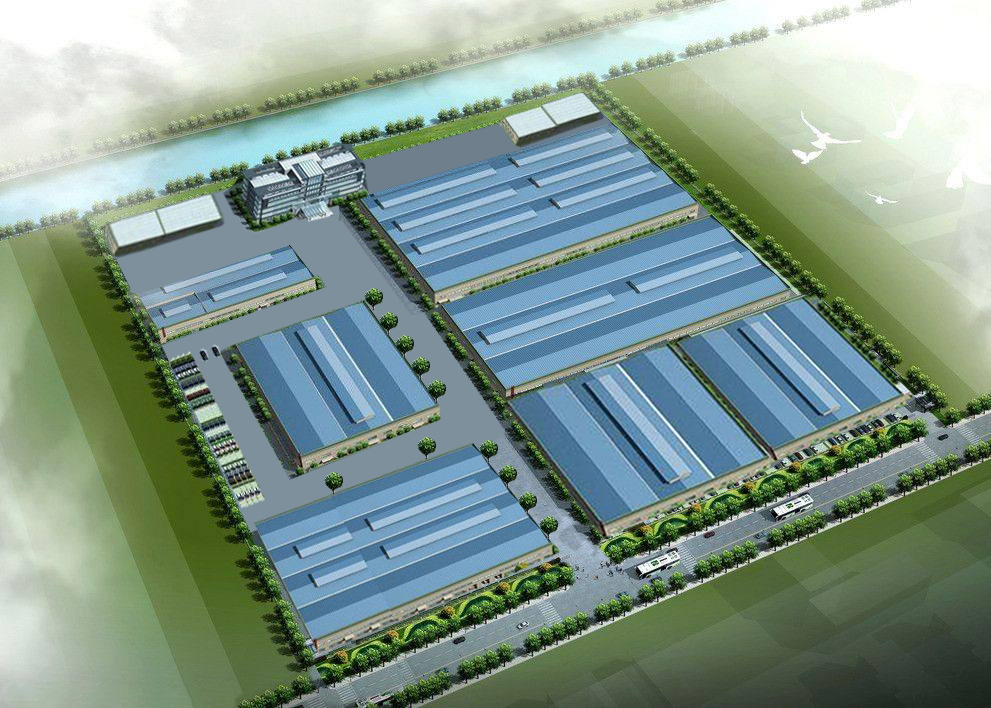

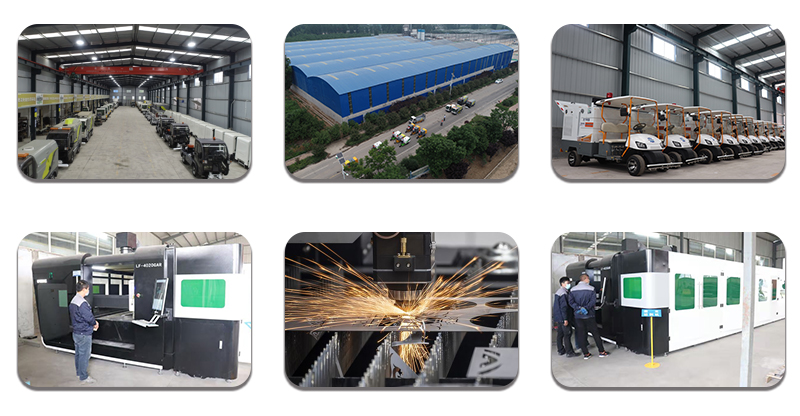

Jinan Baiyi Environmental Protection Technology Co., Ltd. is located in Jinan Economic Development Zone. It is an innovative enterprise which engaged in the research and development, production, sales and service of urban cleaning equipment and electric sanitation equipment. The products consist of 7 series of multi-functional high-pressure washing vehicles, leaf collection vehicles, electric sweeping vehicles, deep cleaning vehicles, electric garbage transfer vehicles, electric sprinklers, electric garbage sorting trucks, and more than forty models of product portfolios.
Webmaster http://www.by-enviro.com/
Address: No. 2335, Ping'an South Road, Changqing District, Jinan
At present, the company has been rated as "National High-tech Enterprise", "Technological Small and Medium-sized Enterprise","Jinan Specialized Special New Enterprise", "Shandong Specialized Special New Enterprise", and obtained the production qualifications of new energy special vehicles from the Ministry of Industry and Information Technology.
With the concept of simultaneous improvement of services, products, and talents, amd nased on basing Shandong, facing the country and going international strategic plan, Baiyi has established the development direction of new energy, interconnection and intelligence. Created a nationwide sales and service network, realized localized services, and to better serve every user, the company has successively obtained "Five-star After-sales Service Certification Certificate", "Contract-abiding and Promise-keeping Enterprise", and "AAA Credit Rating Certificate". In order to enrich the product line and improve product quality, our company actively cooperates with major universities to jointly develop new sanitation equipment suitable for the current sanitation operation status according to market needs.
Service is the value of an enterprise, talent is the future of the company, and product quality is the life of the company. Baiyi cares about the details of each product and selects high-quality suppliers from the entire industry chain. It does not take low price as the standard, but only quality as the standard. Guidelines to ensure that each product is qualified. In 2016, the new domestic sanitation equipment "leaf collector" developed by the company filled the gap in the market and was recognized and praised by users. It provides a strong guarantee for the municipal, environmental sanitation, gardening and other departments to deal with the concentrated fall leaves in autumn.
With the corporate mission of "creating a better living environment for mankind", Baiyi people are confident and determined to meet the challenges of the future.
With the corporate mission of "creating a better living environment for mankind", Baiyi people are confident and determined to meet the challenges of the future.
Webmaster http://www.by-enviro.com/
Address: No. 2335, Ping'an South Road, Changqing District, Jinan

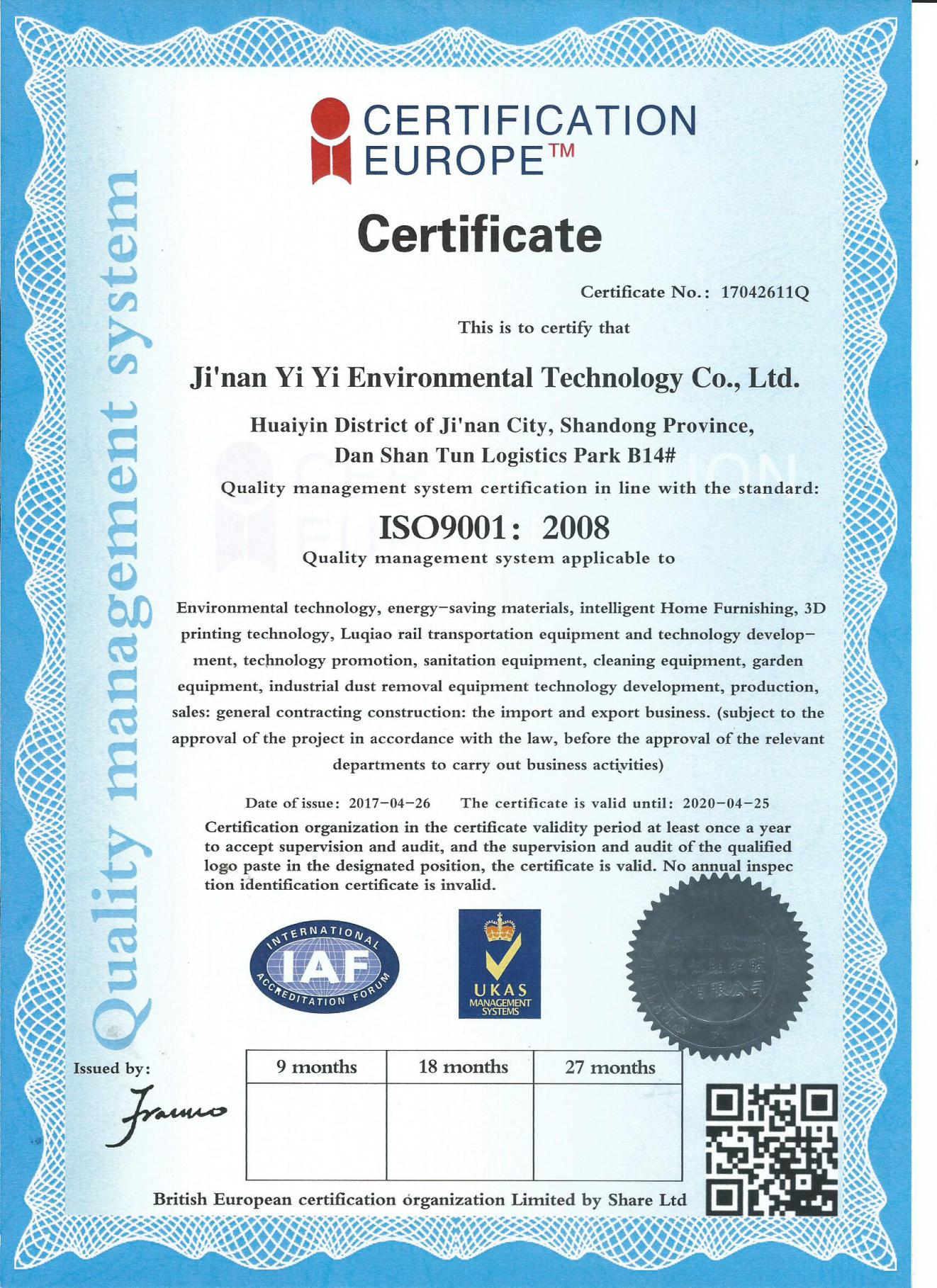

Certifications
