3 Strand PP Twist Rope Making Machine

PRODUCT DETAIL
Voltage:380V/220V/440V...Showroom location:not any
Wire rope structure:3 / 4 strands (can be cored)Rope range:3-6 mm
strength:5.5 kWHealth status:new
Product Category:twisted plastic ropeApplicable industries:Manufacturing plants, farms, construction projects
Video outbound inspection:ifPackaging Details:One M33 rope making machine can be fixed inside a 20f container and protect the machine parts
Marketing Type:normal productSpool size:8" / 10'' /12'' or customized
Rope Material:PP/PE/polyester/nylon/cotton/sisal/juteSupply capacity:20 sets per month
Final coil size:adjustableCore component warranty:1 year
Origin:Shandong Province, ChinaCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
brand:kelpWeight (kg):12000 kg
Warranty:1 yearTwist direction:Size/Z
Machine name:Rope making machine 3 strands twisting machinepayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
port:QingdaoMechanical test report:if
Product Description

PP twisted nylon 3 strands rope making machine 3 strands rope twisting machine


Tai'an Hardy Machinery provides complete rope production line machines and services.
Ropes are divided into monofilament ropes, split membrane ropes, multifilament ropes and natural ropes.

Applicable rope
1. Rope diameter: from 2mm to 60mm.
2. Applicable materials: monofilament, multifilament, natural fiber such as HDPE, PP, PET, nylon, polyester, cotton, sisal, jute, coconut, banana, recycled tape, non-woven tape, etc. This machine has a wide range of applications.
3. Rope structure: 3 strands, 4 strands, 4 strands with core.

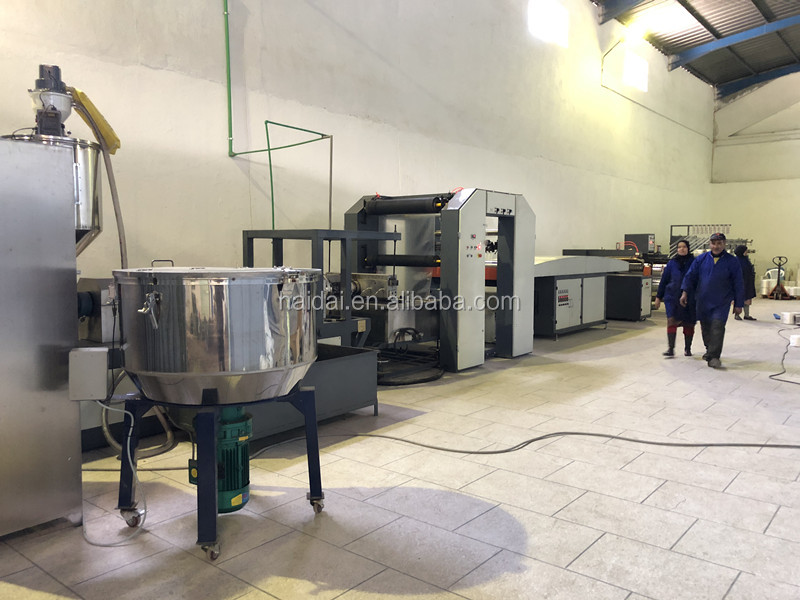

PP PE monofilament rope complete production line

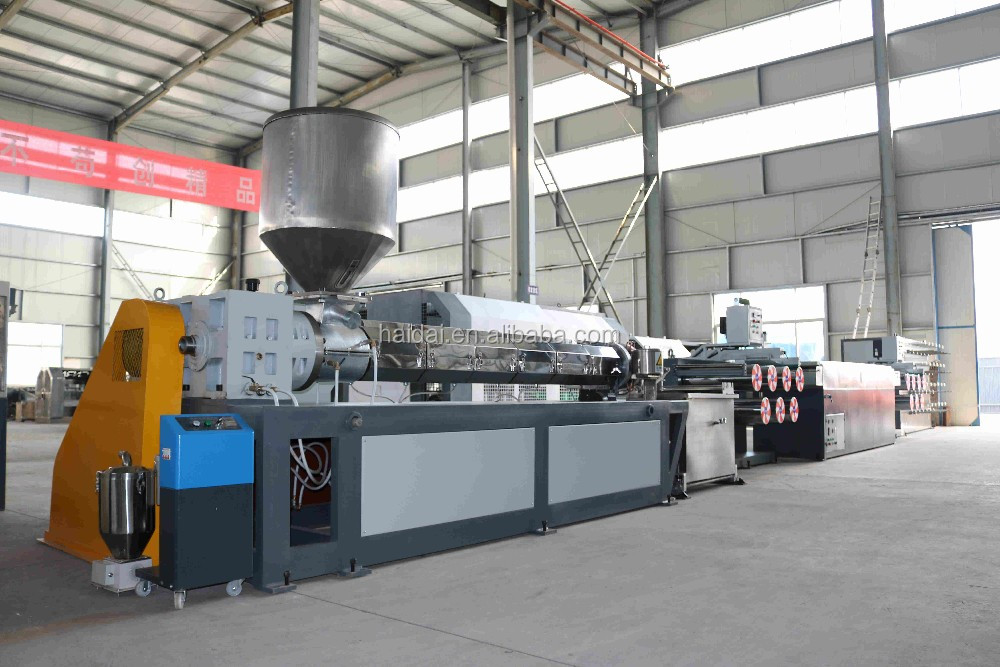

1. PP PE monofilament extruder is matched with rope making machine.

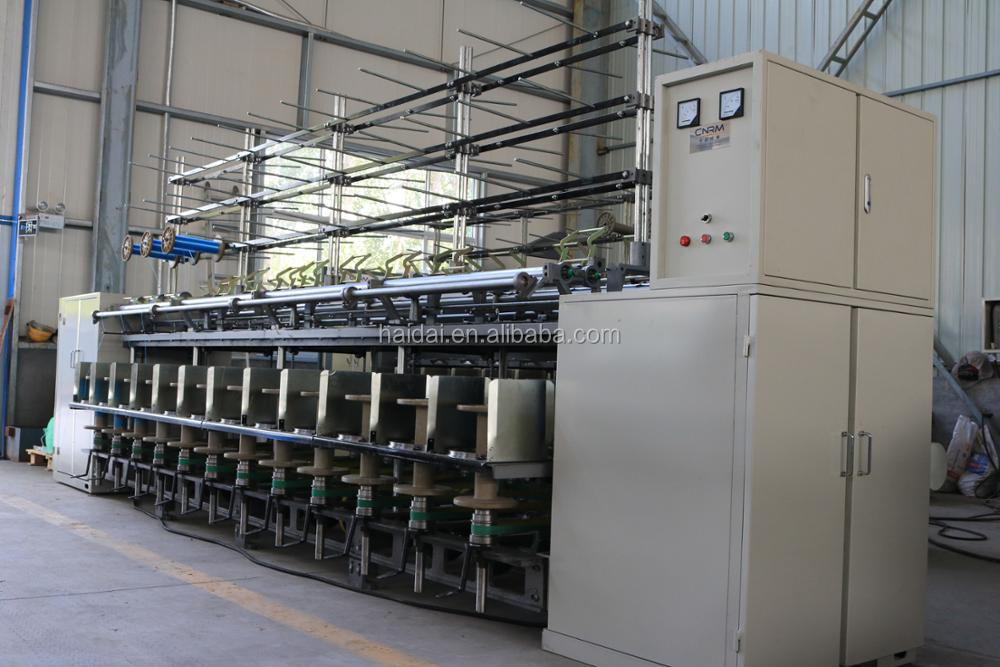

2. Ring twisting machine, used for initial twisting of ropes.
3. Rope making machine for making 3-strand or 4-strand rope.
4. Rope rewinding machine for reel, coil, skein packaging.

technical details
thing
HDTM-M22
HDTM-M33
HDTM-M44
HDTM-M55
HDTM-M66
HDTM-M77
Rope pitch(mm)
3~6
3~10 pieces
6~14
12~20 o'clock
18~26 days
22~32
Laying range (mm)
18~30 years old
15~38 years old
20~50
32~78
40~105
83~121
strength
5.5 kW
5.5 kW
7.5 kW
11.5 kW
18.5 kW
20 kW
Reel Size(mm)
480*265
600*400
610*400
610*400
610*400
610*400
Pay-off reel size(mm)
175*300
175*300
175*300
175*300
175*300
175*300
Number of bobbins
3/4*2
3/4*10
3/4*24
3/4*32
3/4*46
3/4*64
detailed image

PP twisted nylon 3 strands rope making machine 3 strands rope twisting machine

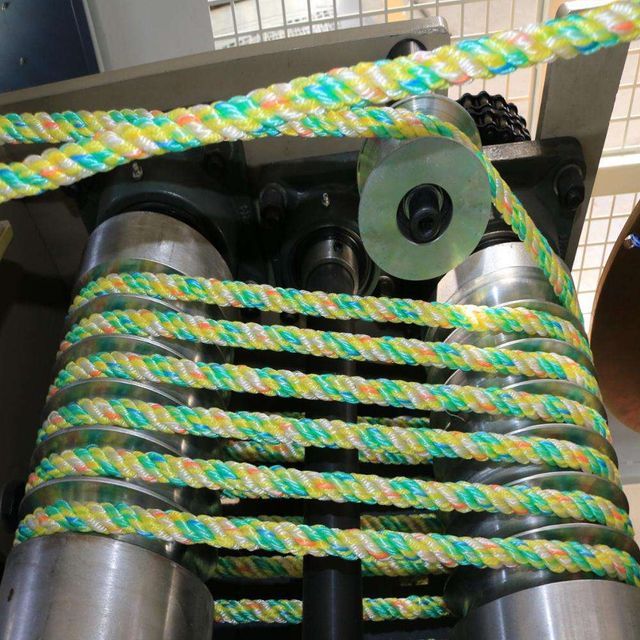

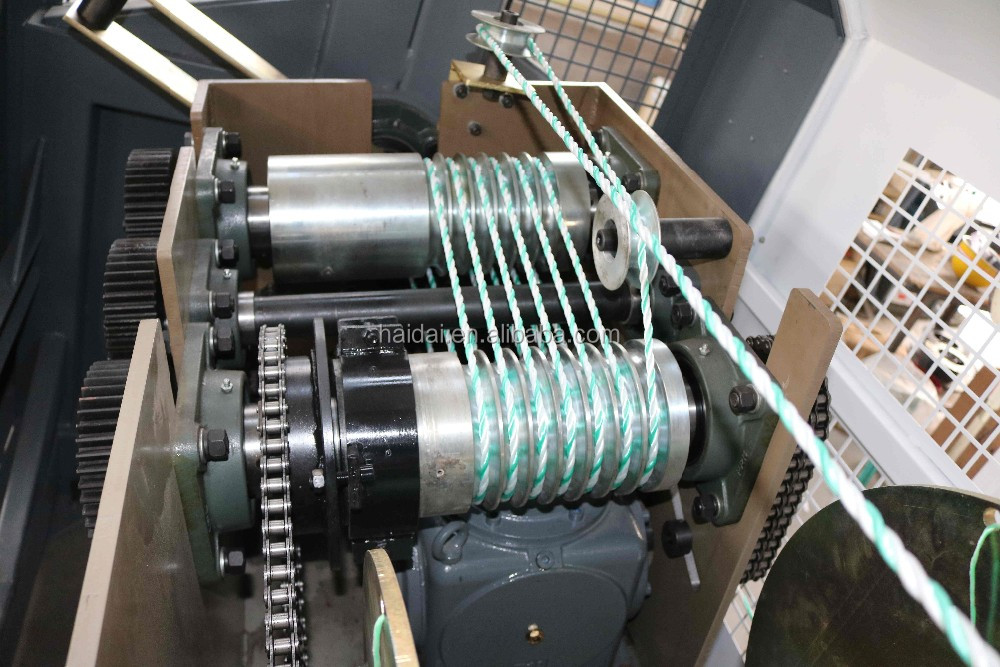

Chromium plating: make the traction shaft have high hardness, about 400-1200hv, wear-resistant and heat-resistant.

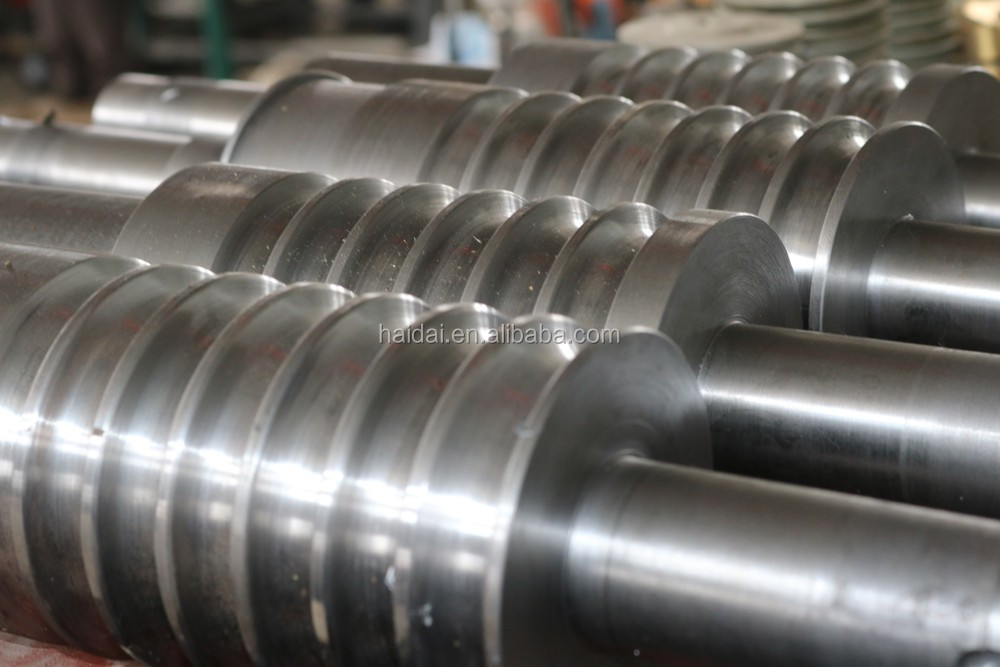

Quenching and tempering of shaft parts: improve strength, hardness and wear resistance, while maintaining good toughness, so as to improve the overall mechanical properties.

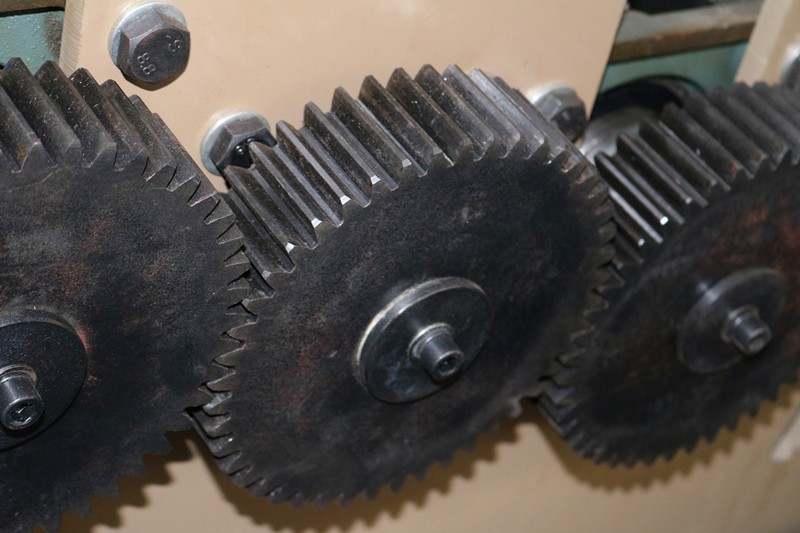

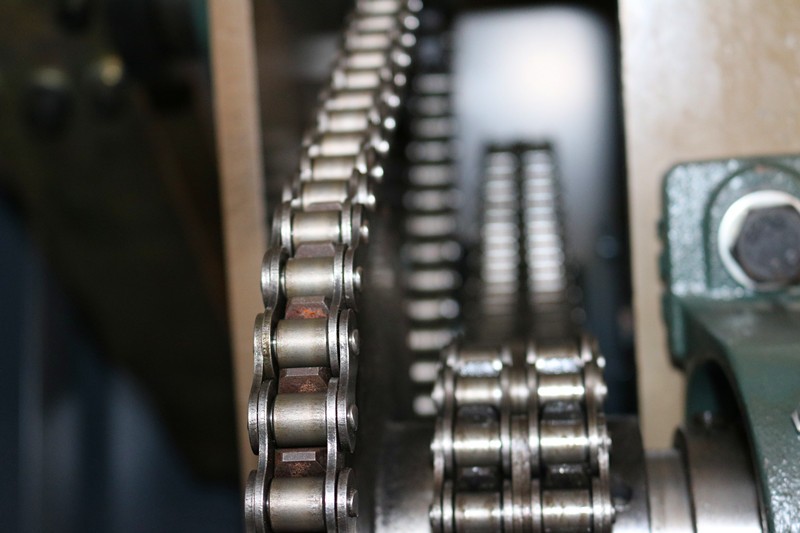

High-frequency quenching treatment: heat treatment for gears and sprocket teeth, high external hardness, low brittleness, wear resistance, and not easy to oxidize, while the core still maintains sufficient toughness.

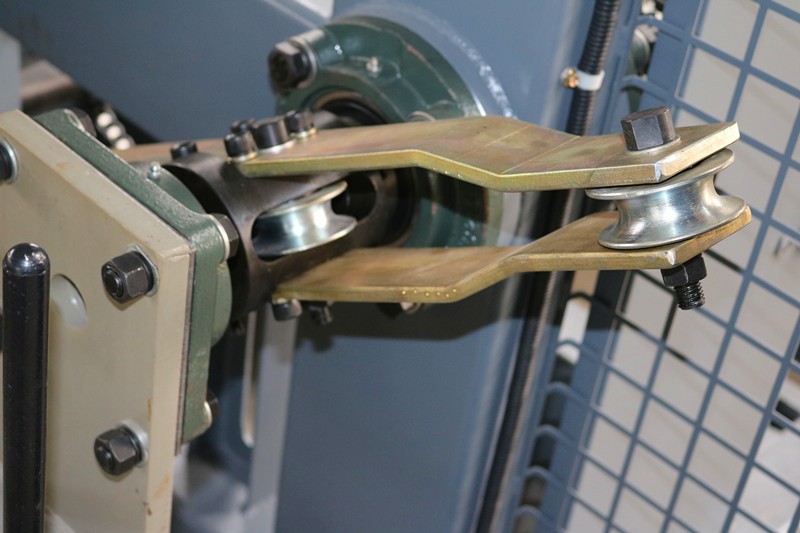

The sheave and the flying arm are galvanized, and the workpiece is rust-proof and beautiful.

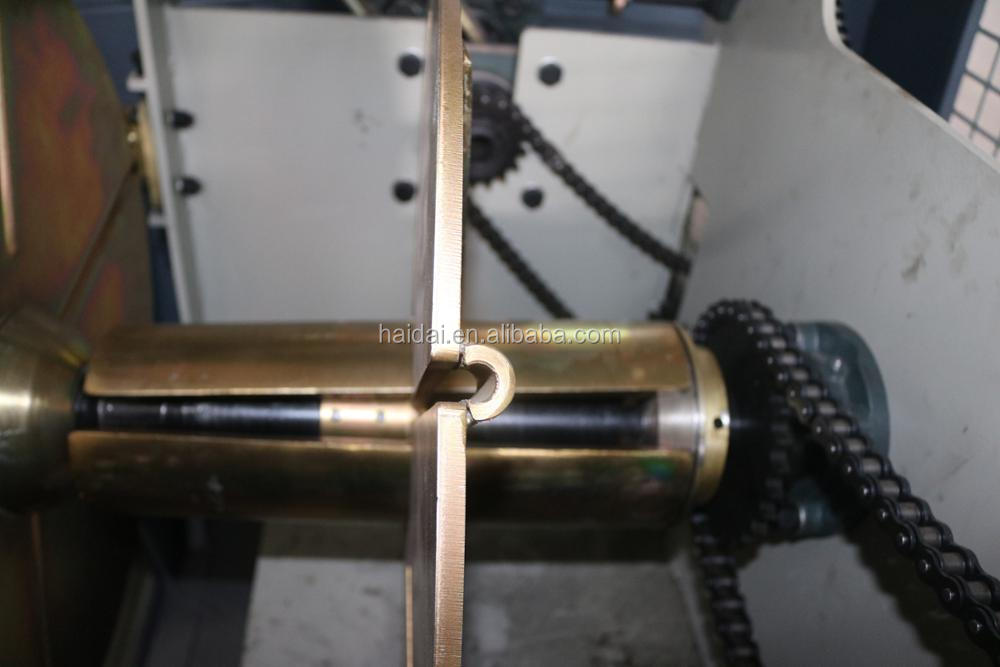

The specially designed rope reel can directly roll rope rolls of different sizes from the rope making machine, which can save the rewinding process.

our company
our service

After-sales service

* Training how to install the machine, training how to use the machine.

* Technical engineers are available to repair machinery overseas.

* Any machine questions will be answered.

* Service life!

FAQ

1. Q: How can I get the price?
A: You can contact me online or send me an inquiry. Please provide the details of your request as clearly as possible. So we can send you the price at the first time. For design or further discussion, it's better to contact our Alibaba trade manager, Whatsapp, QQ, Skype or other instant ways in case of any delay. (you can find it at the end)

2. Q: How can I get photos and videos about the rope machine?
A: We can provide you all detail photos of our machines. If you need, we can shoot operation video for you.

3. Q: Are you a factory or a trading company?
A: We are a professional rope machine factory and we have export right.

4. Q: Can you do the design for us?
A: Yes, we have a professional team with rich experience in rope machine design and manufacture. Please tell us your requirements; our engineers will try their best to realize it; you can also send us your design drawings, we can make the machine follow it.

5. Q: How to install the machine?
A: For extruder, our engineer can install it for you; for ring twisting machine, we can install one set before delivery; They are finished machines and require no installation.

6. Q: Can I operate the machine easily?
A: Yes, all our machines are intelligent and easy to operate, anyone can follow the instruction

7. Q: What is your delivery term?
A: We accept EXW, FOB, CNF, etc.

8. Q: How can I get the machine?
A: We usually ship the machines in containers.
