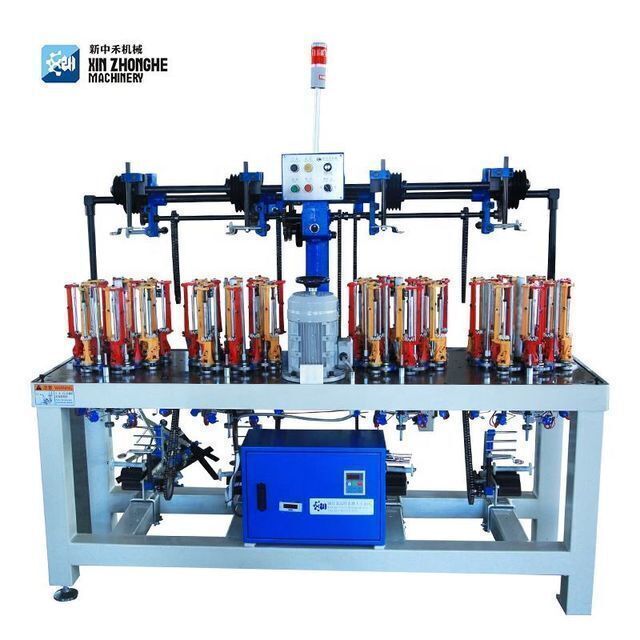

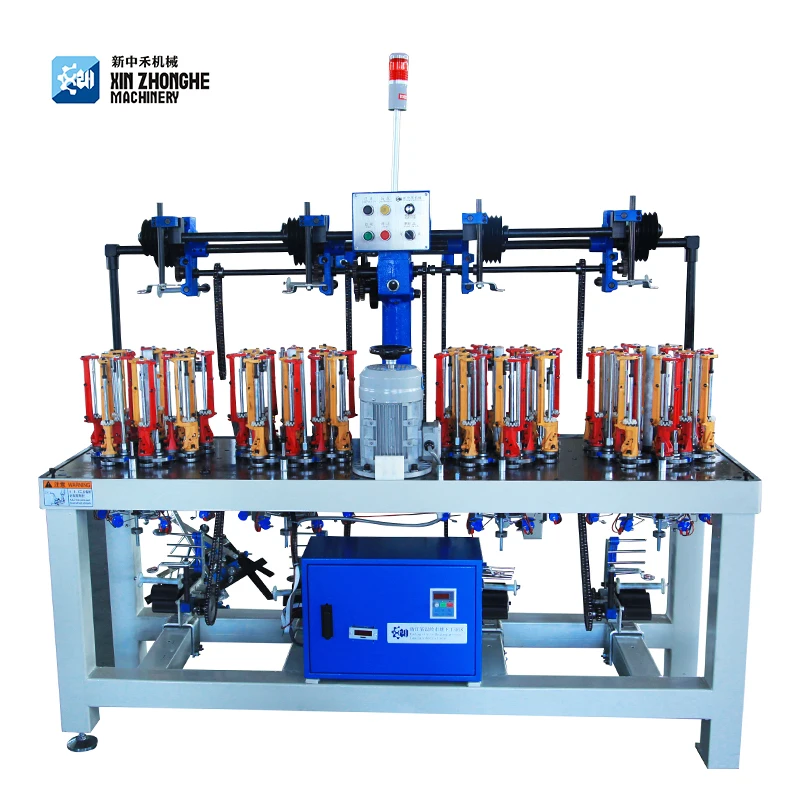

Professional High Speed braiding machine 90-16-4 H
- $2000.00 /set
- 1 set
- Wenling Xinzhonghe Machinery Factory
- Zhejiang, China
- Ms Vivien Lee
| Packaging Detail: | loose package/wooden box/pallet; | Supply Ability: | 400 Set/Sets per Month; |
| Port: | Ningbo/Shanghai; | Showroom Location: | India,Bangladesh; |
| After-sales Service Provided: | Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; | Bobbin Size: | 48*18*142mm; |
| Max horngear speed: | 300rpm/min; | Local Service Location: | India,Bangladesh; |
| Warranty: | 1 Year; | Place of Origin: | Zhejiang China; |
| Package Preview: | ; | Brand Name: | Xinzhonghe; |
| Head qty: | 4; | Dimension(L*W*H): | 177*54; |
| Power: | 0.75KW; | After Warranty Service: | Video technical support,Online support; |
| Applicable Industries: | Manufacturing Plant; | Payment Terms: | L/C,T/T,Western Union,paypal; |
| Spindle qty: | 16; |
| 90 Series High Speed Round Rope Braiding Machine | |||||||
Model | Spindle Qty | Head Qty | Power (KW) | Max Horngear Speed (rpm/min) | Bobbin Size (mm) | Worktable Measurement L*W(cm) | Rope Dia (mm) |
| 90-8-8-AH | 8 | 8 | 0.55 | 300 | Φ48×140 | 177*54 | 0.1-8mm |
| 90-12-2 | 12 | 2 | 0.55 | 300 | Φ48×140 | 83*35 | 0.1-8mm |
| 90-12-4-A | 12 | 4 | 0.75 | 300 | Φ48×140 | 94*79 | 0.1-8mm |
| 90-12-8-AH | 12 | 8 | 1.1 | 300 | Φ48×140 | 170*79 | 0.1-8mm |
| 90-12-4-H | 12 | 4 | 0.75 | 300 | Φ48×140 | 151*54 | 0.1-8mm |
| 90-16-2 | 16 | 2 | 0.55 | 300 | Φ48×140 | 93*46 | 0.1-8mm |
| 90-16-4-H | 16 | 4 | 0.75 | 300 | Φ48×140 | 177*54 | 0.1-8mm |
| 90-20-2 | 20 | 2 | 0.75 | 300 | Φ48×140 | 109*50 | 0.1-8mm |
| 90-20-4-H | 20 | 4 | 1.1 | 300 | Φ48×140 | 199*50 | 0.1-8mm |
| 90-24-2 | 24 | 2 | 0.75 | 300 | Φ48×140 | 113*58 | 0.5-12mm |
| 90-24-4-H | 24 | 4 | 1.1 | 300 | Φ48×140 | 220*61 | 0.5-12mm |
| 90-32-1 | 32 | 1 | 0.75 | 300 | Φ48×140 | 77*71 | 1-15mm |
| 90-32-2 | 32 | 2 | 0.75 | 300 | Φ48×140 | 137*69 | 1-15mm |
| 90-40-1 | 40 | 1 | 1.1 | 300 | Φ48×140 | 96*85 | 2-16mm |
| 90-40-2 | 40 | 2 | 1.1 | 300 | Φ48×140 | 160*81 | 2-16mm |
| 90-40-2-2T | 40 | 2 | 1.1 | 300 | Φ48×140 | 160*81 | 2-16mm |
| 90-44-1 | 44 | 1 | 1.1 | 300 | Φ48×140 | 99*89 | 2-20mm |
| 90-44-2 | 44 | 2 | 1.5 | 300 | Φ48×140 | 171*89 | 2-20mm |
| 90-48-1 | 48 | 1 | 0.75 | 300 | Φ48×140 | 99*90 | 3-20mm |
| 90-48-2 | 48 | 2 | 1.5 | 300 | Φ48×140 | 178*93 | 3-20mm |
| 90-56-1 | 56 | 1 | 0.75*2 | 300 | Φ48×140 | 123*105 | 3-20mm |
| 90-64-1 | 64 | 1 | 0.75*2 | 300 | Φ48×140 | 122*118 | 4-25mm |
| 90-72-1 | 72 | 1 | 0.75*2 | 300 | Φ48×140 | 140*150 | 4-25mm |
| 90-80-1 | 80 | 1 | 0.75*2 | 300 | Φ48×140 | 140*150 | 4-25mm |
| 90-96-1 | 96 | 1 | 0.75*3 | 300 | Φ48×140 | 160*166 | 5-30mm |
1.What is the warranty for the braiding machines
Our machine has 1 year guarantee, for easy worn down spare parts ,we have already shipped some together with the machine. In this guarantee year, these spare parts are free, you only need to pay freight cost.
Our after-sales technician are always available to offer technician support by long-distance or overseas.
In some countries ,we have office or agent, you can directly ask our oversea technician to solve the problem in your factory.
2.How to maintain the machines?
Change the machine oil regularly.Before working,inject some machine oil between horngear and horngear axle. After working,clear the broken yarn ,especially spindle track.

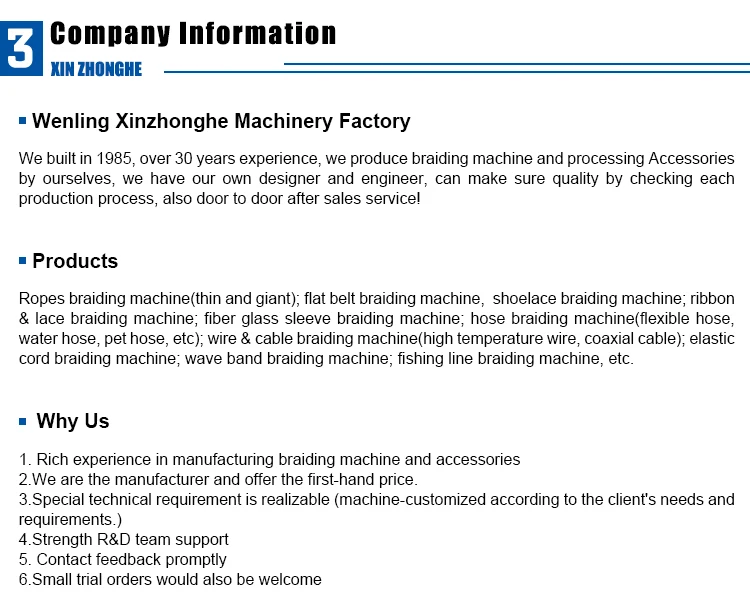

3. Are you a manufacturer or trading company?
we are a manufacturer,we has 30 years experience in the design and manufacture of braiding machine and it’s accessories
4. What informations should I offer to get a detailed quotation from you?
Rope diameter ,rope useful, sample rope picture ,braid material,the best you know machine model or Machine photo you have.
Machine working power: 220V/60HZ/3PHASE, 380V/50HZ/3PHASE ,440V/50HZ/3PHASE or others
5. Can you install the machine and make the machine running stably for us after machine arrive?
We have English translated operation manual. Also Our machine is mostly ready for running directly, as we already debugged the machine before shipping, you just need to follow our manual.
For first time doing this business, we suggest you to study in our factory freely.
If necessarily, our technicians are available to service overseas,you only need to afford his air ticket, Accommodation.

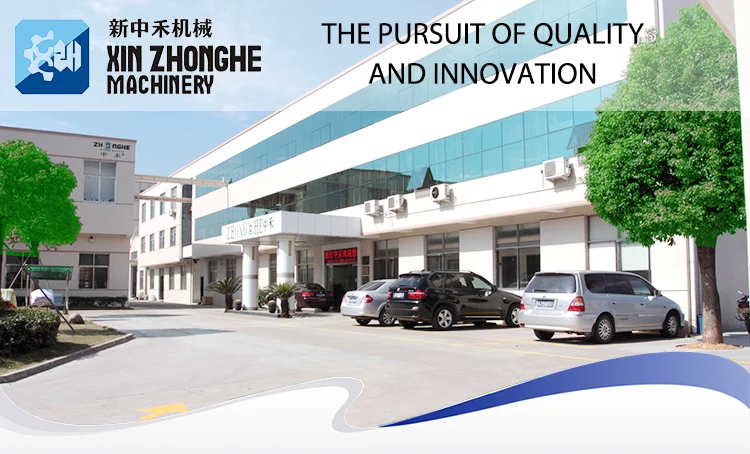

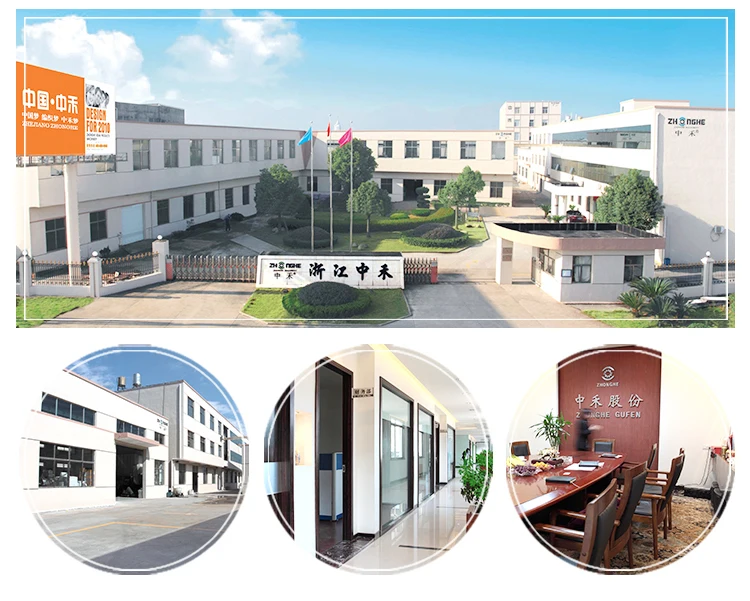

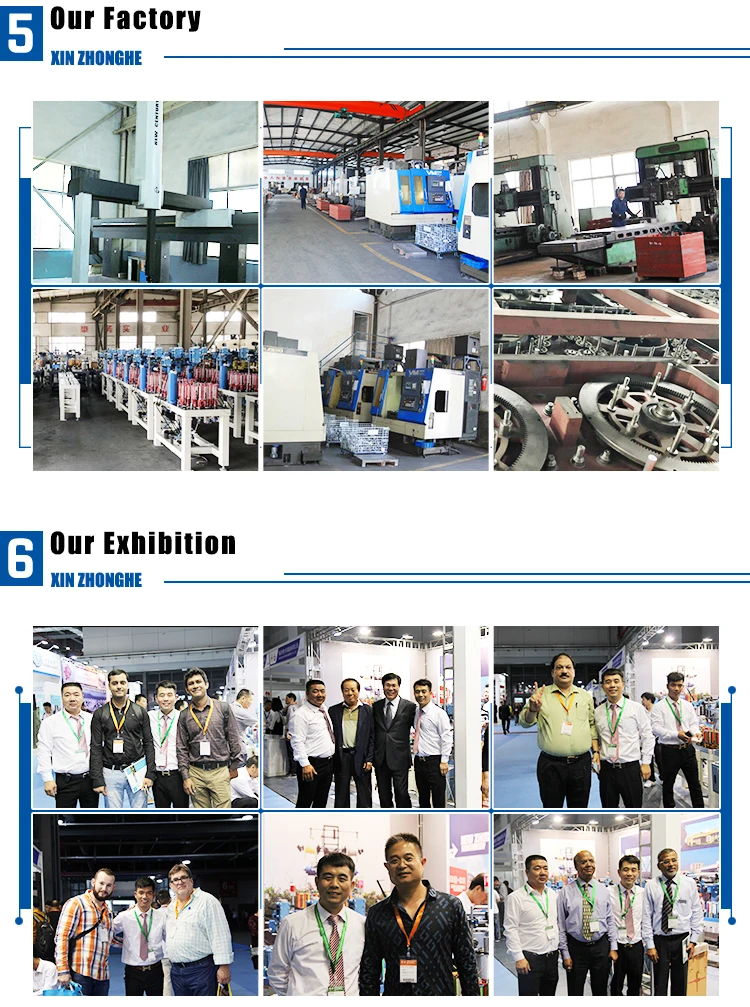

6. Where is your factory located? How can I visit there?
A: Our factory is located in Wenling Taizhou City, Zhejiang China.You can fly to Taizhou Huangyan airport directly, or by train to Wenling station. From Taizhou airport is one hours by car and Wenling station is 30minute by car to our factory,All our clients are warmly welcome to visit us!
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample analysis support.
* Sample testing support.
* Machine model recommend and select.
* View our Factory
After-Sales Service
* Training how to install the machine, training how to use the machine.,training to how to maintain the machine.
* Engineers available to service machinery overseas.
