3 ton lever block/ratchet pull hoist with overload protected 10 ft chain

PRODUCT DETAIL
Custom Support:OEM, ODMPackaging Details:Standard export packaging
Chain painting:Galvanized or Black Coatedmodel:VL
port:Tianjin or GuangzhouCard:OEM
Lifting height:1.5M-3Mcapacity:0.5-6 tons
payment terms:L/C,D/P,T/TCertificate:Chief Executive
Supply capacity:10000 pieces per monthCertification:ISO9001
place of origin; place of origin:Hebei chinaWarranty:1 year
Load chain:G80color:black, yellow, orange, white, blue
Packaging Preview:Name:Ratchet Lever Block
Product Description

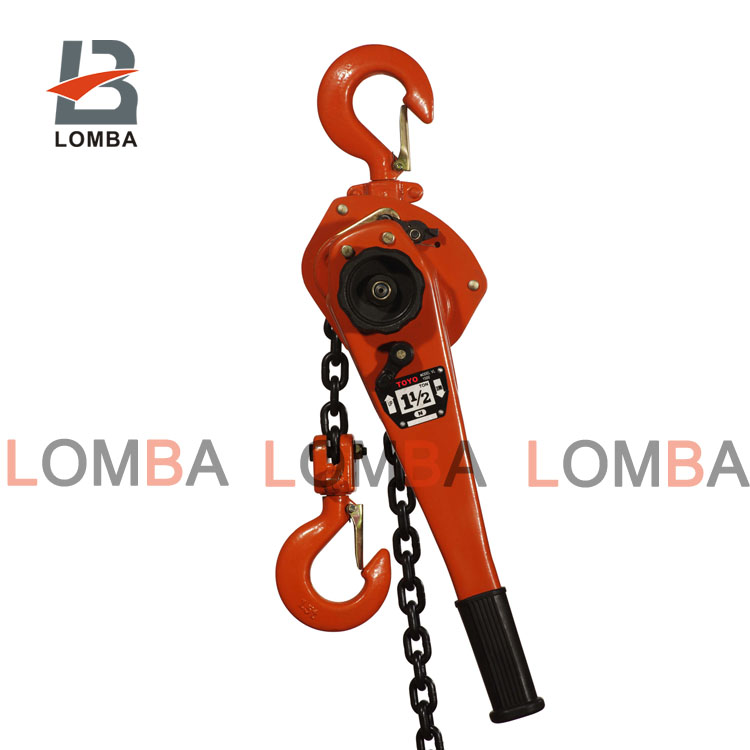

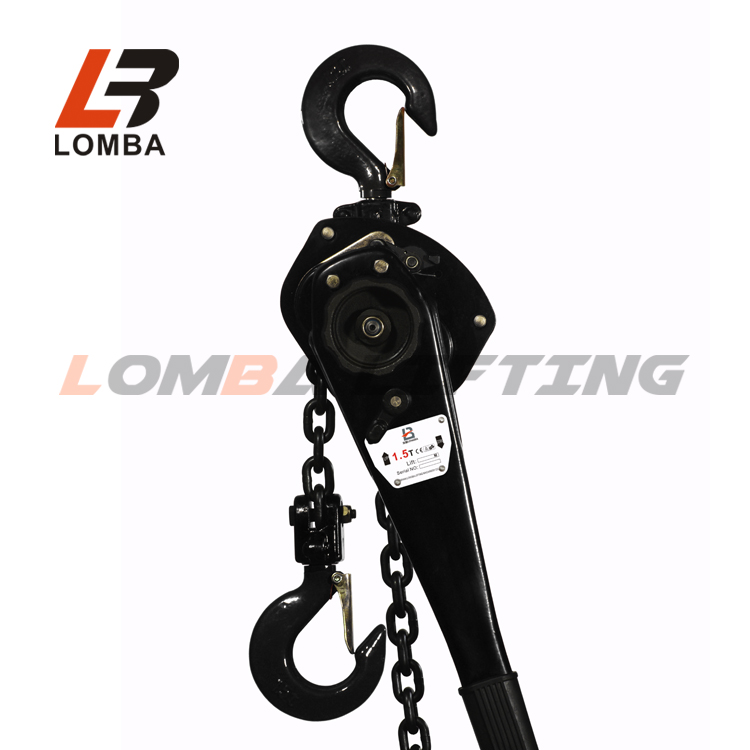

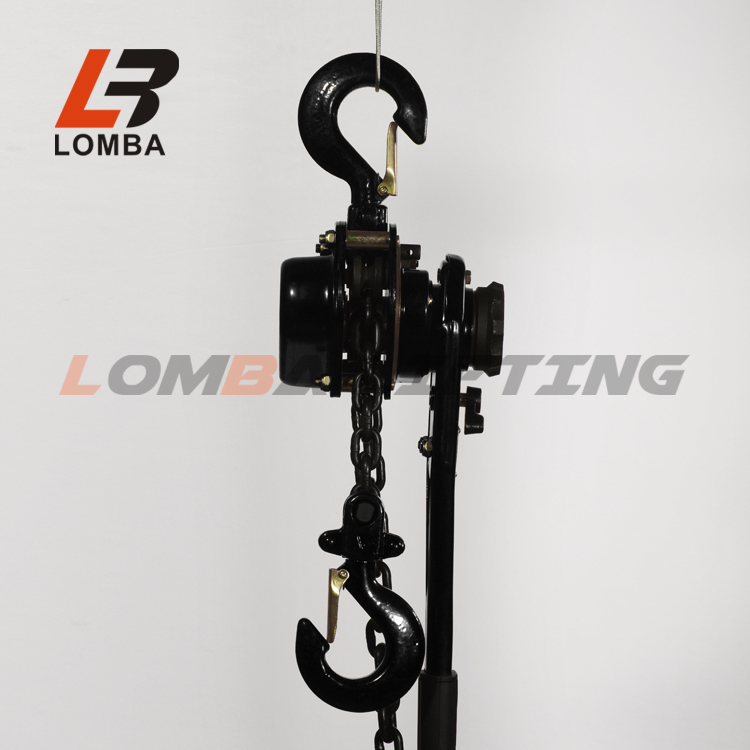

VL Type 0.75Ton to 6Ton Lever Hoist G80 Chain Manual Lift





Technical Features

1. One-button chain-free adjustment

2. Grade 80 alloy load chain ISO and GES standard

3. Forged and heat treated load hooks with batch tracking capability and stretch indicator

idling

1. Press the claws all the way down and pull the grip ring towards you.

2. The chain can be adjusted up and down manually.

3. To stop idling: put the gear lever in the down position (see diagram below). Then, depress the pawl as far as it will go, and push the snap ring slightly so that the pawl engages the outer edge of the stop plate. Next, grab the grip ring and handle with one hand and turn them counterclockwise while pushing them. The pawl returns to its original position.



* Specifications on this flyer may be modified for improvement without notice.



Product Code

capacity

(t)

Standard elevator

(male)

test load

(t)

pull effort

(Kilogram)

pendant number

Load chain diameter

(mm)

Dimensions (mm)

net weight

(Kilogram)

One

Second

C

D

Second

VL050

0.50

1.5

0.75

11

1

5

148

128

295

256

45

6.1

VL075

0.75

1.5

1.13

15

1

6.3

148

128

295

256

45

6.9

VL100

1.00

1.5

1.50

20

1

6.3

152

128

310

256

48

7.0

VL150

1.50

1.5

2.25

18

1

7.1

161

148

335

368

52

9.6

VL200

2.00

1.5

3.00

twenty four

1

7.1

168

148

350

368

60

10.1

VL300

3.00

1.5

4.50

38

1

9

191

180

405

368

66

15.9

VL600

6.00

1.5

9.00

39

2

9

191

180

550

368

80

25.7

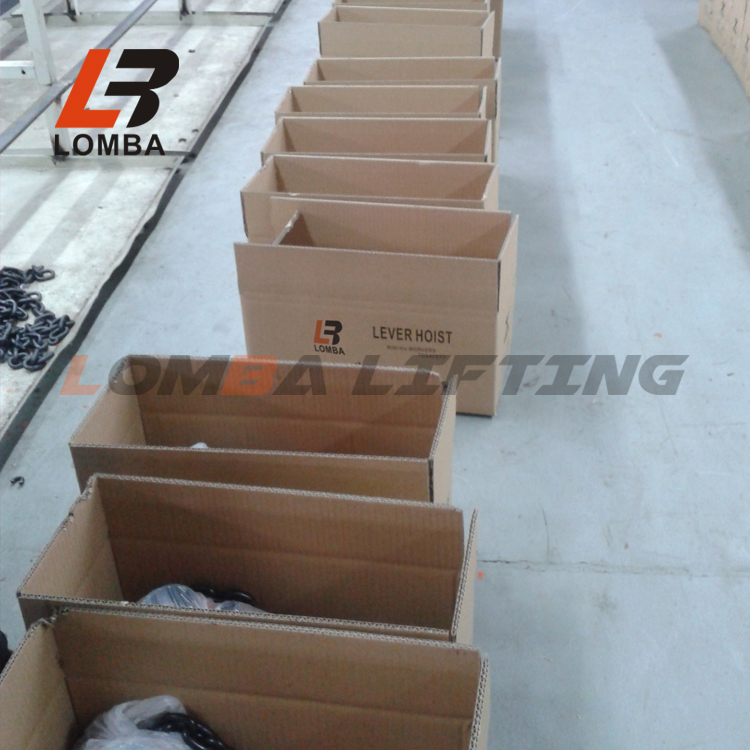

Packaging and Shipping
