30 ton 40 ton end dump tipper semi-trailer for sale

PRODUCT DETAIL
fetal:12Tire specifications:11.00R20 12PR, 12R22.5 12PR
Packaging Preview:Supply capacity:100 sets of truck heads per month
payment terms:Western Union, wire transfersize:9900*2480*600mm
use:Cargo Trailers and Utility TrailersPackaging Details:bulk carrier
Original serial number:TFST9.5MTotal mass:40000kg
port:Tianjin, Shanghai, LianyungangApproach angle:29/37/43
length:customizableaxis:3 axes
Maximum payload:>3001 kgMaterial:steel
Health status:newtype:semi-trailer
place of origin; place of origin:Shandong China
Product Description
Specification
Dump semi-trailer is suitable for the transportation of bulk cargo such as coal, ore, building materials, etc.
Dump semi-trailers can be divided into two categories according to their purposes:
A heavy-duty and super-heavy dump trailer for off-road transport is mainly used for transport tasks such as
Large-scale mines and projects are usually used in conjunction with excavators. another type of light and
Medium-sized ordinary dump trailers for road transportation are mainly responsible for transporting bulk cargo such as
Like sand, soil and coal, they are often used with loaders.

1. The carriage adopts side-turning and reverse self-unloading methods, which can effectively improve the transportation
The efficiency of the loader in transporting bulk cargo.
2. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has
Two types: dustpan and rectangular. It has high strength, strong lifting force, good rigidity, good toughness, strong bearing capacity,
And there is no permanent deformation.
3. Sophisticated workmanship: the main components are processed with advanced equipment, and the longitudinal beams are fully automatic
Using submerged arc welding, assembly machines are used for precise assembly of shafts and leaf springs.
Health status
new
Material
steel
maximum payload

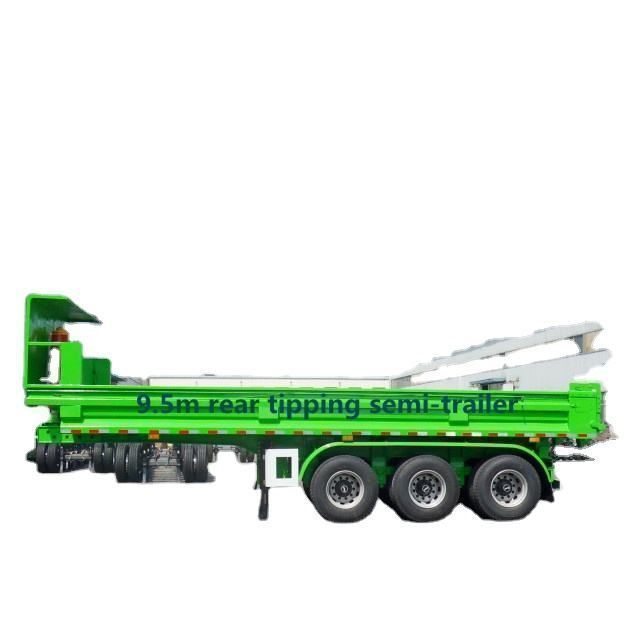

9.5m rear tilt semi-trailer
color
customizable
axis
3 axes
Axle brand
13T axle BPW/FUWA brand
fetal
11.00R20 12PR, 12R22.5 12PR


Inner size of cargo box (L*W*H)
Length: 9900, 9400, 8900
Width: 2480, 2460, 2440, 2420, 2400,
Height: 600


Size (L*W*H)
Length: 10500, 10000, 9500mm
Width: 2550
Height: 3450, 3550, 3650, 3750, 3850, 3950
