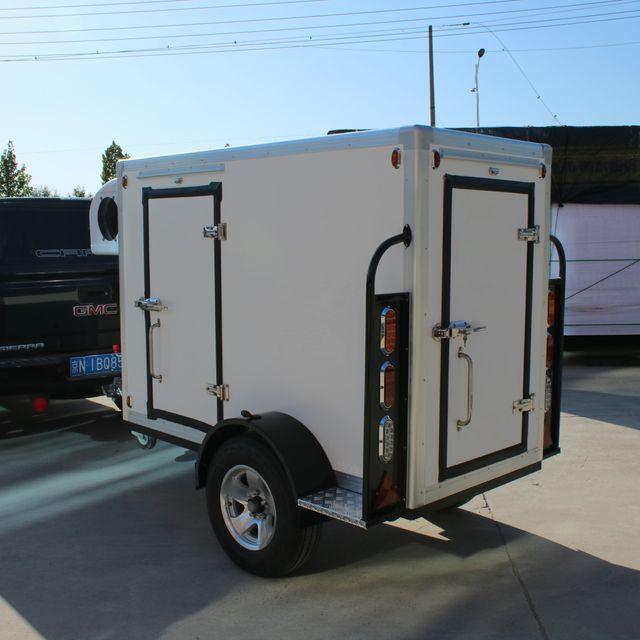

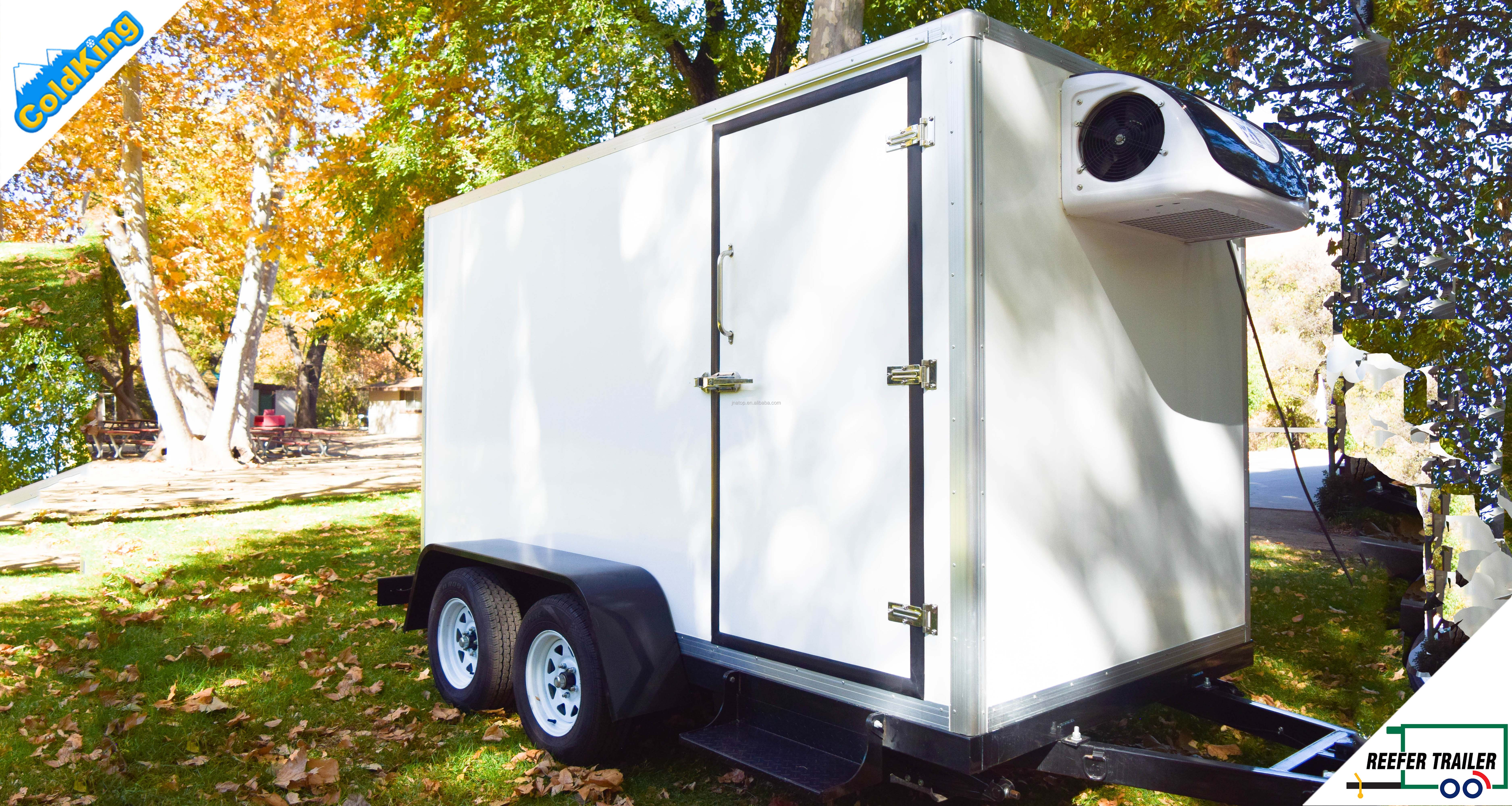

ATOP 5ft/1.5m Long Refrigerated Trailer Box Use GVW 3000Kgs 2 Axle Small Utility Trailer
- $1900.00 /unit
- 1 unit
- Jinan Atop Industry & Technology Co., Ltd.
- Shandong, China
- Mr Allan Barton
PRODUCT DETAIL
| axis: | 1 axis | size: | 1642+1500(L) x 2520(W) x 730(H)mm |
| type: | ATOP250L2A | Main ingredients: | Q235A Steel Cube Tube |
| port: | Shanghai/Qingdao Port, China | Maximum payload: | 1000 kg |
| Supply capacity: | 50 units per month | Pull rod: | 1642mm length |
| fetal: | ST205/75R14 | Finish: | Hot dip galvanized paint |
| place of origin; place of origin: | Shandong China | pause: | 7 layer leaf spring |
| gross weight: | 1500 kg | brand: | on top |
| brake: | electrical | payment terms: | letter of credit, wire transfer |
| Packaging Details: | piece | color: | any color |
Trailer Chassis Specifications
Main Specifications | ||||||
Trailer Chassis Overall Length | 1642+1500mm | drawbar length | 1642mm | |||
Overall width of trailer chassis | 2520mm | Usable length of case | 1500mm | |||
Overall height of trailer chassis | 730mm | Usable width of the box | 2000mm | |||
main frame material | Steel square tube | Host Specifications | 50mm x 70mm | |||
beam material | Steel square tube | Beam Specifications | 50mm x 50mm | |||
Carlin Material | Steel square tube | Kaling Specifications | 40mm x 40mm | |||
Tie rod frame material | Steel square tube | Drawbar Frame Specifications | 50mm x 100mm | |||
surface treatment | HDG (Hot Dip Galvanized) with Paint | |||||
Trailer Chassis Color/Finish | black/blue/yellow/white | Other Trailer Chassis Colors/Finishes | optional | |||
Axle and Suspension Specifications | ||||||
axis number | 1 | Axle Type | drop shaft | |||
Shaft capacity | 1500Kgs/axis | total shaft capacity | 1500kg | |||
Suspension Type | hanging suspension | Leaf spring number | 7th floor | |||
Tire and Brake System Specifications | ||||||

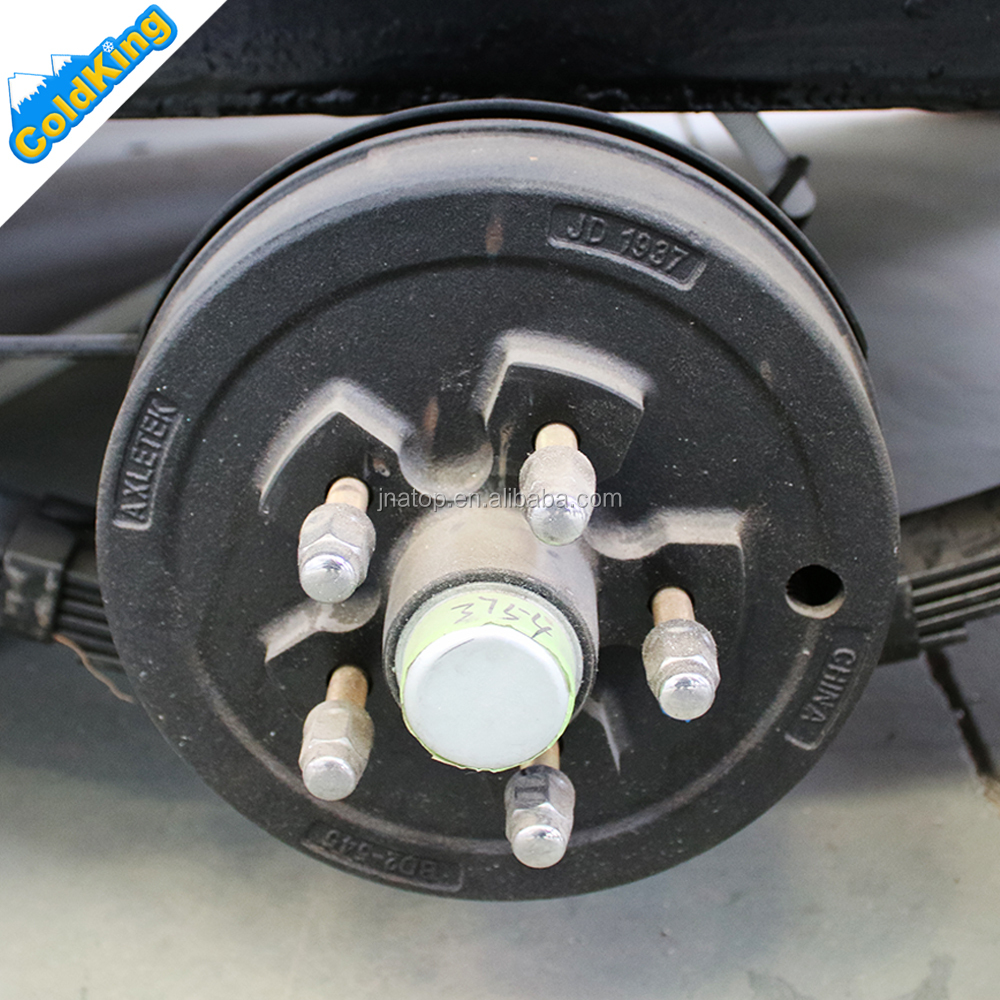

fetal | ST205/75R14 | Tire diameter/section width | 664mm/205mm | |||
hub | 10 inches | Rim size | 14 inches | |||

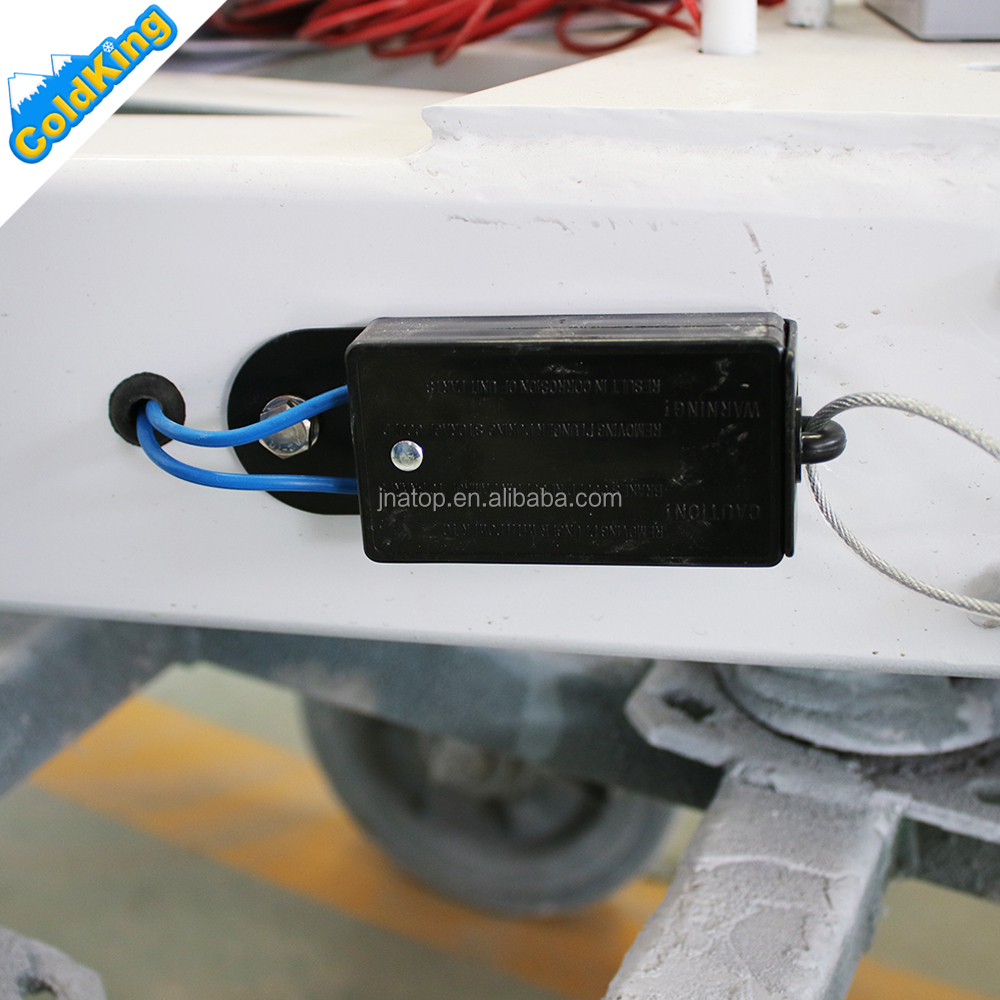

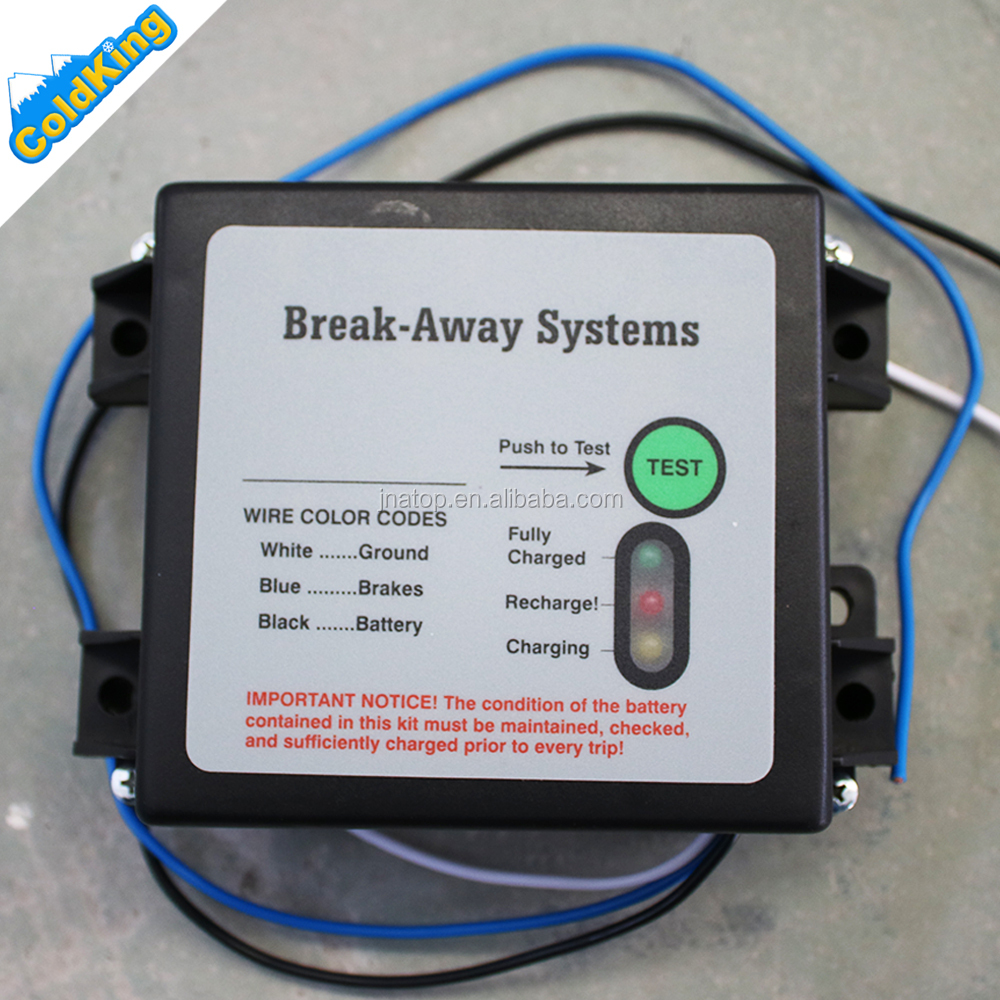

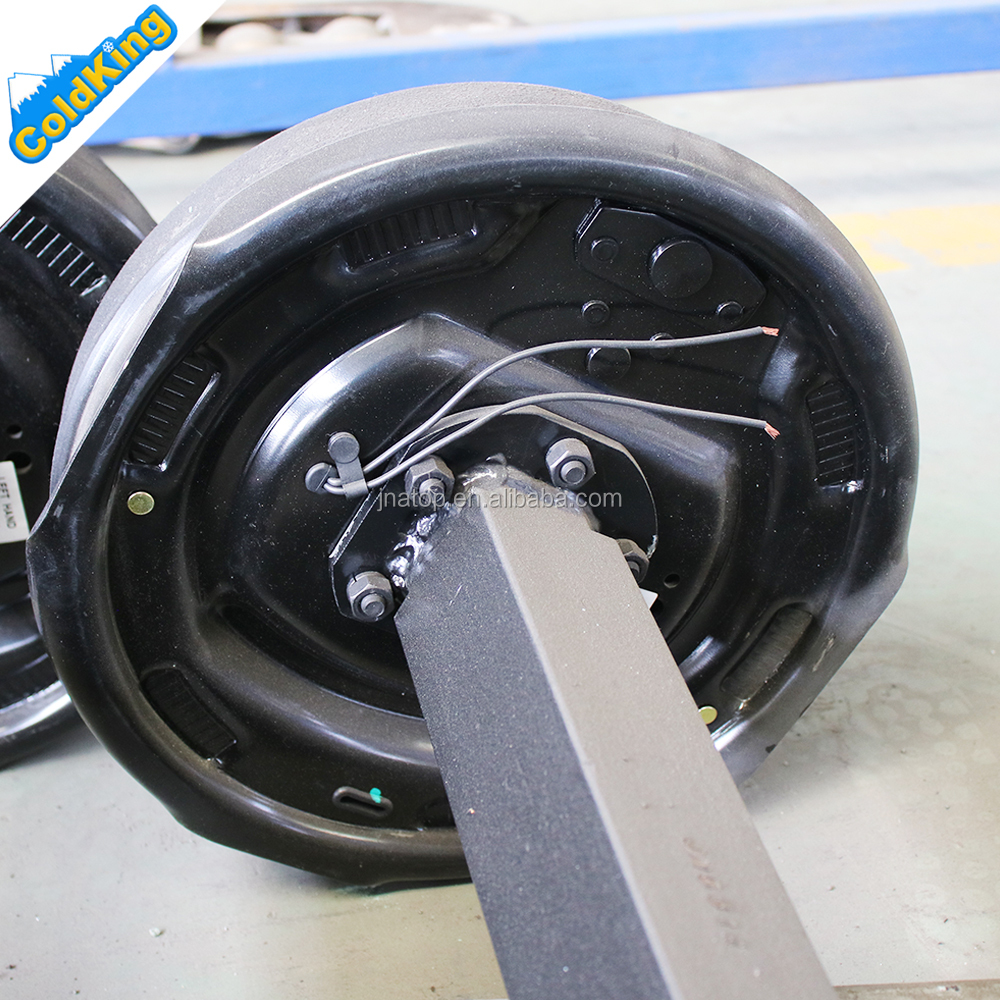

Braking System | Electric Magic Brake System with 4.5Ah Battery Powered Emergency Brake Protector | Refrigeration unit voltage | 110-240V/1 phase | |||
Lighting system | ||||||
Lamp Type | lead | Lighting system | 12V/24V | |||
Tail Lights/Brake Lights | 2 red LED lights | Lighting System Certification | Point/CE | |||
rear turn signal lights | 2 amber LED lights | Refrigeration unit voltage | 110-240V/1 phase | |||
license plate light | 1 white LED light | Rear identification (ID) light | 1 red LED light | |||
fender marker lights | 2 white/red LED lights | Lighting harness | 7-pin plug harness | |||
Traction system configuration | ||||||
coupler | Straight Pipe Mount/A Frame Mount | Tie rod type | a frame | |||
Ball size | other | Tongue | 2" tube | |||
Trailer Jack Type | Side/Top Wing Rear Jacks | Trailer jack installation location | Side/Centerline | |||
trailer jack feet | Roller/sand feet | safety chain | G70, Froged Latch Hook | |||
