300kg light pipe welding positioner / welding rotator / welding positioner rotator
- $1100.00 /set
- 1 set
- Jinan North Equipment Co., Ltd.
- Shandong, China
- Ms Maggie Ning
Hyperdimensional: | 500*500*510mm | spinning speed: | 0.3-2.5rpm |
Weight (kg): | 70 kg | Single package size: | 50X50X50 cm |
type: | Welding positioner | Rated eccentricity: | 150mm |

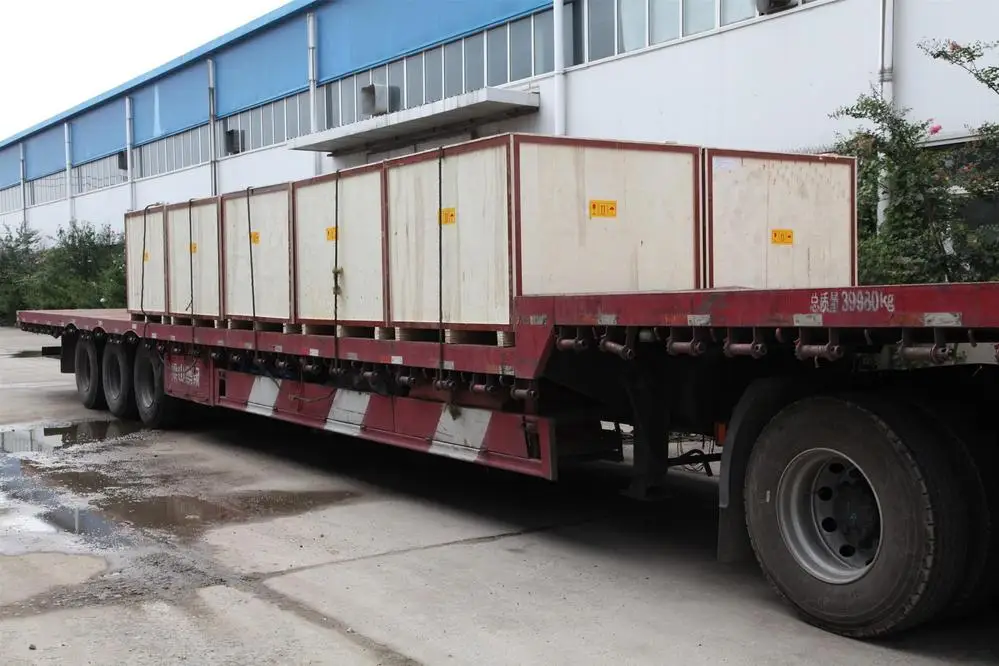

weight: | 65 kg | Packaging Details: | Fumigation wooden box |
usage: | welding | Tilt mode: | manual drive |
Main selling points: | Sustainable | Health status: | new |
Gross weight per piece: | 68.000 kg | Origin: | Shandong China |
Showroom location: | not any | weight: | 32 kg |
Core components: | gearbox, motor | Capacity (horizontal/vertical): | 300kg/150kg |
Mechanical test report: | if | Core component warranty: | 1 year |
Warranty: | 1 year | Applicable industries: | other |
Rotating motor: | 200W | Sales unit: | single product |
aspect: | 500*500*510mm | brand: | Nath |
Table size: | 450mm | Video shipment inspection: | if |
Marketing Type: | normal product | input power: | AC220V 50/60Hz |
Kind tips:
1. You can choose fixed type or lifting type.
2. The welding positioner can realize 0-120 degree tilt and 360 degree rotation through VFD control.
3. The standard voltage is 220V, 50HZ, 3PH. Please let us know other voltages.
4.Controlled remote control box, optional foot switch
5. If customers need more special requirements, we can study with our engineers.
No. |
Model |
unit |
BY-300 |
1 |
power input |
/ |
220V 50/60Hz |
2 |
Horizontal carrying capacity |
Kilogram |
300 |
3 |
vertical load capacity |
Kilogram |
150 |
4 |
Table diameter (D) |
mm |
450 |
5 |
Work surface height |
mm |
600 |
6 |
Table tilt angle |
/ |
0-90° |
7 |
Table speed |
rpm |
0.3-2.5 |
8 |
rotating electrical machine |
W |
120 |
9 |
full length (A) |
mm |
600 |
10 |
Overall width (B) |
mm |
530 |
11 |
Overall height (C) |
mm |
600 |
12 |
Tilt center to ground (G) |
mm |
456 |
13 |
cable terminal |
/ |
30-50mm2 |
14 |
net weight |
Kilogram |
60 |
15 |
Applicable Chuck |
/ |
D-200.D-300,D-400 |
16 |
Package Size |
mm |
765×500×625 |
17 |
package weight |
Kilogram |
75 |
Product Details:

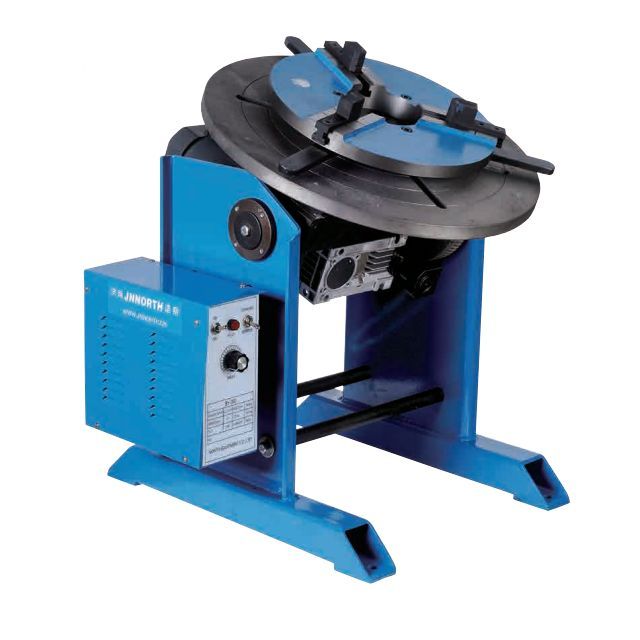

The name of this product is welding positioner, rotary welding table, welding turntable.
1. The welding positioner is composed of a worktable rotation and turning mechanism.
2. Flip and Flip Through the lifting of the worktable, the workpiece can reach a reasonable welding and installation angle. The flipping of the worktable is frequency-converted, and a satisfactory welding speed can be obtained.
3. Due to the relationship between eccentricity and center of gravity, large models should be selected for workpieces that are long and eccentric to the center of gravity. We can provide your ideas.
thisworkpiece
Competitive Advantage:
1. The electrical control system is composed of an electrical cabinet and a manual control panel, which is easy to operate.
2. Equipped with a slewing bearing to increase the carrying capacity and ensure stable rotation.
3. The table is manufactured with six M30T bolt slots for clamping and positioning the workpiece.
4. Multiple concentric grooves are processed on the surface of the worktable to facilitate the centering of the workpiece.
The 300kg welding positioner welding roller frame is mainly used for medium-sized shafts, discs, circles, discs, flipping, and back transposition to obtain the required processing position and welding speed. The automatic welding center component is often used in conjunction with welding robots, welding manipulators, welding power supplies and other equipment; it can be used not only for semi-automatic welding and fully automatic welding, but also for deformed girth weld welding occasions such as manual welding, assembly, and parts repair.
