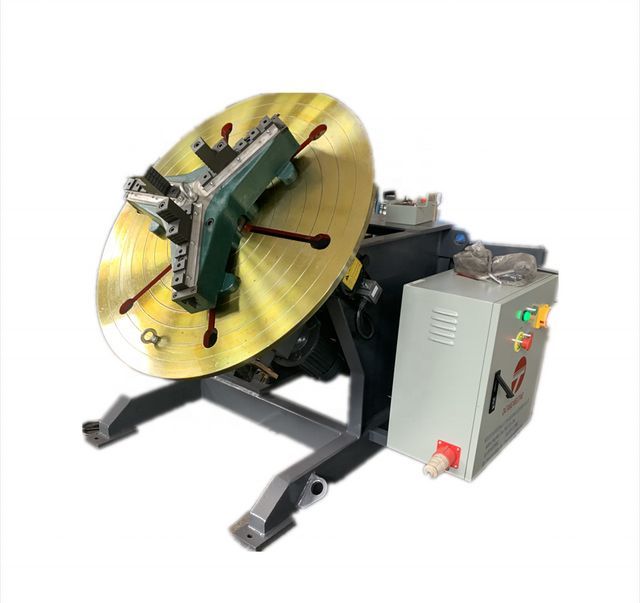

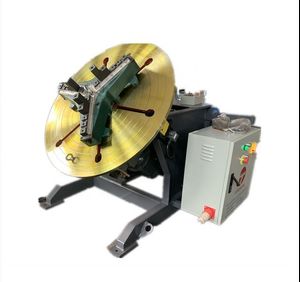

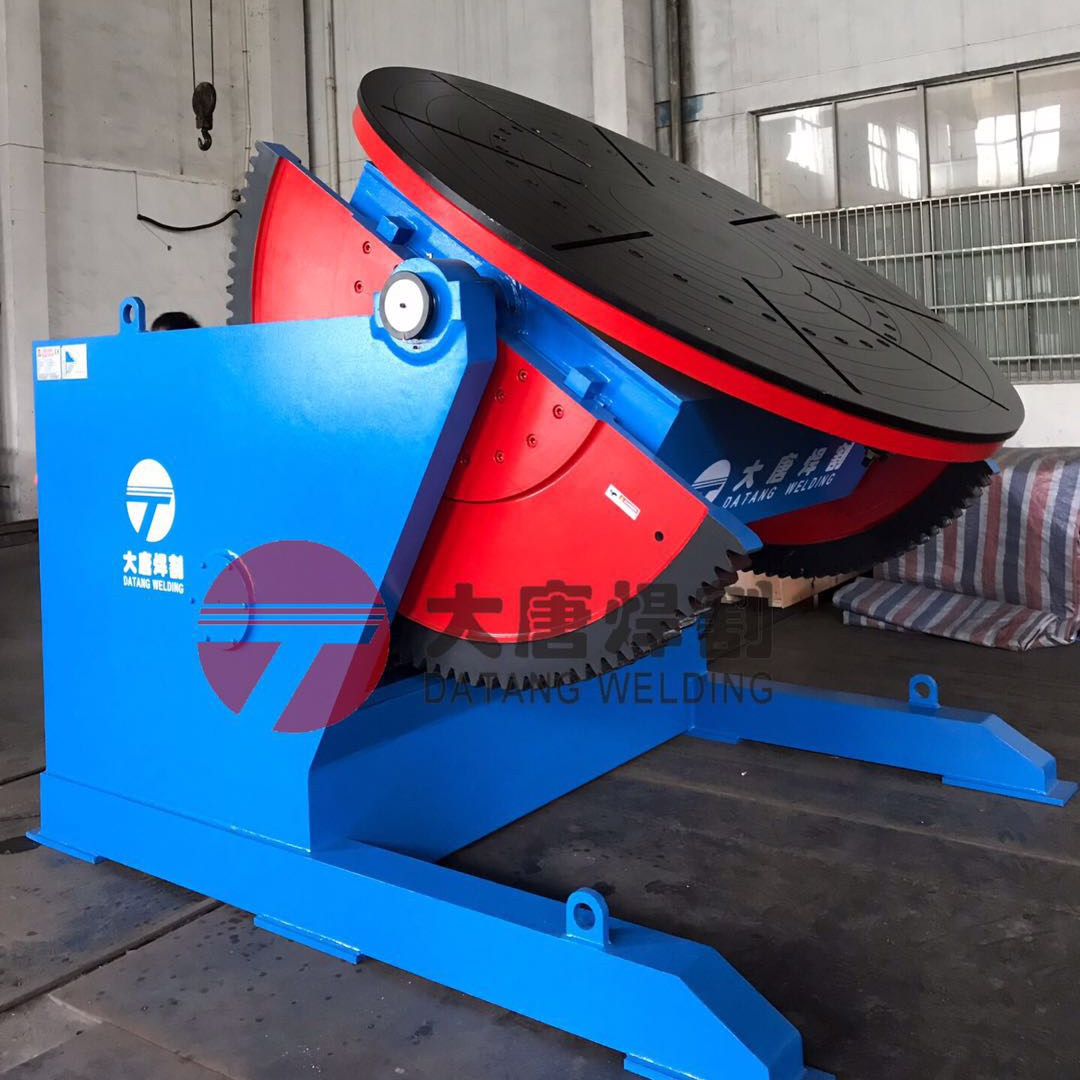

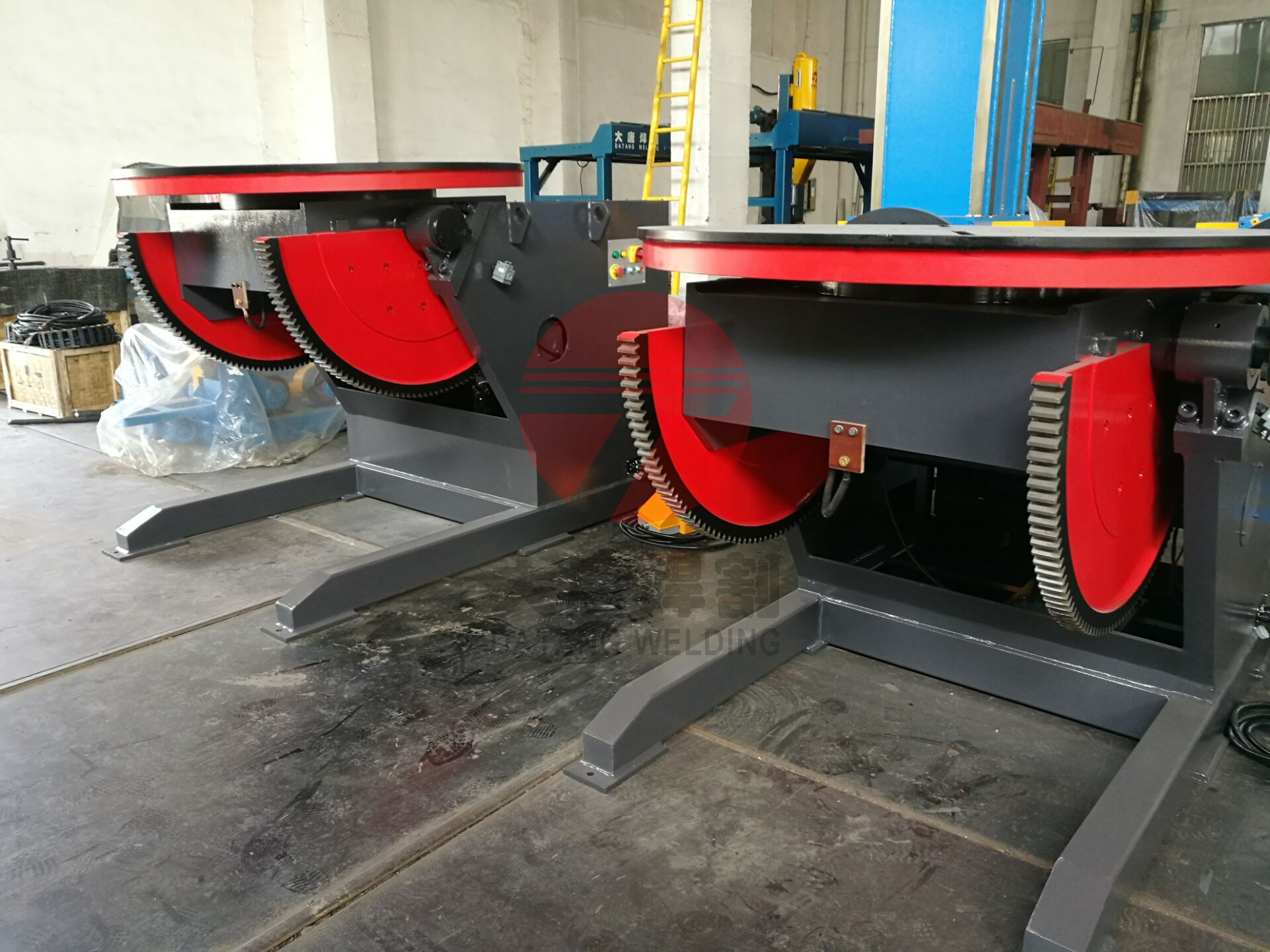

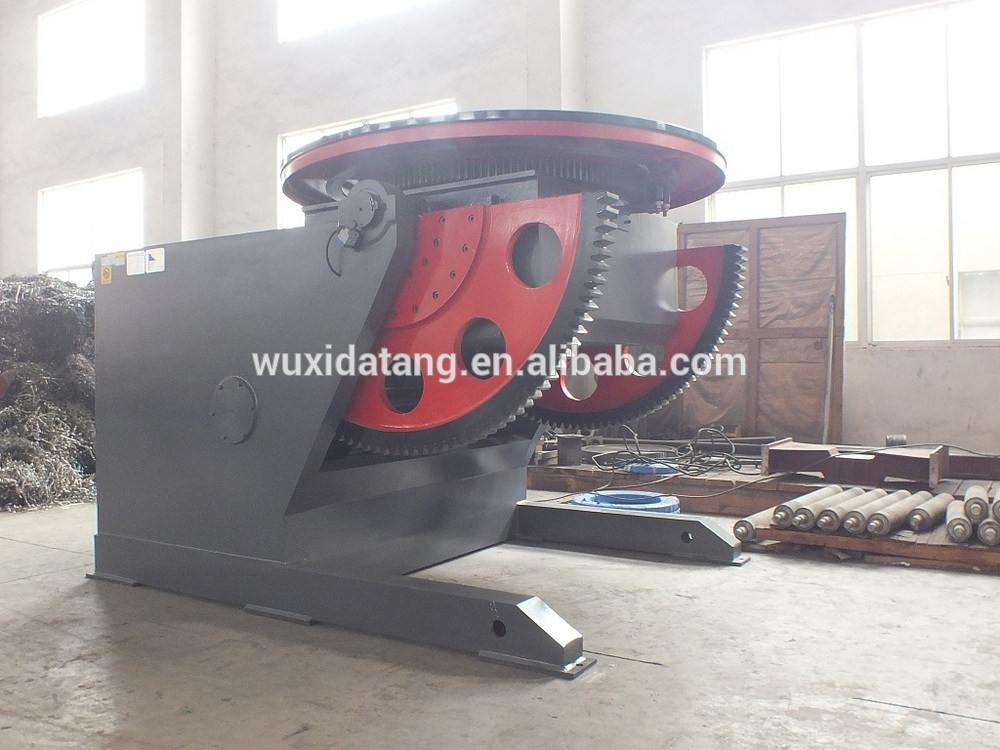

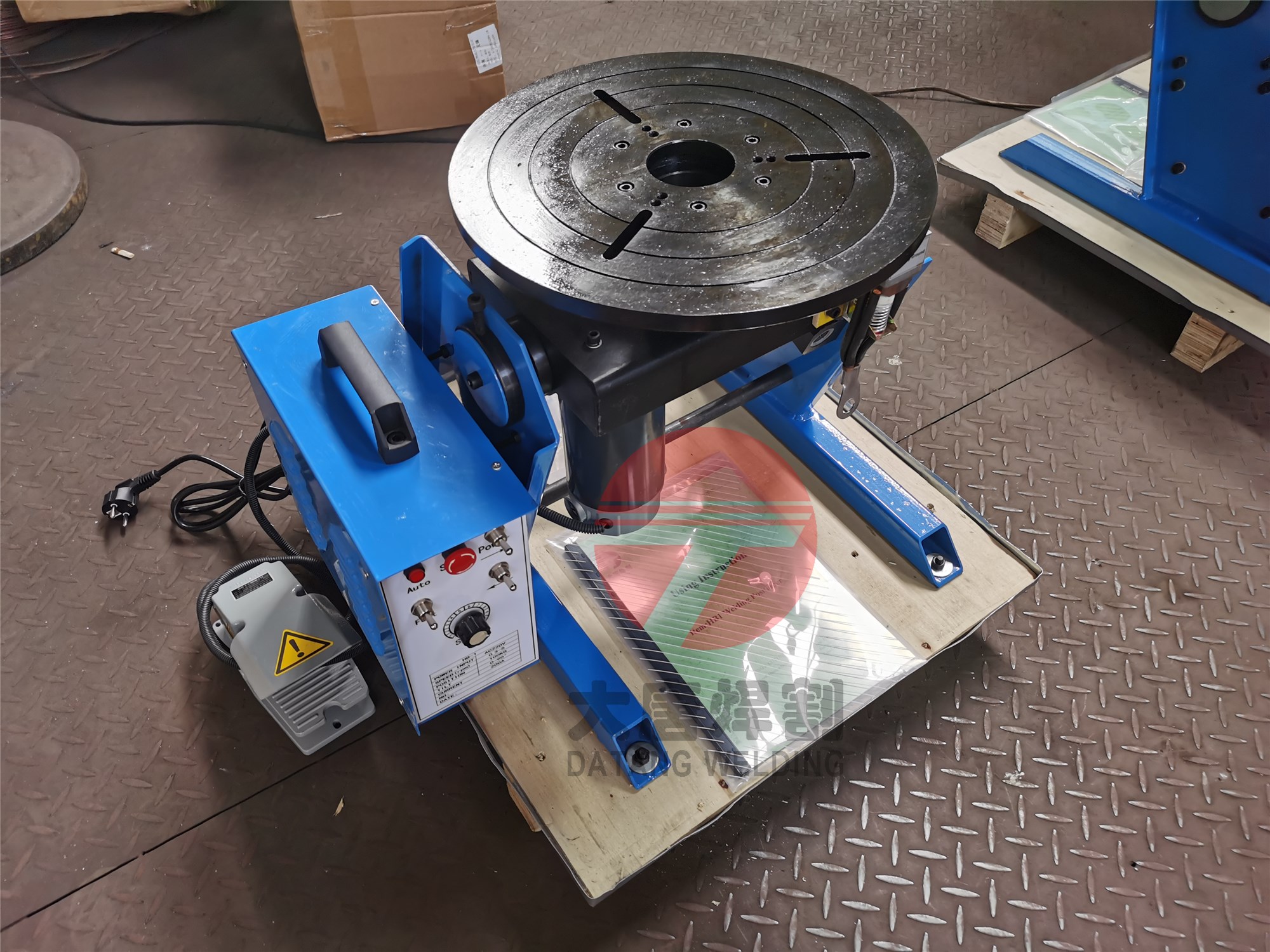

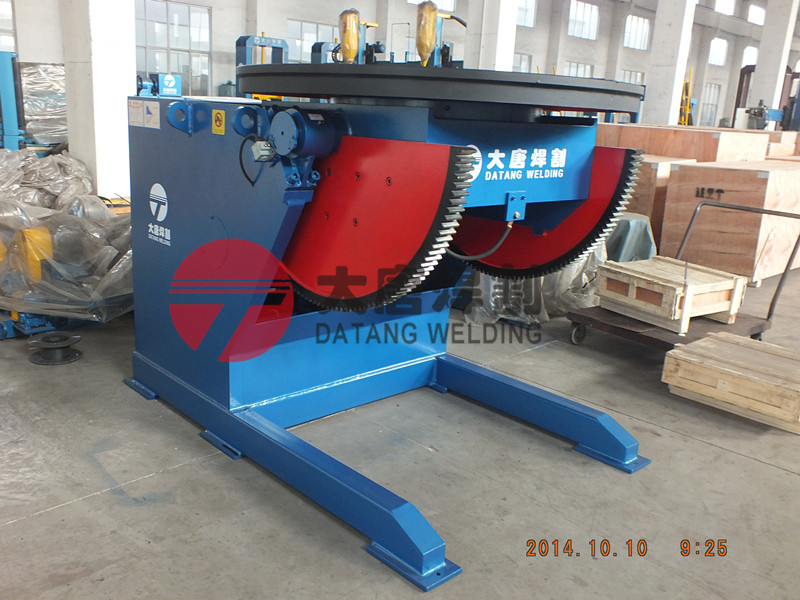

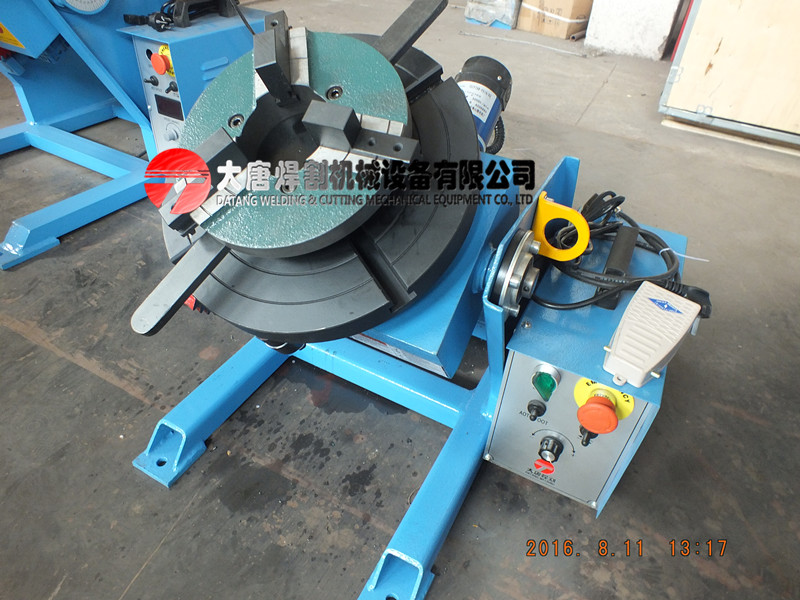

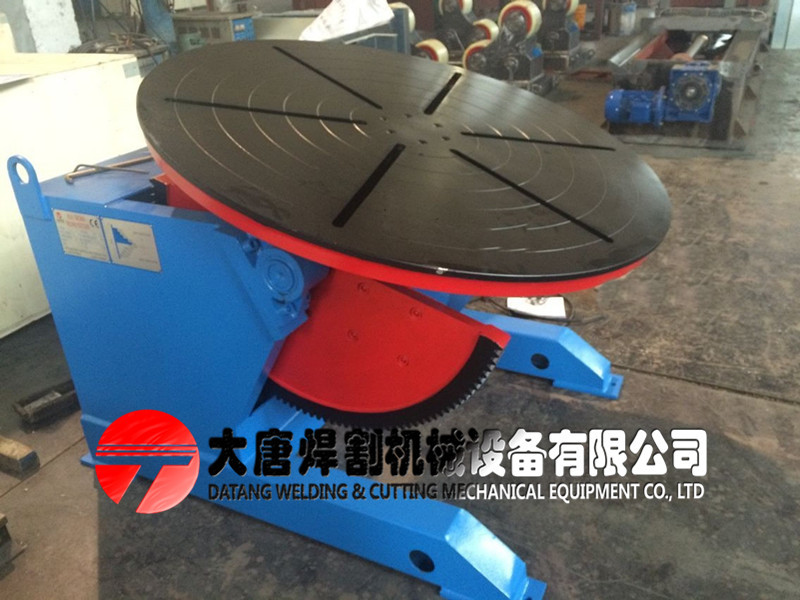

DATANG HB Turntable Welding Positioners
- $2000.00 /set
- 1 set
- Wuxi Datang Welding & Cutting Mechanical Equipment Co., Ltd.
- Jiangsu, China
- Ms Cherry zhou
PRODUCT DETAIL
Weight (kg): | 2000 kg | Showroom location: | Canada, Germany, Russia, UAE |
Packaging Details: | Wooden box size depends on the machine | design: | We can make special welding positioners according to customers' requirements |
port: | Shanghai | Main selling points: | automatic |
After Warranty Service: | Video technical support | Origin: | Jiangsu, China |
Mechanical test report: | if | payment terms: | L/C, T/T |
Package preview: | Applicable industries: | Manufacturing plant, metal welding | |
Supply capacity: | 30 sets per month | weight: | standard |
Health status: | new | Marketing Type: | normal product |
After-sales service provided: | Engineers available to repair machinery overseas | usage: | welding |
Core component warranty: | 1 year | Video outbound inspection: | if |
Core components: | engine | aspect: | standard |
type: | Welding positioner | brand: | Datang |
Warranty: | 1 year | color: | blue, red, black |

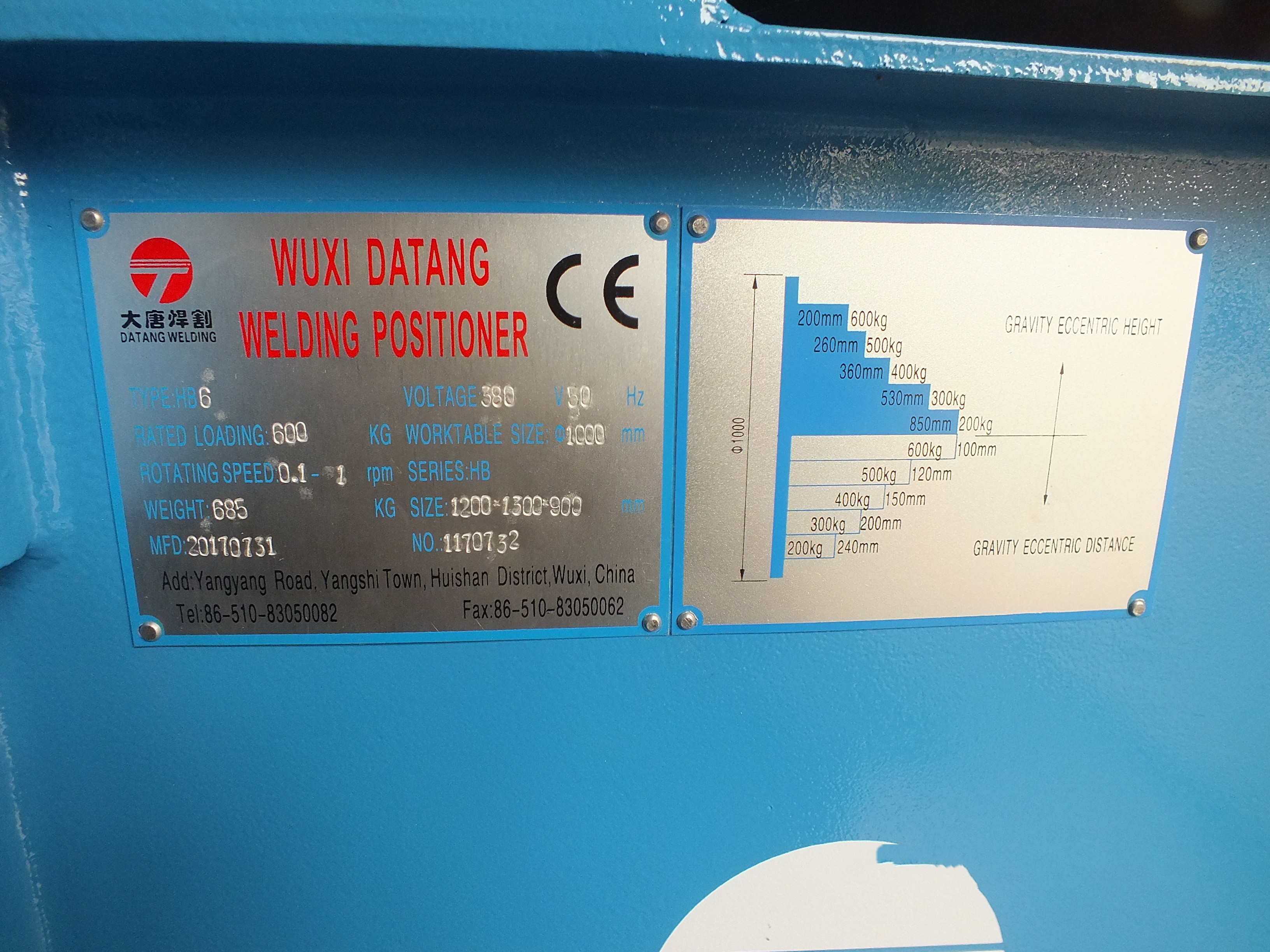

Technical Parameters | Model | ||||||||||||||||
HB05 | HB1 | HB3 | HB6 | HB12 | HB30 | HB50 | HB100 | HB150 | |||||||||
Rated load (Kg) | 50 | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | ||||||||
Maximum eccentricity (mm) | 50 | 100 | 200 | 200 | 250 | ||||||||||||
Maximum distance of center of gravity (mm) | 150 | 200 | 300 | 400 | 500 | ||||||||||||
Table size (mm) | Φ300 | φ400 | φ600 | φ1000 | φ1200 | φ1400 | φ1500 | φ1800 | φ2000 | ||||||||

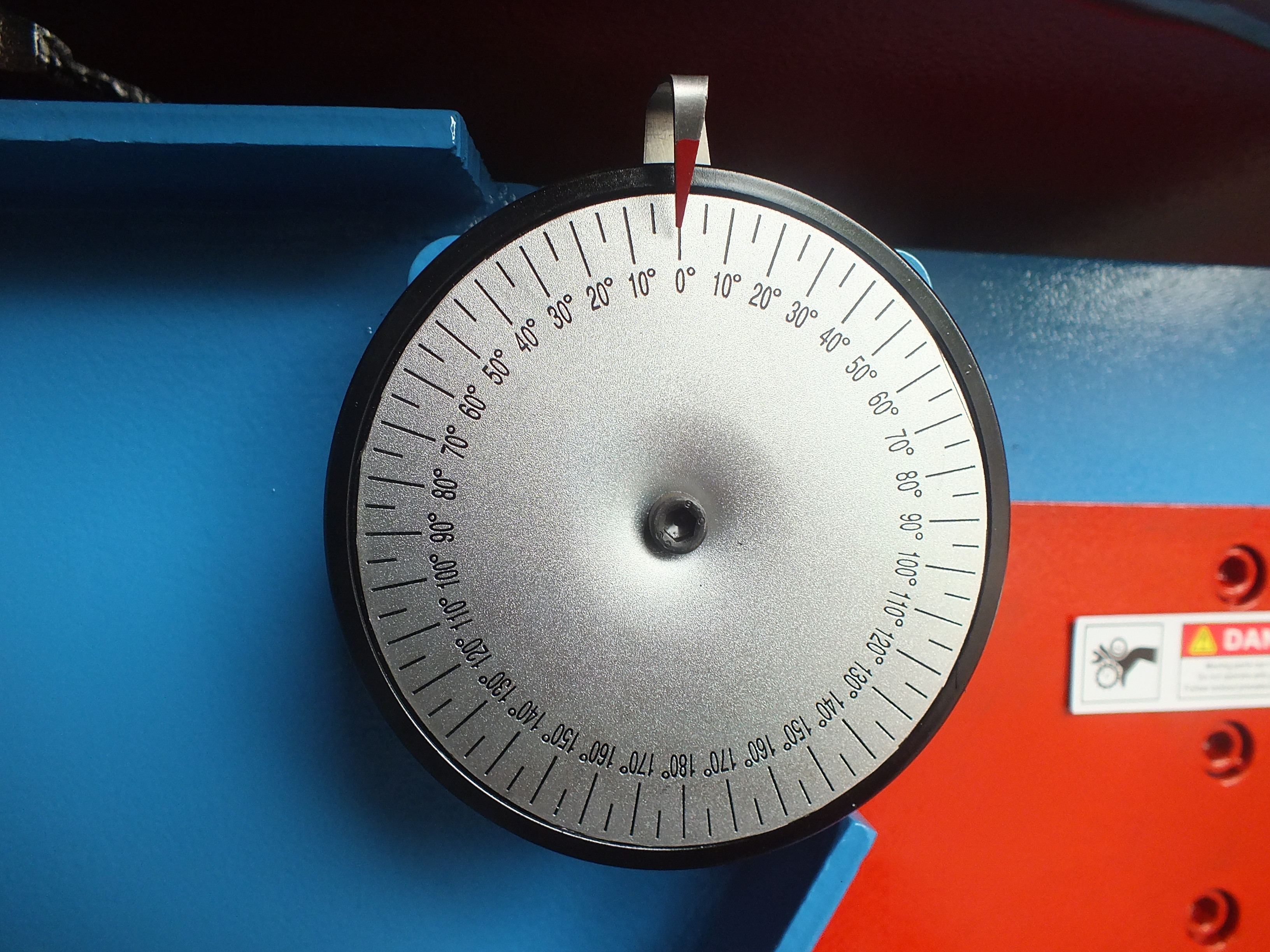

Tilt Angle (°) | 0°~+90° | 0°~+120° | |||||||||||||||
speed(rpm) | 0.4~4 | 0.12~1.2 | 0.1~1 | 0.05~0.5 | 0.03~0.3 | ||||||||||||
Rotational power (kW) | 0.09 | 0.18 | 0.18 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | ||||||||
Tilt speed(rpm) | 0.8 | 0.5 | 0.3 | 0.14 | |||||||||||||
Slope power (kW). | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | |||||||||||
Speed mode | Inverter speed | ||||||||||||||||
Tilt rate constant |
high quality.
The electrical components are all Chinese famous brand products. We have cooperated with these brands for more than 10 years. With good quality.
easy to use

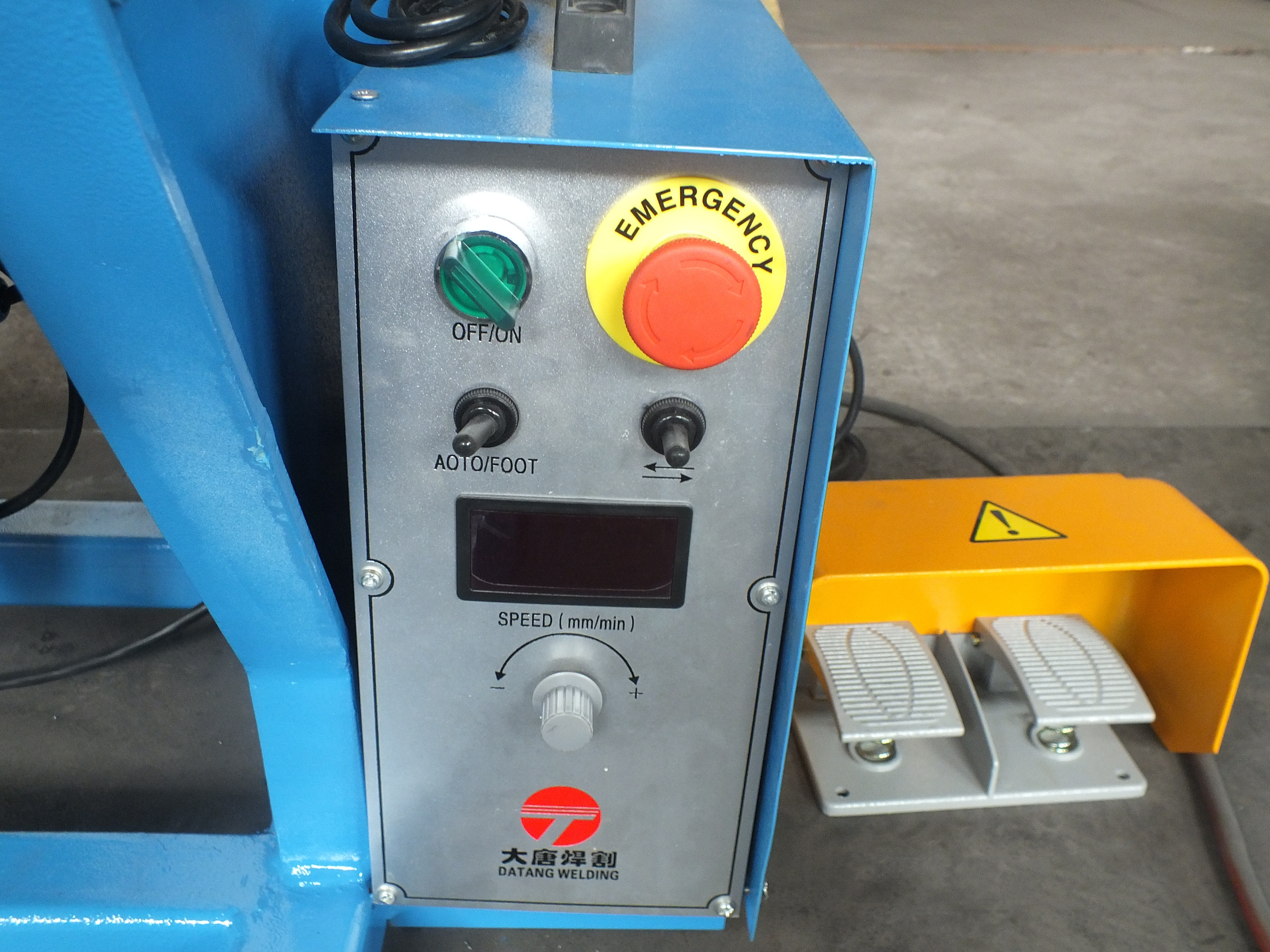

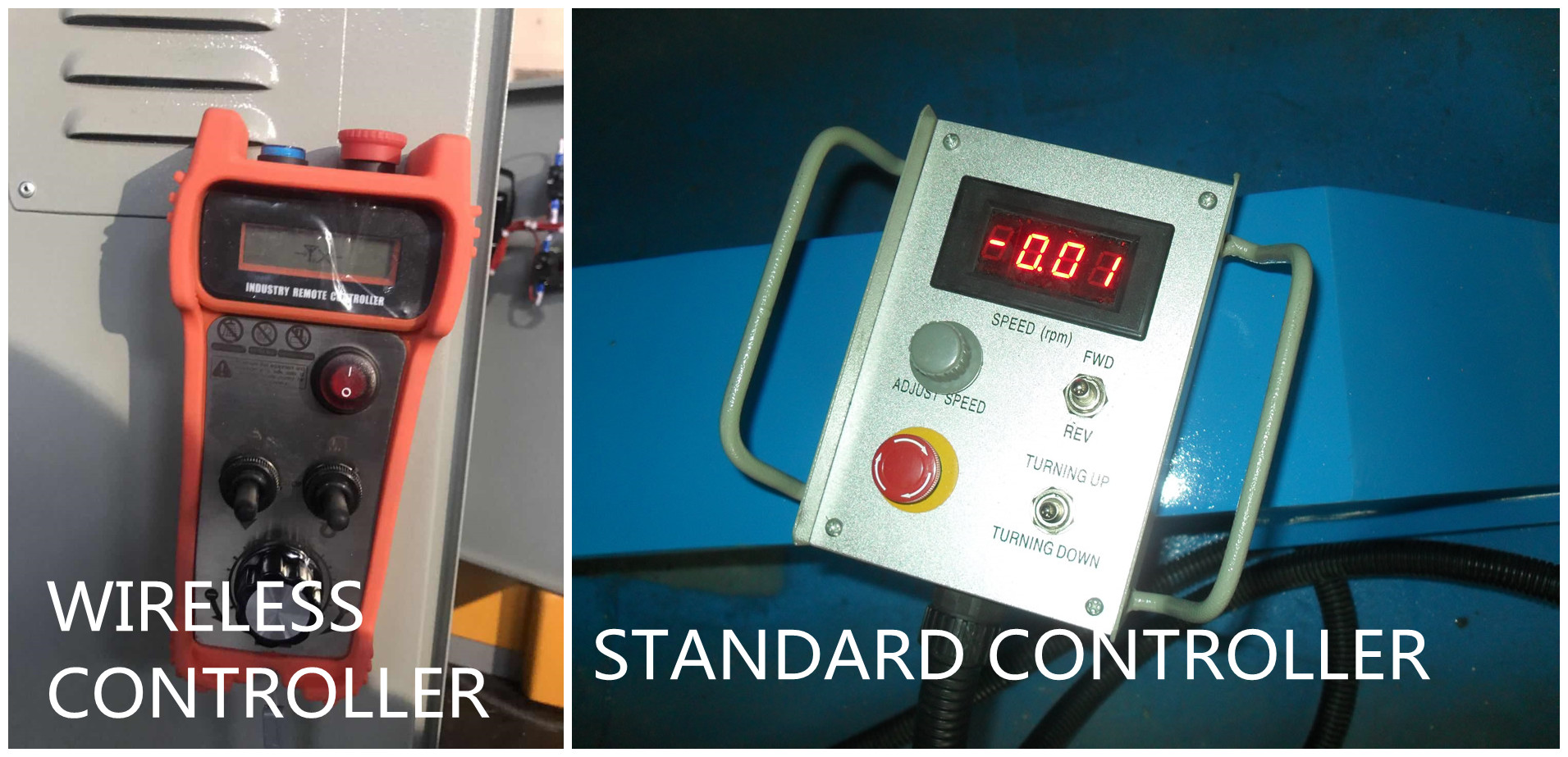

Our standard controller comes with 3m wire.
Operation is very simple. With digital display.
Wireless controller is optional, please let us know if you need it.

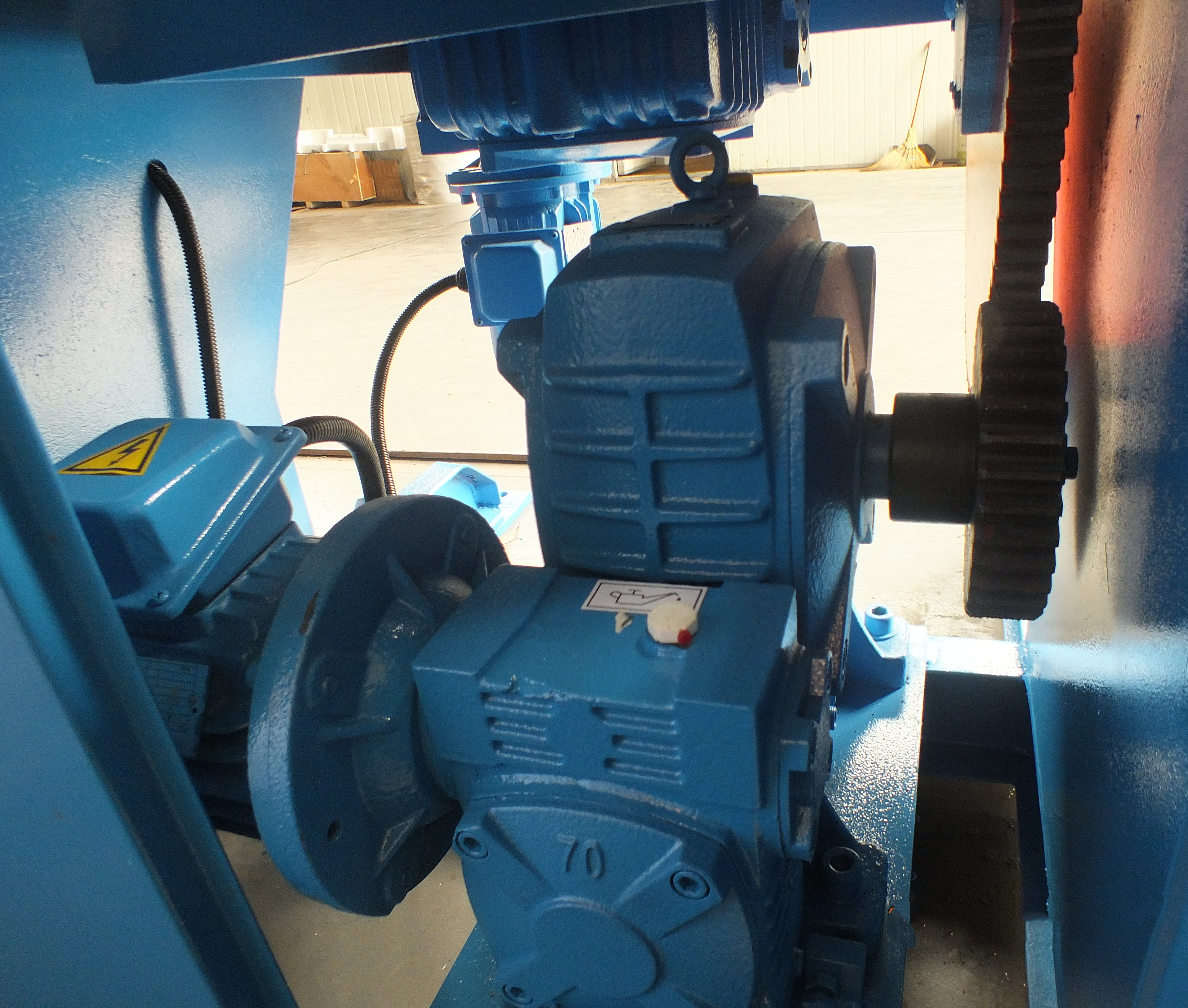

motorcycleRS and reducer are all domestic well-known brands. can alsoUse another brand. Please let us know if you need it.
The warranty period is one year, within this year, if any problem occurs, we will send you a new one for free.
