Datang DSK welding roller machine tube roller welding roller
- $2000.00 / >=3 sets
- 3 sets
- Wuxi Datang Welding & Cutting Mechanical Equipment Co., Ltd.
- Jiangsu, China
- Ms Cherry zhou
PRODUCT DETAIL
| port: | Shanghai | Warranty: | 1 year |
| Main selling point: | automatic | payment terms: | wire transfer |
| Marketing Type: | New Products 2020 | After Warranty Service: | Video technical support |
| type: | four | Packaging Details: | Pipe Welding Rotator |
| Core components: | motor | Advantage: | Easy to operate and high degree of automation |
| Core Components Warranty: | 1 year | Weight (kg): | 2000kg |
| brand: | Datang | Mechanical test report: | if |
| usage: | welding | Showroom location: | Canada, Germany, United Arab Emirates |
| Supply capacity: | 100 sets per month | Packaging Preview: | |
| Card: | also accept your brand | Health status: | new |
| Video external inspection: | if | Welded rotor: | Adjusting the Welding Spinner |
| design: | Can be designed according to your requirements | Applicable industries: | manufacturing plant, welding equipment |
| aspect: | standard | Pay: | wire transfer |
| type: | Welding Turning Rolls | Supply Capacity: | 100 sets/month |
| Detailed specifications: | See the table below | place of origin; place of origin: | Jiangsu, China |

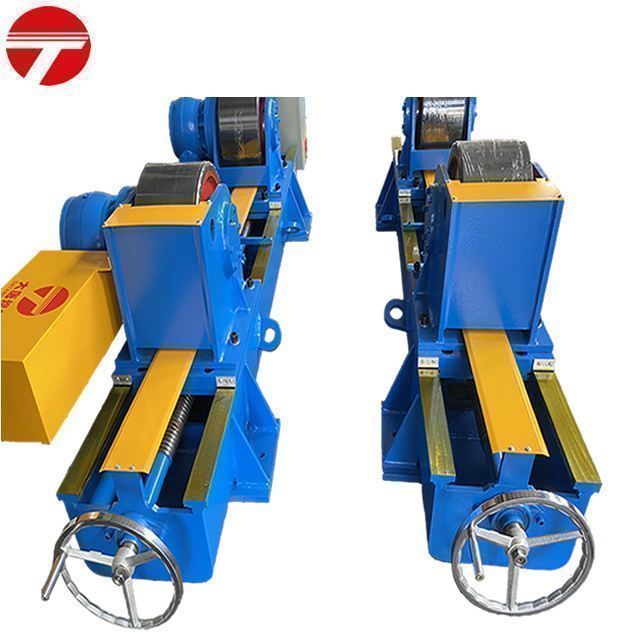

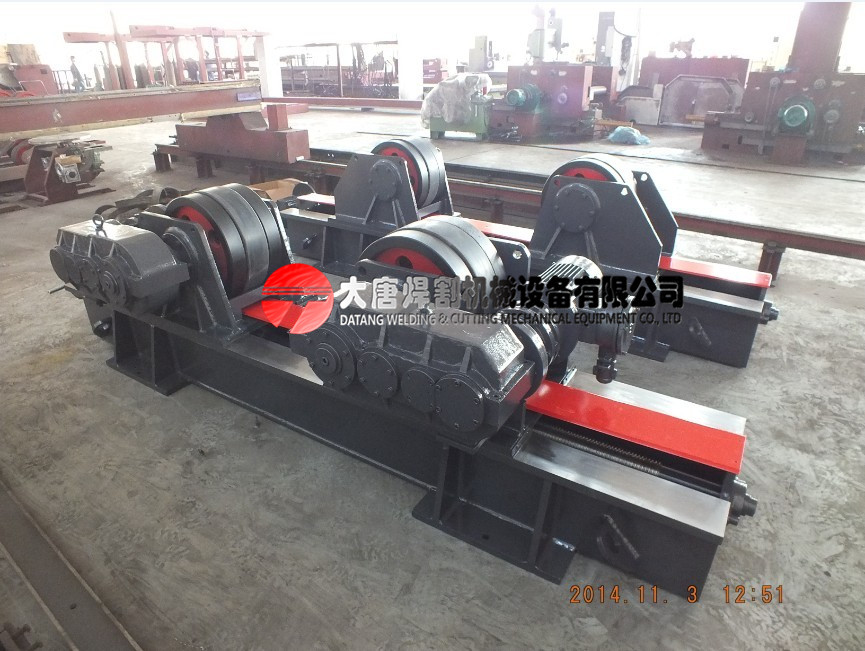

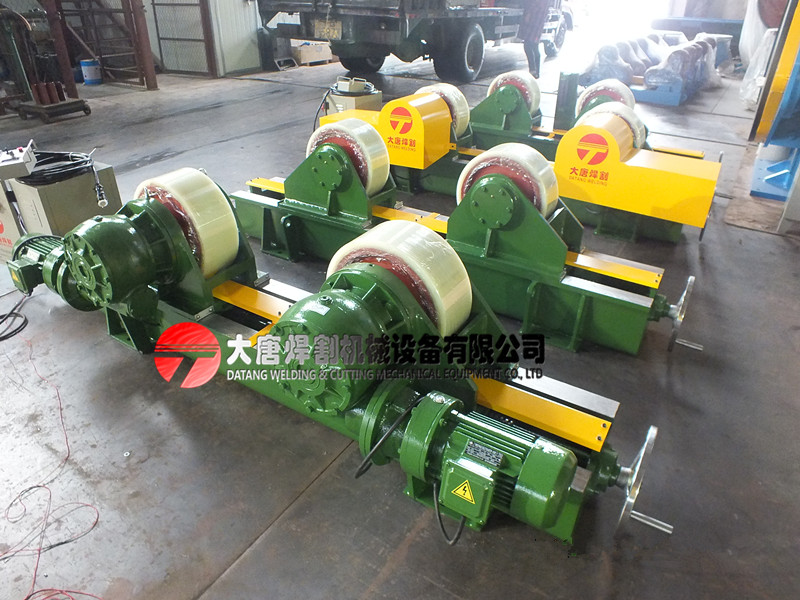

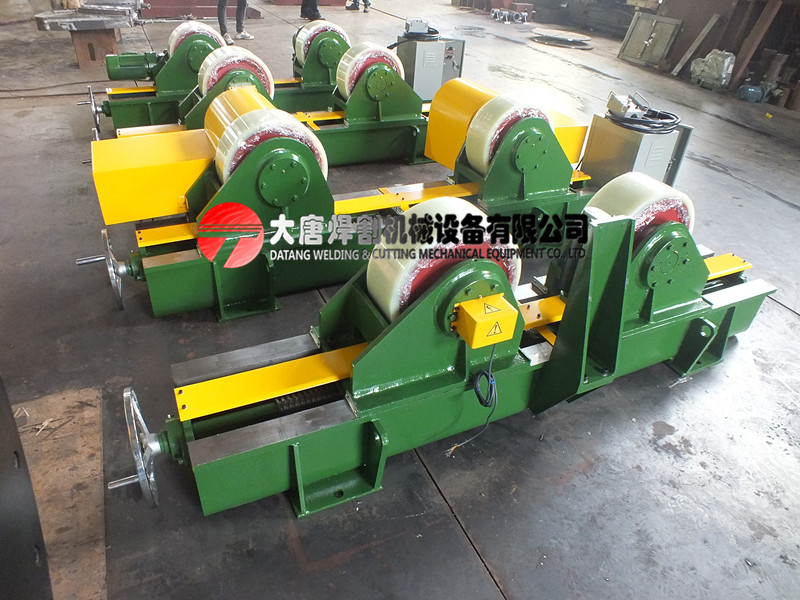

Lead screw adjustable welding rotator
The adjustable lead screw welding rotator changes the center distance by adjusting the lead screw. Adopt AC frequency converter control, wide speed range, advanced and reliable. We can also design special types of turning rolls according to customer requirements.
Model | DSK2 | DSK5 | DSK10 | DSK20 | DSK40 | DSK60 | DSK80 | DSK100 | |||||||
Unit load (T) | 2 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | |||||||
Minimum working diameter (mm) | Φ150 | φ250 | φ320 | φ500 | φ600 | φ750 | φ850 | φ1000 | |||||||
Maximum working diameter (mm) | Φ1800 | φ2300 | φ2800 | φ3500 | φ4200 | Φ4800 | φ5000 | Φ5500 | |||||||
PU wheel diameter (mm) | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | |||||||
PU wheel thickness (mm) | 80 | 140 | 170 | 200 | 200 | 180*2 | 200*2 | 220*2 | |||||||
Linear speed (m/h) | 6-60 | ||||||||||||||
Motor power (kw) | 2×0.18 | 2×0.37 | 2×0.55 | 2×0.75 | 2×1.1 | 2×1.5 | 2×2.2 | 2×3 | |||||||
Speed mode | Inverter | ||||||||||||||
easy to use

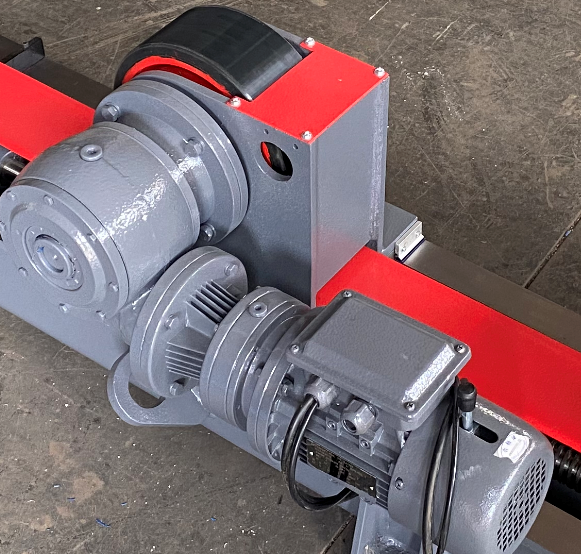

Self-adjusting steering rollers can automatically adjust the angle of the wheels as needed
Workpiece diameter.
Workpiece diameter.
Advanced and reliable

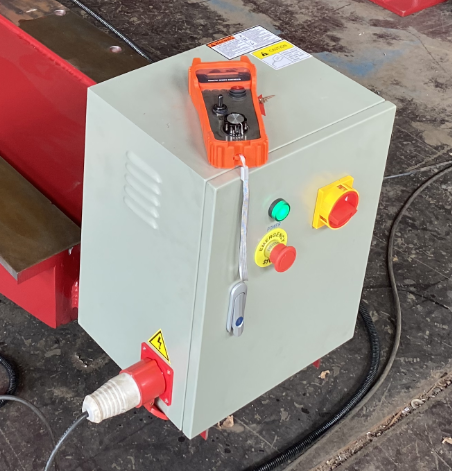

Adopt AC inverter control, digital display of line speed, advanced and reliable
We can also design special types of turning rolls according to customer requirements.
